Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

10 part groups · 3 illustrations

Illustrations

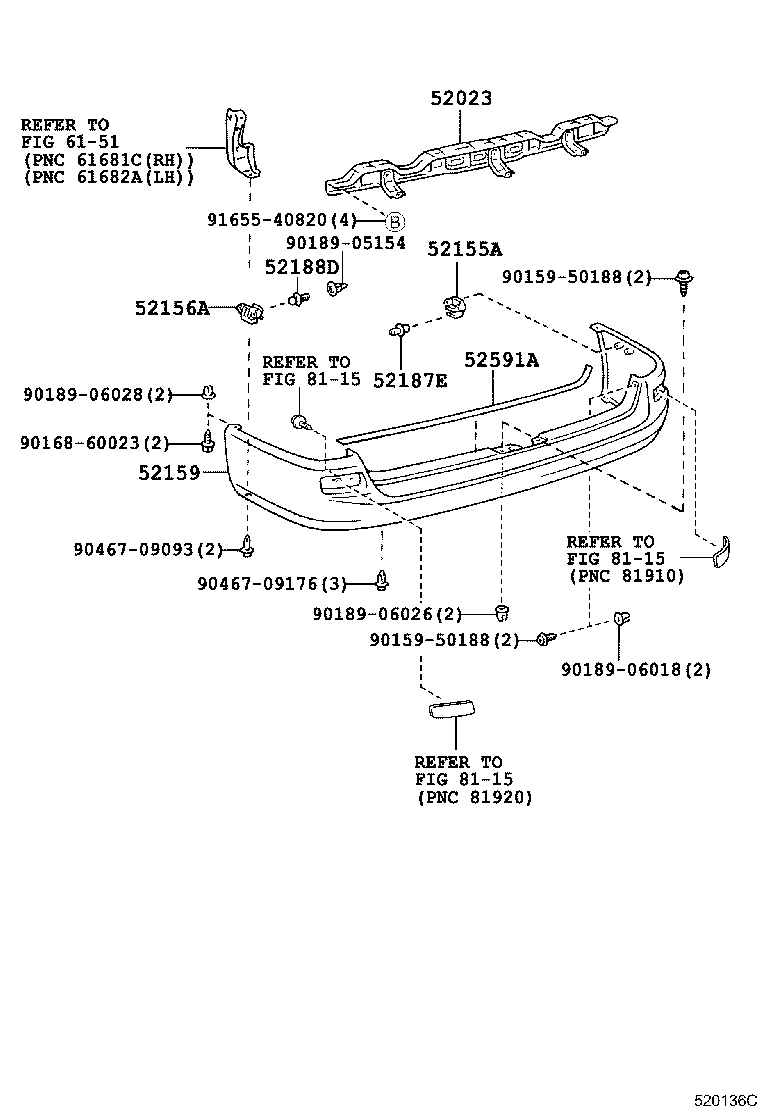

Figure 520135E 520135E 1997-04 → 1999-07 Figure 520135E 520135E 1999-07 → — Figure 520136C 520136C 1997-04 → 1999-07

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52187E Guide, Rear Bumper Location, RH
52188D Guide, Rear Bumper Location, LH
52591A Seal, Rear Bumper
52690 Roller Assy, Power Lift Guide
52691 Cover, Power Lift Guide Roller, RH
52692 Cover, Power Lift Guide Roller, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
