Toyota Regius/Touring Hiace
1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan
Discontinued model
Data version 2002-10

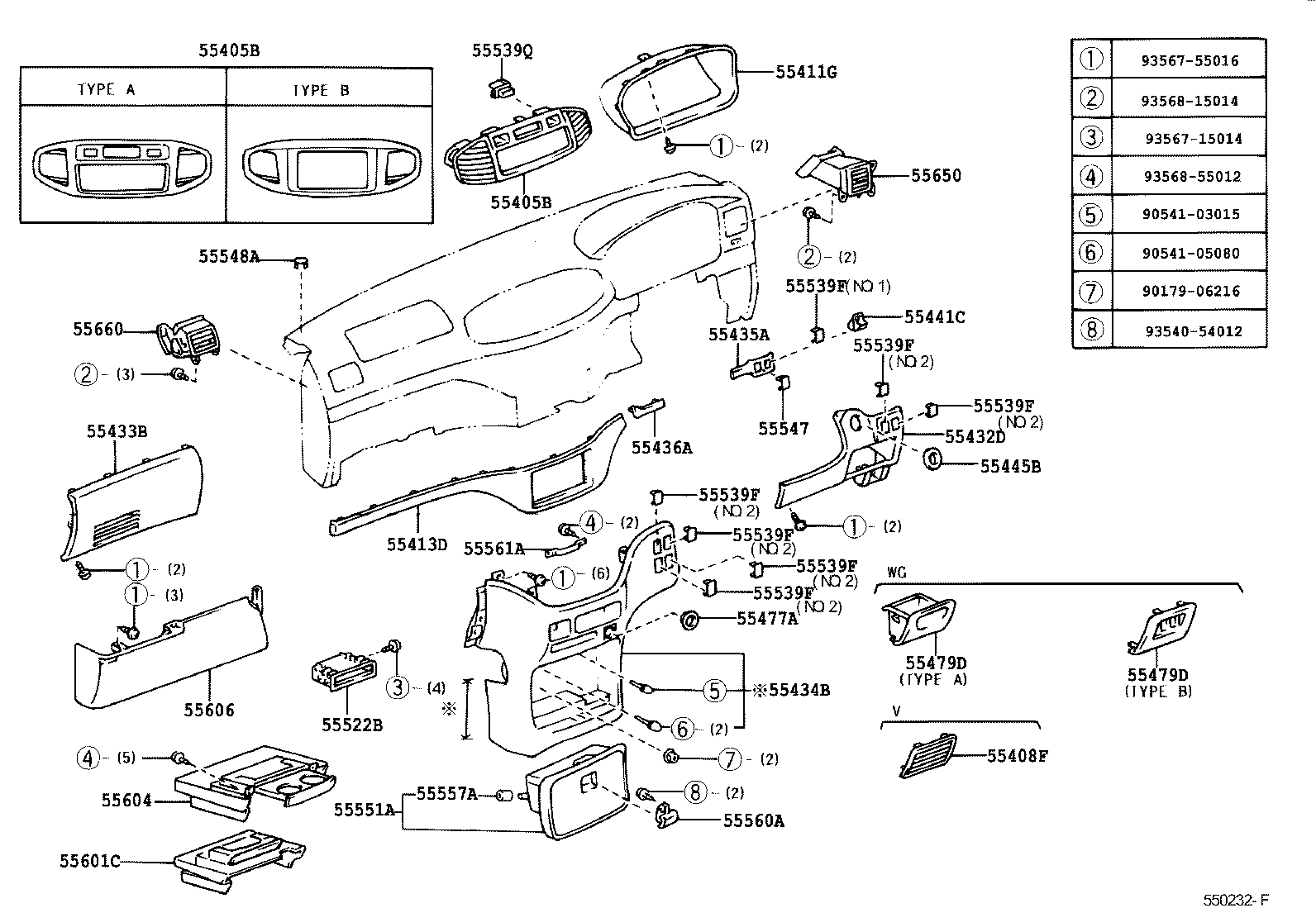

Instrument Panel & Glove Compartment
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 50540 | DO0R Assy, Airbag Passenger |
| 55041A | Bracket Sub-assy, Airbag Passenger Mounting |
| 55301 | Panel Sub-assy, Instrument |
| 55305B | Reinforcement Sub-assy, Instrument Panel, NO.1 |
| 55306C | Reinforcement Sub-assy, Instrument Panel, NO.2 |
| 55321B | Bracket, Instrument Panel, NO.1 |
| 55322A | Bracket, Instrument Panel, NO.2 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55331 | Reinforcement, Instrument Panel |
| 55334A | Reinforcement, Instrument Panel, Upper |
| 55349A | Cushion, Instrument Panel |
| 55351A | Brace, Instrument Panel TO Floor |
| 55381B | Bracket, Finish Panel Mounting, NO.1 |
| 55394B | Bolt, Instrument Panel |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55445B | Plate, Instrument Panel Finish |
| 55460C | Lock Assy, Instrument Panel Box |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55479D | Garnish, Instrument Cluster Finish Panel, Lower |
| 55522B | Cover, Radio Tuner Opening |
| 55539F | Cover, Spare Switch Hole |
| 55539Q | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55551A | Door, Glove Compartment, Outer |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55601C | Tray Sub-assy, Instrument Panel Under |
| 55604 | Panel Sub-assy, Under Tray, Inner |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55951 | Nozzle, Defroster, Front |
| 55955A | Plate, Defroster Nozzle Opening, NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
