Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10

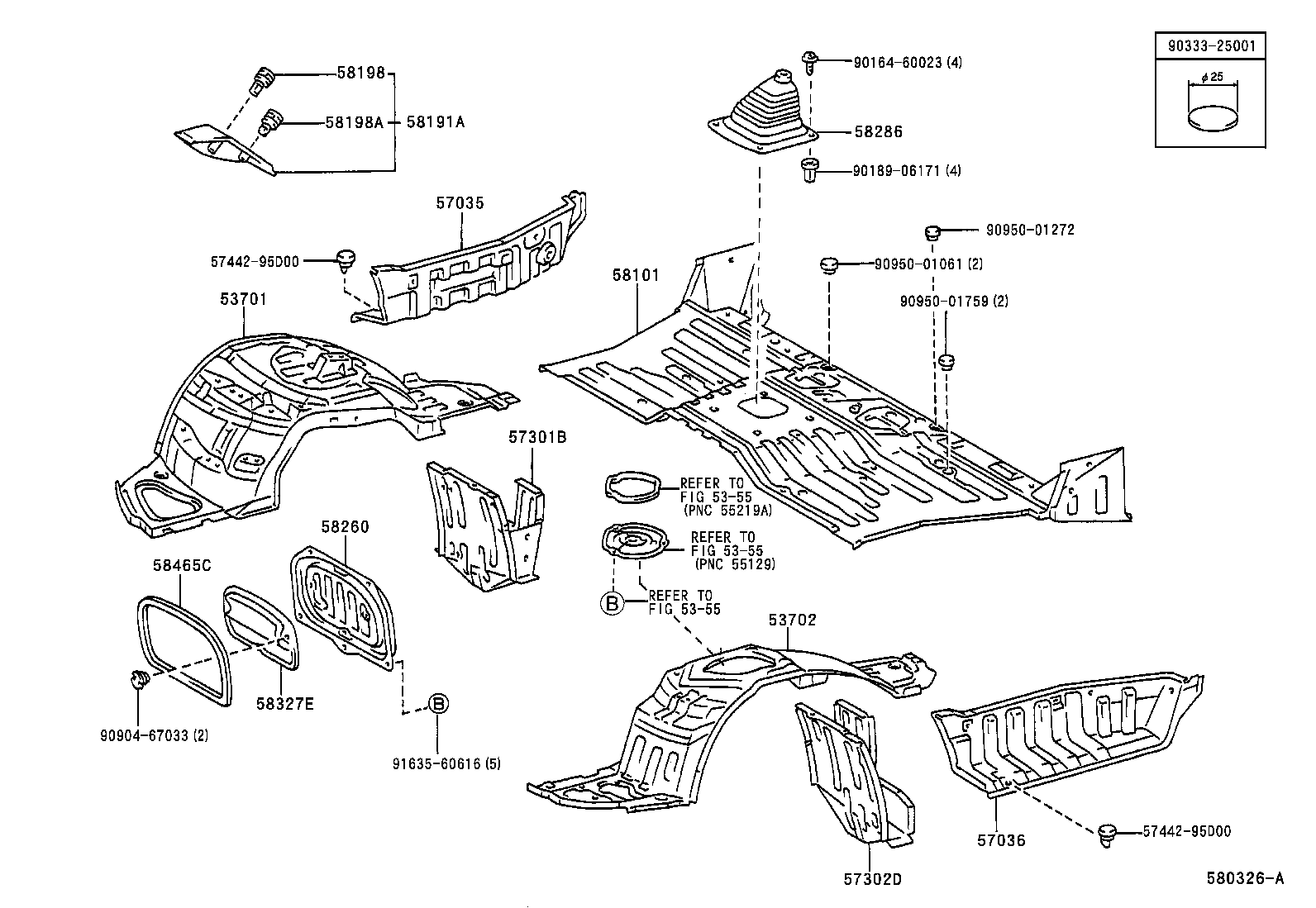

Front Floor Panel & Front Floor Member

37 part groups · 2 illustrations

PNC	Description
51152	Reinforcement, Front Frame Rail, NO.4 RH
51162A	Reinforcement, Front Frame Rail, NO.4 LH
53701	Apron Sub-assy, Front Fender, RH
53702	Apron Sub-assy, Front Fender, LH
53717C	Apron, Frpnt Fender, NO.2 RH
53718C	Apron, Front Fender, NO.2 LH
53725A	Apron, Front Fender NO.2 Side, RH
53726A	Apron, Front Fender NO.2 Side, LH
57035	Panel Sub-assy, Front Step, RH
57036	Panel Sub-assy, Front Step, LH
57101	Member Sub-assy, Front Side, RH
57102	Member Sub-assy, Front Side, LH
57104A	Member Sub-assy, Front Cross
57147	Plate, Front Side Member, Rear RH
57148	Plate, Front Side Member, Rear LH
57155	Reinforcement, Front Side Member, NO.3, RH
57156	Reinforcement, Front Side Member, NO.3, LH
57173C	Support, Front Floor Crossmember, RH
57193A	Block, Front Crossmember, NO.1
57193B	Block, Front Crossmember, NO.1
57201B	Extension Sub-assy, Front Side Member, RH
57202C	Extension Sub-assy, Front Side Member, LH
57301B	Outrigger Sub-assy, NO.1 RH
57302D	Outrigger Sub-assy, NO.1 LH
57458	Member, Front Floor Cross, NO.1
57459	Member, Front Floor Cross, NO.2
57486C	Reinforcement, Front Floor Cross, NO.2
58101	Pan Sub-assy, Front Floor
58181A	Retainer, Seat Rail, Front
58185C	Reinforcement, Floor Shift
58191A	Footrest, Front Floor, RH
58198	Clip, Footrest
58198A	Clip, Footrest, NO.1
58260	Cover Assy, Transmission, Front
58286	Boot, Shift & Select Lever, NO.1
58327E	Insulator, Transmission Service Hole Cover
58465C	Packing, Transmission Service Hole Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
