Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

40 part groups · 6 illustrations

Illustrations

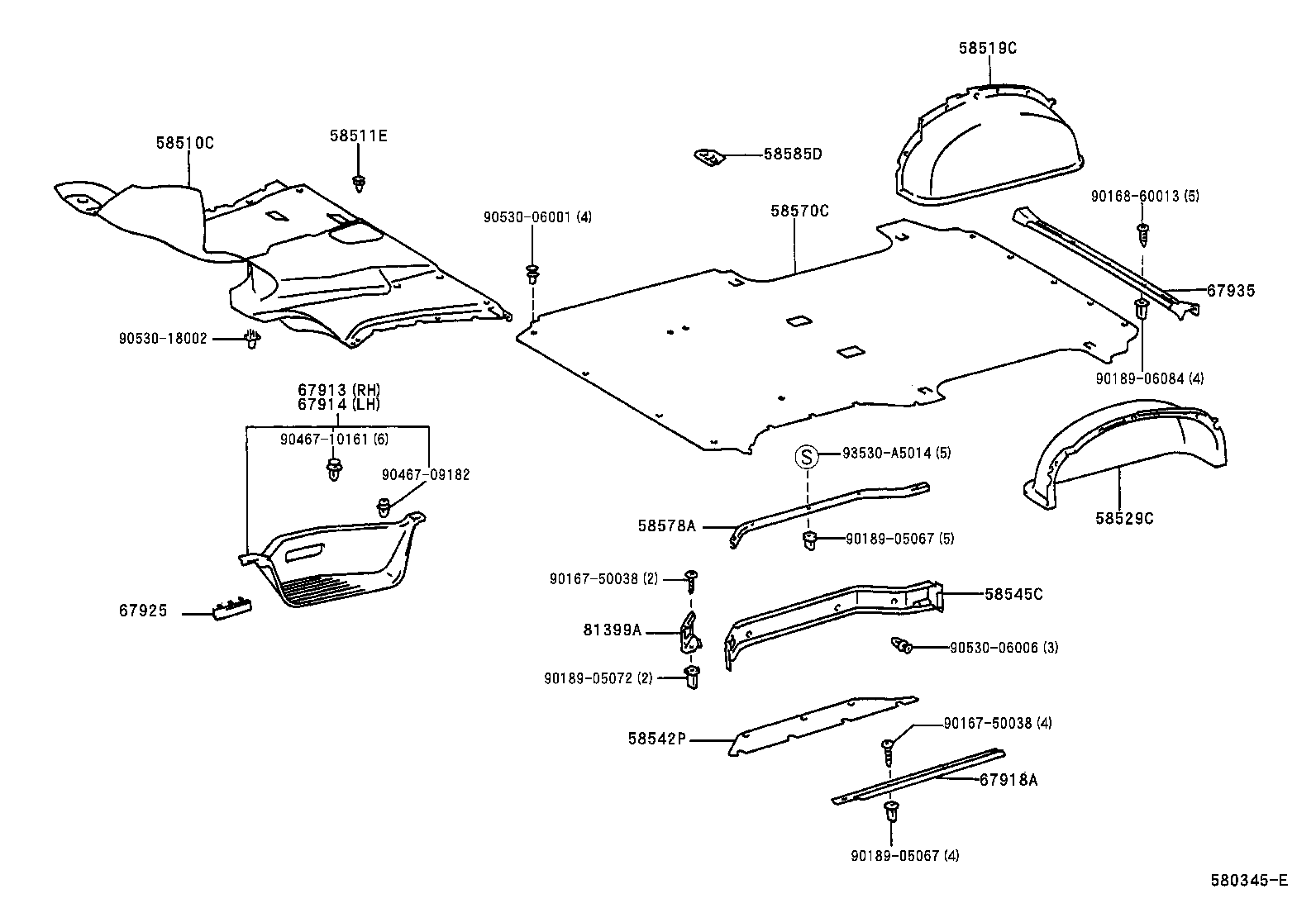

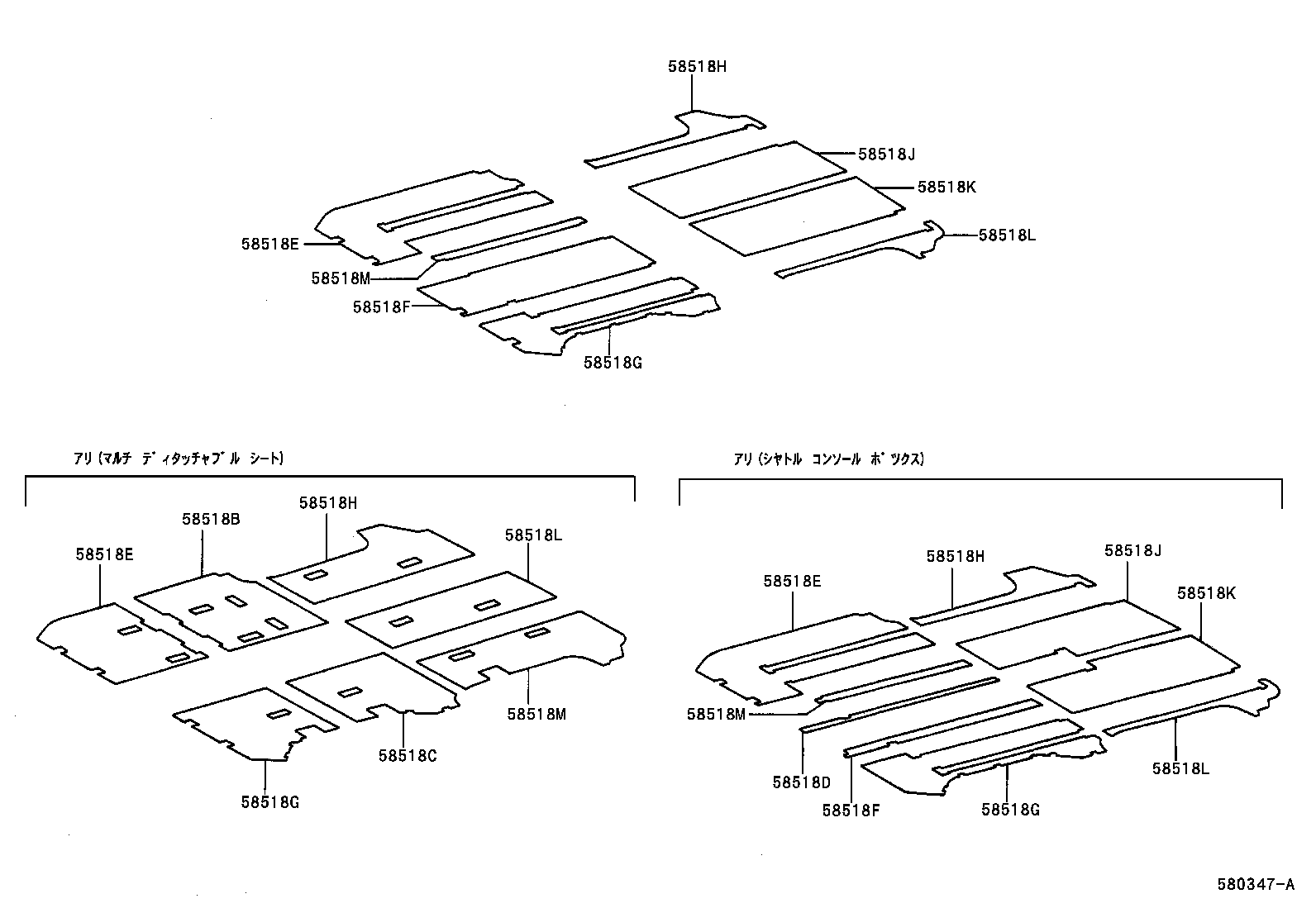

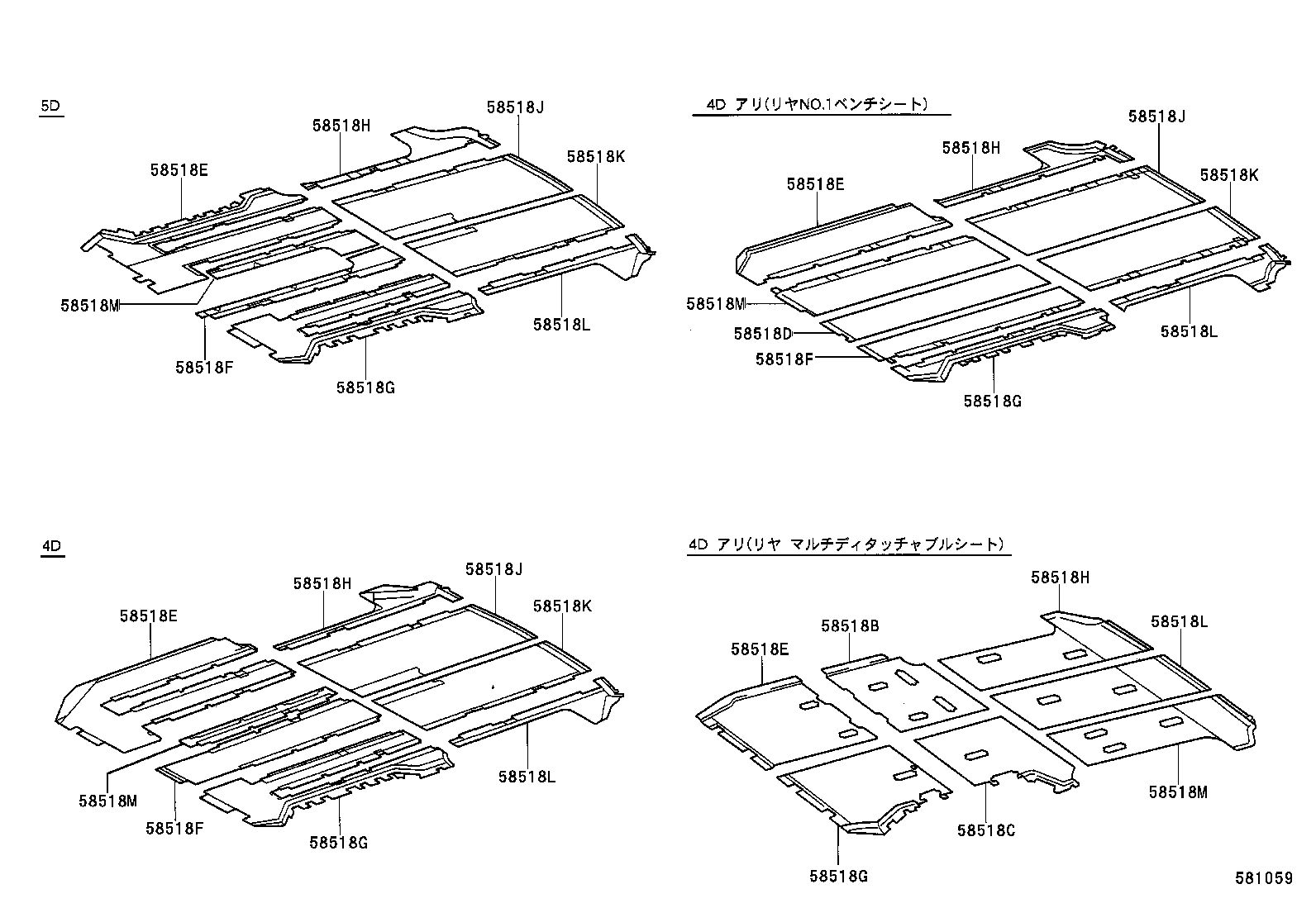

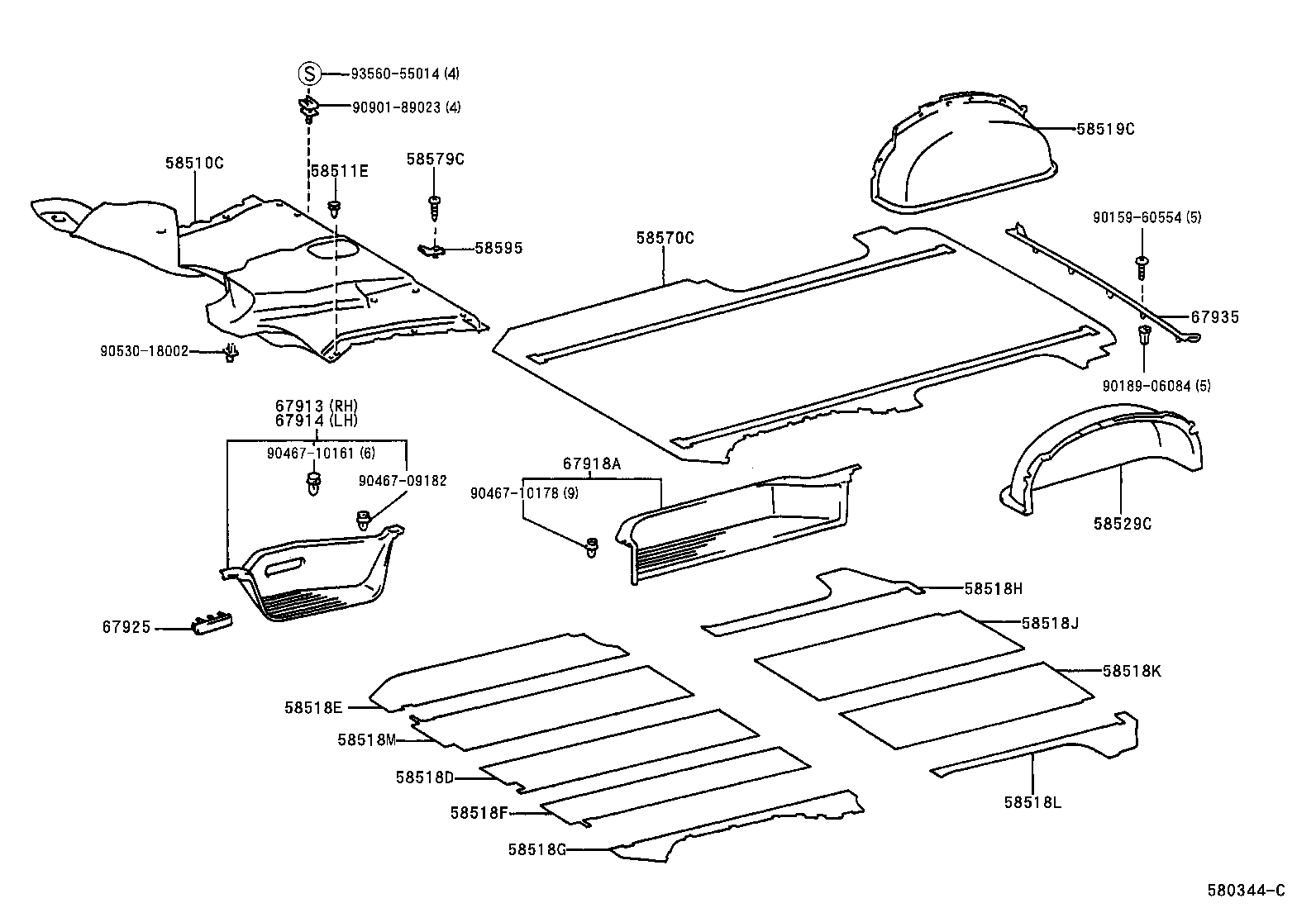

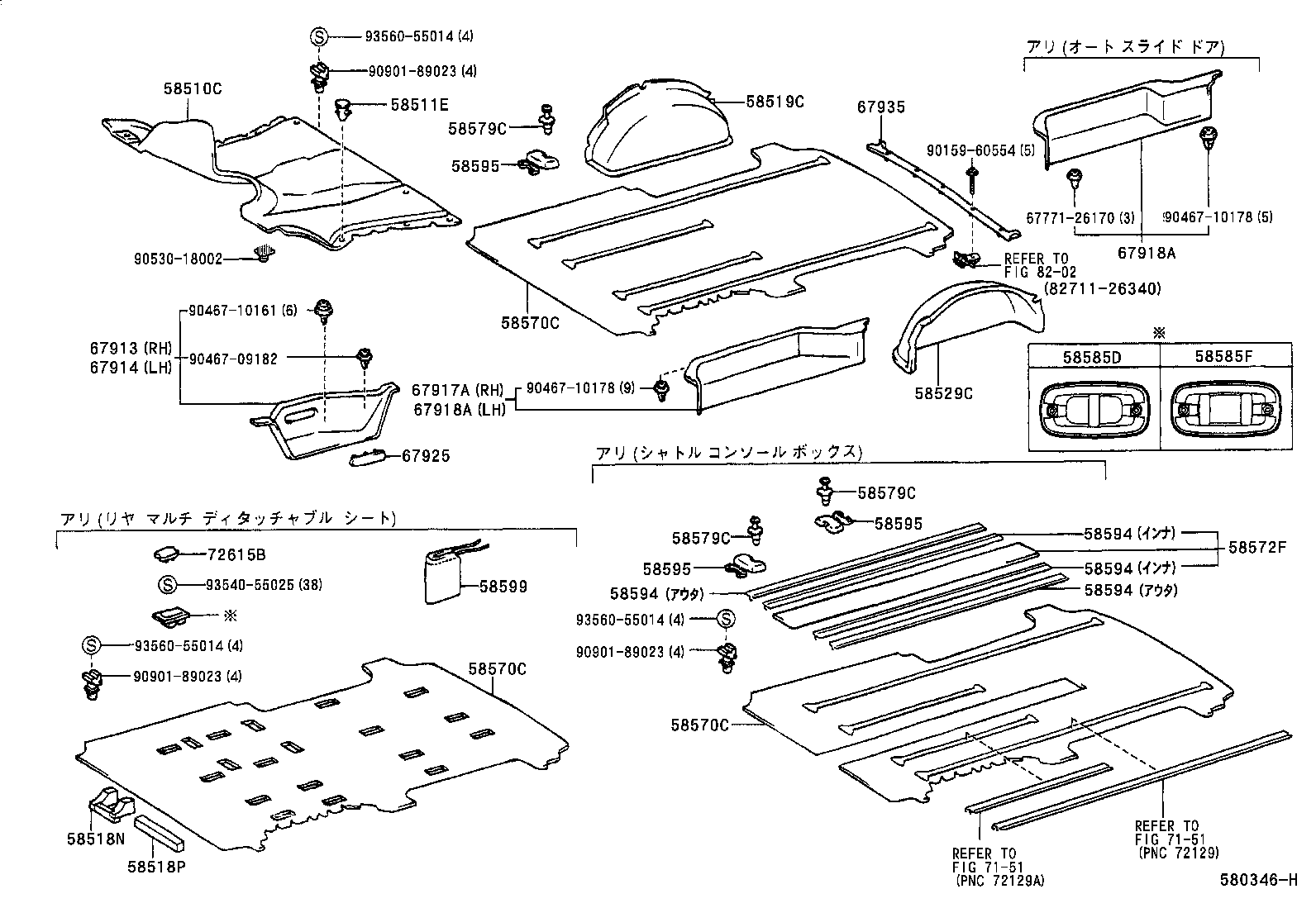

Figure 580343D 580343D 1997-06 → — Figure 580344C 580344C 1997-04 → — Figure 580345E 580345E 1997-06 → — Figure 580346H 580346H 1997-04 → — Figure 580347A 580347A 1997-04 → 1999-07 Figure 581059 581059 1999-07 → —

Part groups

PNCDescription
58510B Mat, Front Floor, Front
58510C Carpet Assy, Front Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58518B Mat, Rear Floor, NO.2
58518C Mat, Rear Floor, NO.2
58518D Mat, Rear Floor, NO.2
58518E Mat, Rear Floor, NO.2
58518F Mat, Rear Floor, NO.2
58518G Mat, Rear Floor, NO.2
58518H Mat, Rear Floor, NO.2
58518J Mat, Rear Floor, NO.2
58518K Mat, Rear Floor, NO.2
58518L Mat, Rear Floor, NO.2
58518M Mat, Rear Floor, NO.2
58518N Mat, Rear Floor, NO.2
58518P Mat, Rear Floor, NO.2
58519C Carpet, Rear Wheel House, RH
58529C Carpet, Rear Wheel House, LH
58542P Mat, Step, LH
58545C Carpet, Step Side, LH
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58572F Carpet, Rear Floor, Front
58577D Plate, Rear Floor Mat Support Side, RH
58578A Plate, Rear Floor Mat Support Side, LH
58579C Clip, Rear Floor Carpet Set
58585B Cover, Rear Floor Seat Lock
58585D Cover, Rear Floor Seat Lock
58585F Cover, Rear Floor Seat Lock
58594 Moulding, Floor Carpet, NO.2
58595 Moulding, Floor Carpet, NO.3
58599 Cover, Seat Set Bracket
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67925 Cover, Door Scuff Plate
67935 Plate, Back Door Scuff
72615B Cover, Rear Seat Lock Striker, RH
81399A Bracket, Step Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
