Toyota Regius/Touring Hiace
1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan
Discontinued model
Data version 2002-10

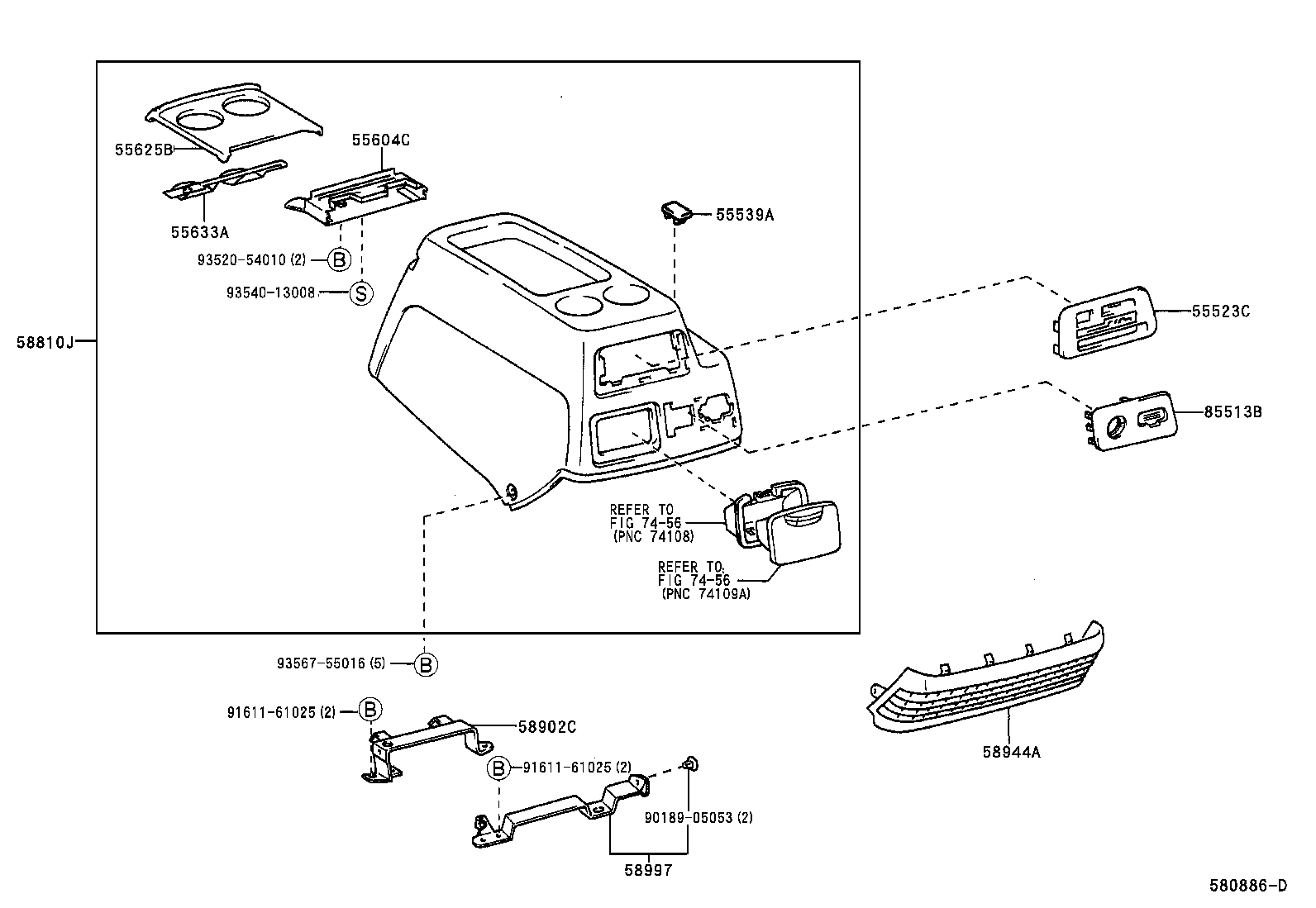

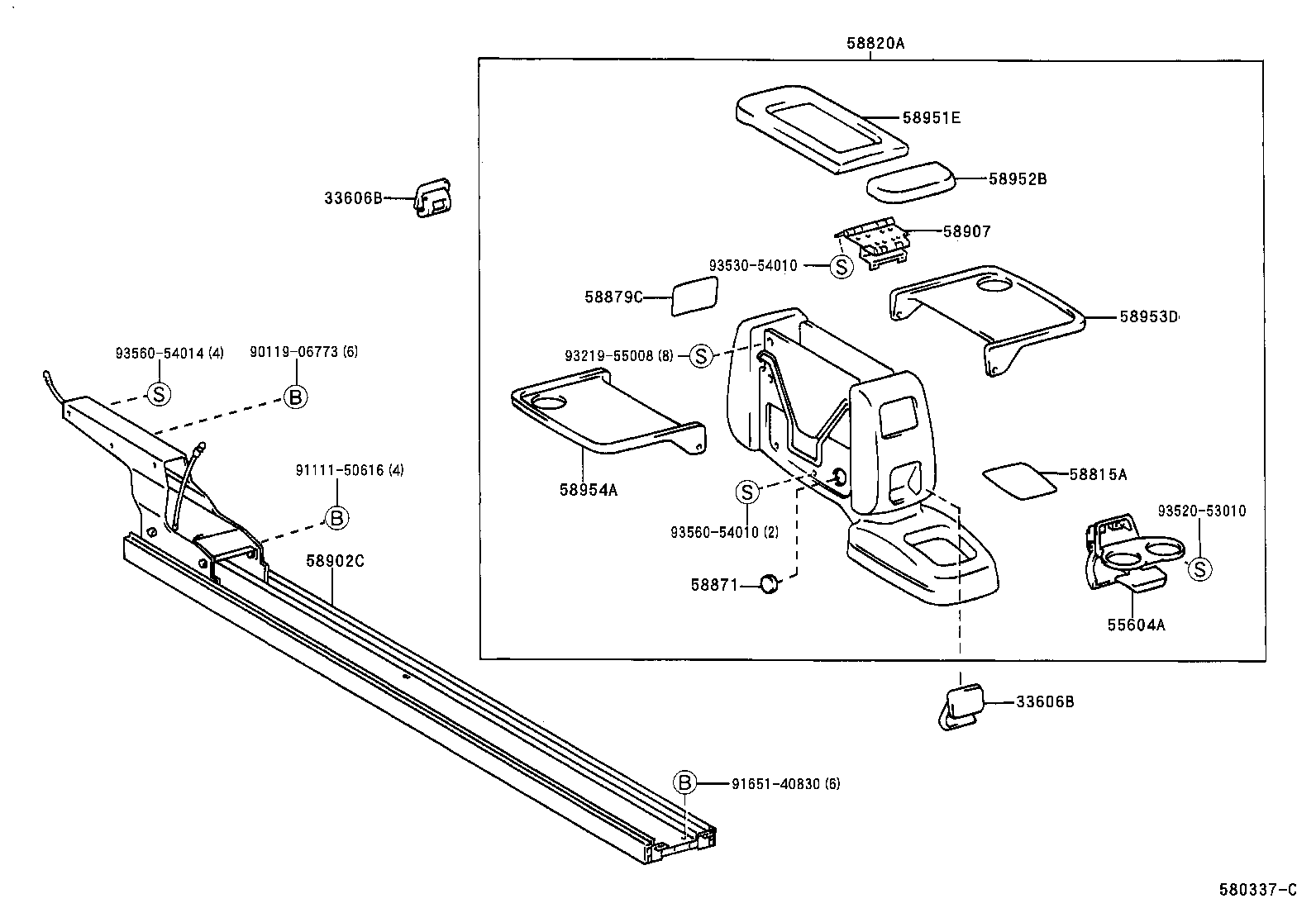

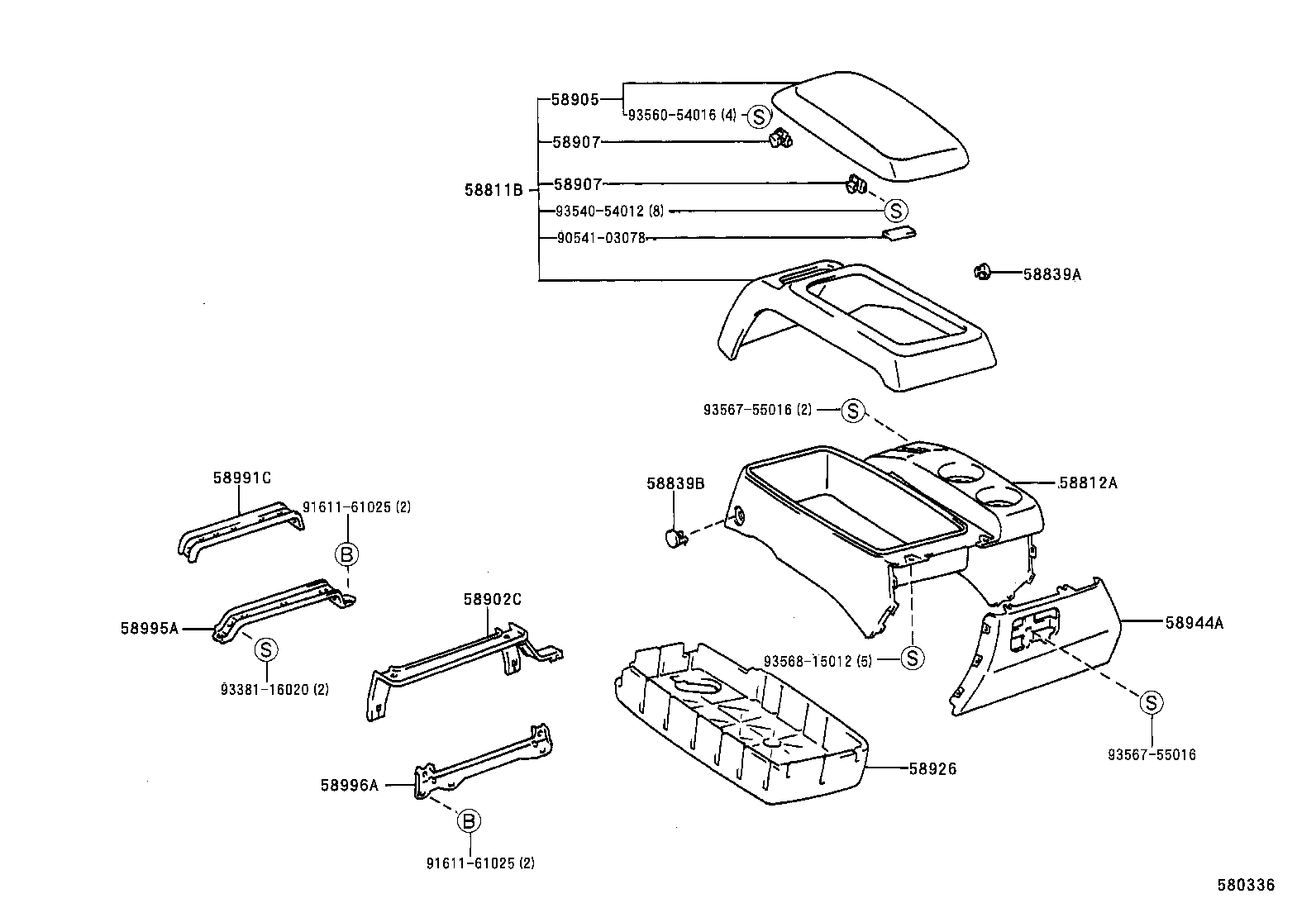

Console Box & Bracket
31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33606B | Lever Sub-assy, Wire Pull |
| 55523C | Cover, Heater Control Opening |
| 55539A | Cover, Spare Switch Hole |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 55604C | Holder Sub-assy, Console Box Cup |
| 55625B | Tray, Instrument Panel Cup Holder |
| 55633A | Support, Instrument Panel Cup Holder, NO.1 |
| 58810J | Box Assy, Console |
| 58811B | Box, Console |
| 58812A | Box, Console, Lower |
| 58815A | Carpet, Console Box |
| 58820A | Box Assy, Console Compartment |
| 58839A | Cover, Console Box Hole |
| 58839B | Cover, Console Box Hole, NO.2 |
| 58871 | Cushion, Console Box |
| 58879C | Label, Console Door Lock Information |
| 58902C | Bracket Sub-assy, Console Box Mounting |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58926 | Insulator, Console Box, Lower |
| 58941A | Cover, Parking Brake Hole |
| 58944A | Cover, Console, Rear |
| 58951E | Lid, Console, NO.1 |
| 58952B | Lid, Console, NO.2 |
| 58953D | Table, Console, RH |
| 58954A | Table, Console, LH |
| 58991C | Bracket, Console Box Mounting, Front |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
| 58997 | Bracket, Console Box Mounting, NO.3 |
| 85513B | Cover, Cigarette Lighter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
