Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

26 part groups · 3 illustrations

Illustrations

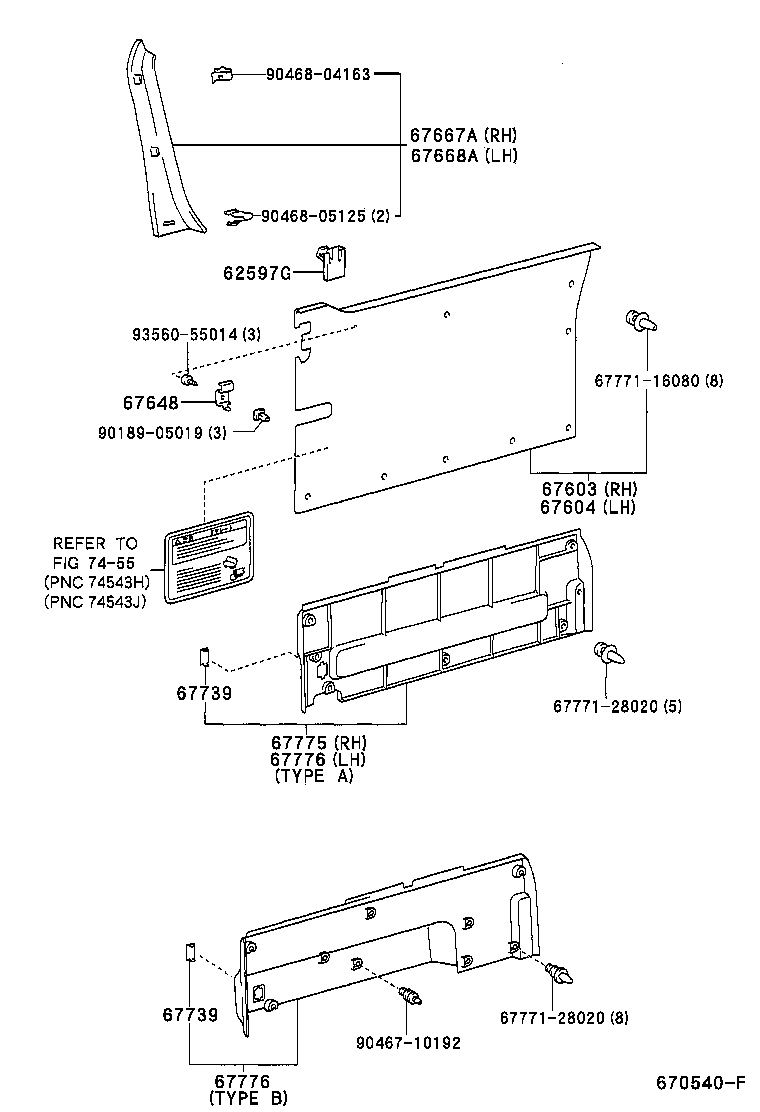

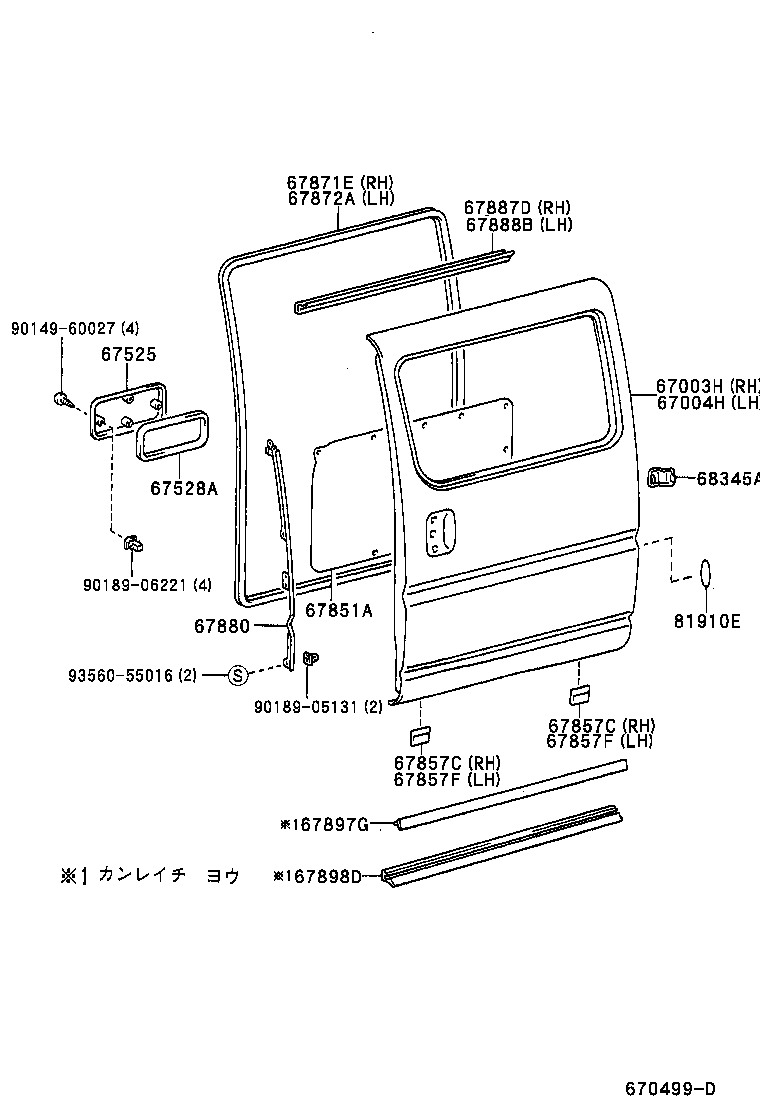

Figure 670539A 670539A 1997-06 → — Figure 670499D 670499D 1997-04 → — Figure 670540F 670540F 1997-04 → —

Part groups

PNCDescription
62597G Clamp, Rear Door Trim
67003H Door Sub-assy, Slide, RH
67004H Door Sub-assy, Slide, LH
67525 Cover, Slide Door Panel, Lower
67528A Packing, Slide Door Lower Cover
67603 Board Sub-assy, Rear Door Trim, RH
67604 Board Sub-assy, Rear Door Trim, LH
67648 Plate, Door Trim Retainer
67667A Garnish, Slide Door Window, RH
67668A Garnish, Slide Door Window, LH
67694 Cover, Rear Door Trim Assy, LH
67739 Cover, Rear Door Trim
67775 Cover, Rear Door Trim, Lower RH
67776 Cover, Rear Door Trim, Lower LH
67851A Cover, Slide Door Service Hole, NO.1
67857C Seal, Slide Door Panel Hole
67857F Seal, Slide Door Panel Hole
67871E Weatherstrip, Slide Door, NO.1 RH
67872A Weatherstrip, Slide Door, NO.1 LH
67880 Protector, Slide Door Edge, LH
67887D Weatherstrip, Slide Door, NO.2 RH
67888B Weatherstrip, Slide Door, NO.2 LH
67897G Seal, Slide Door, Lower
67898D Seal, Slide Door, Lower NO.2
68345A Cover, Slide Door Center Rail
81910E Reflector Assy, Reflex
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
