Toyota Regius/Touring Hiace
1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan
Discontinued model
Data version 2002-10

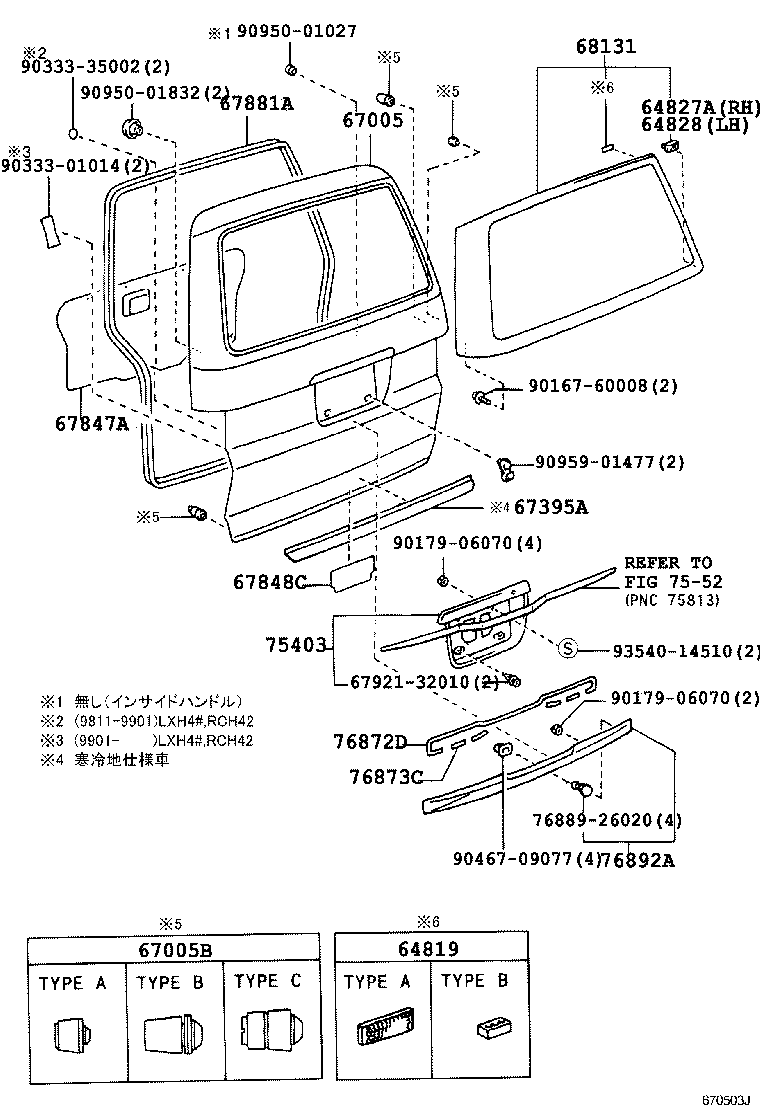

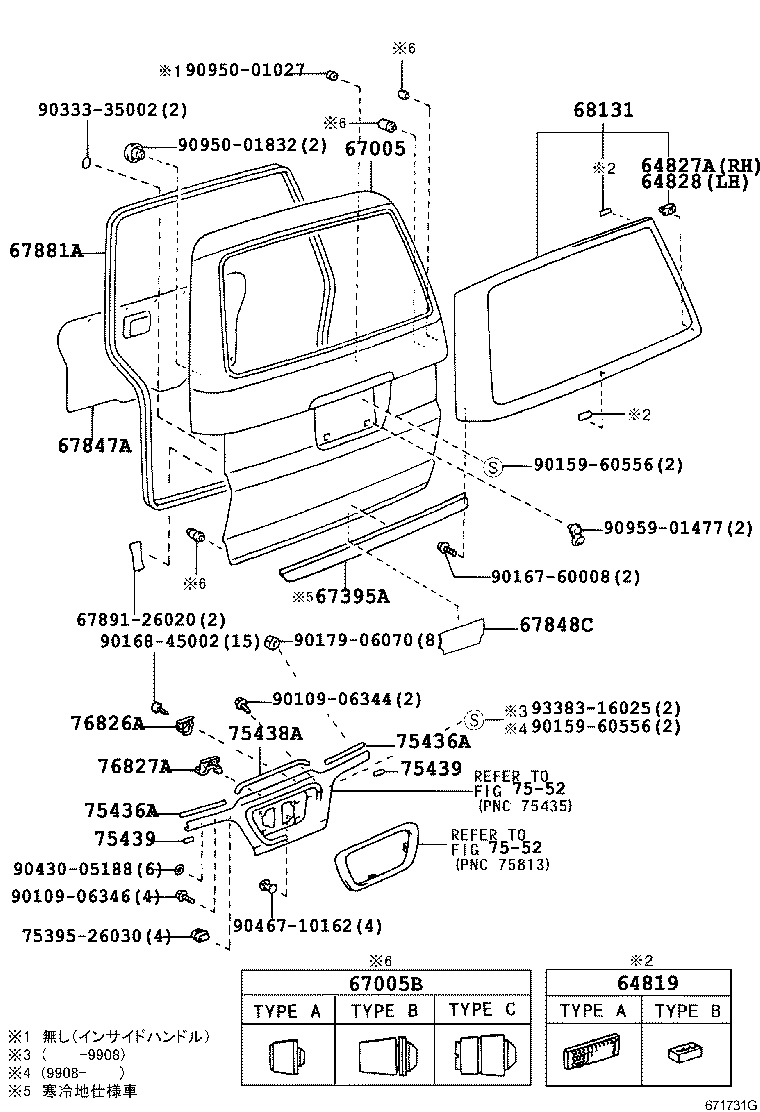

Back Door Panel & Glass
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 64708B | Clip, Back Door Trim |
| 64795A | Trim, Back Window Opening |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67395A | Protector, Back Door, Lower |
| 67750B | Fastner(FOR BACK DOOR TRIM) |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67754A | Cover, Back Door Hole |
| 67847A | Cover, Back Door Service Hole |
| 67848C | Cover, Back Door Service Hole, NO.2 |
| 67881A | Weatherstrip, Back Door |
| 68131 | Glass, Back Door |
| 75403 | Ornament Sub-assy, Back Door |
| 75436A | Protector, Back Door Ornament |
| 75438A | Pad, Back Door Ornament |
| 75439 | Pad, Back Door Ornament, NO.2 |
| 76826A | Retainer, Back Door Garnish, NO.1 |
| 76827A | Retainer, Back Door Garnish, NO.2 |
| 76872D | Protector, Rear Grip, NO.1 |
| 76873C | Protector, Rear Grip, NO.2 |
| 76892A | Grip, Rear NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
