Toyota Regius/Touring Hiace
1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan
Discontinued model
Data version 2002-10

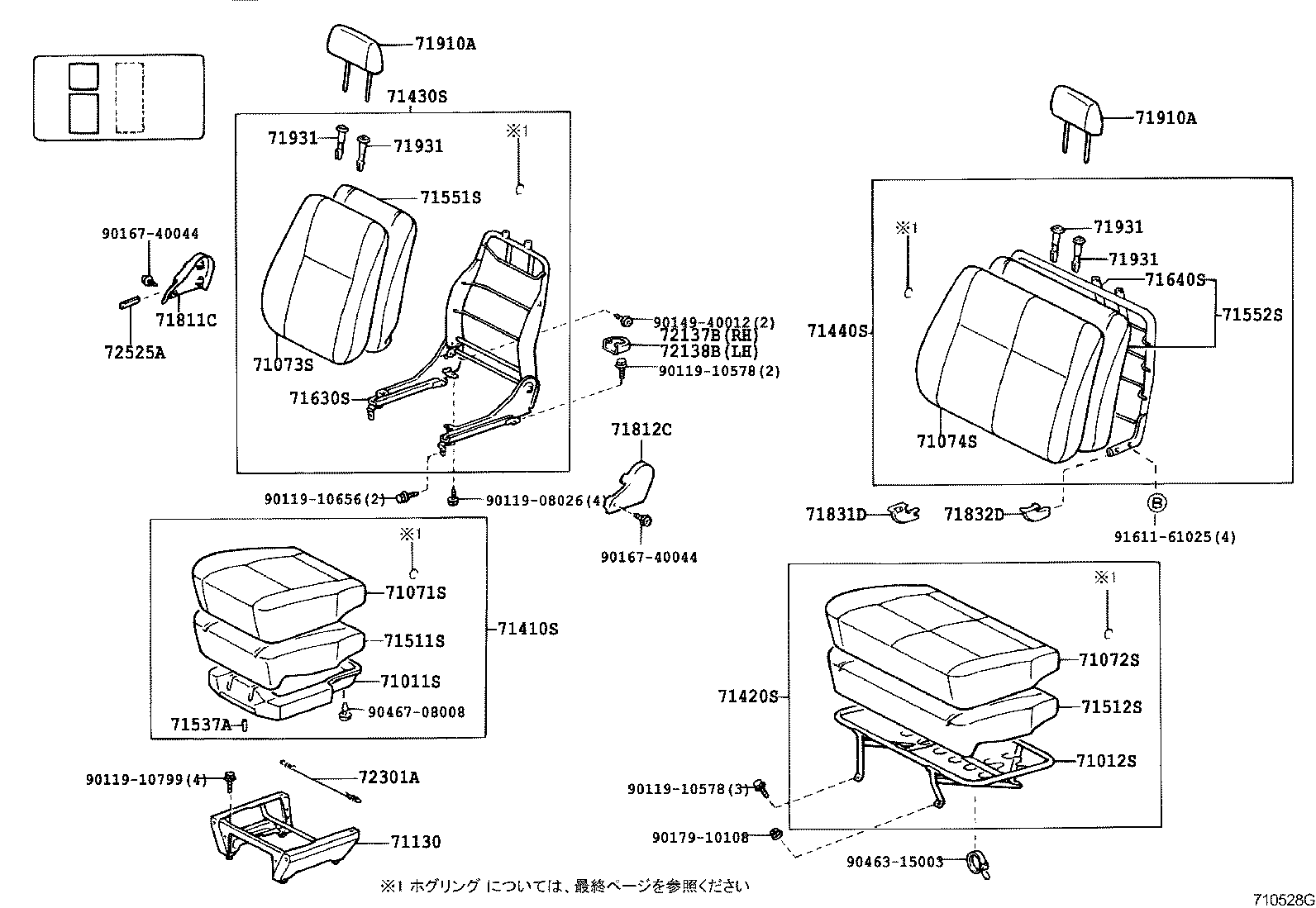

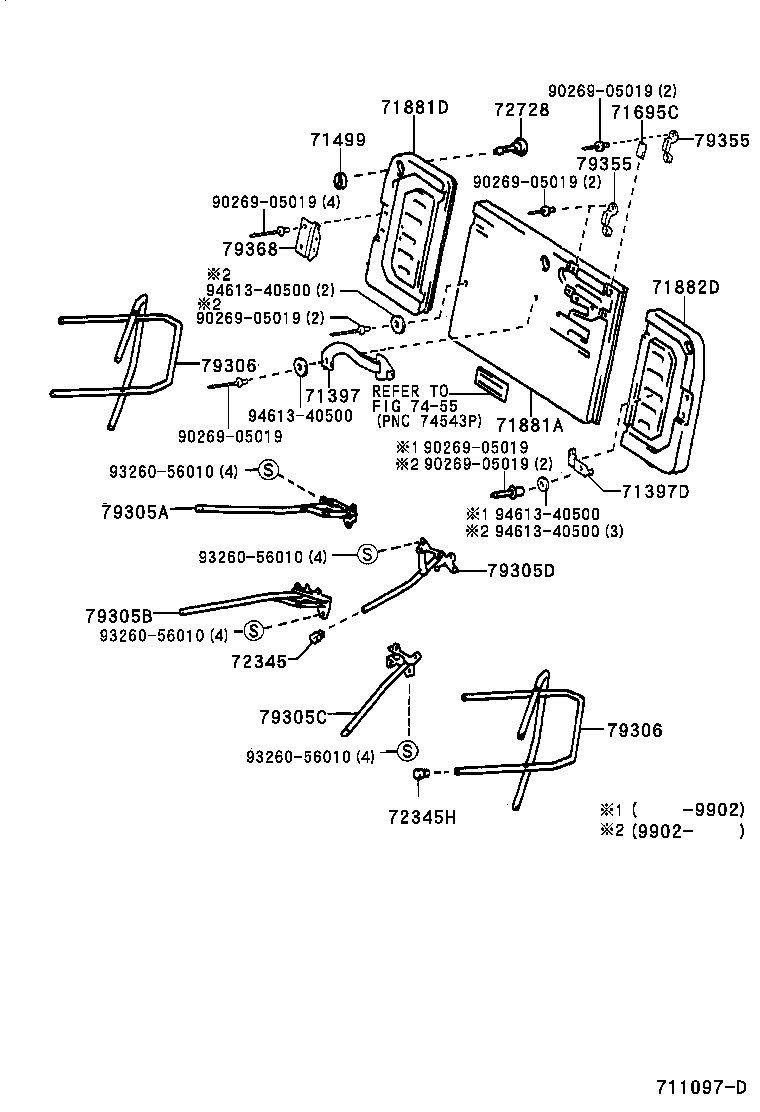

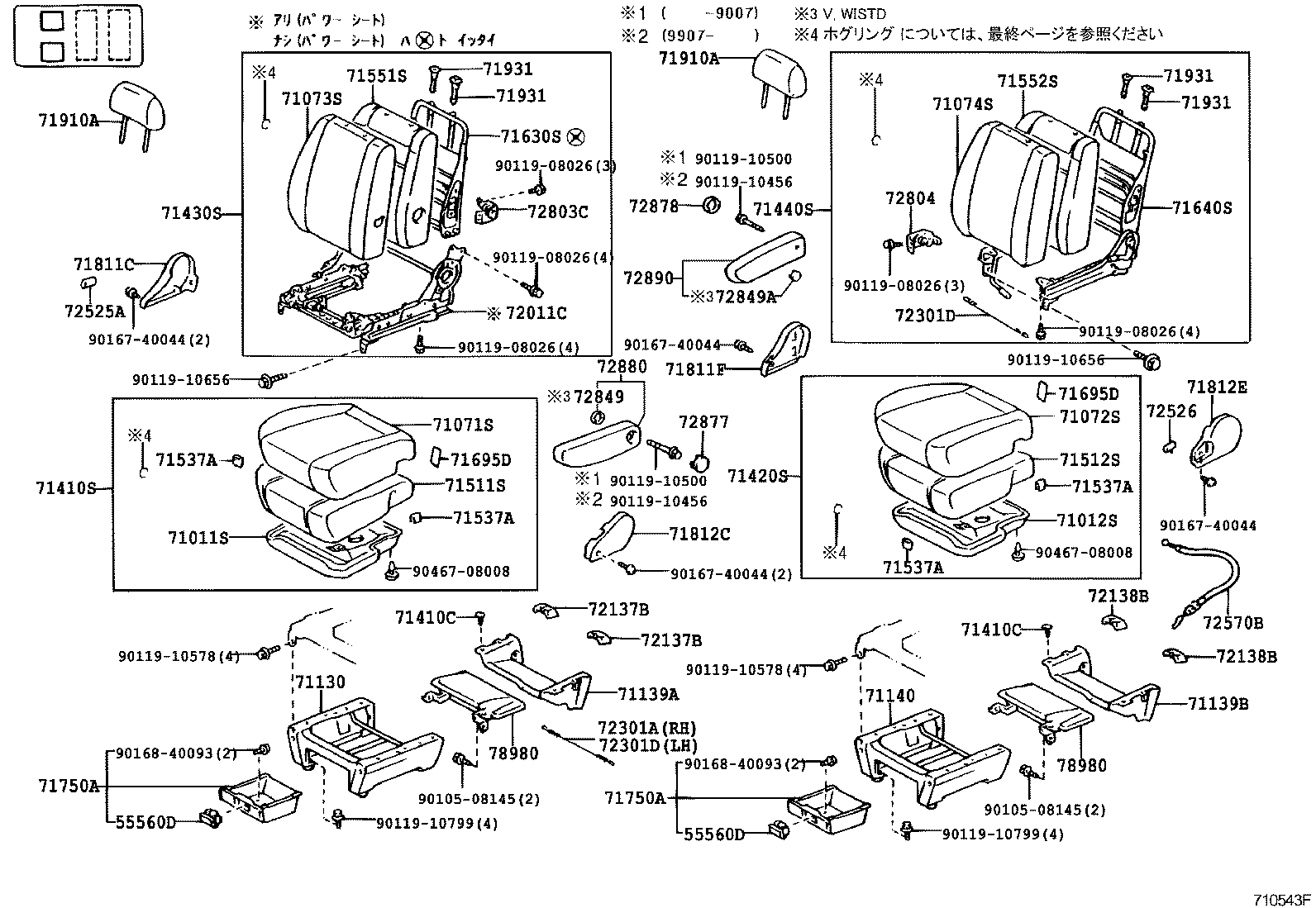

Seat & Seat Track
351 part groups · 22 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 45619J | Cover, Knuckle Stopper |
| 55560D | Lock Assy, Seat Under Tray |
| 58908C | Lock Sub-assy, Rear Seat Armrest |
| 62556A | Cap, Rear Seat Side Garnish |
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71063A | Clip, Front Seatback Cover, Rear |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71099 | Cover Sub-assy, Rear Seatback, Lower LH |
| 71109B | Leg Sub-assy, Front Seat, LH |
| 71130 | Leg Assy, Front Seat, RH |
| 71139A | Cover, Front Seat Leg, NO.1 |
| 71139B | Cover, Front Seat Leg, NO.2 |
| 71139D | Cover, Front Seat Leg NO.1 |
| 71139E | Cover, Front Seat Leg NO.2 |
| 71139F | Cover, Spare Switch Hole |
| 71139G | Cover, Front Seat Leg |
| 71139H | Cover, Front Seat Leg |
| 71140 | Leg Assy, Front Seat, LH |
| 71242 | Hinge, Passenger Seatback, RH |
| 71273 | Stopper, Seat Hinge |
| 71280A | Hinge Assy, Front Seatback, LH |
| 71324A | Cushion, Rear Seat |
| 71331A | Pin, Rear Seat Hinge |
| 71334A | Stopper, Rear Seat Leg |
| 71334D | Stopper, Front Seat Leg |
| 71344A | Plate, Rear Seat Cushion Hinge |
| 71344B | Plate, Rear Seat Cushion Hinge, NO.2 |
| 71350B | Hinge Assy, Rear Seat, RH |
| 71350D | Hinge Assy, Rear Seat, NO.2 RH |
| 71351 | Knob, Seat Hinge Lever |
| 71351B | Knob, Seat Hinge Lever, NO.2 |
| 71360A | Hinge Assy, Rear Seat, LH |
| 71360D | Hinge Assy, Rear Seat, NO.2 LH |
| 71395D | Plate, RR Seat Cushion Support |
| 71397 | Stopper, Rear Seat |
| 71397C | Stopper, Rear Seat |
| 71397D | Stopper, Rear Seat |
| 71405A | Striker Sub-assy, Rear Seat Lock, RH |
| 71410C | Clip(FOR FRONT SEAT CUSHION) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71434 | Pin, Rear Seat Cushion Leg, Rear |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71453A | Knob, Rear Seat Hinge |
| 71485 | Cover, Rear Seat Hinge |
| 71485B | Cover, Rear Seat Hinge |
| 71486C | Cover, Rear Seat Hinge, LH |
| 71499 | Stopper, Rear Seatback |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71526A | Handle, Reclining Adjuster Release |
| 71537A | Protector, Front Seat Cushion |
| 71537B | Protector, Rear Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71617 | Protector, Rear Seatback |
| 71621B | Pad, Rear Seat Cushion Silencer, NO.2 |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71668B | Cushion, Front Seat |
| 71691A | Cover, Rear NO.3 Seat Lock, RH |
| 71691B | Cover, Rear Seat Lock, Outer RH |
| 71691C | Cover, Rear Seat Lock, Inner RH |
| 71692A | Cover, Rear NO.3 Seat Lock, LH |
| 71692B | Cover, Rear Seat Lock, Outer LH |
| 71692C | Cover, Rear Seat Lock, Inner LH |
| 71695A | Protector, Rear Seat, NO.1 RH |
| 71695B | Protector, Rear Seat, NO.1 LH |
| 71695C | Protector, Rear Seat, NO.1 |
| 71695D | Protector, Seat |
| 71695E | Protector, Rear Seat, NO.2 |
| 71705B | Cap(FOR FRONT SEATBACK BOARD) |
| 71739 | Cushion, Seat Support |
| 71750A | Tray Assy, Front Seat Under |
| 71811C | Cover, Reclining Adjuster, RH |
| 71811F | Cover, Reclining Adjuster, RH |
| 71812C | Cover, Reclining Adjuster, LH |
| 71812E | Cover, Reclining Adjuster, LH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71833B | Clip (FOR REAR SEAT RECLINING COVER) |
| 71833C | Cover, Rear Seat Reclining, NO.2 RH |
| 71833E | Cover, Rear Seat Reclining, NO.3 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71834B | Cover, Rear Seat Reclining, NO.2 LH |
| 71837D | Cover, Rear Seat Reclining, Inner RH |
| 71838B | Cover, Rear Seat Reclining, Inner LH |
| 71843A | Cover, Rear Seat Reclining, NO.2 RH |
| 71843D | Cover, Rear Seat Reclining, NO.2 RH |
| 71844A | Cover, Rear Seat Reclining, NO.2 LH |
| 71844C | Cover, Rear Seat Reclining, NO.2 LH |
| 71865 | Bezel, Rear Seat Cover, NO.1 |
| 71877B | Cover, Rear Seat Armrest Hole RH |
| 71877C | Cover, Rear Seat Armrest Hole LH |
| 71878A | Cover, Rear Seat Reclining, Inner RH |
| 71878C | Cover, Rear Seat Reclining, Inner RH |
| 71879A | Cover, Rear Seat Reclining, Inner LH |
| 71879C | Cover, Rear Seat Reclining, Inner LH |
| 71881 | Board, Rear Seatback, RH |
| 71881A | Board, Rear Seatback |
| 71881D | Board, Rear Seatback, RH |
| 71882A | Board, Rear Seatback, LH |
| 71882D | Board, Rear Seatback, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71931B | Support Assy, Rear NO.1 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 72011C | Adjuster Sub-assy, Front Seat, RH |
| 72050 | Belt Assy, Rear Seat Hook |
| 72050A | Belt Assy, Rear Seat Hook |
| 72080 | Table Assy, Front Seat Turn, RH |
| 72090A | Table Assy, Front Seat Turn, LH |
| 72129 | Protector, Seat Track Lower Rail, NO.1 |
| 72129A | Protector, Seat Track Lower Rail, NO.2 |
| 72137A | Clip (FOR SEAT TRACK COVER) |
| 72137B | Cover, Seat Track, RH |
| 72137M | Clip (FOR SEAT TRACK COVER RH) |
| 72137N | Clip (FOR SEAT TRACK COVER LH) |
| 72138B | Cover, Seat Track, LH |
| 72160 | Track Assy, Rear Seat, Outer RH |
| 72170 | Track Assy, Rear Seat, Outer LH |
| 72180 | Track Assy, Rear Seat, Inner RH |
| 72190 | Track Assy, Rear Seat Inner, LH |
| 72201A | Handle Sub-assy, Seat Track RH |
| 72201B | Handle Sub-assy, Seat Track LH |
| 72210 | Cable Assy, Seat Track Control |
| 72210B | Cable Assy, Seat Track Control, RH |
| 72210C | Cable Assy, Seat Track Control, LH |
| 72210E | Cable Assy, Seat Track Control(FOR WALK IN) |
| 72213 | Knob, Seat Track Adjusting Handle |
| 72213A | Knob, Seat Track Adjusting Handle |
| 72213B | Knob, Seat Track Adjusting Handle, RH |
| 72213C | Knob, Seat Track Adjusting Handle, LH |
| 72250C | Lock Assy, Front Seat |
| 72257 | Striker, Front Seat Lock |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72301D | Wire Sub-assy, Seat Track Equalizing, LH |
| 72302B | Wire Sub-assy, Rear Seat Track Equalizing |
| 72345 | Cap, Seat Stand Frame |
| 72345H | Cap, Seat Stand Frame |
| 72410A | Cable Assy, Seat Adjuster Drive, NO.1 |
| 72506A | Rod Sub-assy, Reclining Connecting, RH |
| 72506B | Rod Sub-assy, Reclining Connecting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72525B | Handle, Reclining Adjuster Release, RH |
| 72525D | Handle, Reclining Adjuster Release, NO.2 RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72526C | Handle, Reclining Adjuster Release, NO.2 LH |
| 72526D | Handle, Reclining Adjuster Release, NO.3 LH |
| 72551B | Cover, Reclining Hinge, RH |
| 72551D | Clip(FOR RECLINING HINGE) |
| 72552B | Cover, Reclining Hinge, LH |
| 72553 | Cover, Reclining Pedal |
| 72570 | Adjuster Assy, Rear Reclining Seat, RH |
| 72570B | Cable Assy, Reclining Adjusting, RH |
| 72580 | Adjuster Assy, Rear Reclining Seat, LH |
| 72613B | Striker, Rear Seat Lock |
| 72613C | Striker, Rear Seat Lock |
| 72613D | Striker, Rear Seat Lock, Front Outer |
| 72620B | Cable Assy, Rear NO.1 Seat Lock |
| 72630A | Lock Assy, Rear NO.1 Seat |
| 72631A | Handle, Rear Seat Leg Stopper |
| 72637A | Handle, Rear Seat Lock |
| 72639 | Knob, Rear Seat Lock |
| 72650A | Lock Assy, Rear Seat, RH |
| 72650B | Lock Assy, Rear NO.3 Seat, RH |
| 72650G | Lock Assy, Rear NO.2 Seat, RH |
| 72651 | Rod, Rear Seatback Lock |
| 72651B | Rod, Rear Seat Lock |
| 72651D | Rod, Rear Seatback Lock, RH |
| 72656D | Pin, Rear Seat Cushion Support |
| 72658B | Knob, Rear Seat Lock Handle |
| 72658C | Knob, Front Seat Lock Handle |
| 72658D | Knob, Rear Seat Lock Handle |
| 72658E | Knob, Rear Seatback Locking |
| 72660B | Lock Assy, Rear NO.3 Seat, LH |
| 72660F | Lock Assy, Rear Seat, LH |
| 72663 | Lever, Rear Seat Lock Control, NO.1 |
| 72665D | Cover, Front Seatback Lock |
| 72666B | Cover, Rear Seat Lock, LH |
| 72681A | Hook, Rear Seat |
| 72686 | Plate, Rear Seatback Lock Belt |
| 72688 | Cable, Rear Seat Track & Turn Control |
| 72688A | Cable, Rear Track & Turn Control |
| 72690B | Lever Assy, Seat Cushion Lock Release, RH |
| 72690D | Lever Assy, Seat Cushion Lock Release, NO.1 |
| 72690E | Lever Assy, Seat Cushion Lock Release, NO.2 |
| 72695 | Silencer, Rear Seatback Lock Control Rod |
| 72710C | Adjuster Assy, NO.1 Seat Reclining, RH |
| 72720C | Adjuster Assy, NO.1 Seat Reclining, LH |
| 72728 | Protector, Rear Seat Reclining, Inner RH |
| 72730C | Adjuster Assy, NO.2 Seat Reclining, RH |
| 72740C | Adjuster Assy, NO.2 Seat Reclining, LH |
| 72750C | Adjuster Assy, NO.3 Seat Reclining, RH |
| 72760C | Adjuster Assy, NO.3 Seat Reclining, LH |
| 72802 | Hinge Sub-assy, Armrest Console |
| 72803C | Frame Sub-assy, Seat Center Armrest, RH |
| 72804 | Frame Sub-assy, Seat Center Armrest, LH |
| 72810G | Clip, Rear Seat Armrest |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830J | Armrest Assy, Rear NO.1 Seat, RH |
| 72840 | Armrest Assy, Rear NO.1 Seat, LH |
| 72849 | Cap, Seat Armrest, NO.2 |
| 72849A | Cap, Seat Armrest, NO.2 |
| 72877 | Cover, Seat Armrest, RH |
| 72878 | Cover, Seat Armrest, LH |
| 72880 | Armrest Assy, Seat, C RH |
| 72890 | Armrest Assy, Seat, C LH |
| 72929B | Holder, Rear Seat Cushion Band |
| 72960B | Table Assy, Rear Seat Turn, RH |
| 72969 | Knob, Rear Seat Turn Lock |
| 72969A | Pin, Seat Turn Lock Guide |
| 72969C | Knob, Rear Seat Turn Lock, LH |
| 72970 | Table Assy, Rear Seat Turn, LH |
| 72973A | Cover, Rear Seat Turn Table |
| 72973B | Cover, Rear Seat Turn Table, NO.2 |
| 72973C | Cover, Front Seat Turn Table,NO.1 |
| 72973D | Cover, Front Seat Turn Table, NO.2 |
| 72973E | Cover, Front Seat Turn Table, NO.1 |
| 72973F | Cover, Front Seat Turn Table, NO.2 |
| 72973G | Cover, Rear Seat Turn Table, NO.1 |
| 72973H | Cover, Rear Seat Turn Table, NO.2 |
| 72996 | Cover, Rear Seatback, RH |
| 72996A | Cover, Rear Seatback |
| 72996C | Cover, Rear NO.2 Seatback, RH |
| 72996D | Cover, Rear NO.2 Seatback, LH |
| 72997 | Cover, Rear Seatback, LH |
| 72997B | Cover, Rear Seatback |
| 72997C | Cover, Rear NO.2 Seatback, LH |
| 72997D | Cover, Rear NO.2 Seatback, RH |
| 73118B | Plate, Belt Support |
| 73711 | Body, Child Restraint Seat |
| 73731 | Cover, Child Restraint Seat |
| 74543E | Label, Child Restraint Seat Information |
| 74543Q | Label, Child Restraint Seat Information NO.2 |
| 74611H | Grip, Assist |
| 74790 | Holder Assy, Warning Reflector |
| 74790A | Holder Assy, Warning Reflector |
| 74855F | Bar, Rear Separator |
| 78630 | Adjuster Assy, FR0NT Seat Side Table |
| 78631 | Table, Front Seat Side |
| 78632 | Cover, Front Seat Side Table |
| 78632A | Clip, Front Seat Side Table Cover |
| 78632B | Cover, Front Seat Side Table Leg |
| 78639 | Clip, Front Seat Side Table |
| 78980 | Footrest Assy, Rear Seat |
| 79011 | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79011A | Cover Sub-assy, NO.1 Seat Cushion |
| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013 | Cover Sub-assy, NO.1 Seatback, RH |
| 79013A | Cover Sub-assy, NO.1 Seatback |
| 79014 | Cover Sub-assy, NO.1 Seatback, LH |
| 79020B | Leg Assy, NO.2 Seat |
| 79023B | Cover Sub-assy, Junior Seatback |
| 79030 | Leg Assy, NO.3 Seat, RH |
| 79031 | Cover Sub-assy, NO.3 Seat Cushion, RH |
| 79031A | Cover Sub-assy, NO.3 Seat Cushion |
| 79032 | Cover Sub-assy, NO.3 Seat Cushion, LH |
| 79033 | Cover Sub-assy, NO.3 Seatback, RH |
| 79033A | Cover Sub-assy, NO.3 Seatback |
| 79034 | Cover Sub-assy, NO.3 Seatback, LH |
| 79035 | Leg Sub Assy, NO.3 Seat Outer Rear, RH |
| 79036 | Leg Sub Assy, NO.3 Seat Outer Rear, LH |
| 79038A | Pad Sub-assy, NO.3 Seatback, LH |
| 79101 | Frame Sub-assy, NO.1 Seat Cushion |
| 79101B | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 79102 | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79105 | Leg Sub-assy, NO.1 Seat, RH |
| 79105A | Leg Sub-assy, NO.1 Seat |
| 79106 | Leg Sub Assy, NO.1 Seat, LH |
| 79107A | Leg Sub-assy, NO.1 Seat, Rear |
| 79120 | Cushion Assy, NO.1 Seat, RH |
| 79120A | Cushion Assy, NO.1 Seat |
| 79120B | Leg Assy, NO.1 Seat, LH |
| 79127 | Bracket, NO.1 Seat Leg, Lower |
| 79130 | Cushion Assy, NO.1 Seat, LH |
| 79135 | Pad, NO.1 Seat Cushion |
| 79135A | Pad, NO.1 Seat Cushion, RH |
| 79136B | Pad, NO.1 Seat Cushion, LH |
| 79140 | Back Assy, NO.1 Seat, RH |
| 79140A | Back Assy, NO.1 Seat |
| 79140B | Back Assy, NO.1 Junior Seat, RH |
| 79150 | Back Assy, NO.1 Seat, LH |
| 79160 | Spring Assy, NO.1 Seat Cushion |
| 79160B | Spring Assy, NO.1 Seat Cushion, LH |
| 79169 | Rod, Rear Seat Hinge Connector |
| 79169A | Plate Sub-assy, NO.1 Seat Cushion Hinge |
| 79169B | Rod, Rear NO.2 Seat Hinge Connector |
| 79169C | Rod, Rear NO.2 Seat Hinge Connector |
| 79175 | Pad, NO.1 Seatback |
| 79175E | Pad, NO.1 Seatback, RH |
| 79180 | Spring Assy, NO.1 Seatback |
| 79180A | Spring Assy, NO.1 Seatback, RH |
| 79184 | Plate, NO.1 Seat Leg |
| 79185 | Pad, NO.1 Seatback, LH |
| 79190A | Spring Assy, NO.1 Seatback, LH |
| 79199 | Holder, NO.1 Seat Leg Stopper |
| 79199C | Holder, Front Seat Leg Stopper |
| 79226A | Stopper, Rear NO.1 Seat Cushion |
| 79260 | Spring Assy, NO.2 Seat Cushion |
| 79260A | Spring Assy, NO.2 Seat Cushion, RH |
| 79277 | Pad, Junior Seatback Safety, A |
| 79278 | Pad, Junior Seatback Safety, B |
| 79280 | Spring Assy, NO.2 Seatback |
| 79303A | Frame Sub-assy, NO.3 Seatback, RH |
| 79304A | Frame Sub-assy, NO.3 Seatback, LH |
| 79305A | Leg Sub-assy, NO.3 Seat, RH |
| 79305B | Leg Sub-assy, NO.3 Seat NO.2 |
| 79305C | Leg Sub-assy, NO.3 Seat NO.3 |
| 79305D | Leg Sub-assy, NO.3 Seat NO.4 |
| 79306 | Leg Sub Assy, NO.3 Seat, LH |
| 79320 | Cushion Assy, NO.3 Seat, RH |
| 79320A | Cushion Assy, NO.3 Seat |
| 79330 | Cushion Assy, NO.3 Seat, LH |
| 79335 | Pad, NO.3 Seat Cushion |
| 79335A | Pad, NO.3 Seat Cushion, RH |
| 79336 | Link, NO.3 Seat Leg |
| 79340 | Back Assy, NO.3 Seat, RH |
| 79340A | Back Assy, NO.3 Seat |
| 79345A | Pad, NO.3 Seat Cushion, LH |
| 79350 | Back Assy, NO.3 Seat, LH |
| 79355 | Plate, NO.3 Seatback |
| 79360 | Spring Assy, NO.3 Seat Cushion |
| 79360A | Spring Assy, NO.3 Seat Cushion, RH |
| 79368 | Support, NO.3 Seatback |
| 79370A | Spring Assy, NO.3 Seat Cushion, LH |
| 79374 | Cover, NO.3 Seat Leg, Rear RH |
| 79375 | Pad, NO.3 Seatback |
| 79375A | Pad, NO.3 Seatback, RH |
| 79384 | Cover, NO.3 Seat Leg, Rear LH |
| 79391 | Spring, Rear Seat Cushion |
| 79621A | Stopper, NO.3 Seat Cushion |
| 79956A | Clip (FOR REAR SEAT LEG BRACKET COVER) |
| 79956B | Cover, Rear Seat Leg Side, RH |
| 79956C | Cover, Rear Seat Leg Side, LH |
| 79956E | Cap(FOR REAR SEAT LEG SIDE COVER) |
| 79956G | Cover, NO.3 Seat Leg Side, RH |
| 79956H | Cover, NO.3 Seat Leg Side, LH |
| 79956J | Cover, NO.3 Seat Leg, Inner RH |
| 79956K | Cover, NO.3 Seat Leg, Inner LH |
| 79956Q | Cap(FOR FRONT SEAT LEG SIDE COVER RH) |
| 79956R | Cap(FOR FRONT SEAT LEG SIDE COVER LH) |
| 79959 | Cover, RR Seat Leg |
| 79959C | Cover, Rear Seat Leg |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
