Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

14 part groups · 2 illustrations

Illustrations

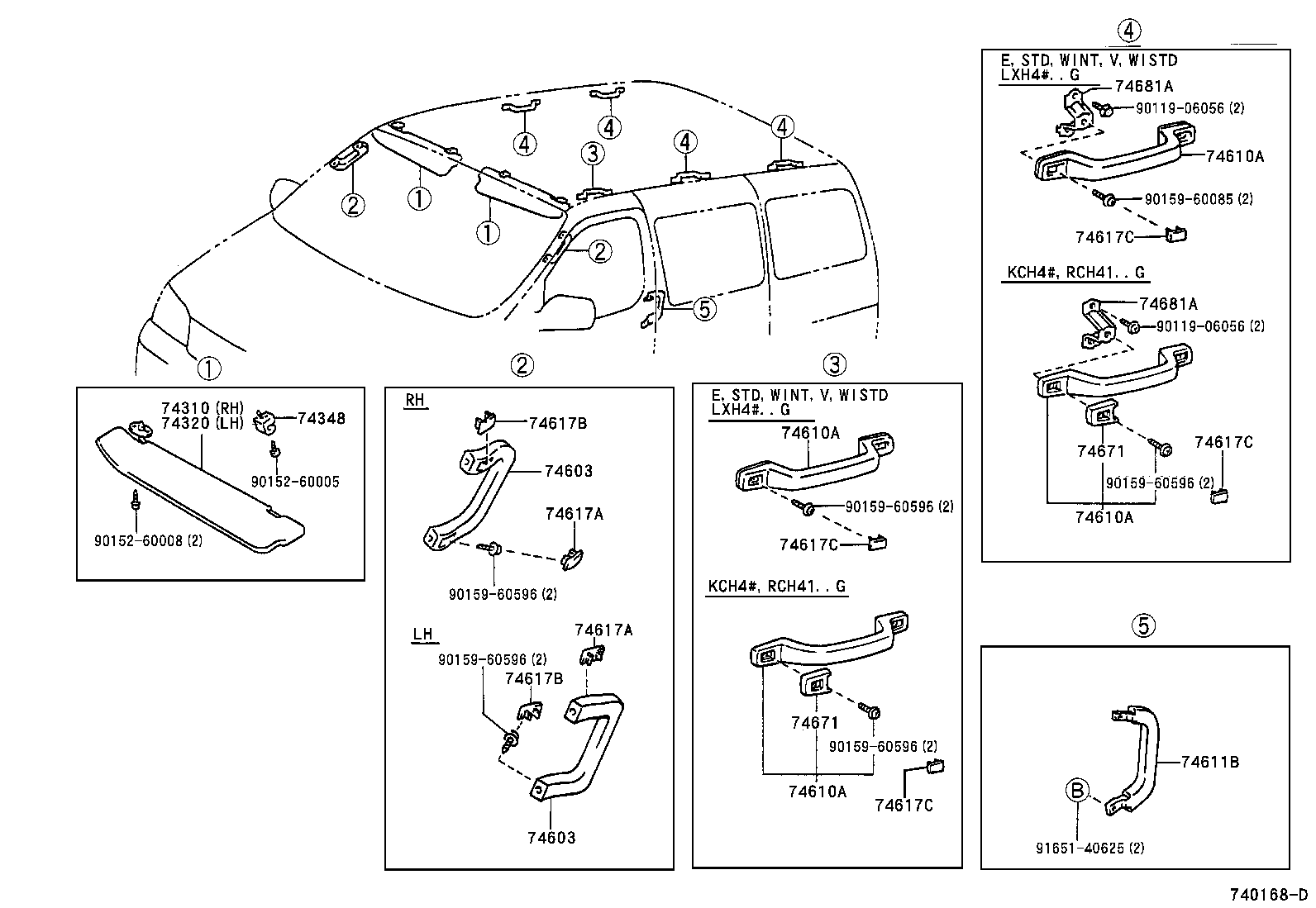

Figure 740167A 740167A 1997-04 → — Figure 740168D 740168D 1997-04 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74610A Grip Sub-assy, Assist
74611B Grip, Assist
74617A Plug, Assist Grip
74617B Plug, Door Assist Grip
74617C Plug, Assist Grip
74671 Support, Assist Grip
74681A Retainer, Assist Grip
74811B Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
