Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separator & Separator Curtain

25 part groups · 3 illustrations

Illustrations

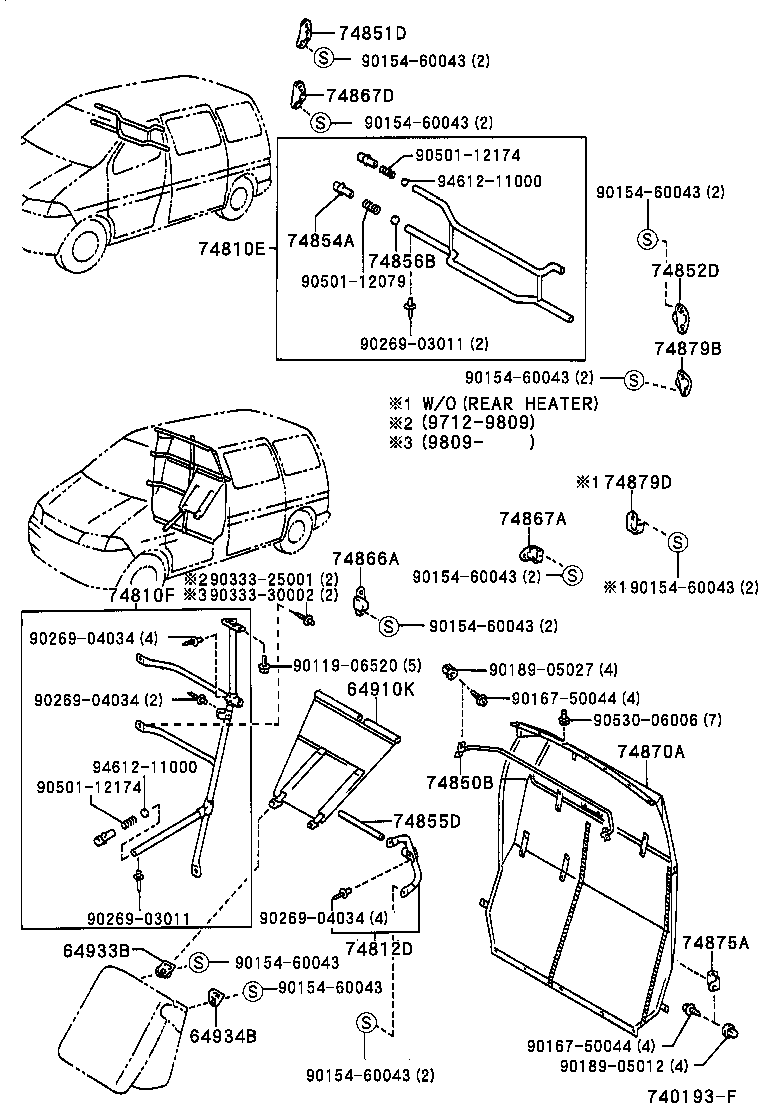

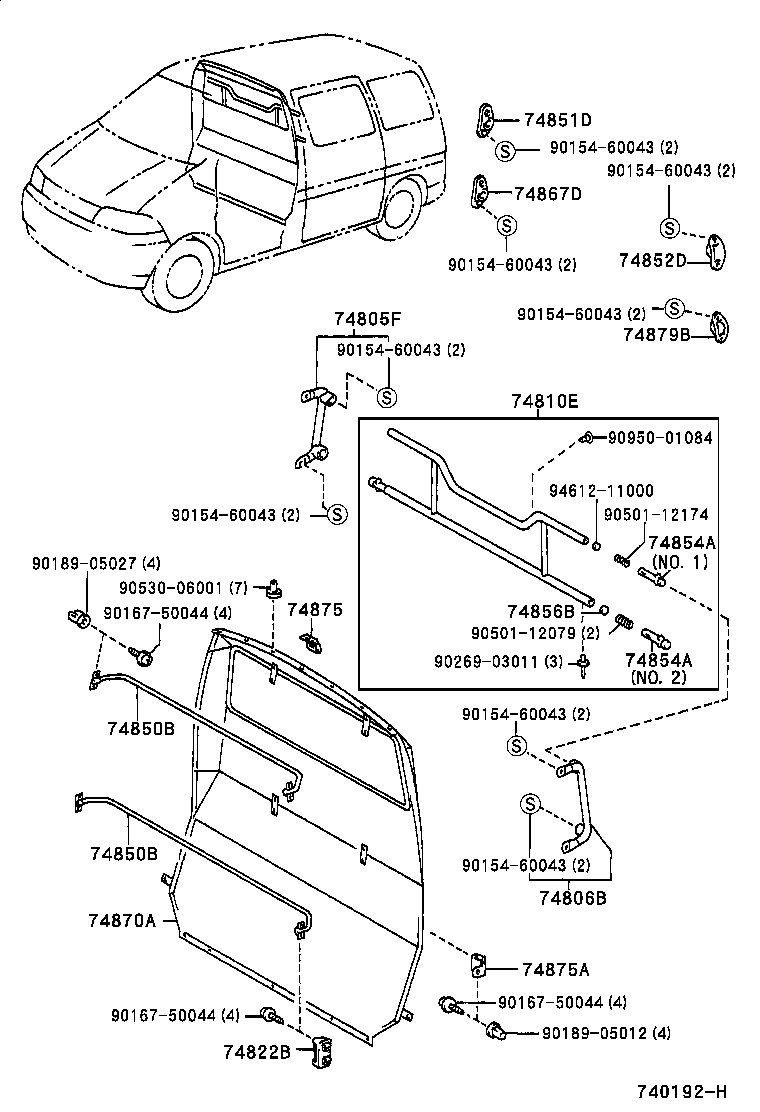

Figure 740191D 740191D 1997-04 → — Figure 740192H 740192H 1997-04 → — Figure 740193F 740193F 1997-04 → —

Part groups

PNCDescription
64910K Cover Assy, Tonneau
64933B Bracket, Tonneau Cover Holder, RH
64934B Bracket, Tonneau Cover Holder, LH
74805F Bar Sub-assy, Separator, A
74806B Bar Sub-assy, Separator, B
74810E Bar Assy, Separator
74810F Bar Assy, Separator
74812D Bar, Separator, NO.2
74822B Retainer, Separator Bar
74850B Separator Sub-assy, Rear
74851C Bracket, Separator, Upper RH
74851D Bracket, Separator Bar, Upper RH
74852D Bracket, Separator Bar, Upper LH
74854A Stop, Separator
74855D Bar, Separator, Upper
74856B Plate, Spring Set
74866A Bracket, Separator Bar, NO.3
74867A Bracket, Separator Bar, NO.4
74867C Bracket, Separator Bar, Lower
74867D Bracket, Separator Bar, Lower
74870A Curtain Assy, Separator
74875 Bracket, Clawber
74875A Plate, Curtain Rear Separator
74879B Bracket, Separator Bar, Lower LH
74879D Bracket, Separator Bar, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
