Toyota Regius/Touring Hiace
1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan
Discontinued model
Data version 2002-10
Caution Plate

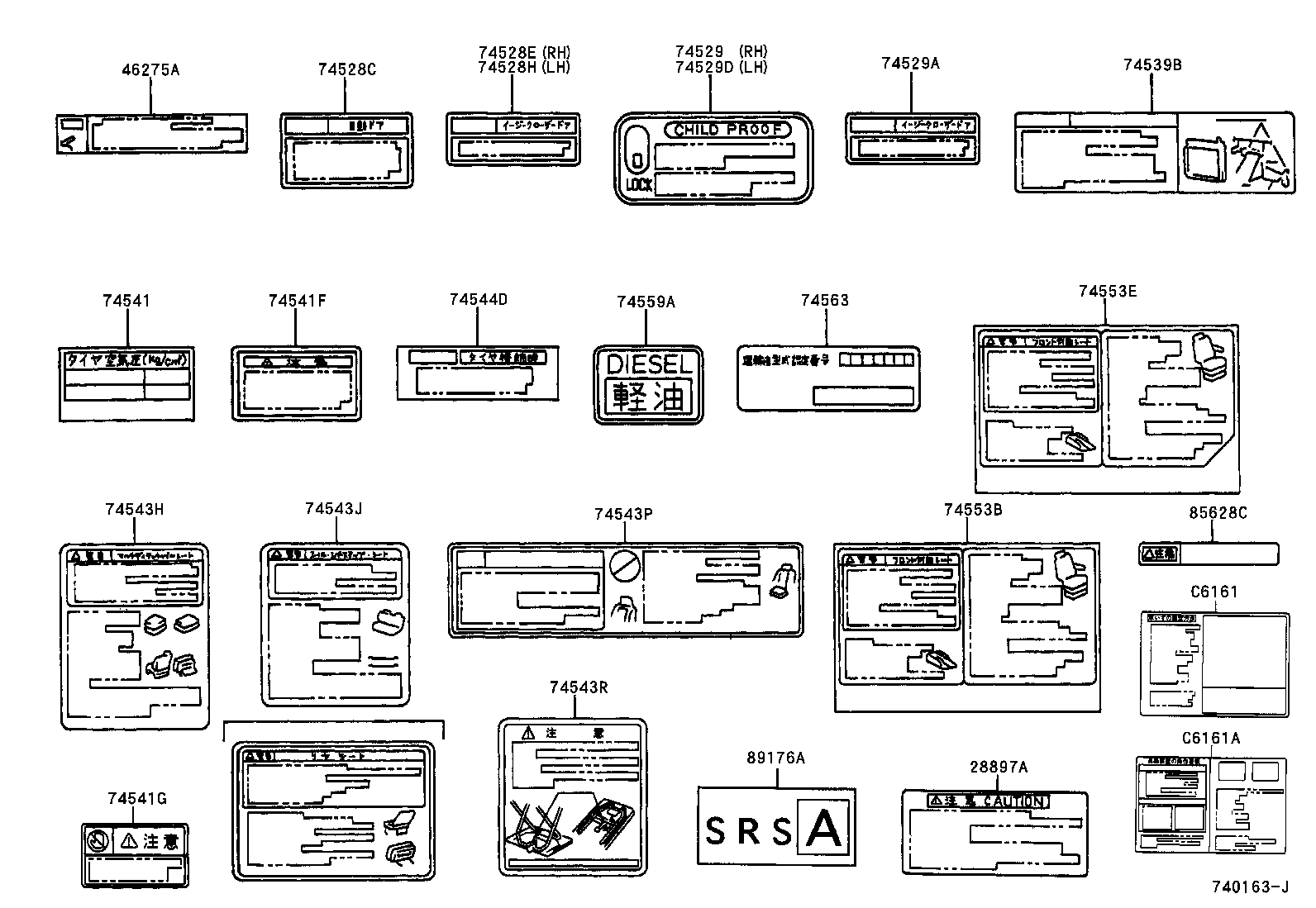

30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11291B | Plate, Engine Name |
| 11296C | Label, Engine Service Information |
| 13564 | Label, Timing Belt Replacement Information |
| 16793E | Label, Cooling Fan Caution |
| 17791A | Label, Maintenance Information |
| 28897A | Plate, Battery Caution |
| 46275A | Label, Parking Brake Release Information, NO.1 |
| 74528C | Label, Power Slide Door Notice |
| 74528E | Label, Power Slide Door Notice |
| 74528H | Label, Power Slide Door Caution |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74529A | Plate, Back Door Caution |
| 74529D | Plate, Child Protector Lock Caution |
| 74539B | Plate, Radiator Shutter Caution |
| 74541 | Plate, Tire Pressure Caution |
| 74541F | Label, Slide Door Glass Caution |
| 74541G | Plate, Safety Caution |
| 74543H | Label, Rear NO.2 Seat Caution |
| 74543J | Label, Rear Seat Caution |
| 74543P | Label, Rear Seat Caution |
| 74543R | Label, Rear Seat Caution |
| 74544D | Plate, Tire Carrier Caution |
| 74553B | Label, Front Seat Notice |
| 74553E | Label, Front Seat Caution |
| 74559A | Plate, Fuel Caution |
| 74563 | Plate, Emission Control Device Identification |
| 85628C | Label, Automatic Door |
| 89176A | Label, Airbag Deployment Information |
| C6161 | Label, Power Lift Caution |
| C6161A | Label, Power Lift Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
