Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

14 part groups · 2 illustrations

Illustrations

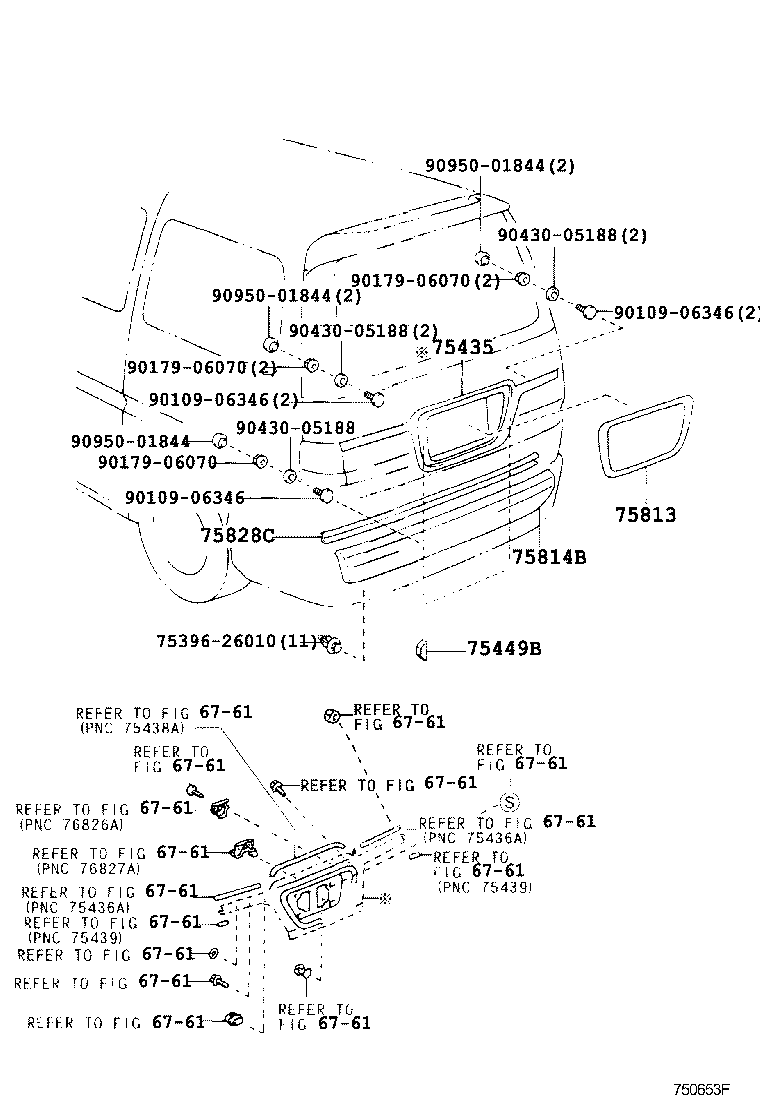

Figure 750159D 750159D 1997-04 → — Figure 750653F 750653F 1999-07 → —

Part groups

PNCDescription
75435 Ornament, Back Door
75449B Pad, Back Door Ornament, NO.3
75531 Moulding, Windshield, Outer Upper
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75562 Clip, Roof Drip Side Finish Moulding, NO.2
75573B Moulding, Back Window, Outside
75597 Cover, Roof Drip Side Finish Moulding Joint, LH
75770 Moulding Assy, Hood, Front
75813 Moulding, Back Door
75814B Moulding, Back Door, Outside Lower
75825A Pad, Back Door Outside Moulding, Upper
75828C Protector, Back Door Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
