Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 3 illustrations

Illustrations

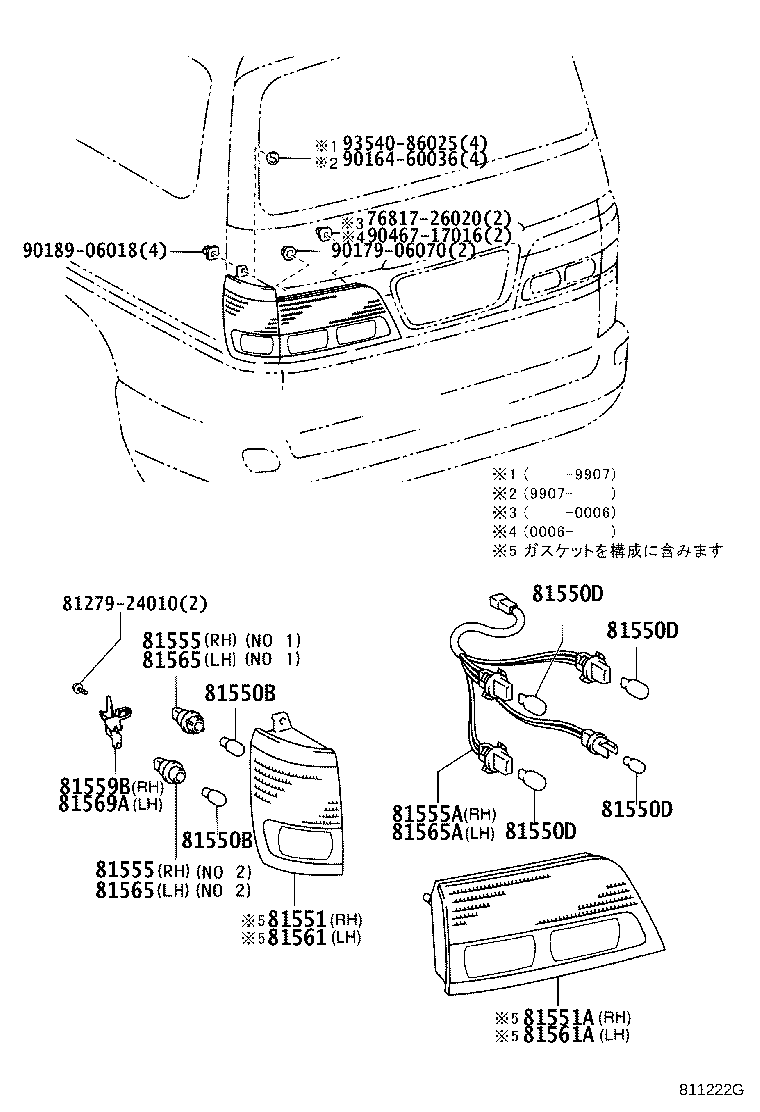

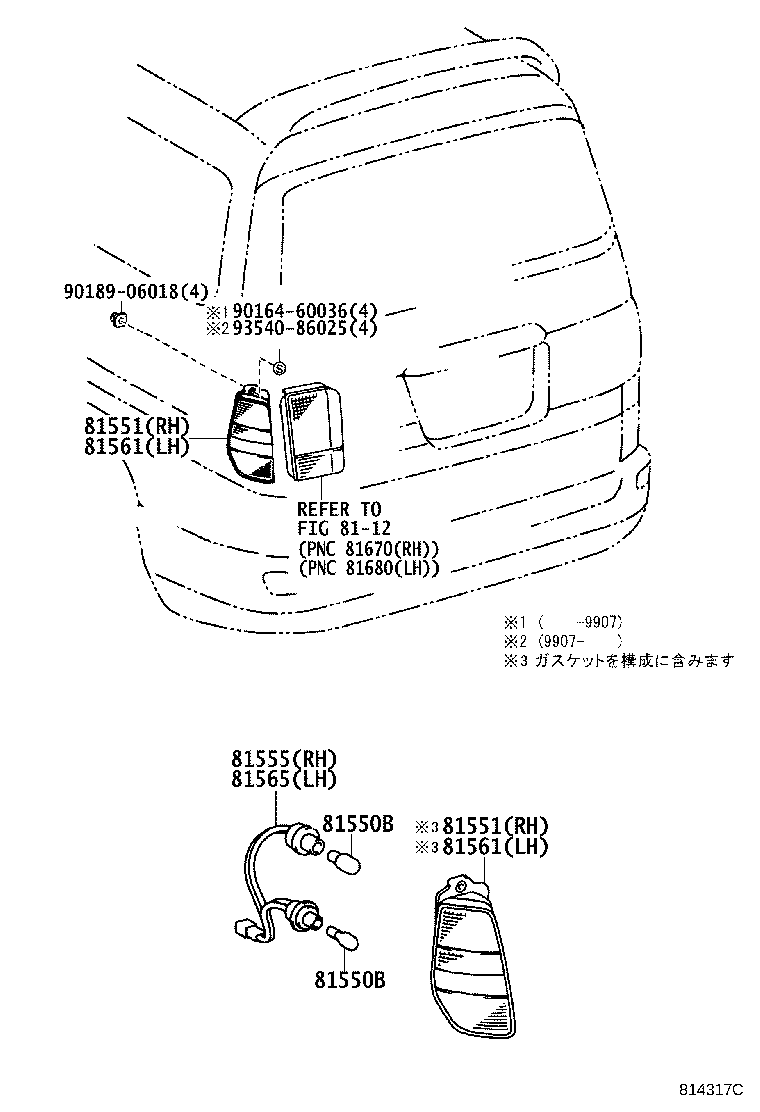

Figure 810329J 810329J 1997-04 → 1999-07 Figure 811222G 811222G 1999-07 → — Figure 814317C 814317C 1997-06 → —

Part groups

PNCDescription
81550B Bulb(FOR REAR COMBINATION LAMP)
81550C Lamp Assy, Rear Combination, RH
81550D Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81551A Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555A Socket & Wire Sub-assy, Rear Combination Lamp, RH
81559B Bracket, Rear Combination Lamp, RH
81560A Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81561A Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81565A Socket & Wire Sub-assy, Rear Combination Lamp, LH
81569A Bracket, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
