Toyota Regius/Touring Hiace
1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan
Discontinued model
Data version 2002-10

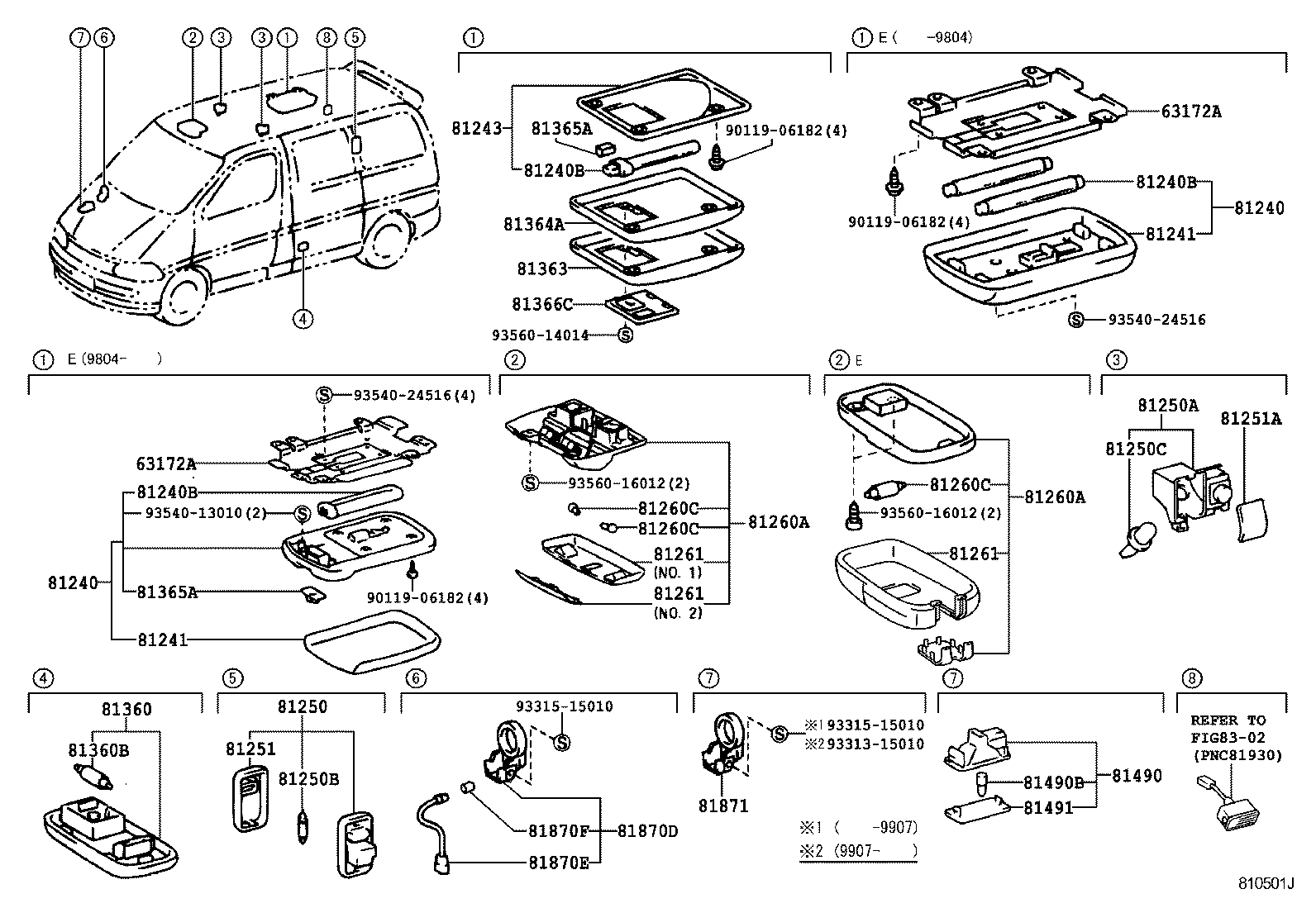

Interior Lamp
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63172A | Base, Room Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81243 | Body, Room Lamp, NO.1 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250A | Lamp Assy, Spot |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81250C | Bulb, Spot Lamp |
| 81251 | Lens, Room Lamp, NO.2 |
| 81251A | Lens, Spot Lamp |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261 | Lens And Cover, Map Lamp |
| 81360 | Lamp Assy, Step OR Spot |
| 81360B | Bulb, Step OR Spot Lamp |
| 81363 | Lens, Room Lamp, Outer |
| 81364A | Lens, Room Lamp, Inner |
| 81365A | Knob, Room Lamp Switch |
| 81366C | Base, Room Lamp Switch |
| 81490 | Lamp Assy, Foot |
| 81490B | Bulb (FOR FOOT LAMP) |
| 81491 | Lens, Foot Lamp |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
| 81870F | Cap, Key Cylinder Lamp Bulb |
| 81871 | Lens, Key Illumination |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
