Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

56 part groups · 18 illustrations

Illustrations

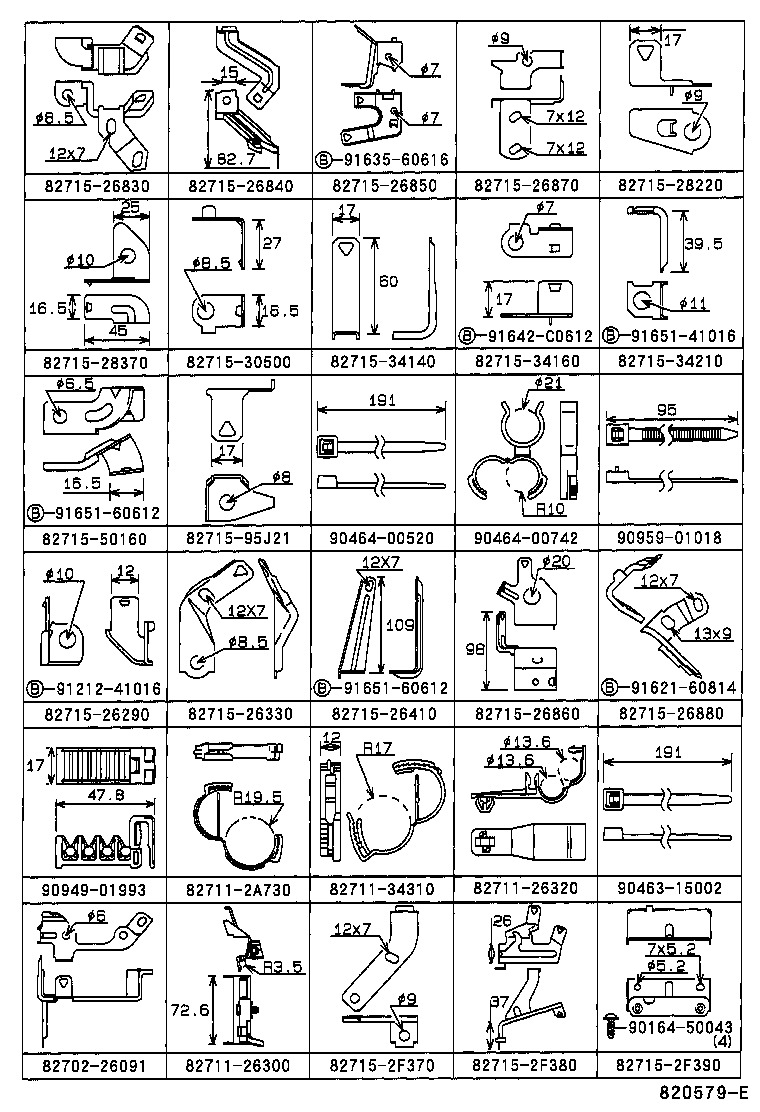

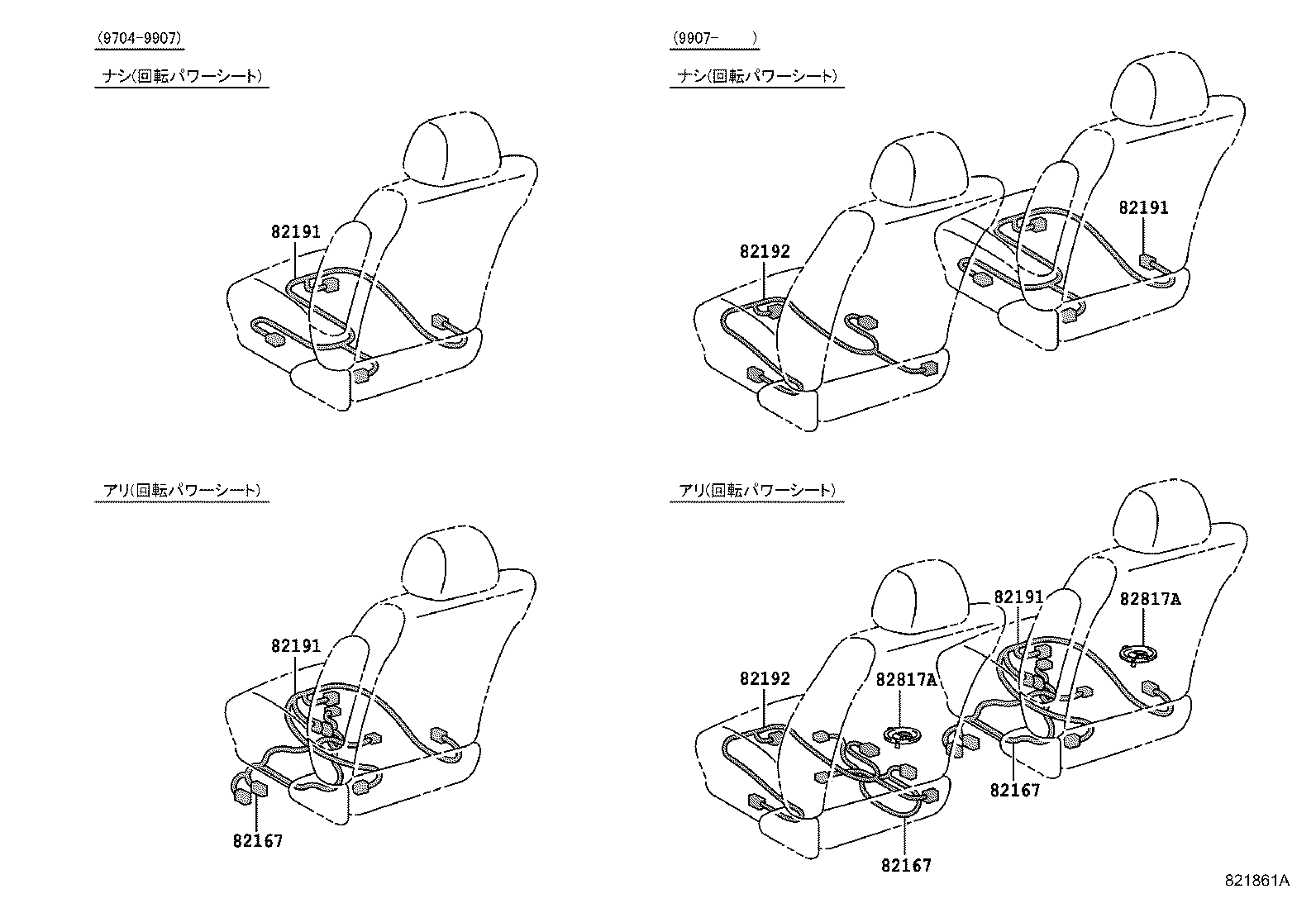

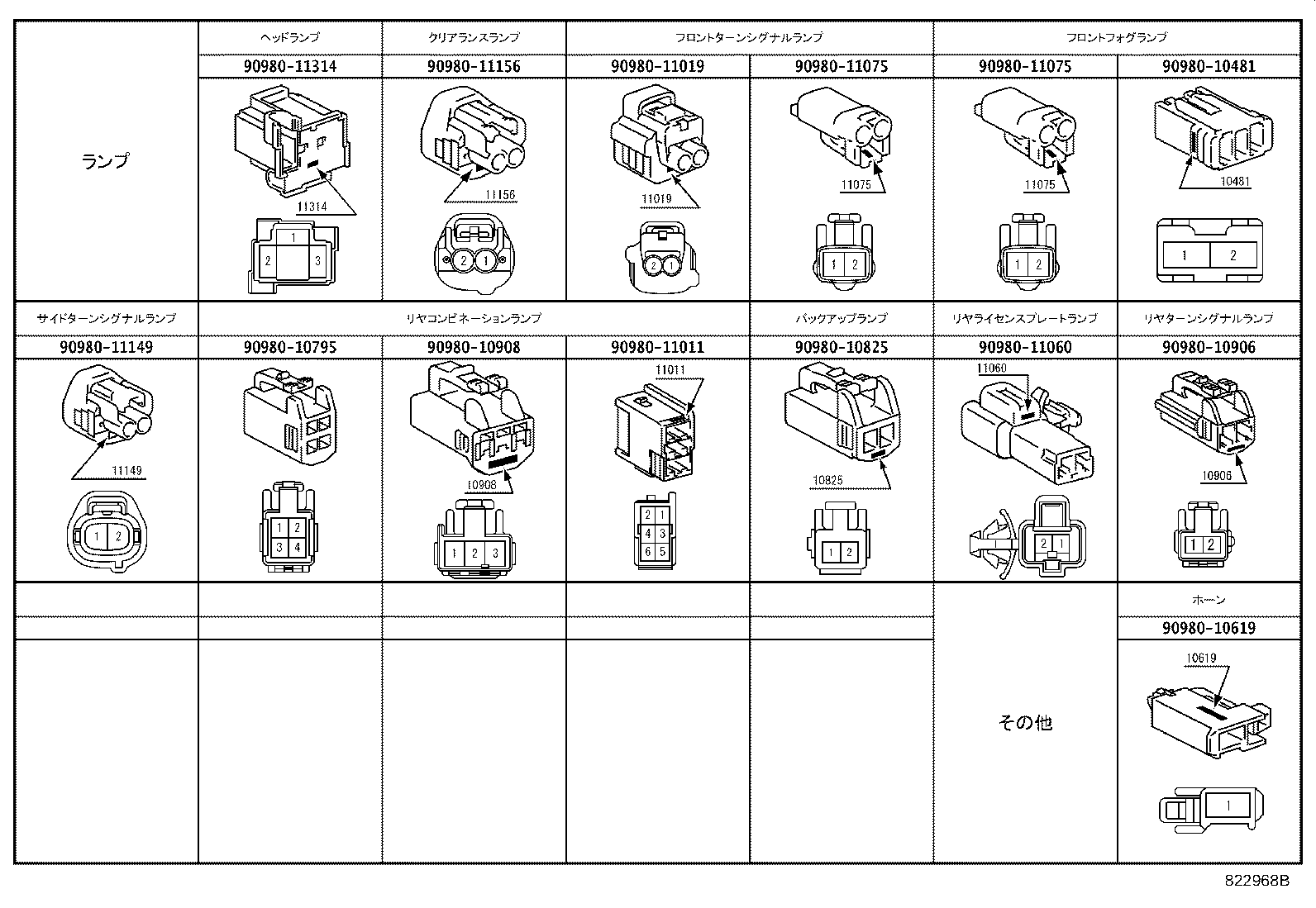

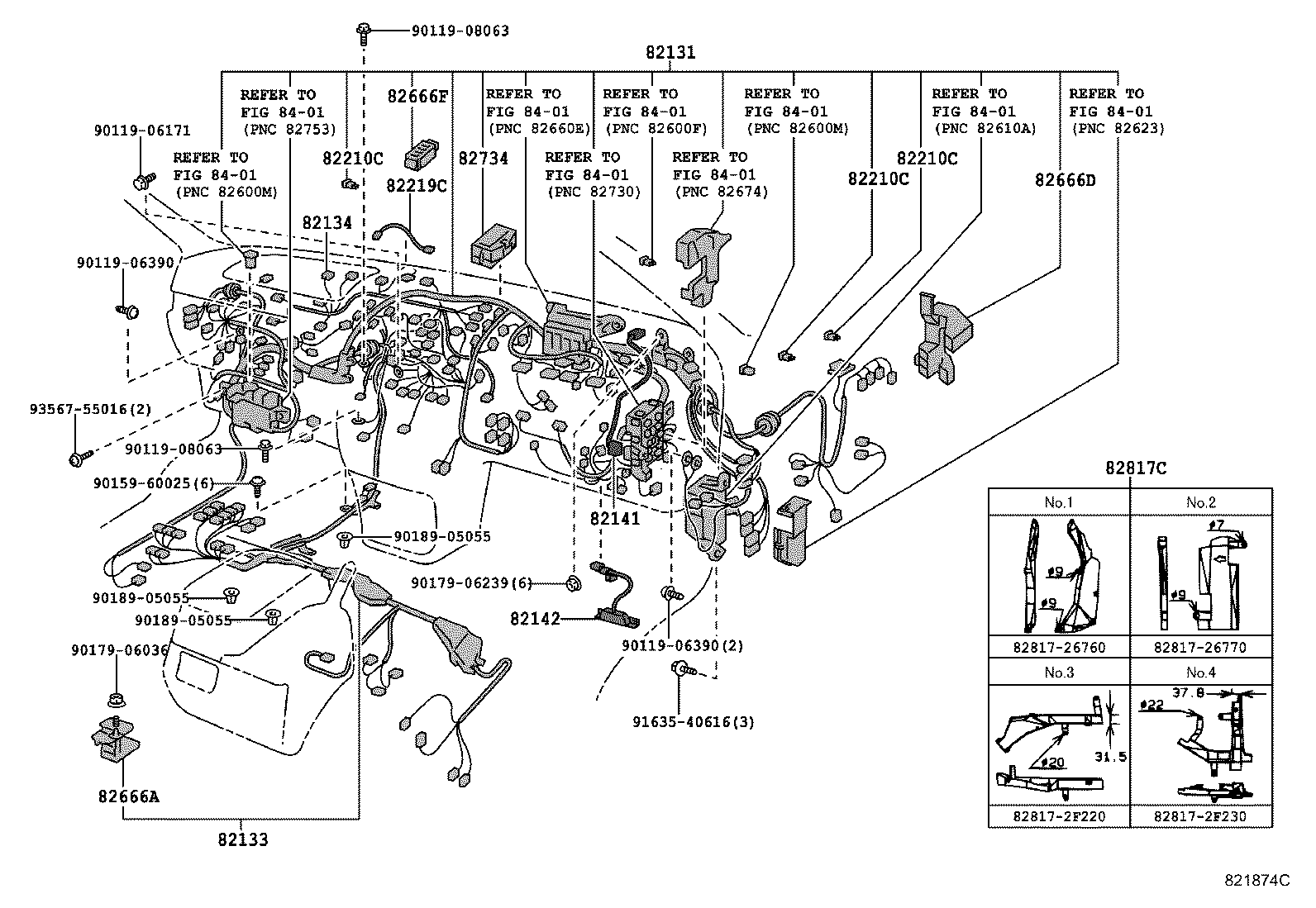

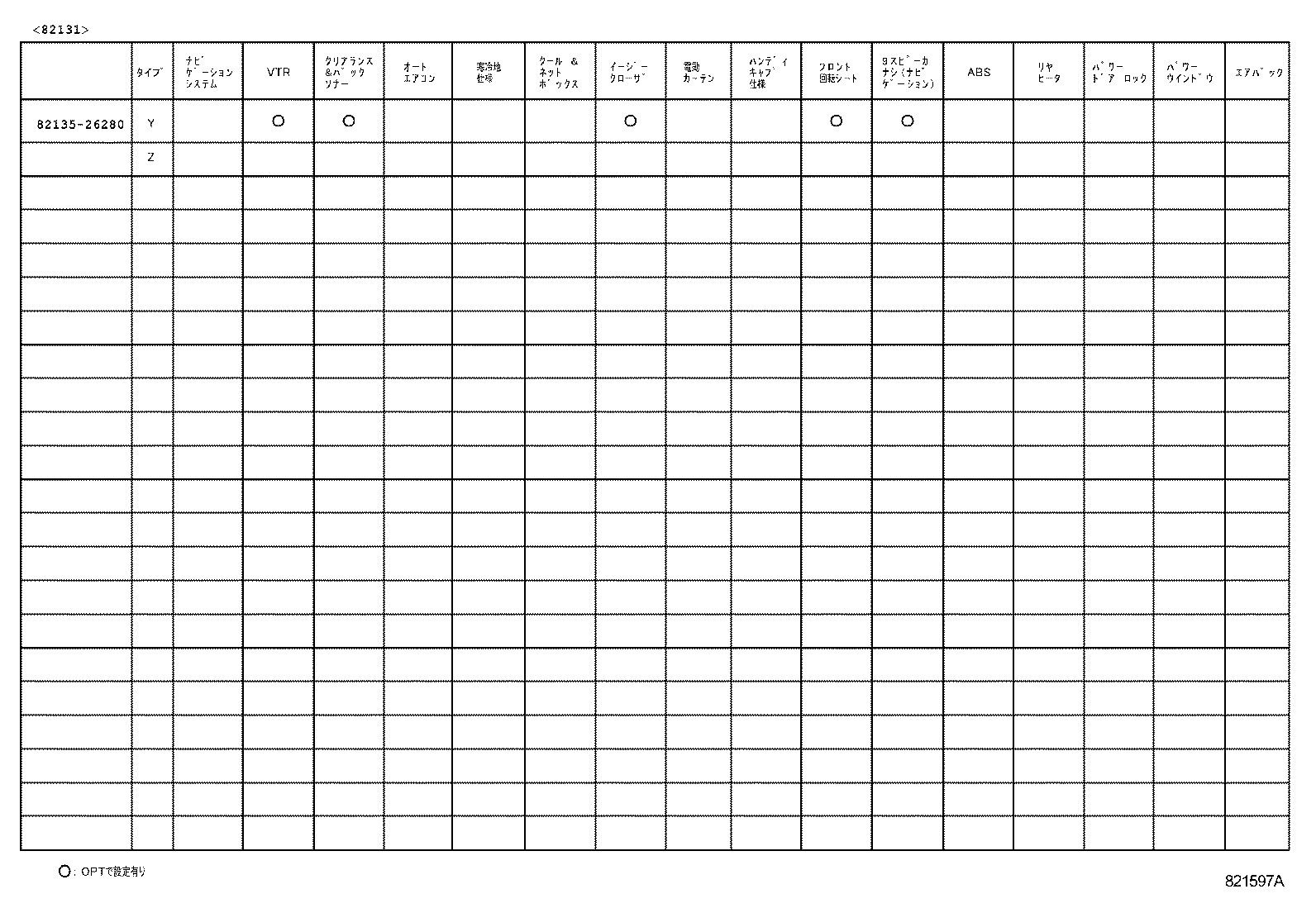

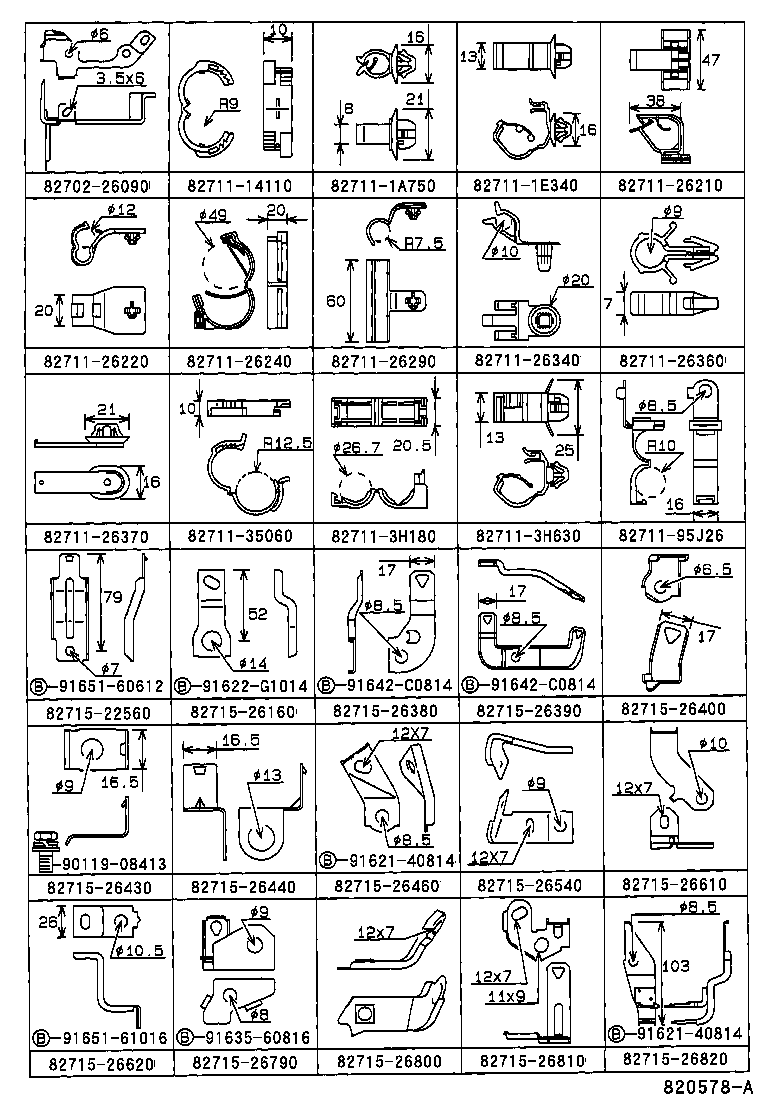

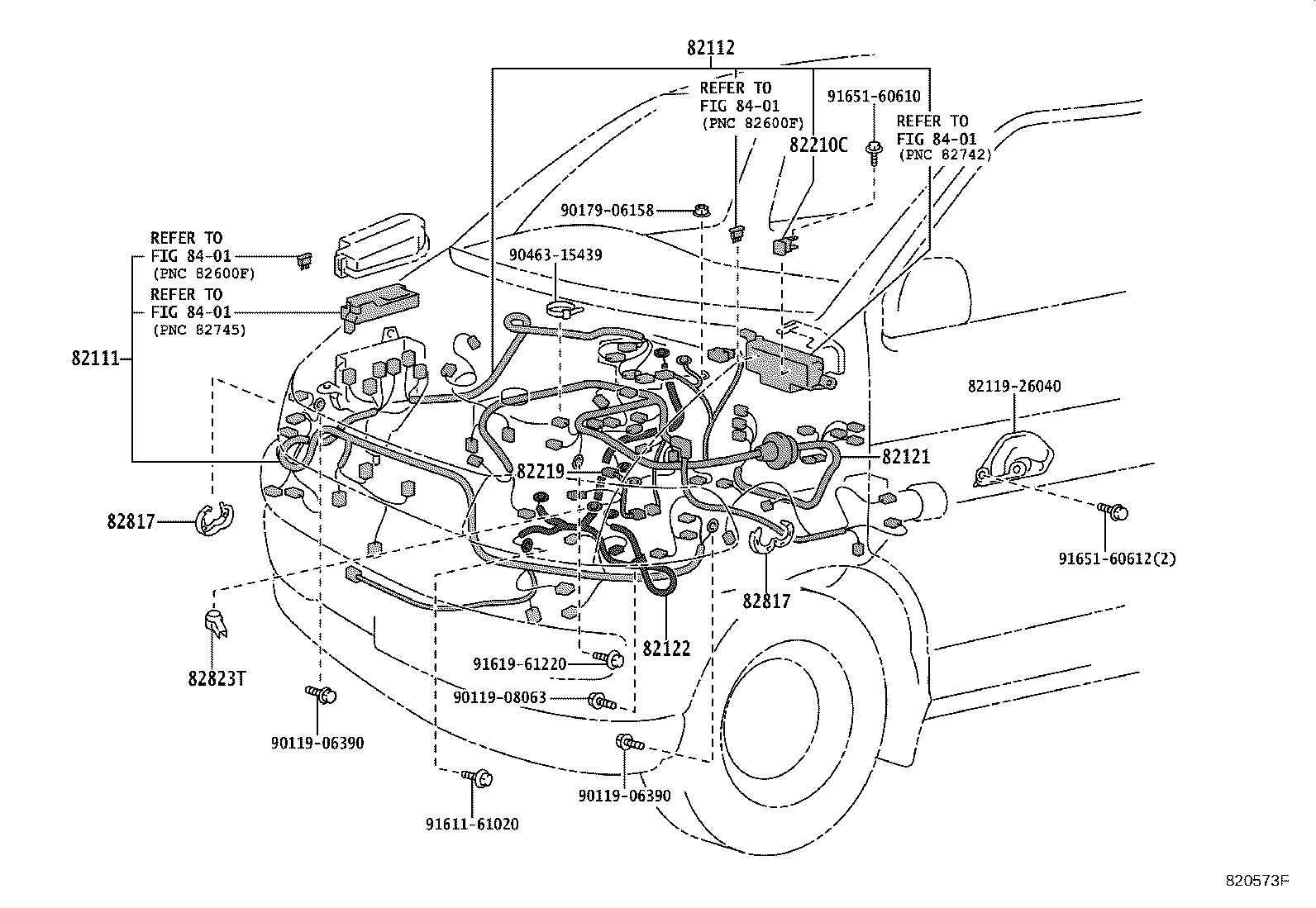

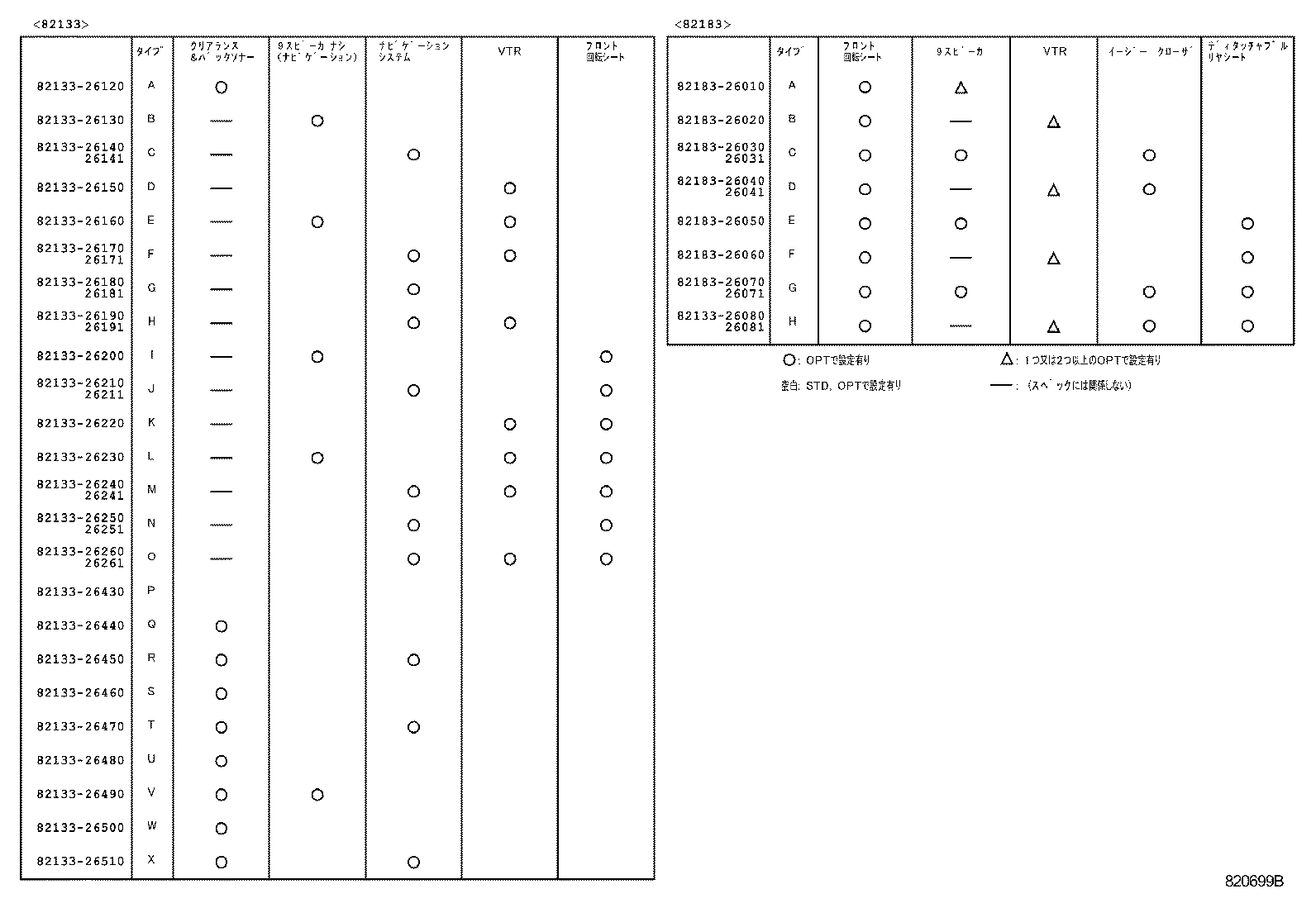

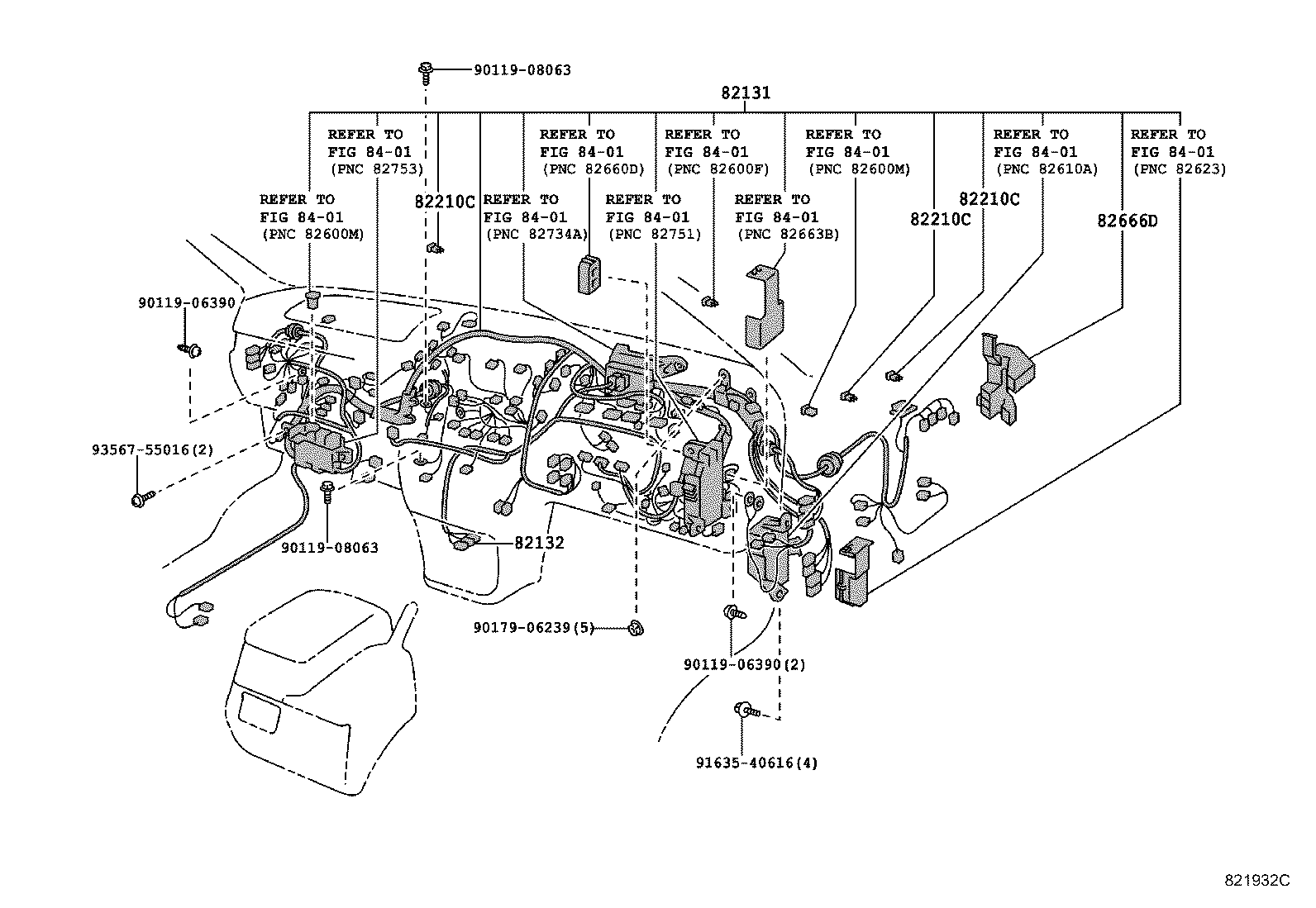

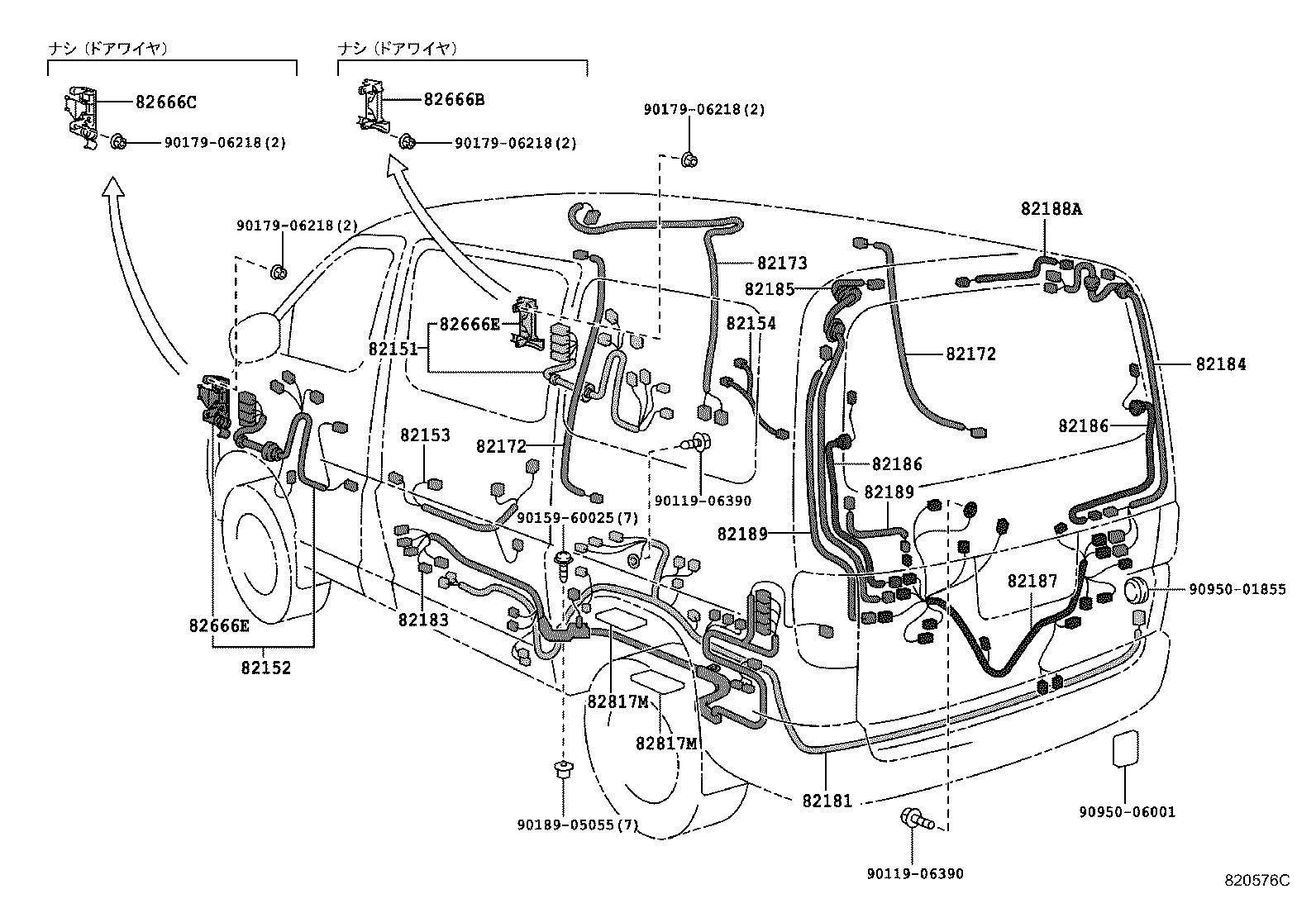

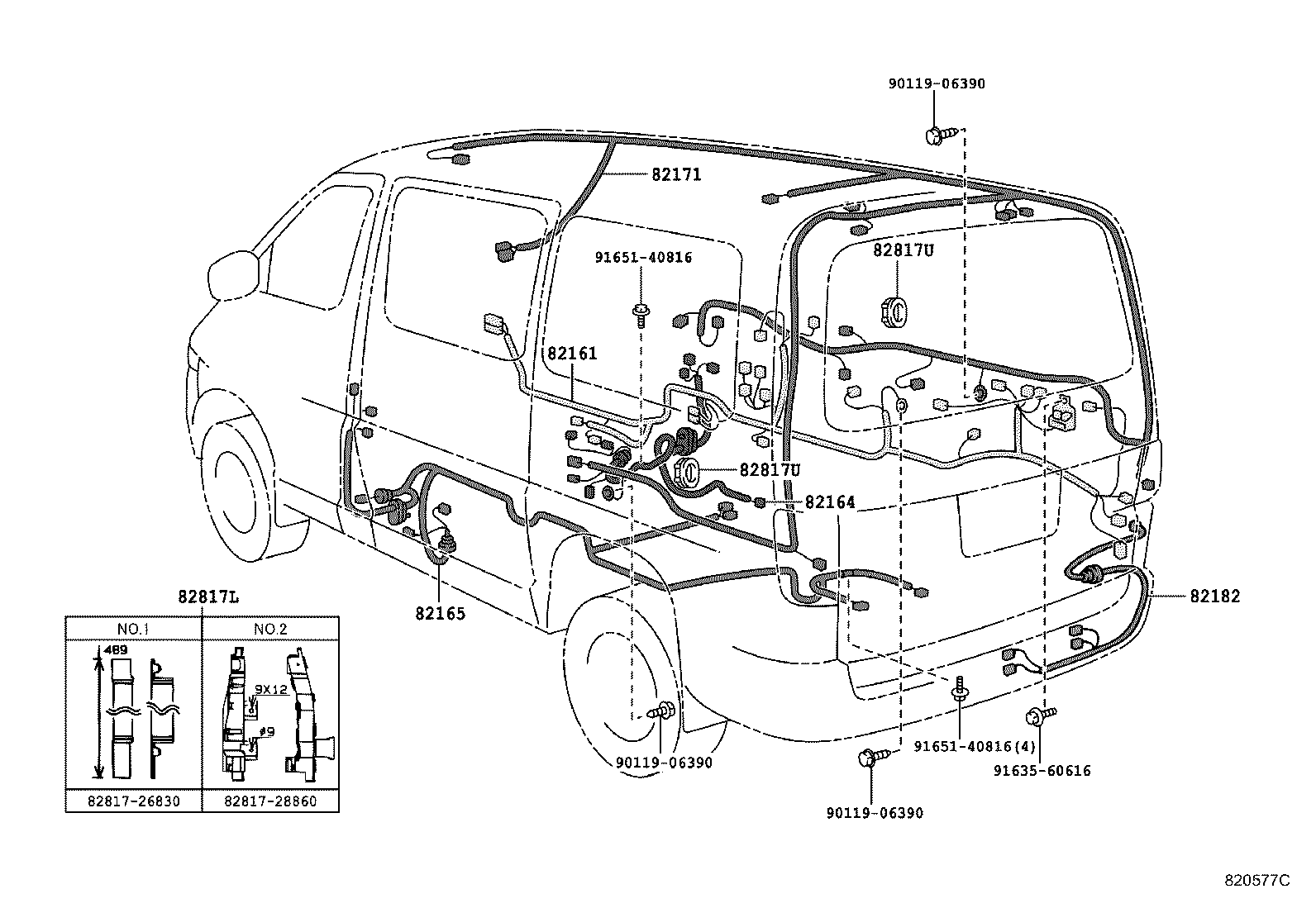

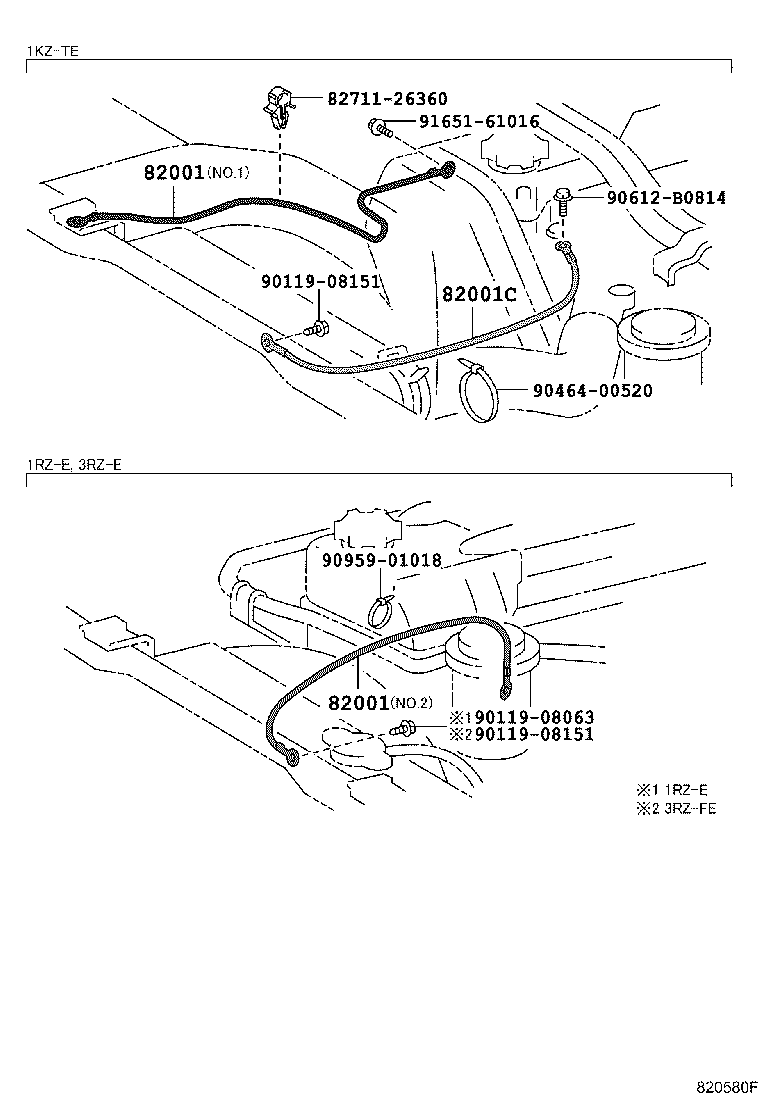

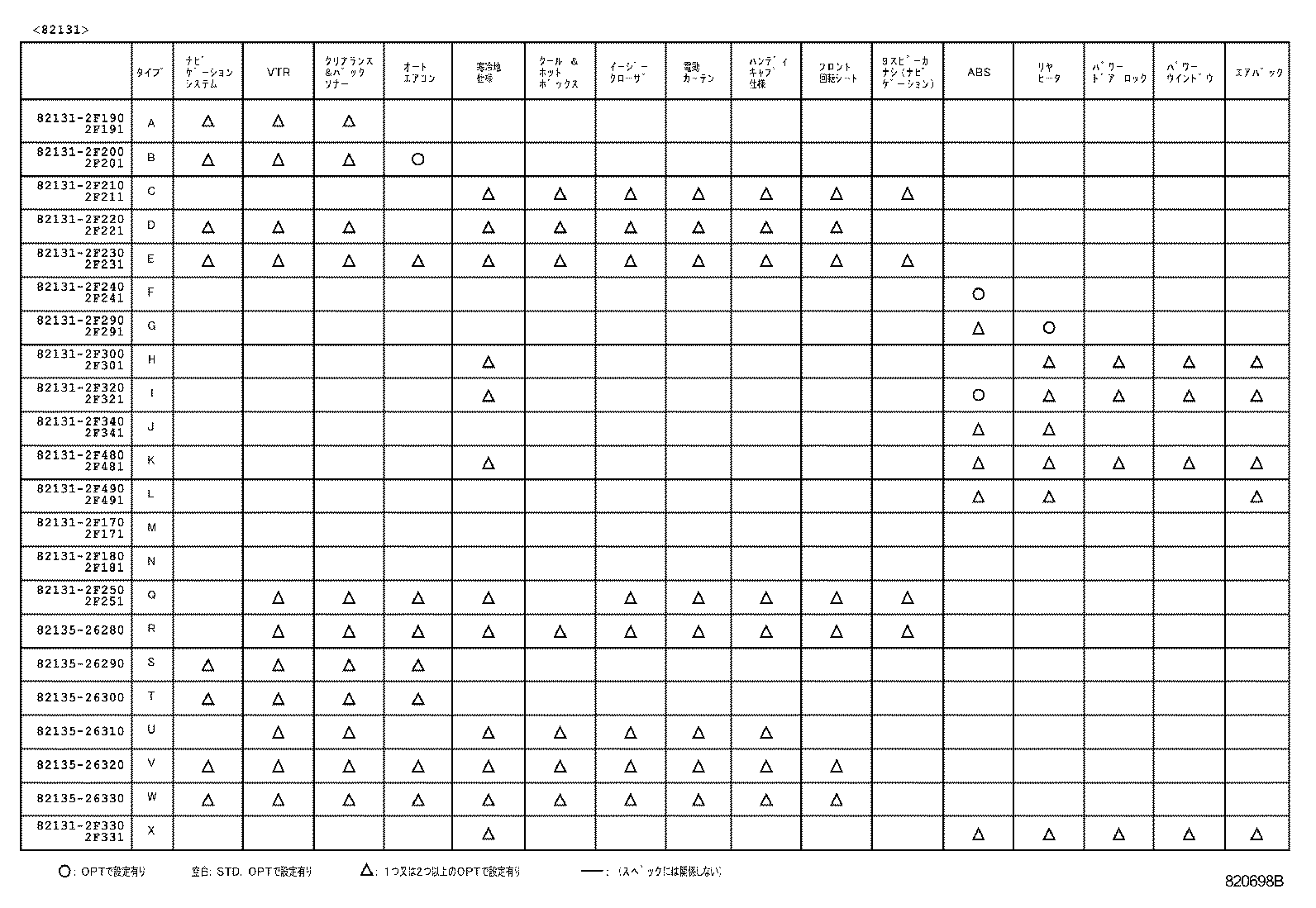

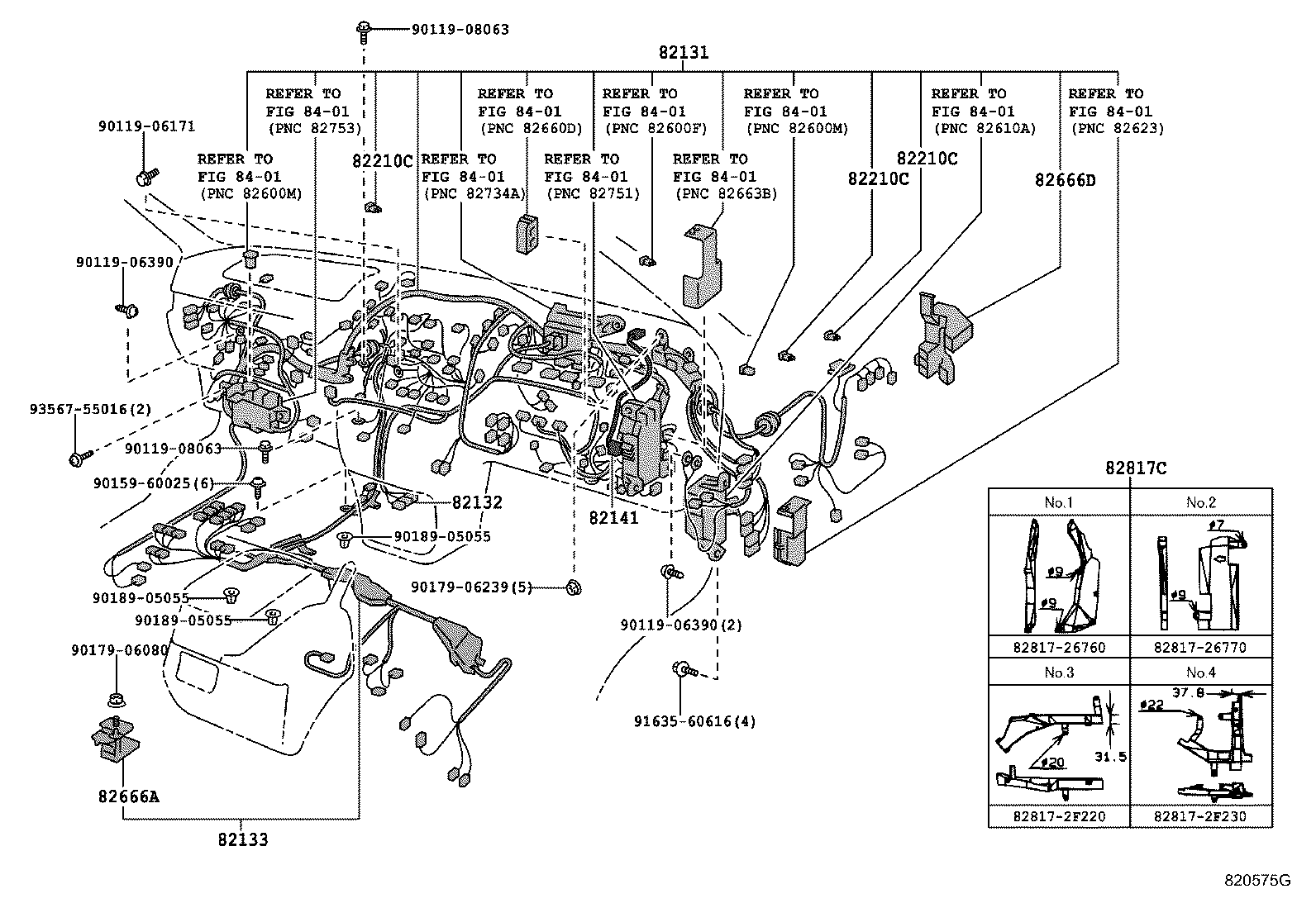

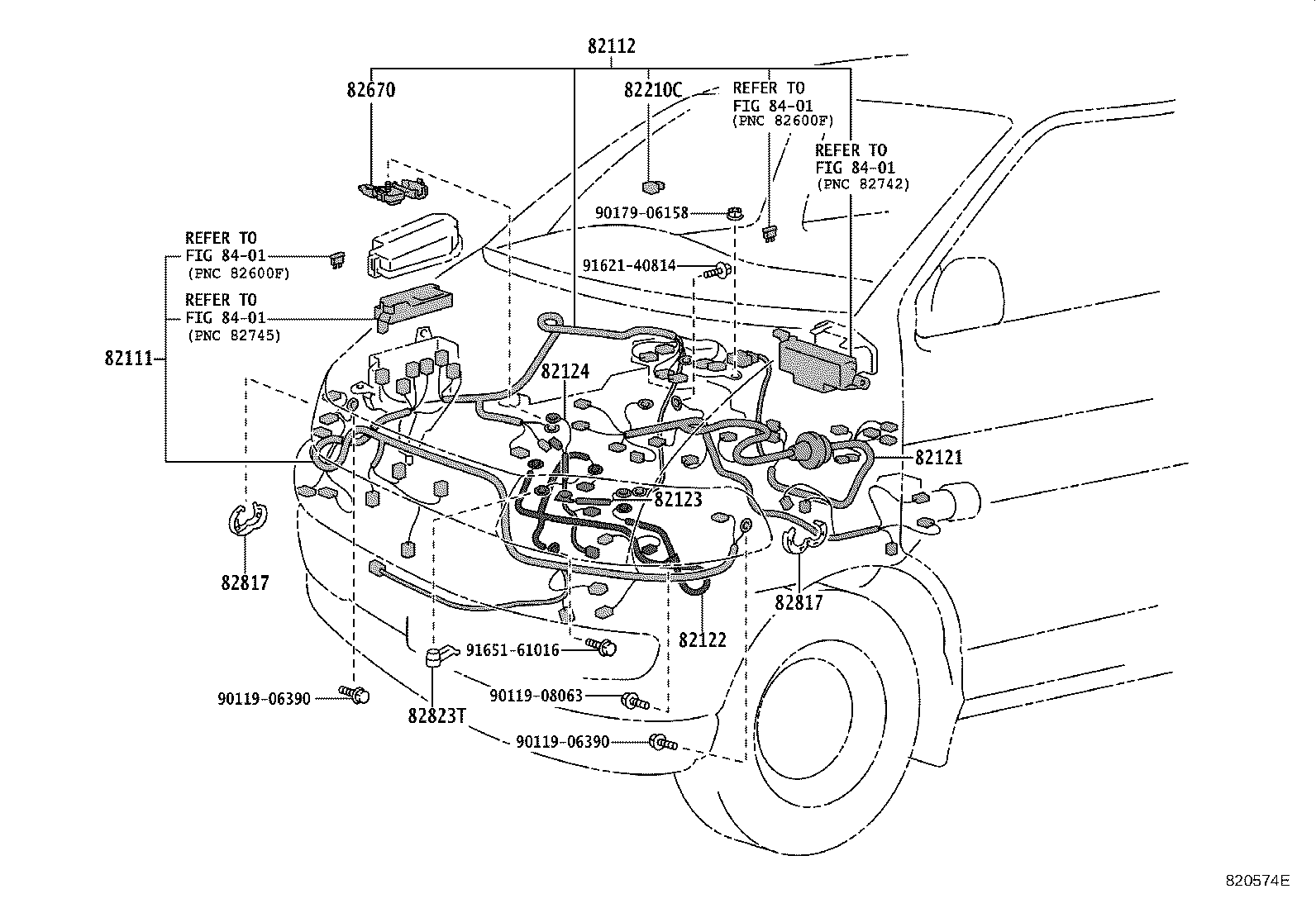

Figure 820572F 820572F 1997-04 → — Figure 820573F 820573F 1997-04 → — Figure 820574E 820574E 1997-06 → — Figure 820575G 820575G 1997-04 → 1999-07 Figure 821932C 821932C 1999-07 → — Figure 821874C 821874C 1999-07 → — Figure 820576C 820576C 1997-04 → — Figure 821861A 821861A 1997-04 → — Figure 820577C 820577C 1997-04 → — Figure 820578A 820578A 1997-04 → — Figure 820579E 820579E 1997-04 → — Figure 821862B 821862B 1997-04 → — Figure 820580F 820580F 1997-04 → — Figure 820581 820581 1997-04 → — Figure 820698B 820698B 1997-04 → 1999-07 Figure 821597A 821597A 1997-04 → 1999-07 Figure 820699B 820699B 1997-04 → 1999-07 Figure 822968B 822968B 1997-04 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82134 Wire, Cowl, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82210C Fusible Link
82219 Wire, Thermo Sensor
82219C Wire, Sensor
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82670 Block Assy, Junction, NO.1
82734 Block, Center Junction
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817U Protector, Wiring Harness, NO.16
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
