Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

33 part groups · 10 illustrations

Illustrations

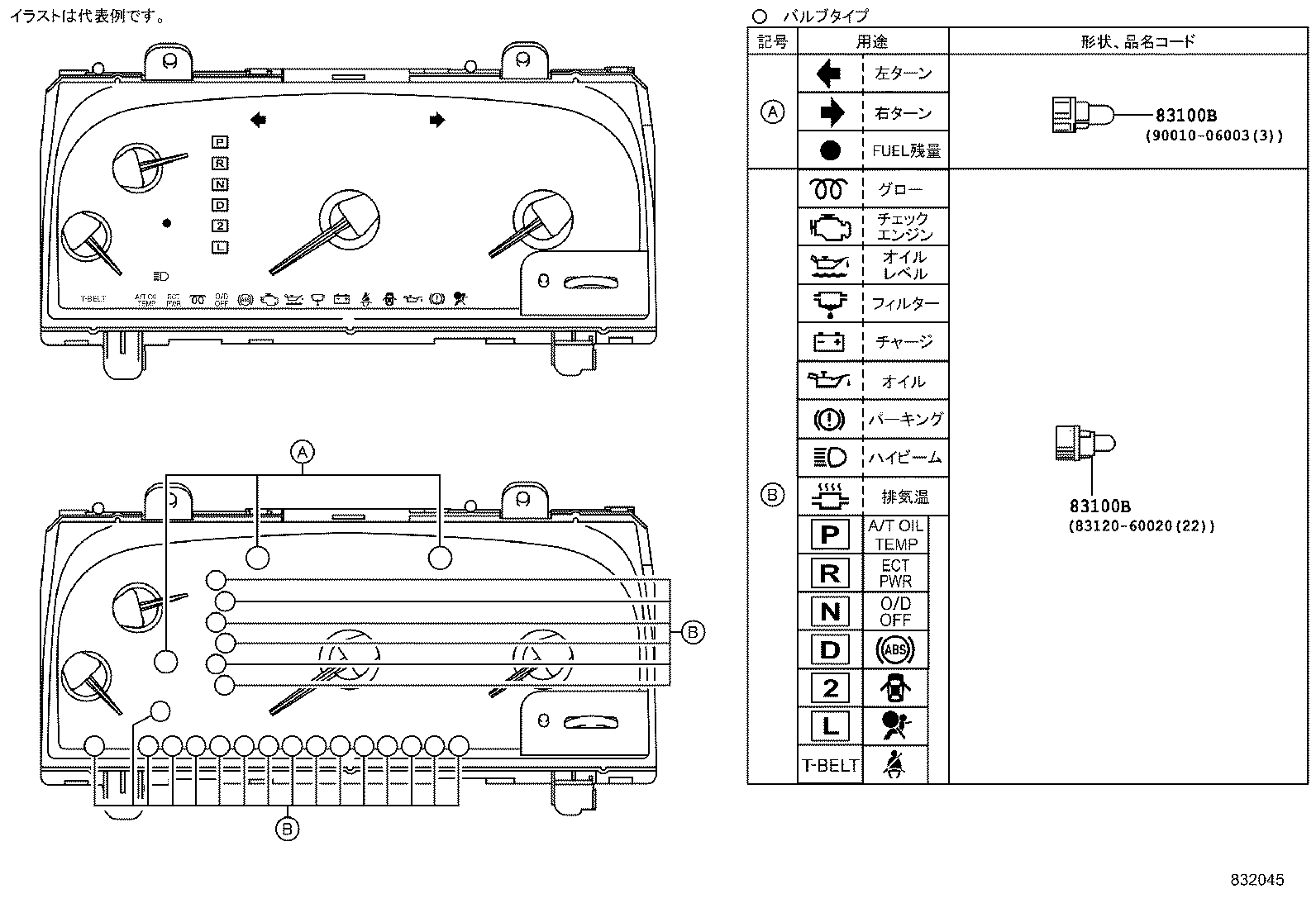

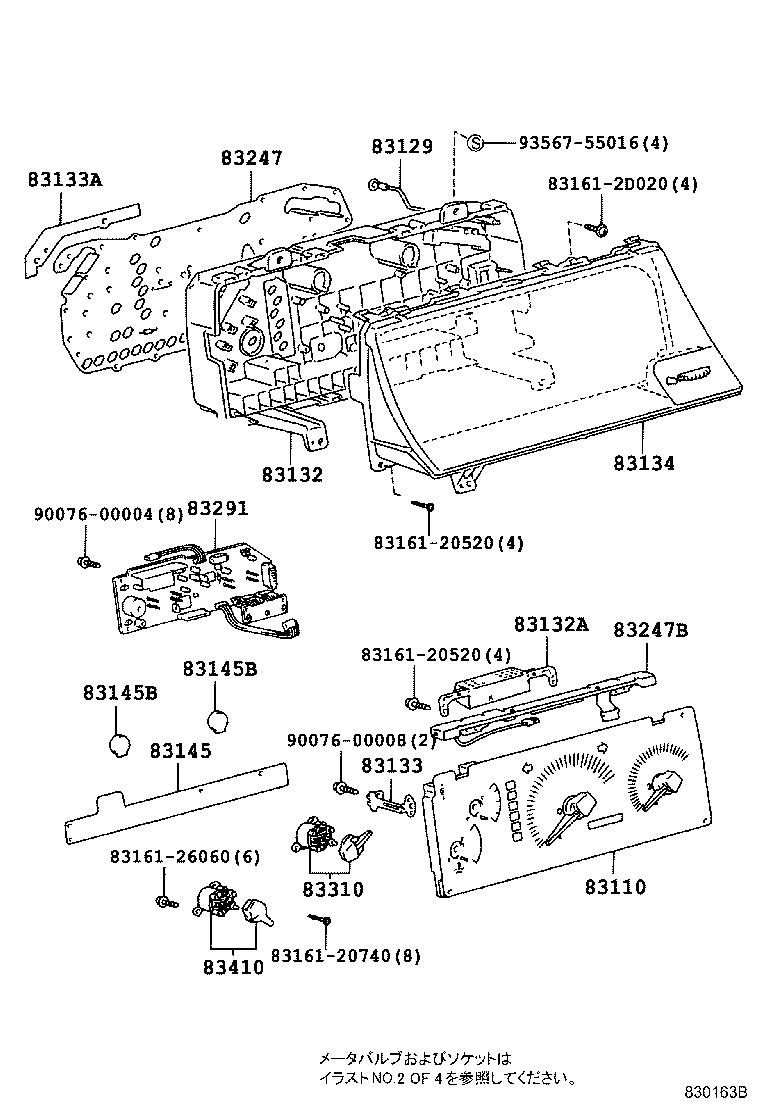

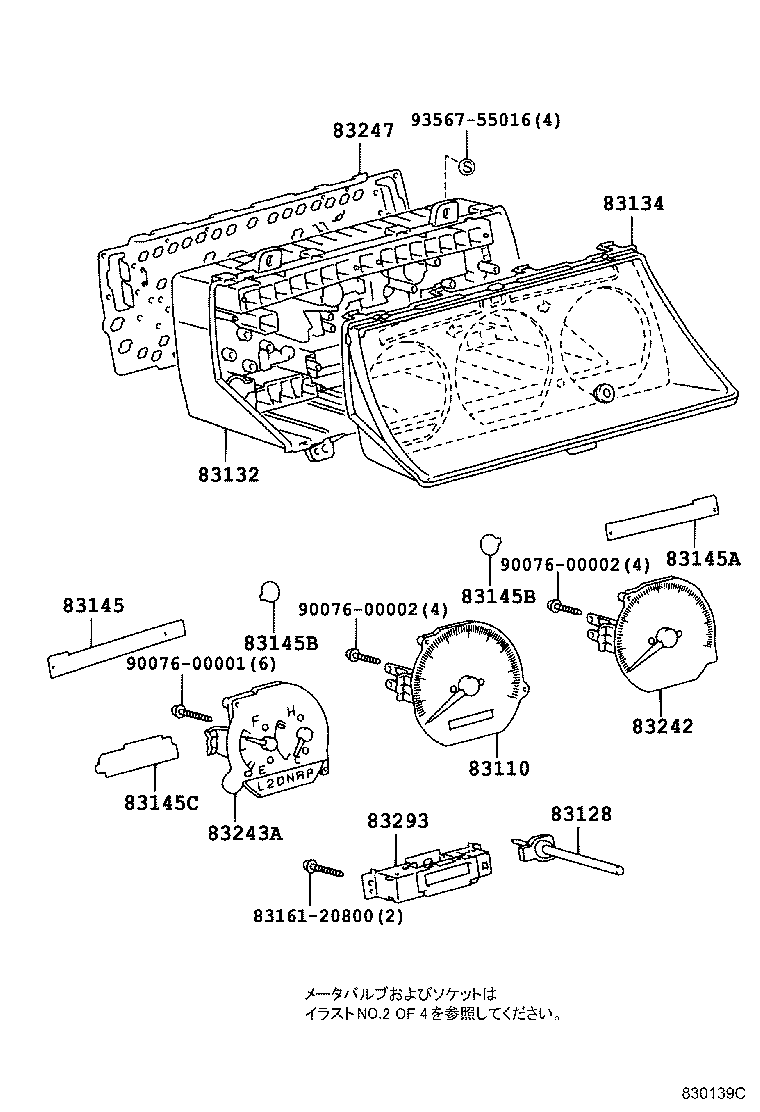

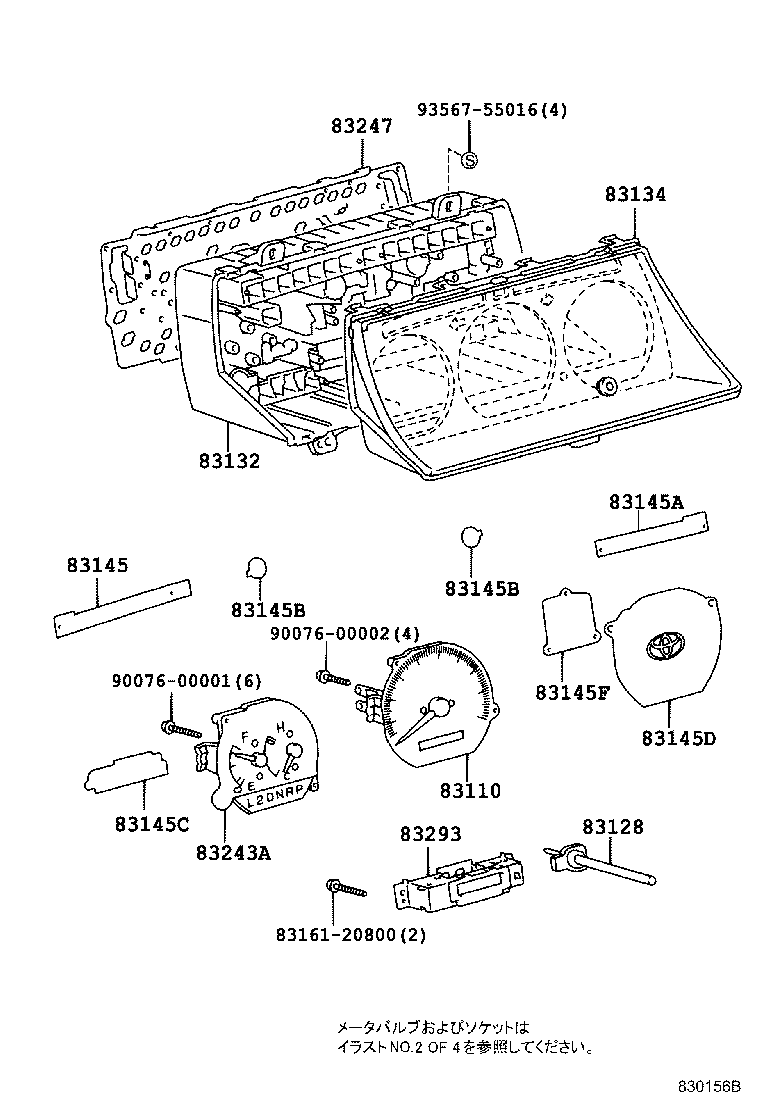

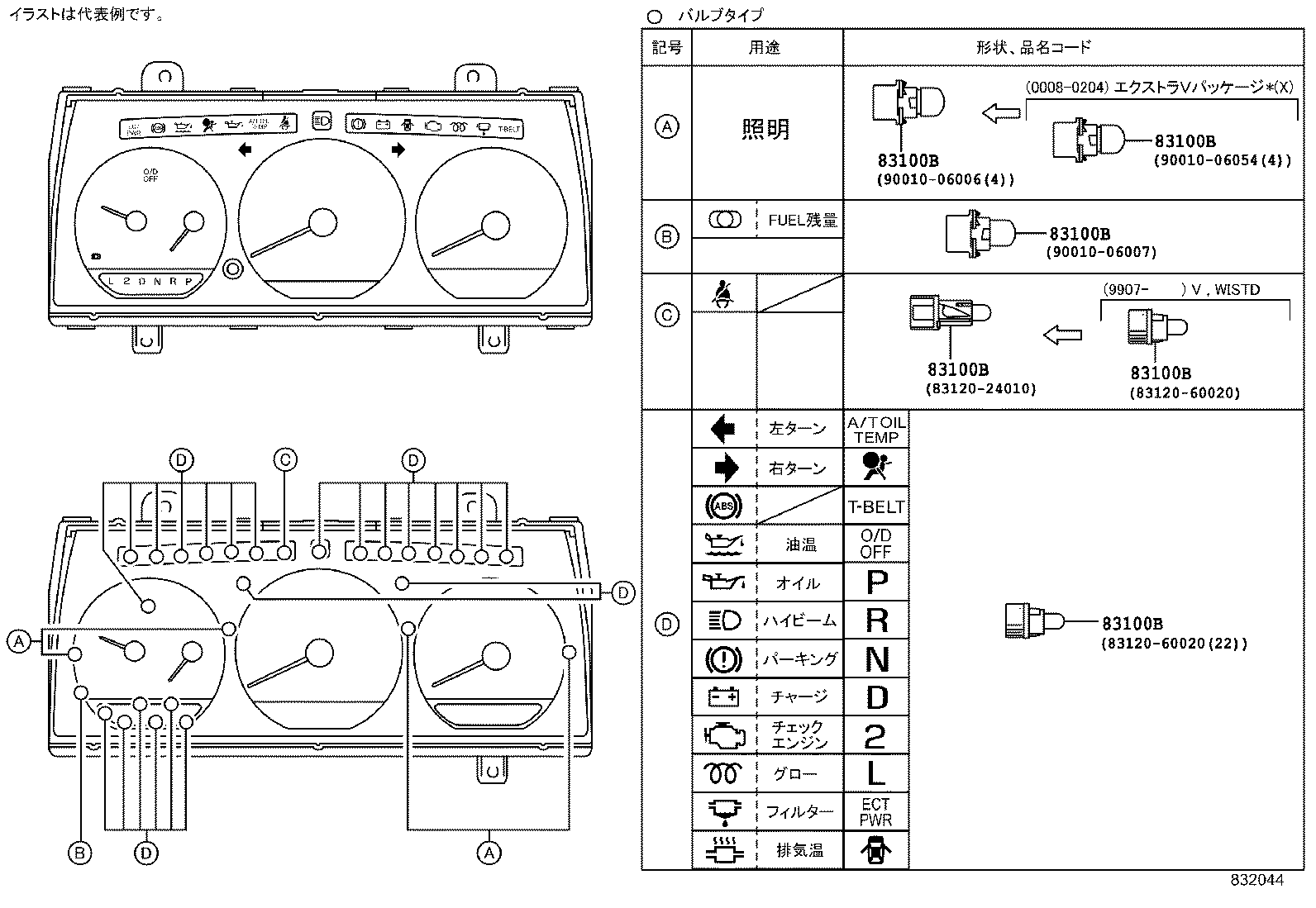

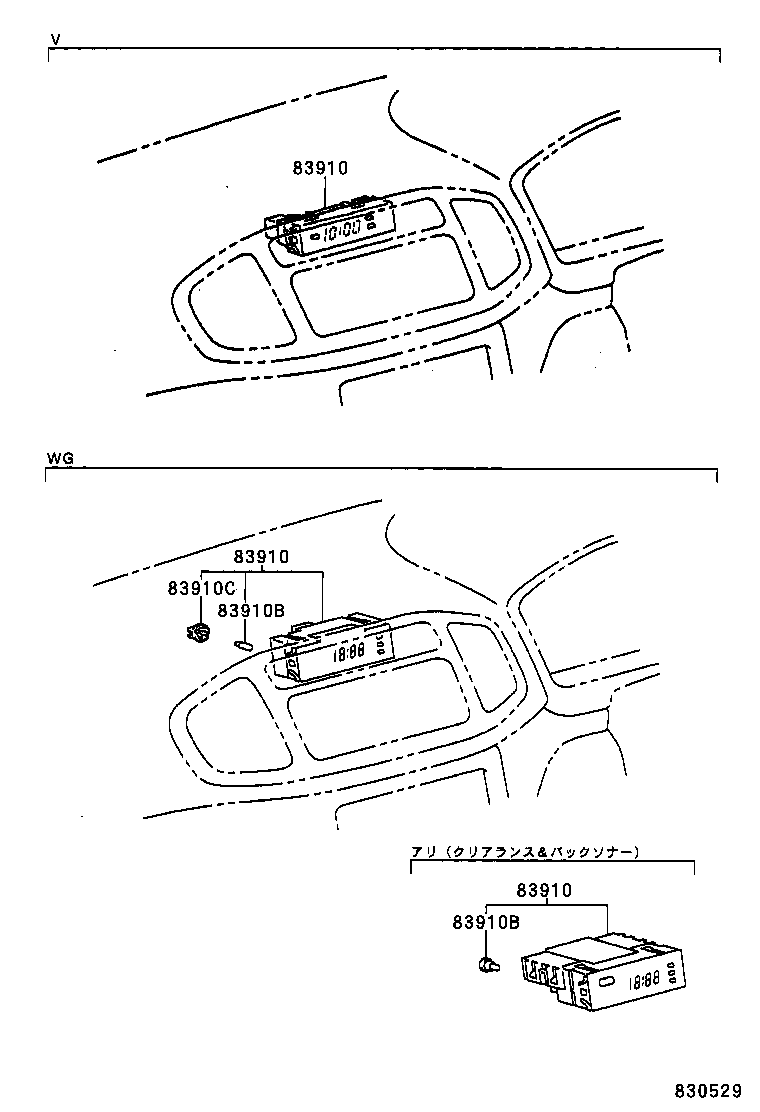

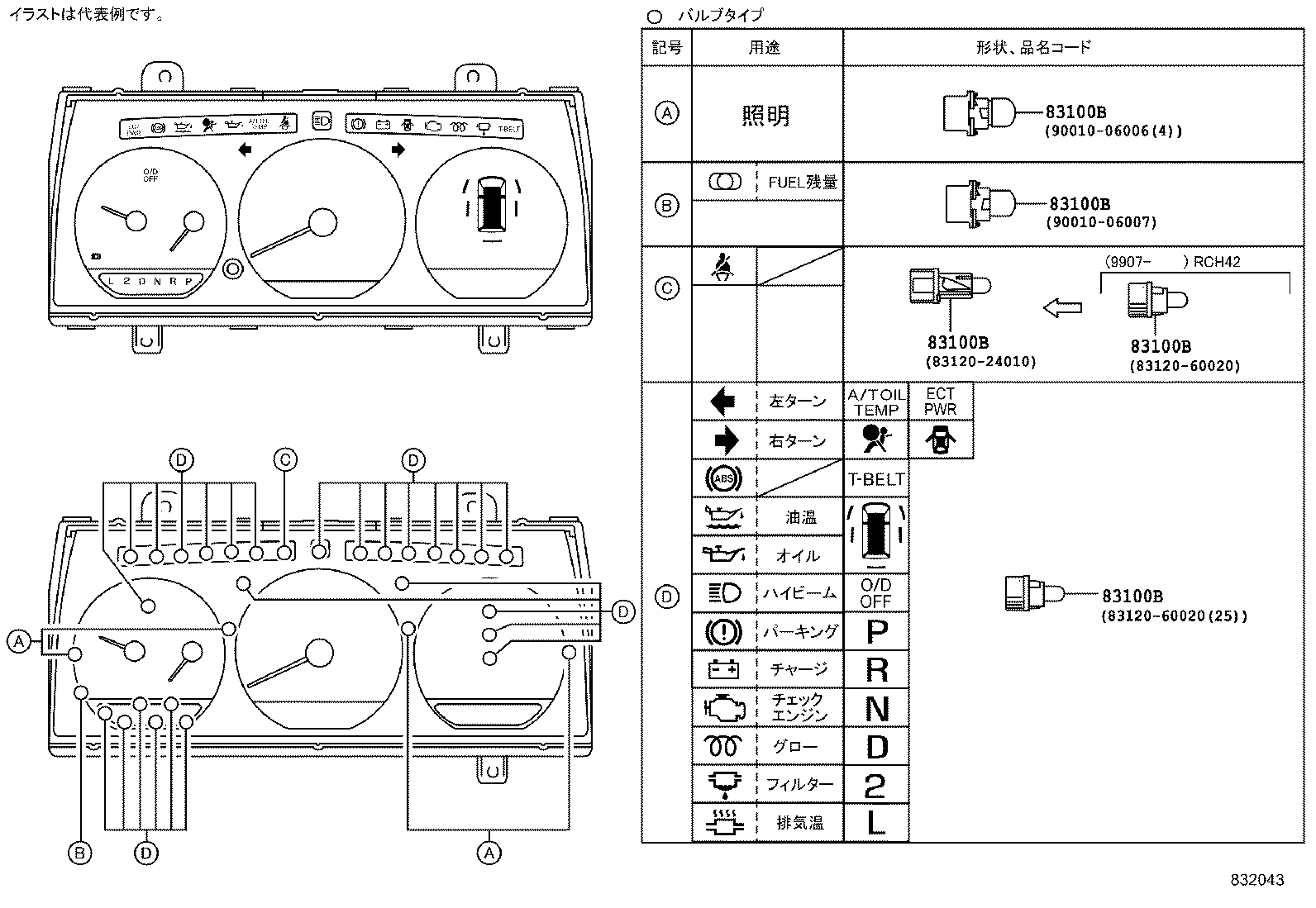

Figure 830155C 830155C 1997-04 → 1999-07 Figure 830156B 830156B 1997-06 → — Figure 830139C 830139C 1997-04 → — Figure 830163B 830163B 1997-04 → — Figure 832043 832043 1997-04 → — Figure 832043 832043 1997-06 → — Figure 832044 832044 1997-04 → — Figure 832045 832045 1997-04 → — Figure 830140A 830140A 1997-04 → — Figure 830529 830529 1997-04 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83110 Speedometer Assy
83128 Knob, Trip Counter
83129 Wire, Meter
83132 Case, Combination Meter
83132A Case, Meter
83133 Plate, Combination Meter, NO.1
83133A Plate, Combination Meter, NO.2
83134 Cover, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83145D Lens, Meter, NO.5
83145E Lens, Meter, NO.6
83145F Lens, Meter, NO.7
83145T Lens, Meter, NO.8
83180 Detector Assy, Revolution
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83247 Plate, Meter Circuit
83247B Plate, Meter Circuit, NO.2
83248 Chime, Speed Warning
83291 Computer, Combination Meter
83293 Computer, Total Counter Module
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83783 Key, Speedmeter Sensor
83910 Clock Assy
83910B Bulb, Clock Indicator
83910C Socket Sub-assy, Clock Bulb
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
