Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

12 part groups · 2 illustrations

Illustrations

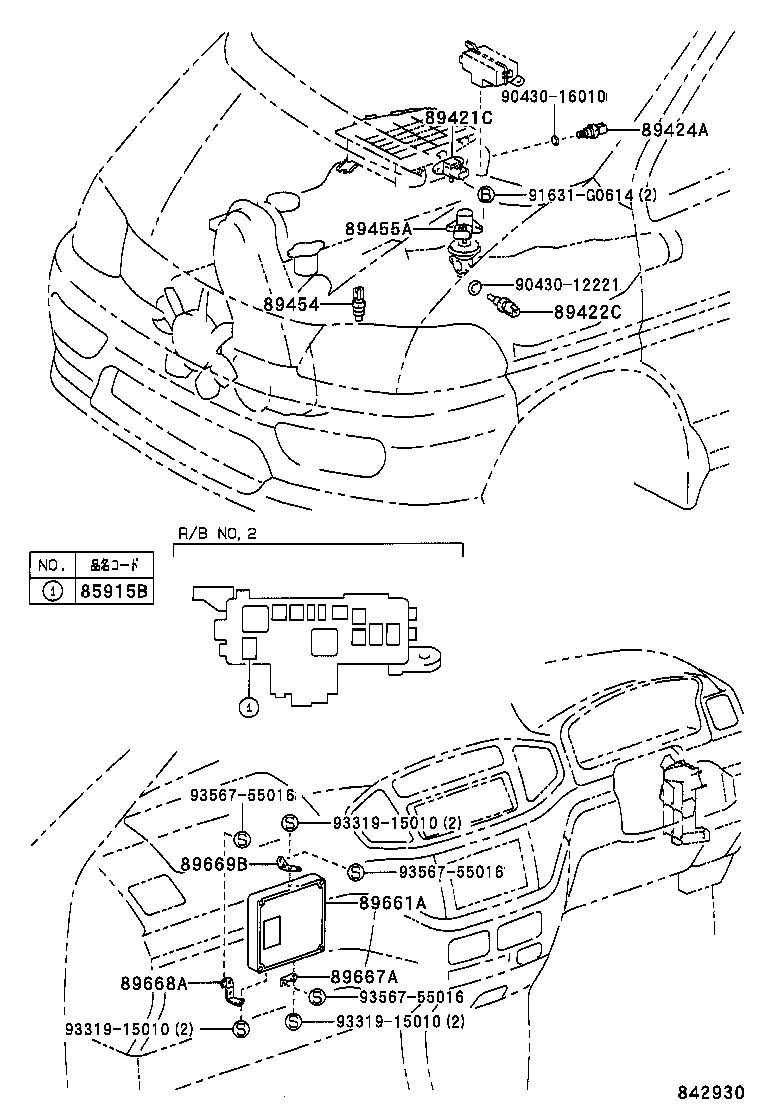

Figure 840734A 840734A 1997-04 → 1999-07 Figure 842930 842930 1999-07 → —

Part groups

PNCDescription
85915B Relay, Main (FOR DIESEL TURBO)
85915F Relay, Spill Valve
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89452B Sensor, Throttle Position
89454 Sensor, Fuel Temperature
89455A Sensor, Egr Valve Position
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89669B Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
