Toyota Regius/Touring Hiace
1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan
Discontinued model
Data version 2002-10
Radio Receiver & Amplifier & Condenser
12 part groups · 5 illustrations
Part groups

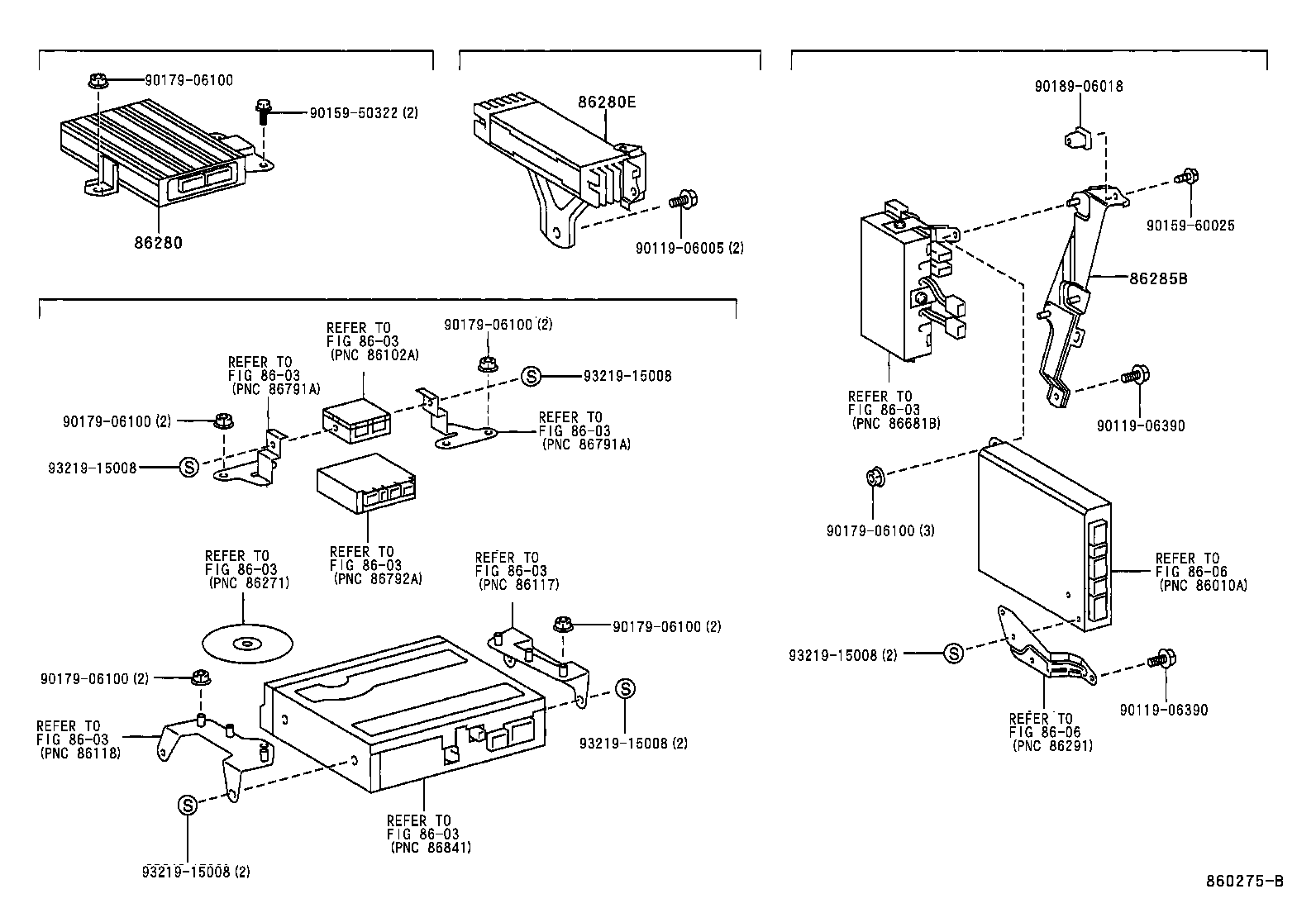

| PNC | Description |
|---|---|

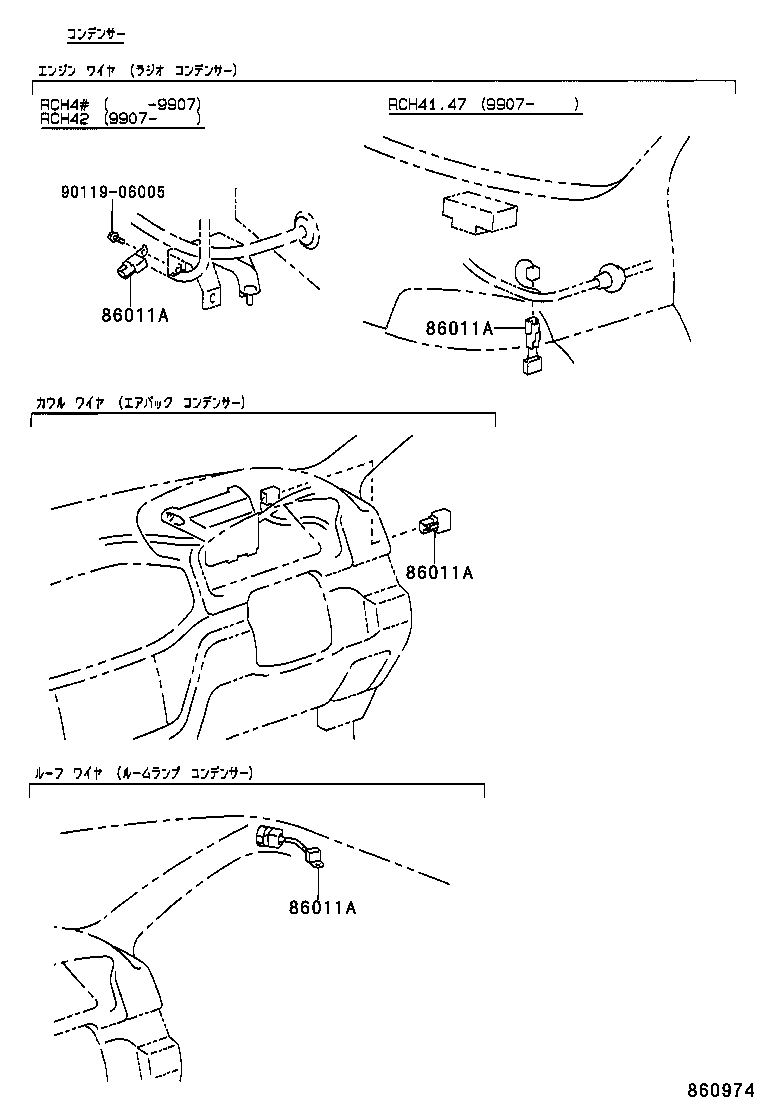

| 86011A | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86183B | Cover, Audio Rack |
| 86183C | Clip, Audio Rack |
| 86208 | Bracket Sub-assy, Radio Receiver, LH |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
| 86280E | Amplifier Set, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86285B | Bracket, Amplifier, NO.1 |
| 86292C | Cover, Television Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
