Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

4 part groups · 7 illustrations

Illustrations

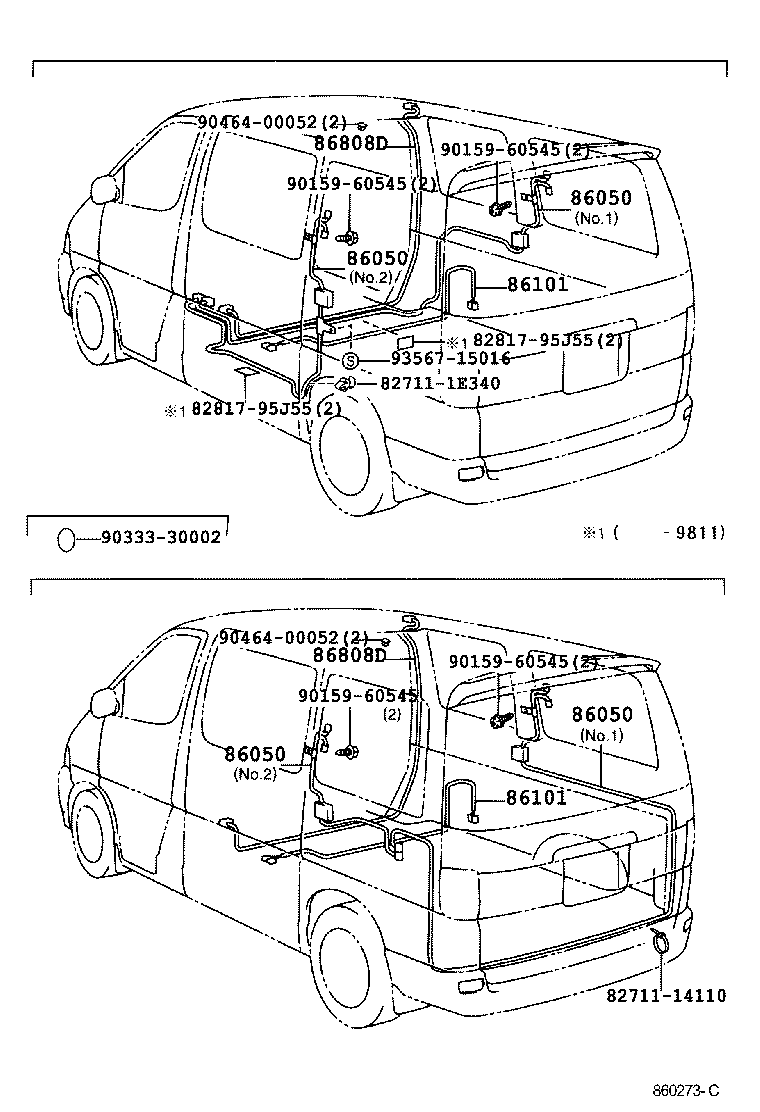

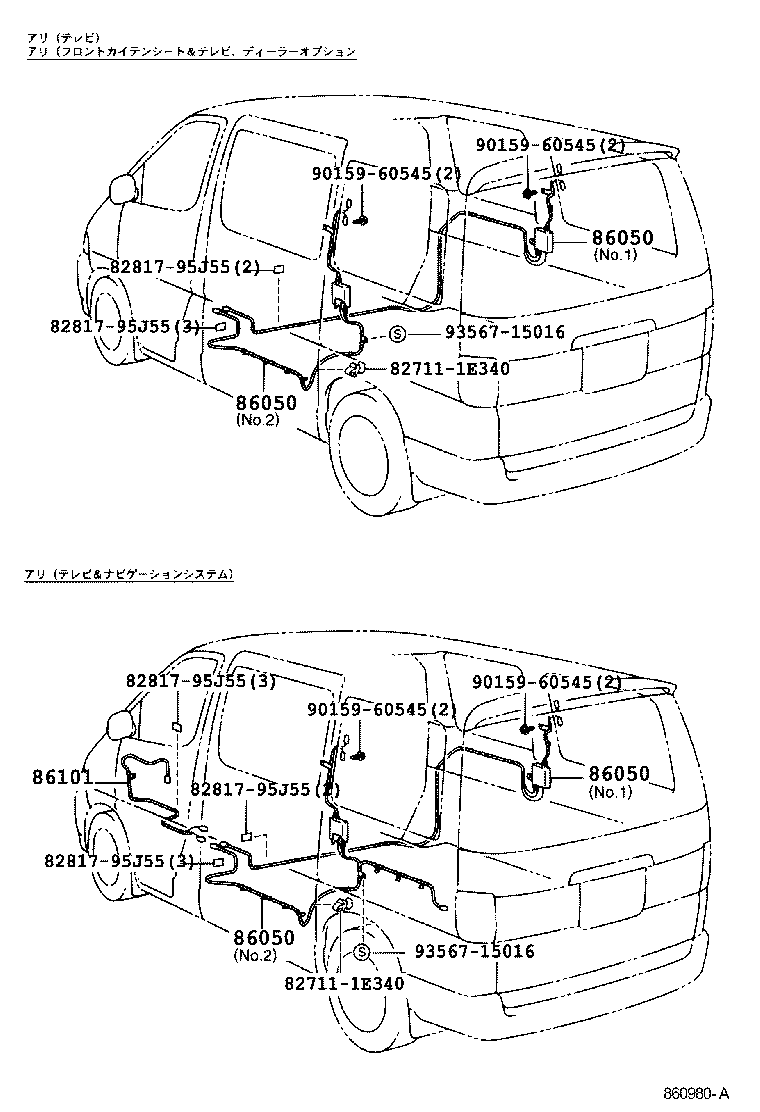

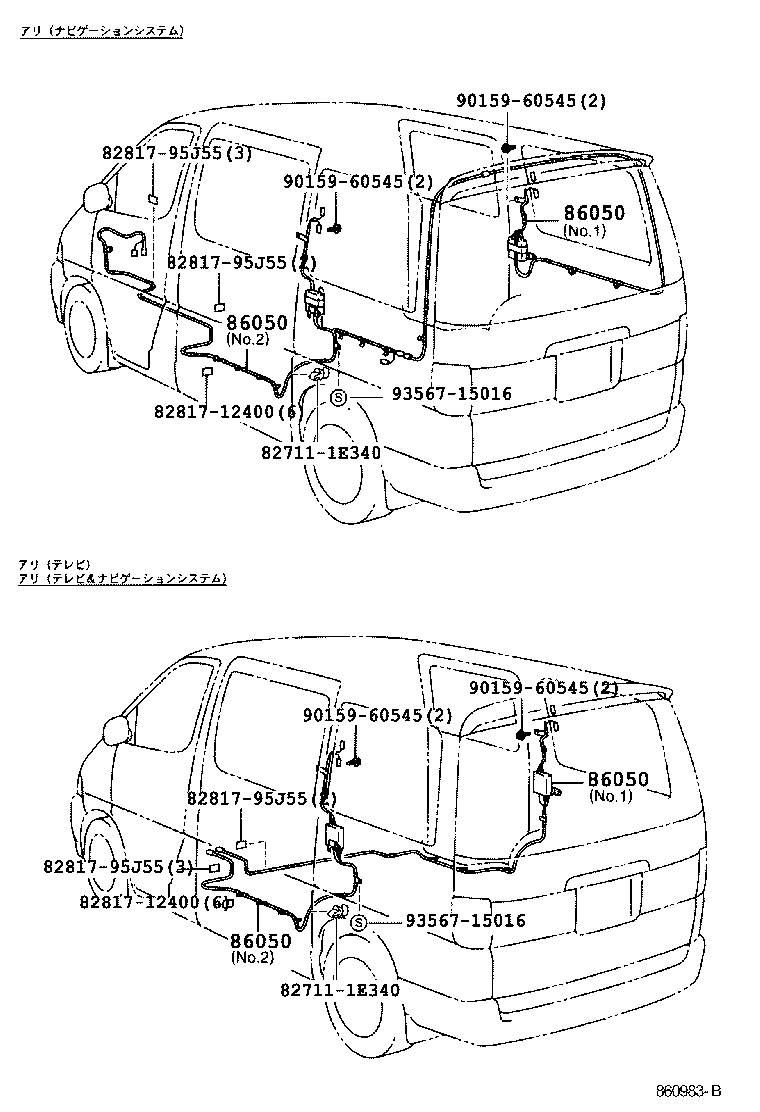

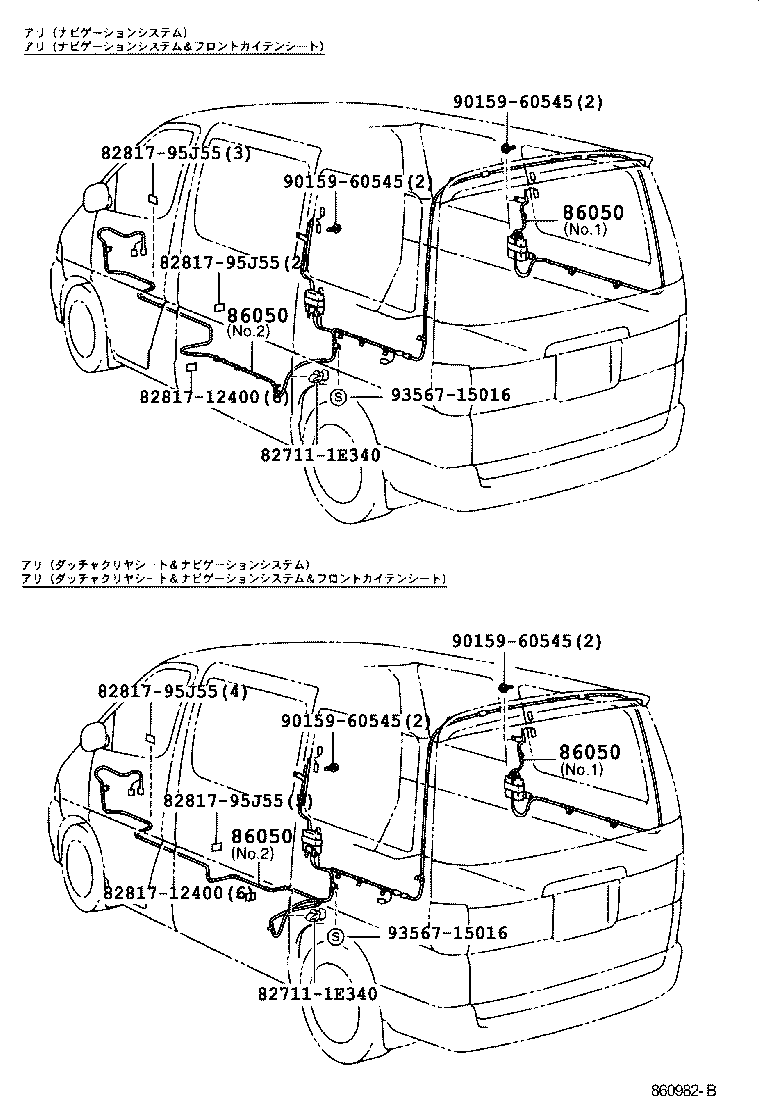

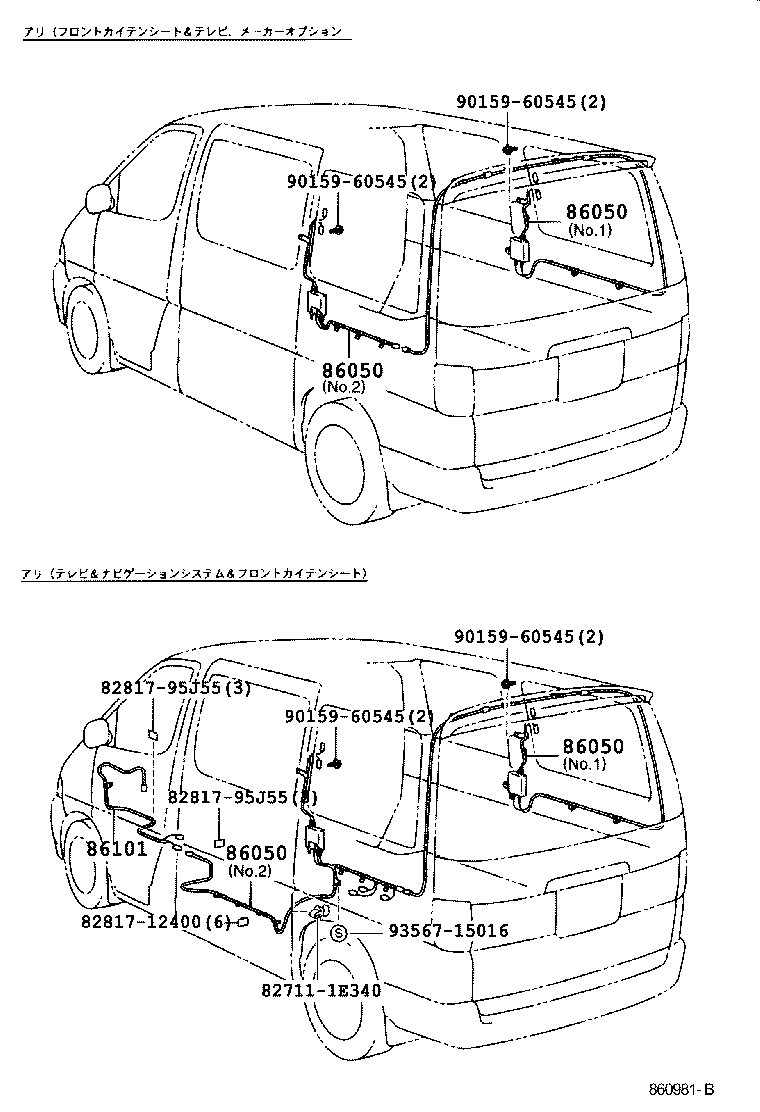

Figure 860272 860272 1997-04 → — Figure 860273C 860273C 1997-04 → 1999-07 Figure 860980A 860980A 1999-07 → — Figure 860981B 860981B 1999-07 → — Figure 860982B 860982B 1999-07 → — Figure 860983B 860983B 1999-07 → — Figure 860274B 860274B 1997-04 → 1999-07

Part groups

PNCDescription
86050 Antenna Assy, Television
86101 Cord Sub-assy, Antenna
86300 Antenna Assy, W/Holder
86808D Cord Sub-assy, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
