Toyota Regius/Touring Hiace
1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan
Discontinued model
Data version 2002-10
Camera & Rear Monitor Display
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

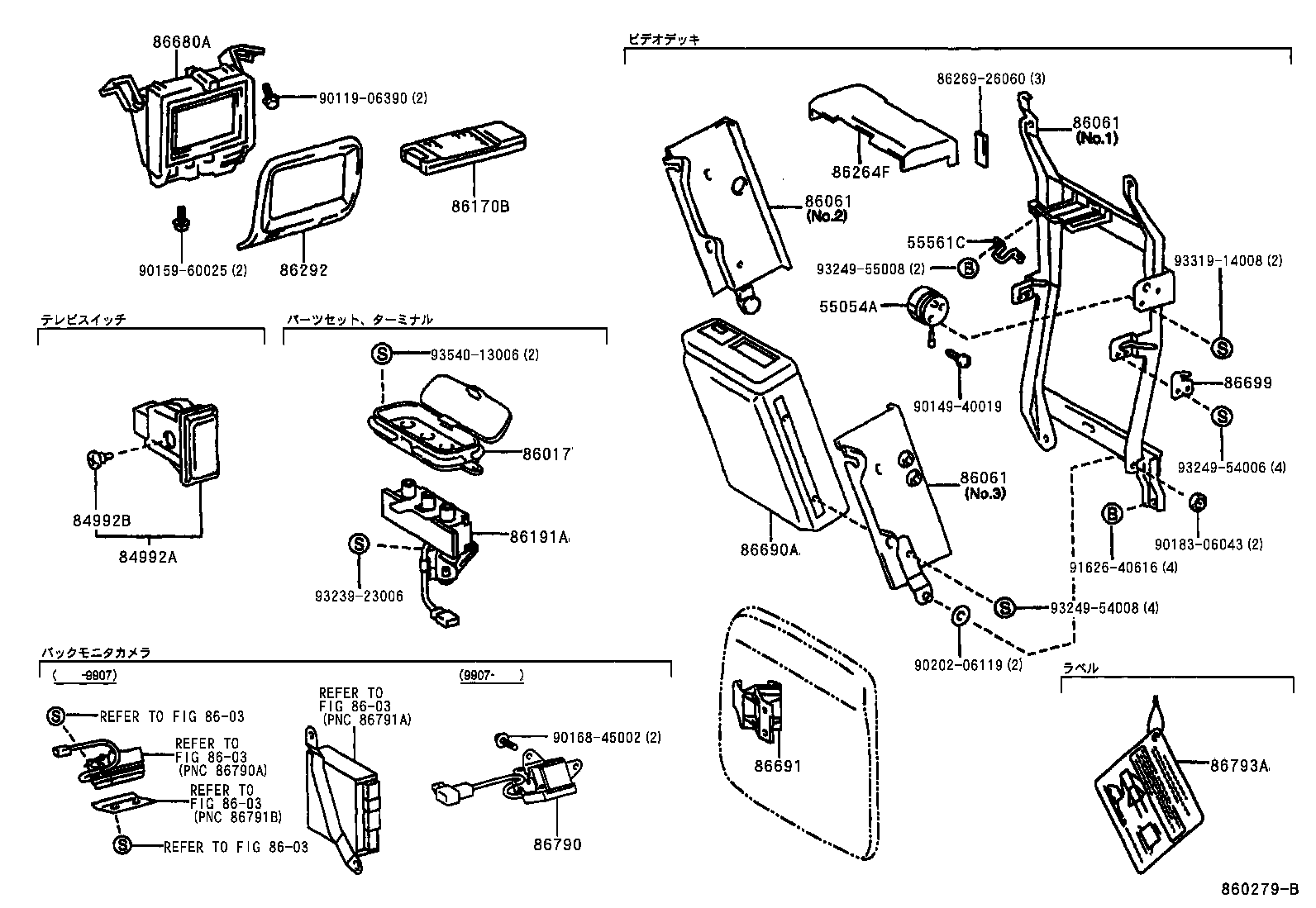

| 55054A | Stopper Sub-assy, Glove Compartment Door |
| 55561C | Striker, Glove Compartment Door Lock |
| 84992A | Switch, Television |
| 84992B | Bulb |
| 86010A | Tuner Assy, Television |
| 86015 | Parts Set, Television |
| 86015A | Parts Set, Television |
| 86017 | Parts Set, Video |
| 86061 | Holder Sub-assy, Video |
| 86119A | Wire, Television Switch |
| 86170B | Switch & Volume Assy, Television |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86264F | Cover, Tape Player |
| 86291 | Bracket, Television |
| 86292 | Cover, Television Set |
| 86680A | Display Assy, Television |
| 86690A | Video Deck Assy |
| 86691 | Holder, Video |
| 86699 | Stopper, Video Holder |
| 86790 | Camera Assy, Television |
| 86793A | Label, Television Camera Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
