Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

38 part groups · 9 illustrations

Illustrations

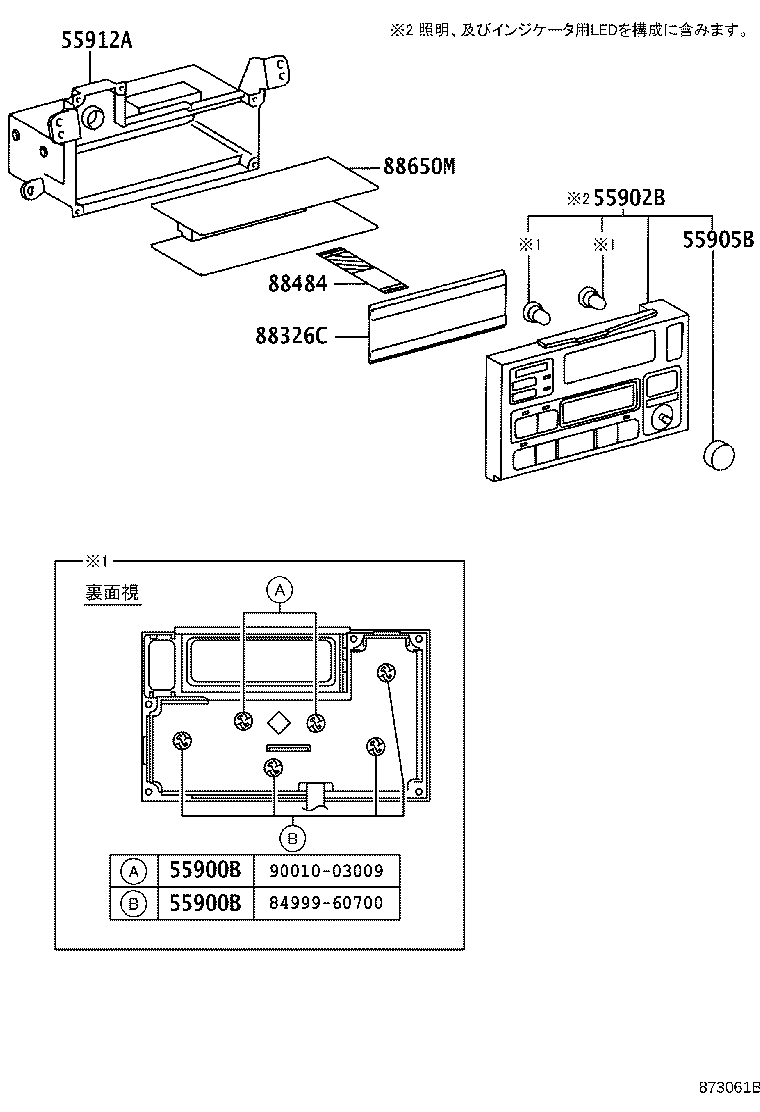

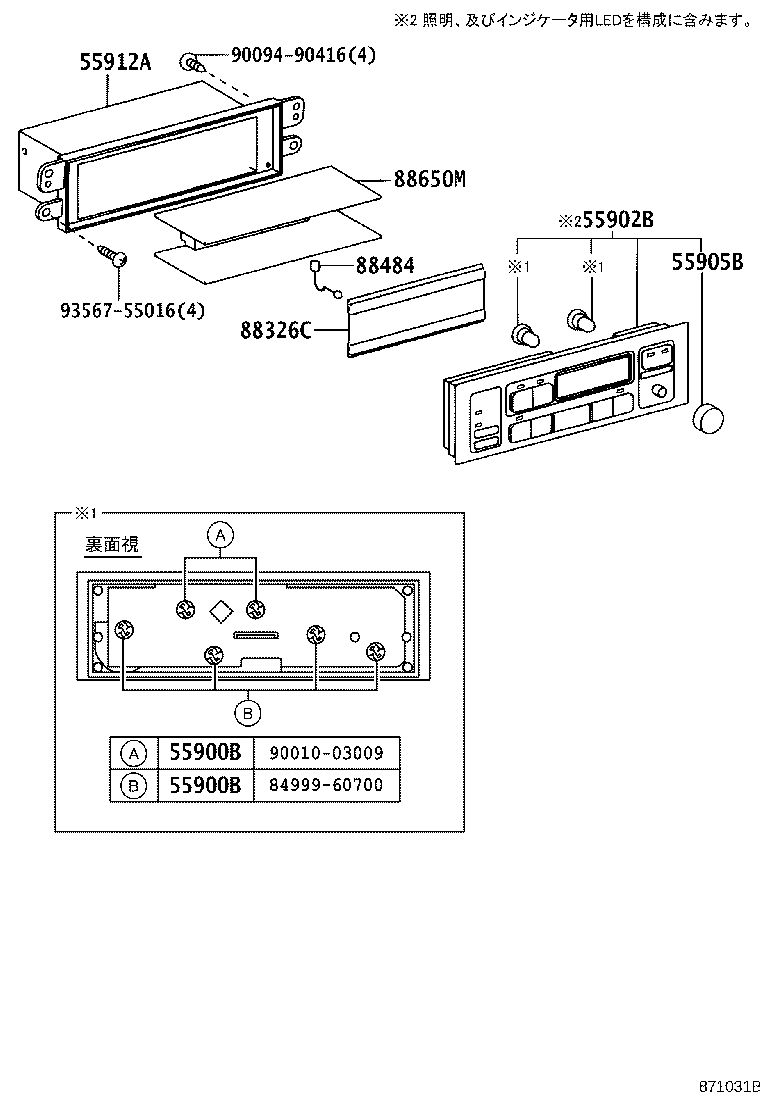

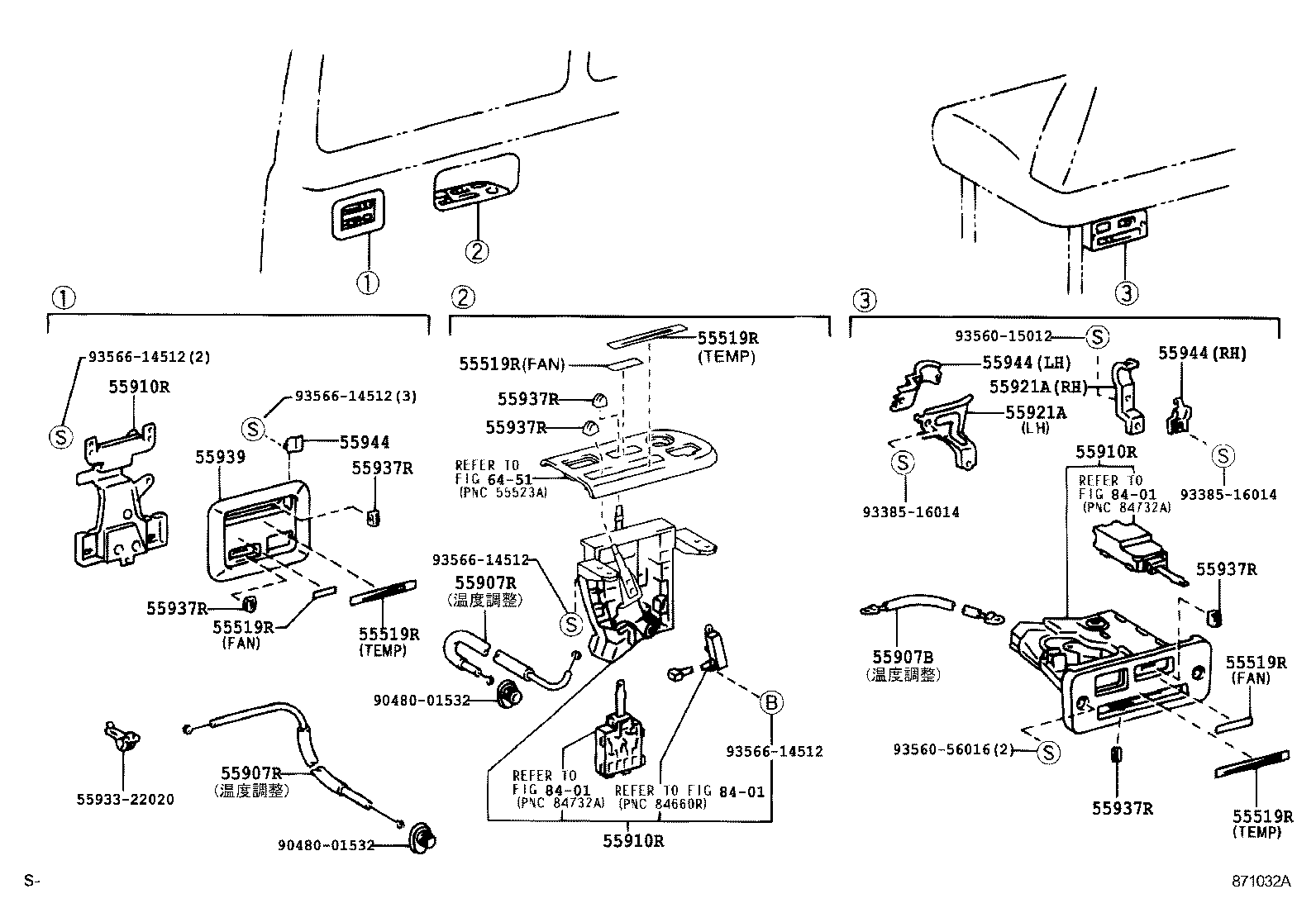

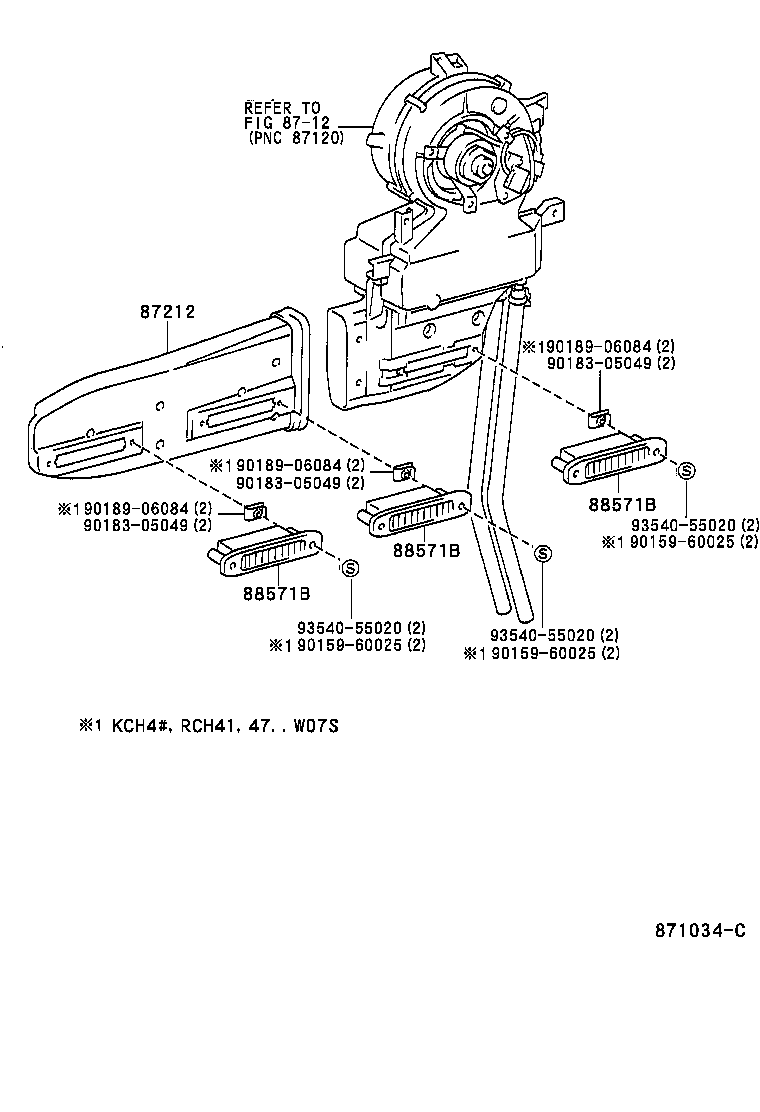

Figure 871029A 871029A 1997-04 → — Figure 871030B 871030B 1997-04 → — Figure 871031B 871031B 1997-04 → 1999-07 Figure 873061B 873061B 1998-04 → — Figure 871032B 871032B 1997-04 → — Figure 871033B 871033B 1997-04 → — Figure 871034C 871034C 1997-04 → — Figure 871035 871035 1997-04 → — Figure 871036A 871036A 1997-04 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55519R Plate, Heater Control Name
55519S Label, Rear Cooler Control Information
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55907B Cable Sub-assy, Temperature Damper Control
55907R Cable Sub-assy, Temperature Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910R Control Assy, Heater
55912A Housing, Heater Control
55921A Retainer, Heater Control
55937R Knob, Heater Control Lever
55939 Ornament, Heater Control
55944 Plate, Heater Control Support
63610 Register Assy, Air Outlet, NO.1
63620 Register Assy, Air Outlet, NO.2
81942A Sheet, Heater Control Name, NO.1
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87284 Resistor Sub-assy, Variable
87710E Quick Heater Assy
88326C Plate, Cover
88484 Wire, Cooler, NO.1
88571B Grille, Air Outlet
88610C Switch Assy, Cooler Control
88611A Knob, Cooler Control Switch
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88648A Wiring, Cooler
88650M Computer Assy, Air Conditioner
88669A Hose (FOR COOLER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
