Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

38 part groups · 11 illustrations

Illustrations

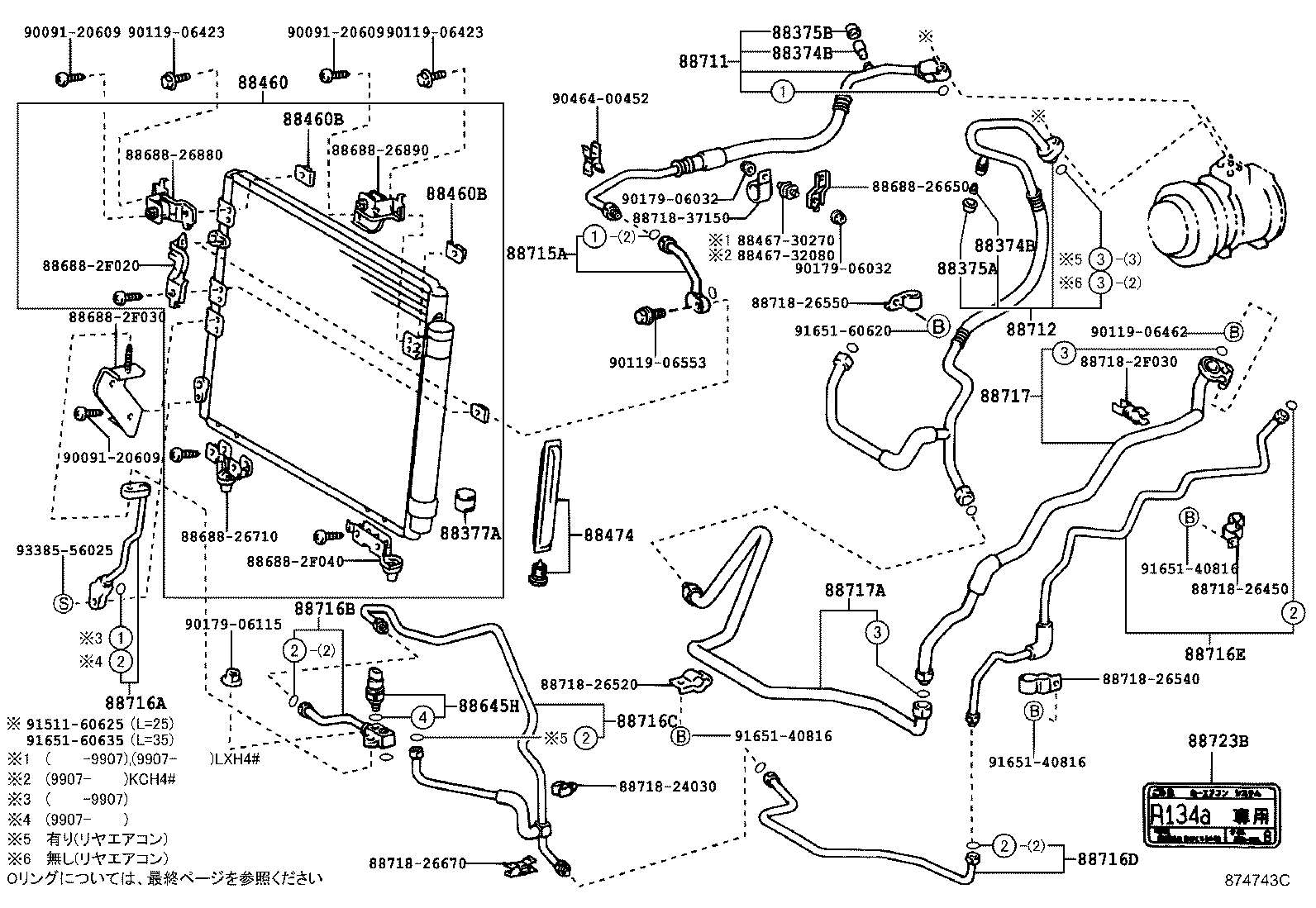

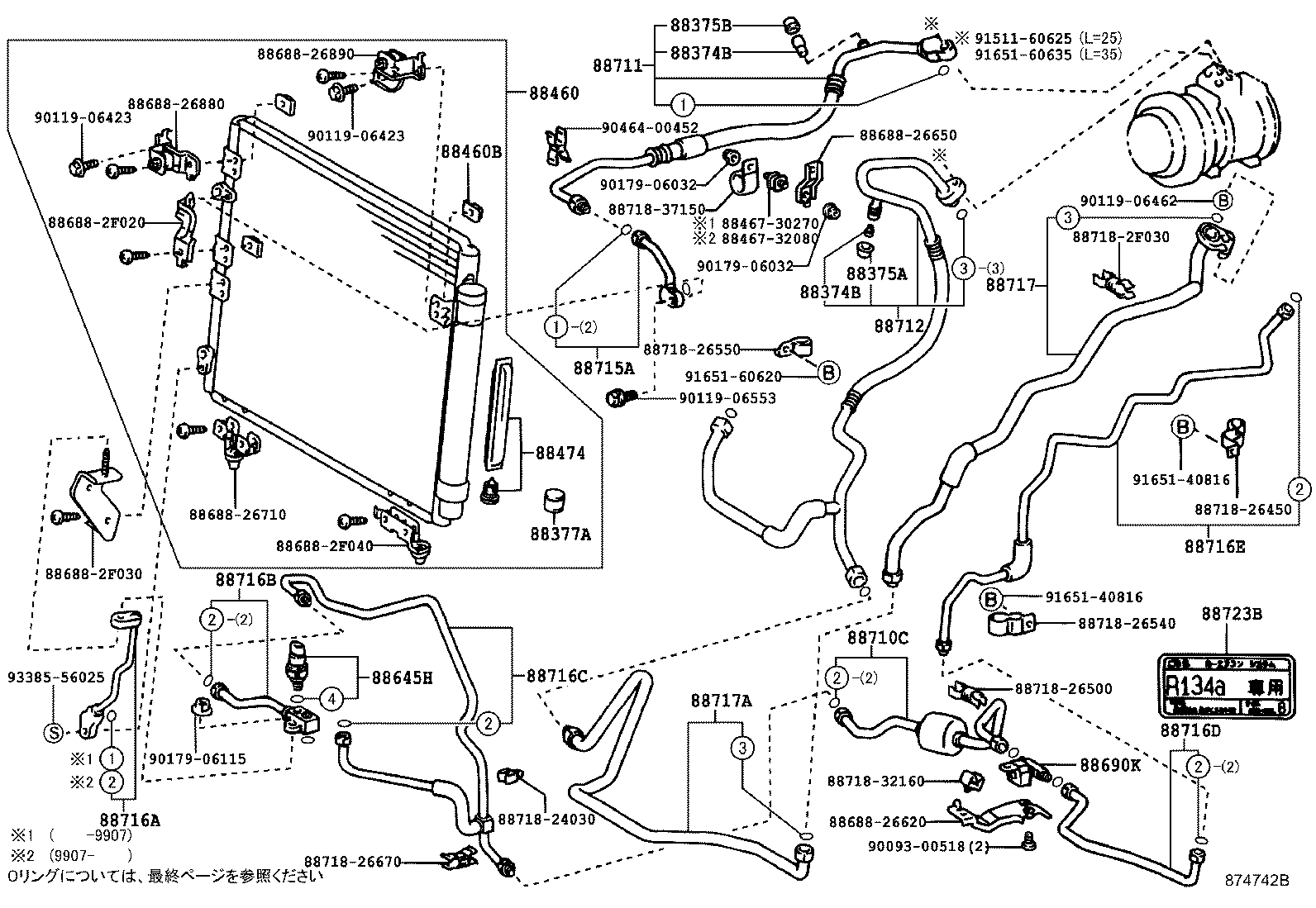

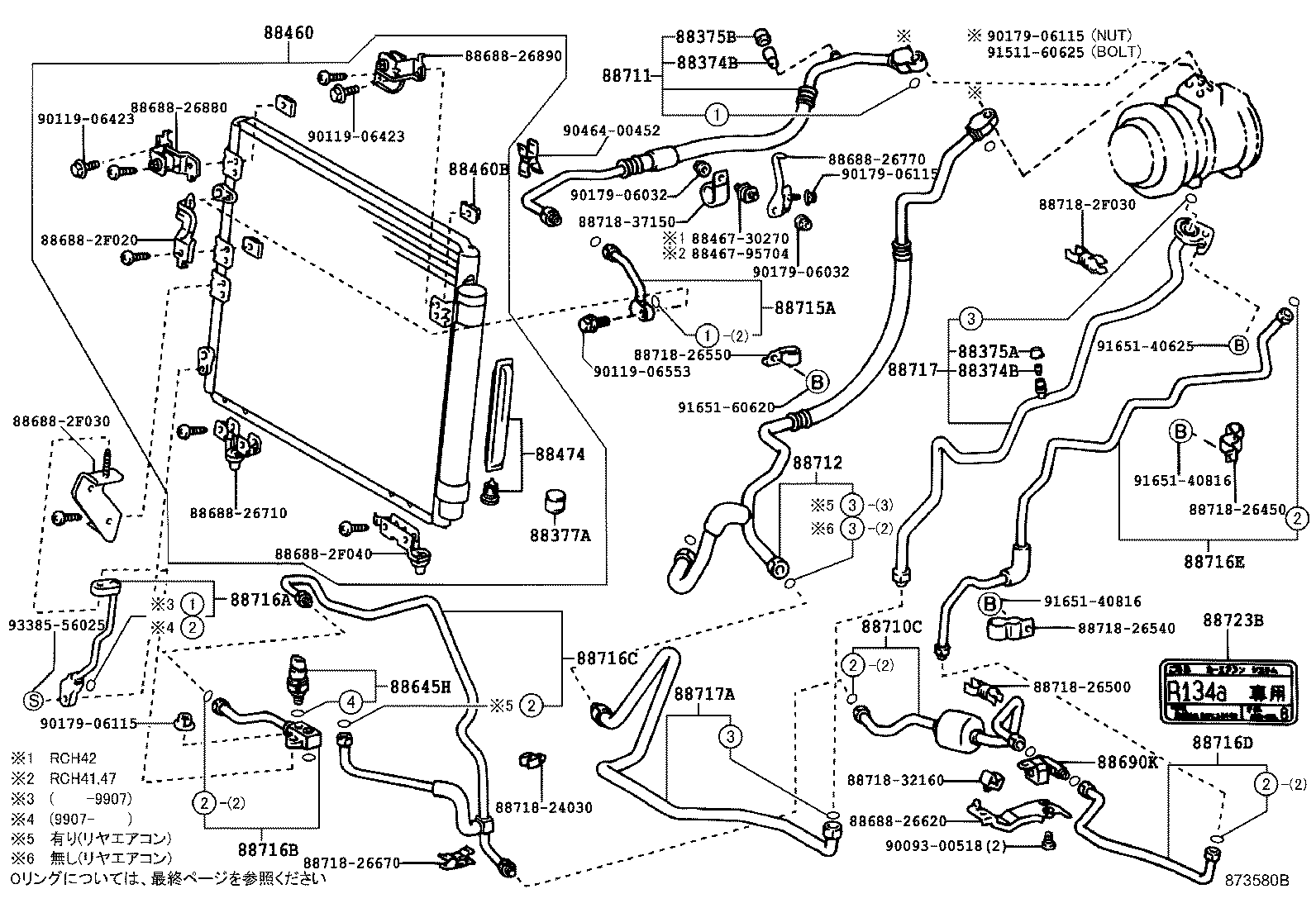

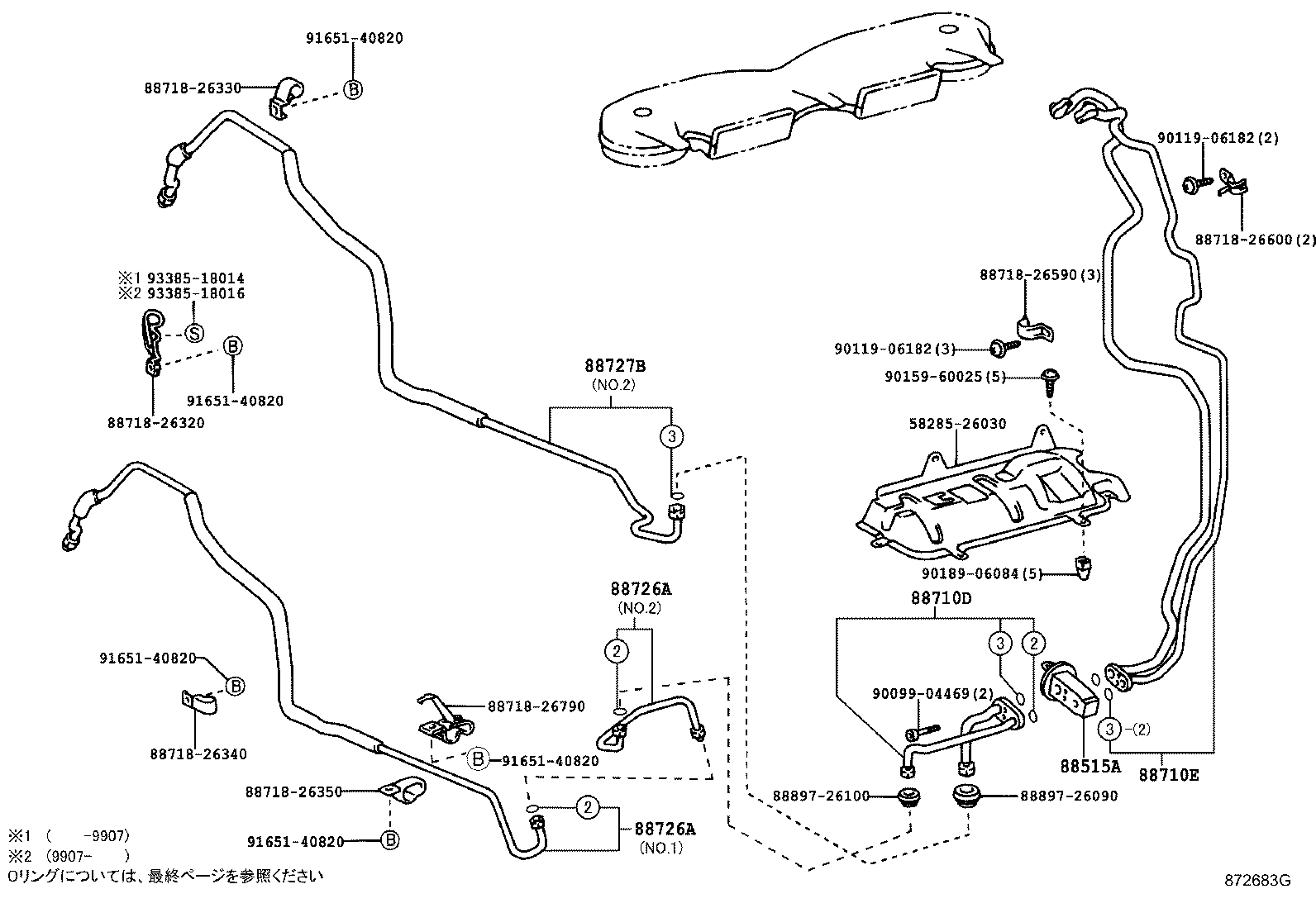

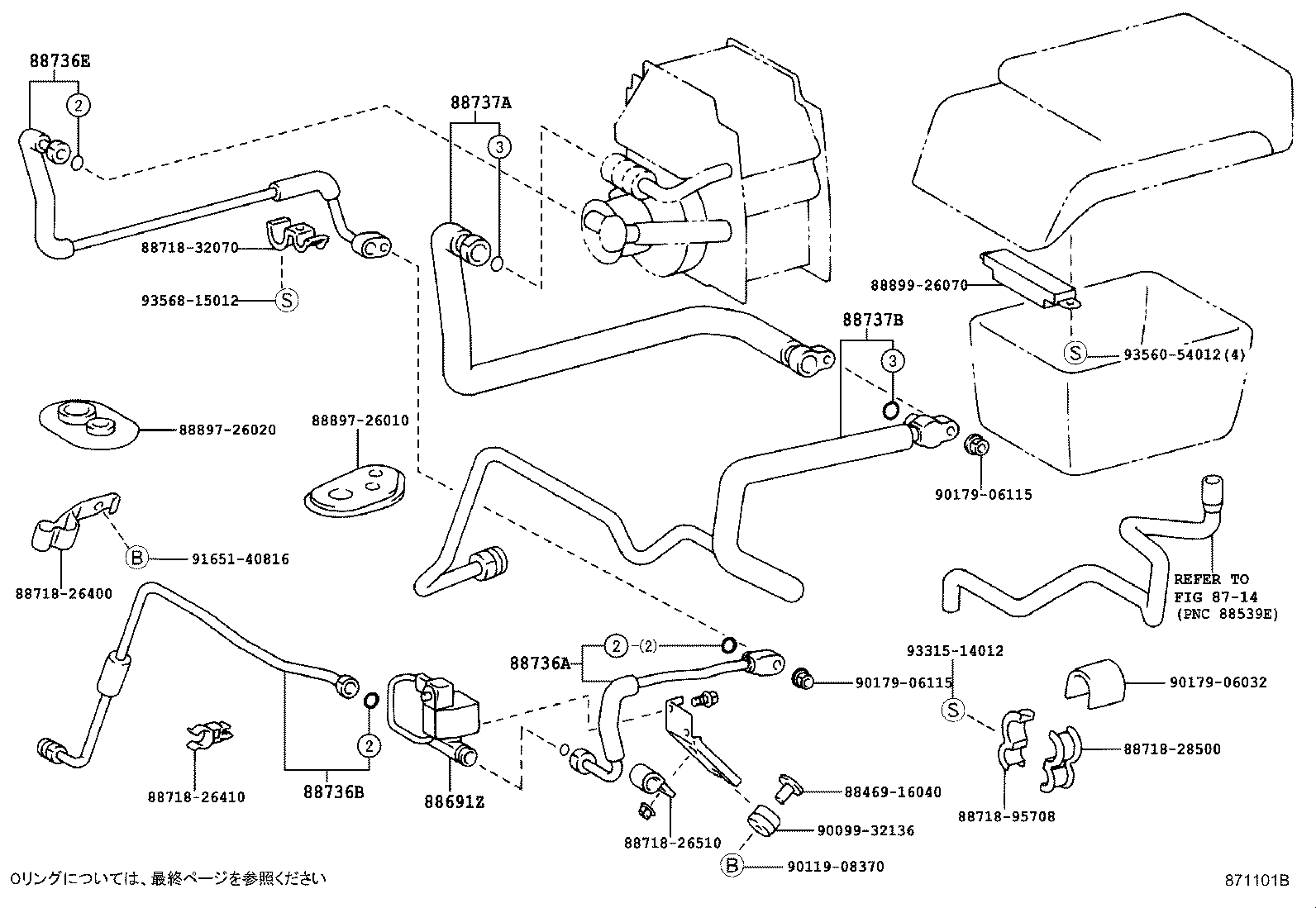

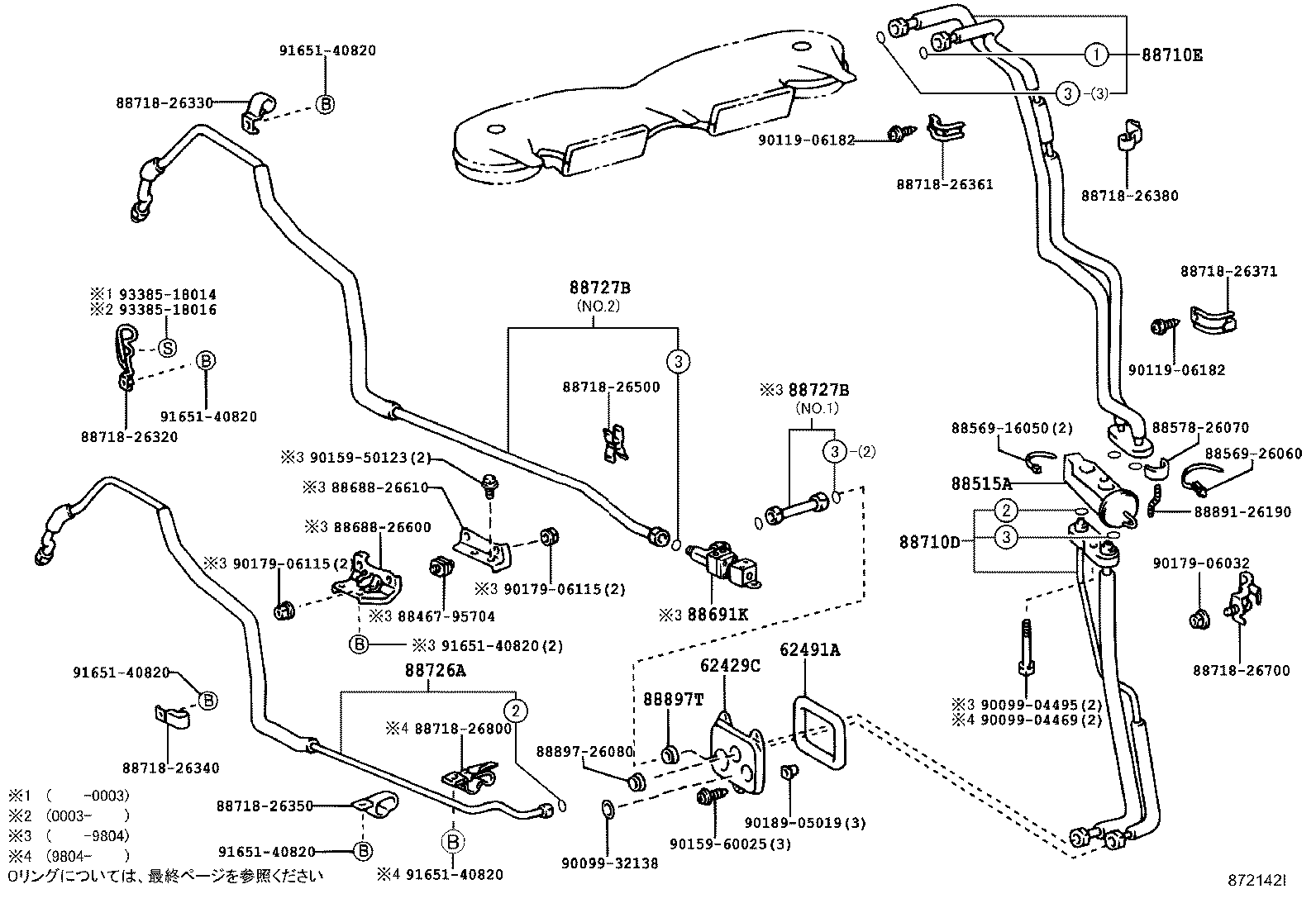

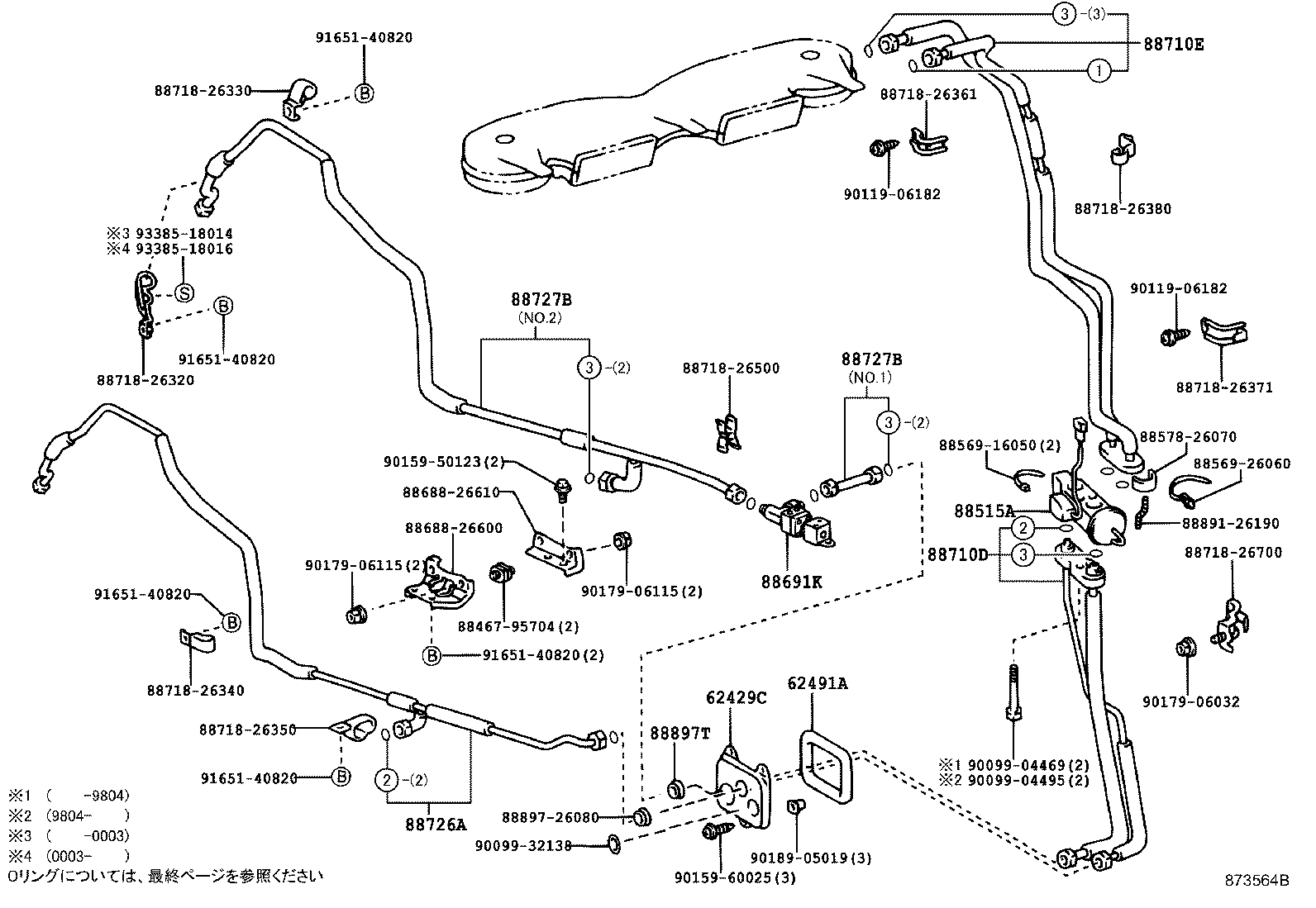

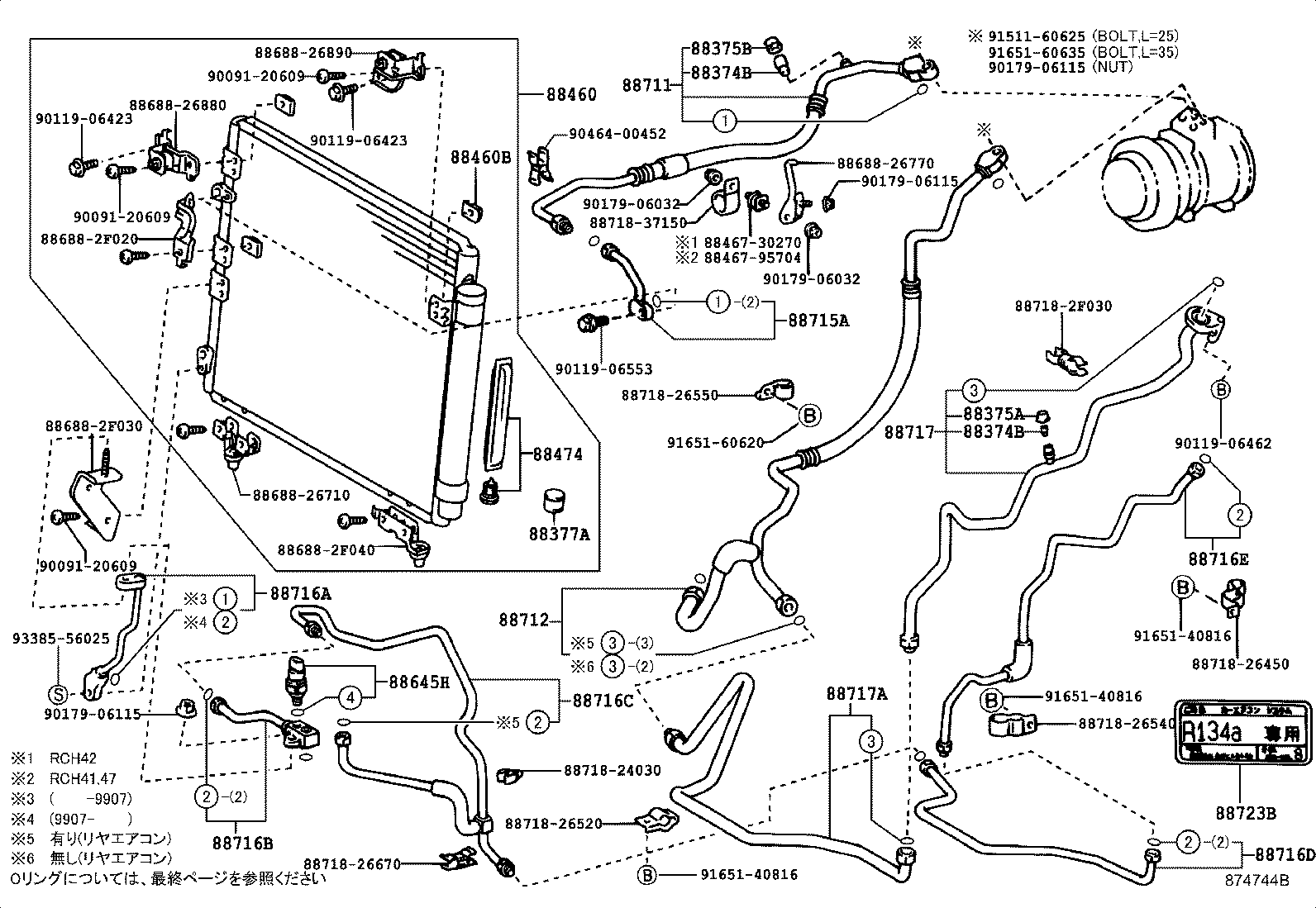

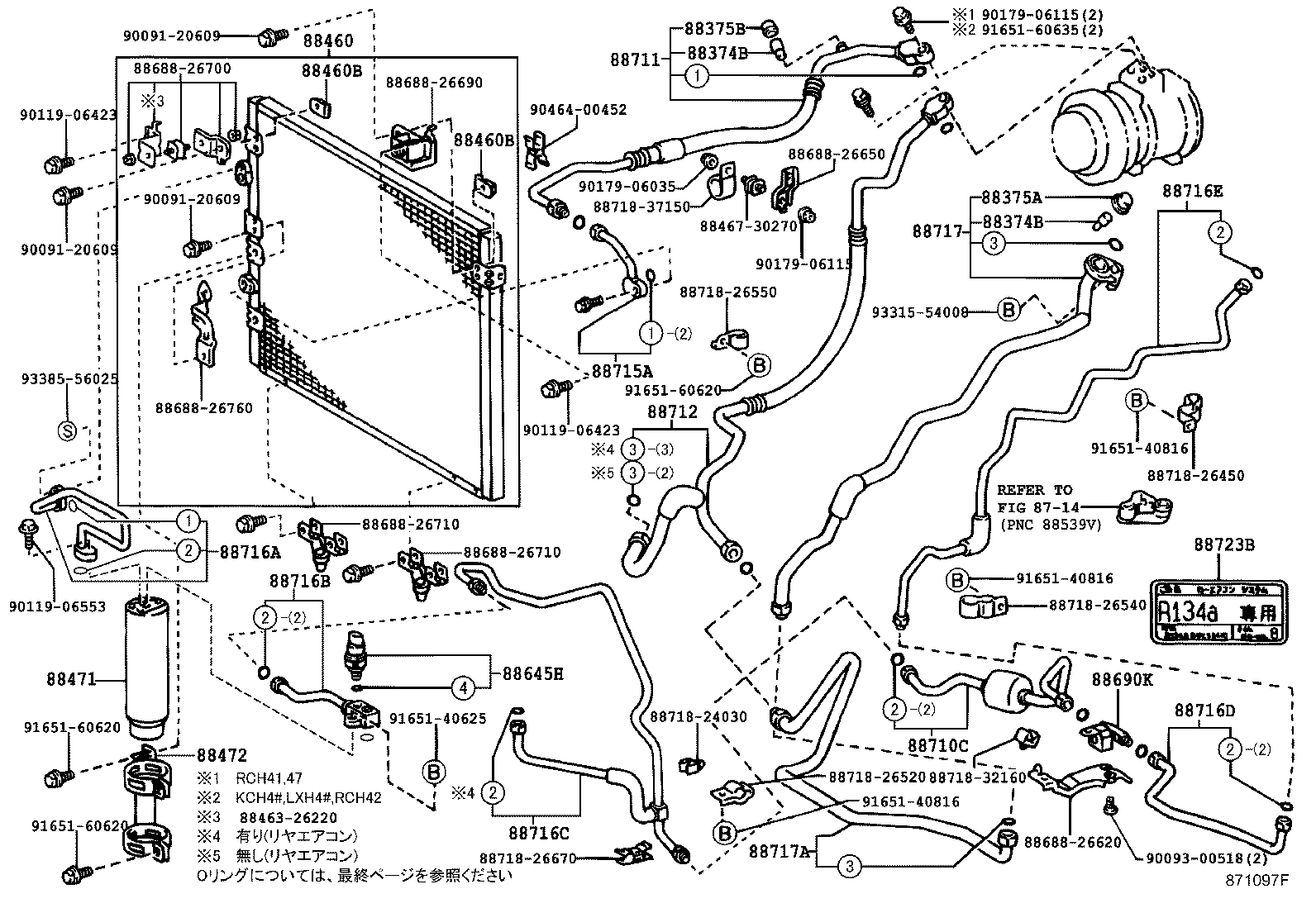

Figure 871096F 871096F 1997-04 → 1998-04 Figure 874744B 874744B 1998-04 → — Figure 874743C 874743C 1998-04 → — Figure 871097F 871097F 1997-04 → 1998-04 Figure 873580B 873580B 1998-04 → — Figure 874742B 874742B 1998-04 → — Figure 872142I 872142I 1997-04 → — Figure 873564B 873564B 1997-04 → — Figure 872683G 872683G 1997-04 → — Figure 871101B 871101B 1997-04 → — Figure 872894A 872894A 1997-04 → —

Part groups

PNCDescription
62429C Cover, Center Pillar Service Hole
62491A Packing, Center Pillar Servise Hole Cover, Upper
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88377A Filter, Refrigerant
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88474 Dryer, Cooler
88515A Valve, Cooler Expansion
88645H Switch, Pressure NO.1
88690K Valve Assy, Magnet
88691K Valve Assy, Magnet
88691Z Valve, Magnet (COOL BOX)
88710C Tube Assy, Air Conditioner
88710D Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88727B Pipe, Cooler Refrigerant Suction, B
88736A Tube, Liquid, A(FOR COOL BOX)
88736B Tube, Liquid, B(FOR COOL BOX)
88736E Tube, Liquid, E(FOR COOL BOX)
88737A Tube, Suction, A(FOR COOL BOX)
88737B Tube, Suction, B(FOR COOL BOX)
88897T Grommet, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
