Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 3 illustrations

Illustrations

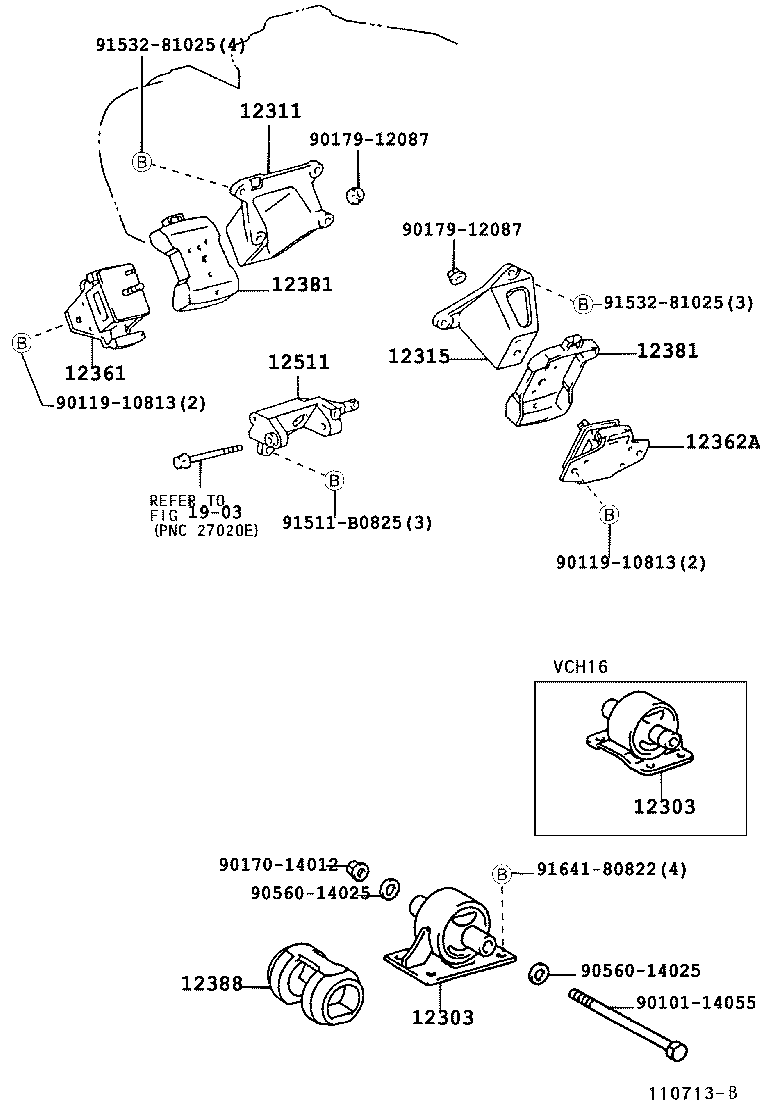

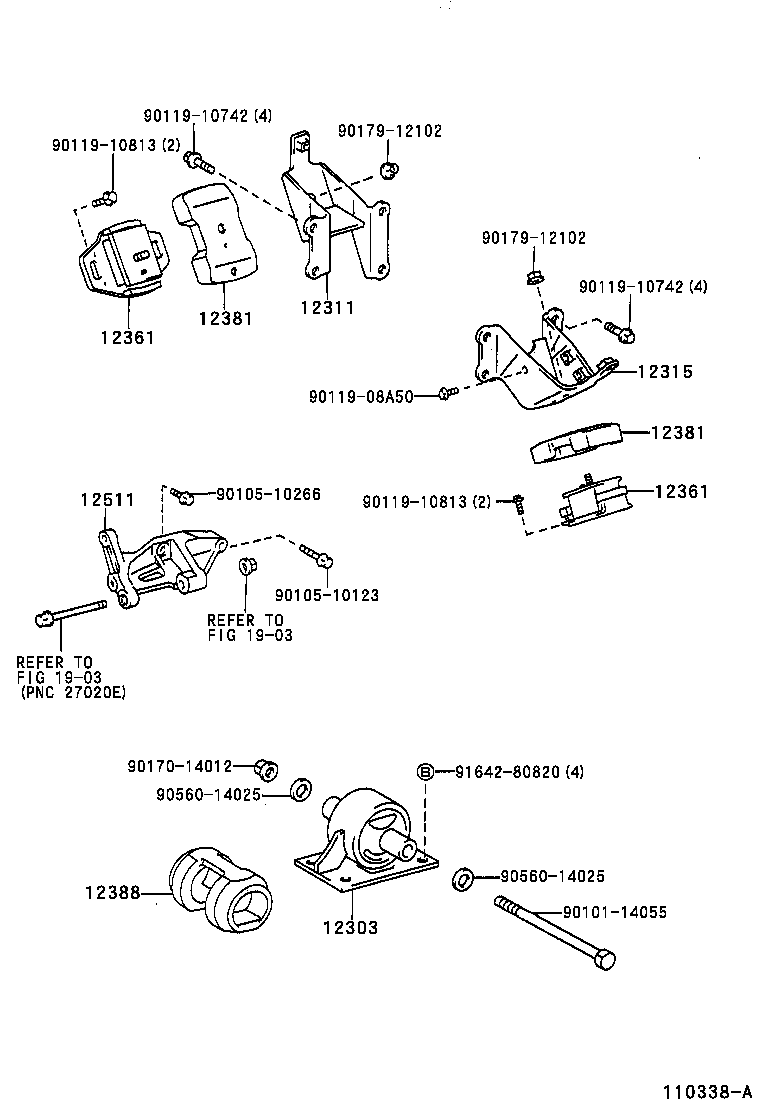

Figure 110356D 110356D 1995-08 → — Figure 110338A 110338A 1995-08 → 1998-04 Figure 110713B 110713B 1997-08 → —

Part groups

PNCDescription
12303 Bracket Sub-assy, Engine Mounting, Rear
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12362A Insulator, Engine Mounting, Front LH
12381 Stabilizer, Engine Mounting
12388 Stopper, Engine Mounting Bracket, Rear
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
