Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

72 part groups · 12 illustrations

Illustrations

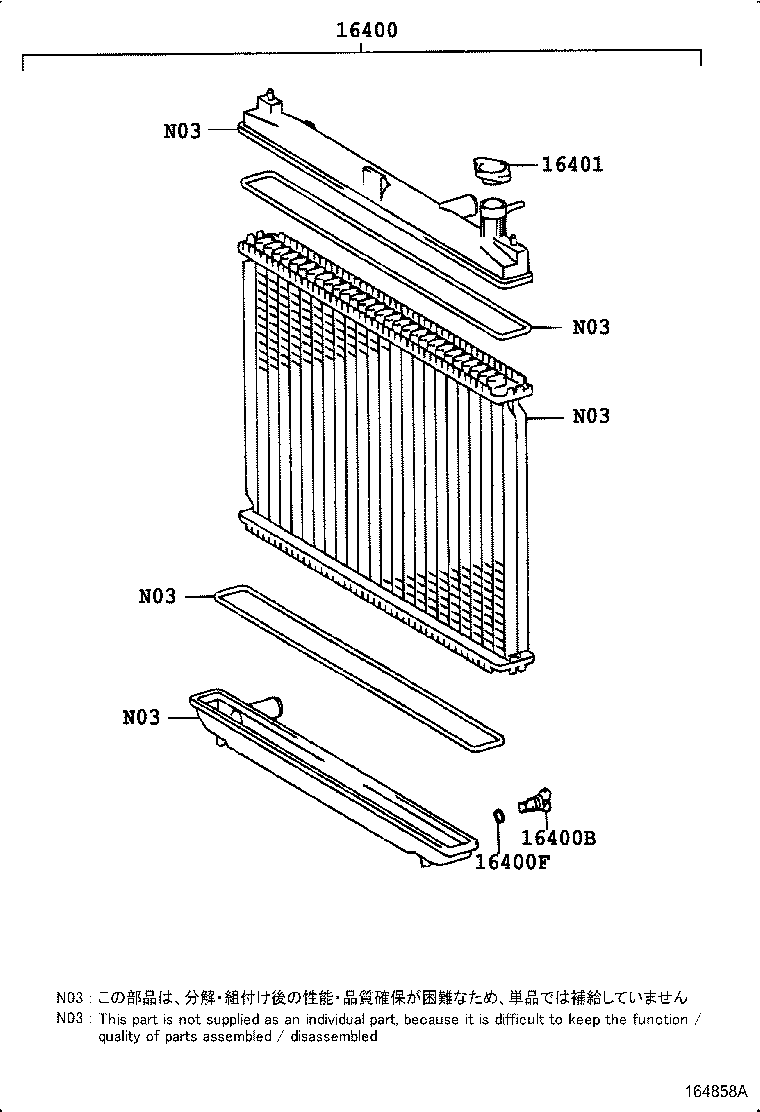

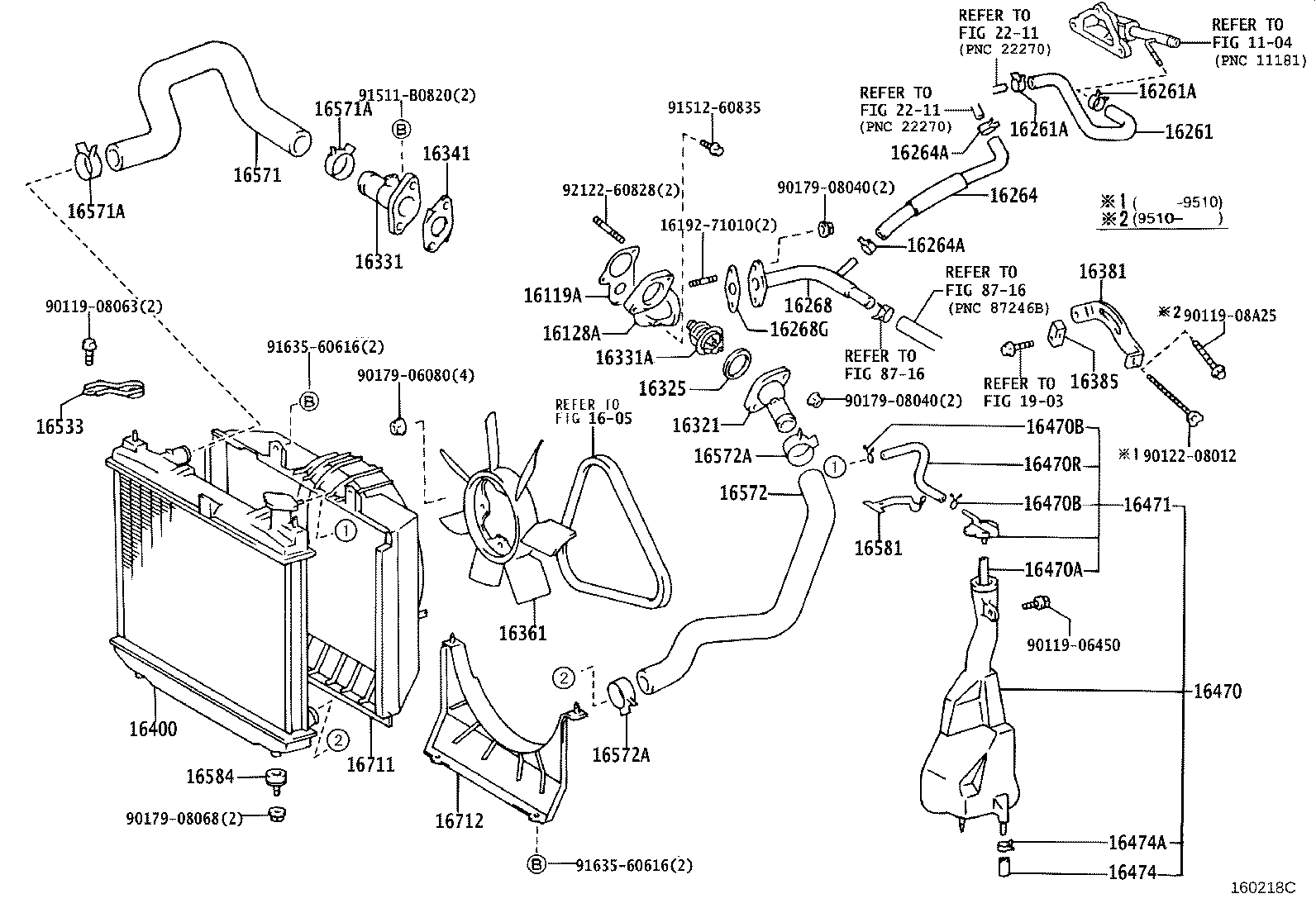

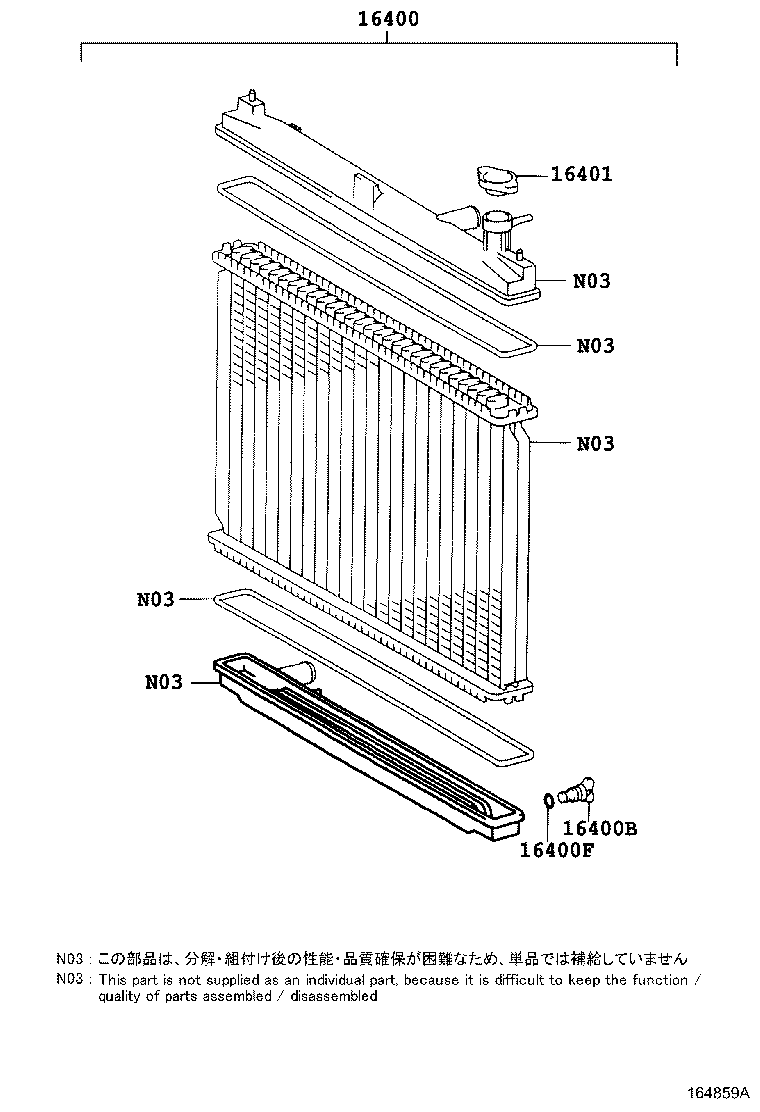

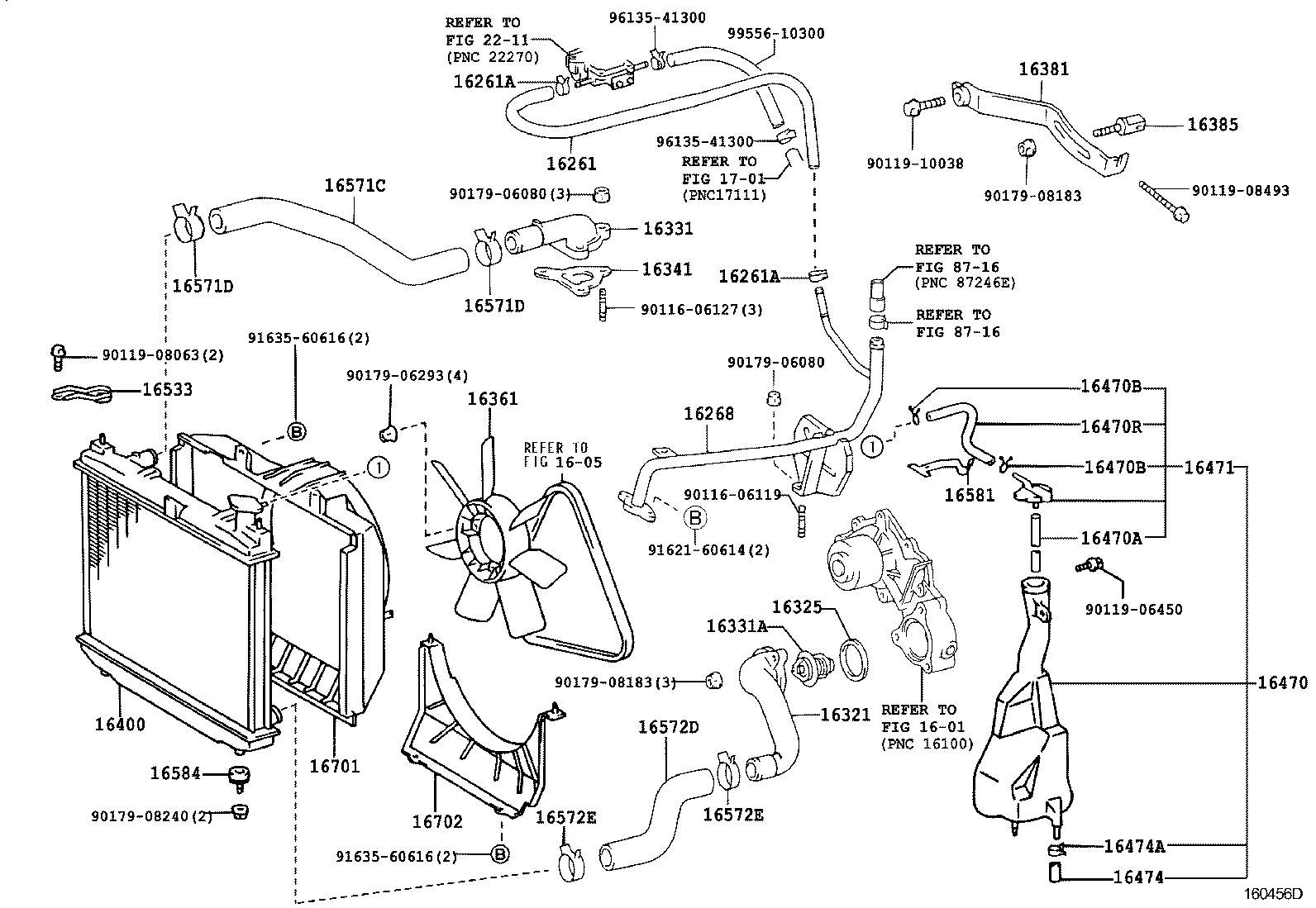

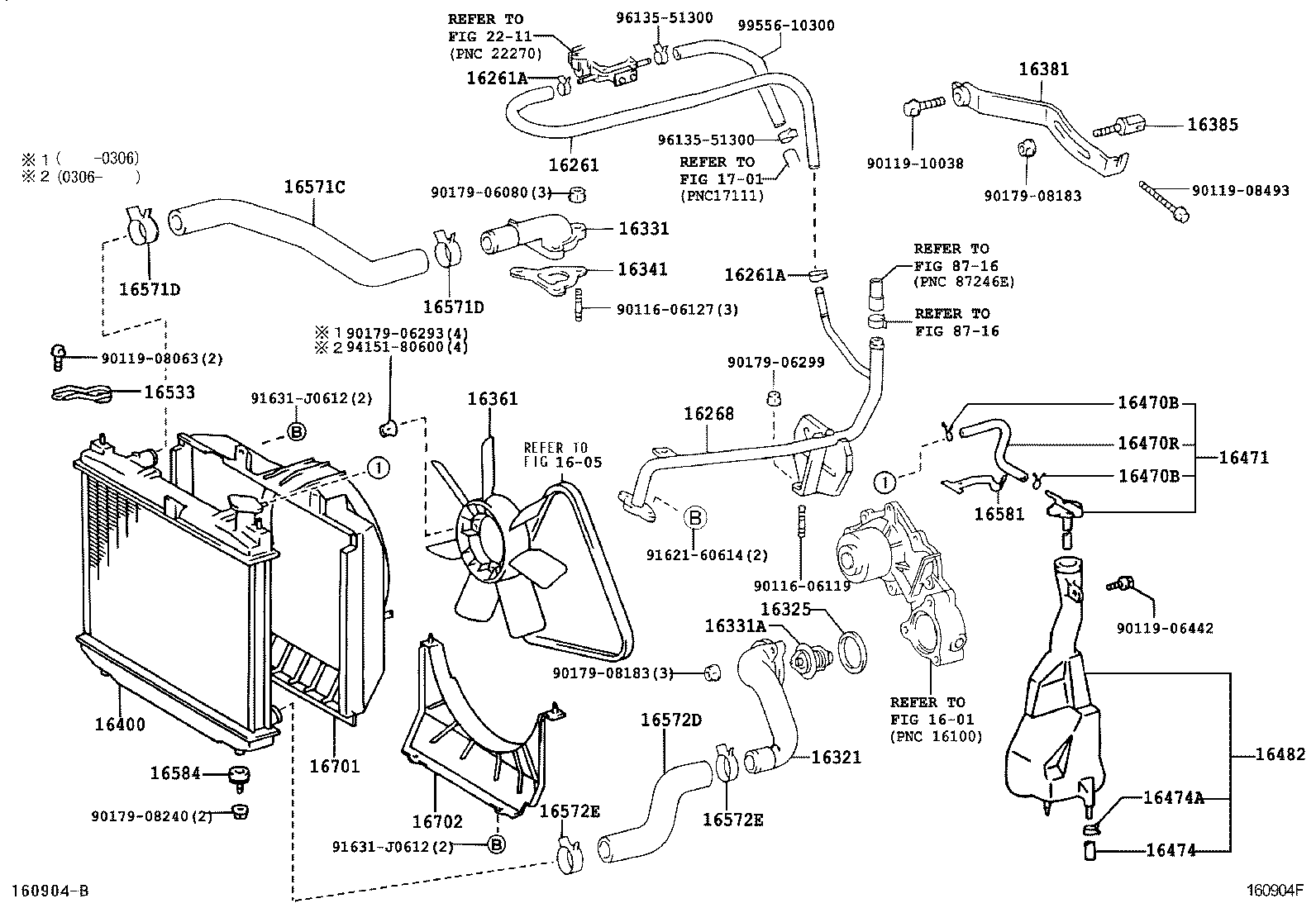

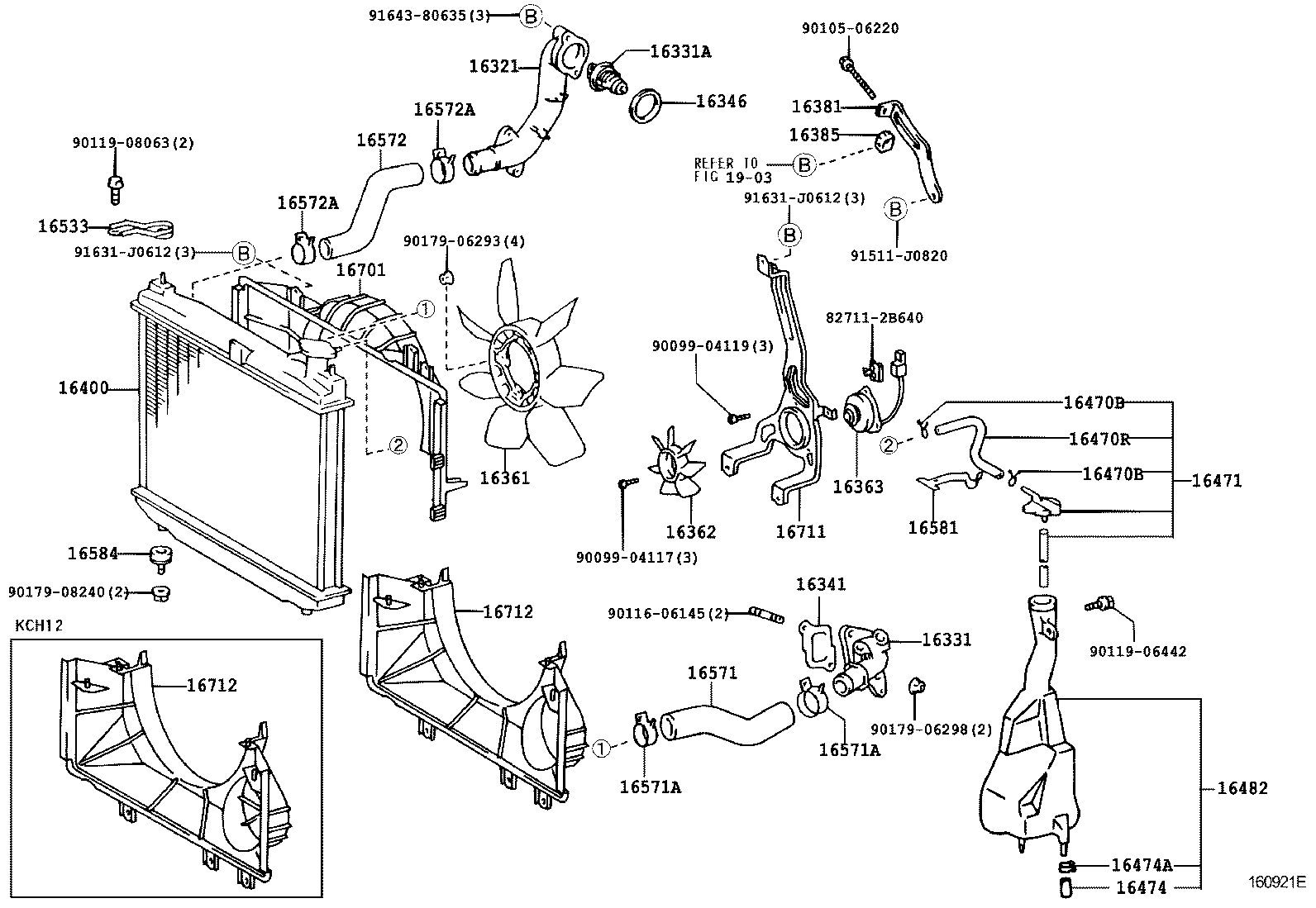

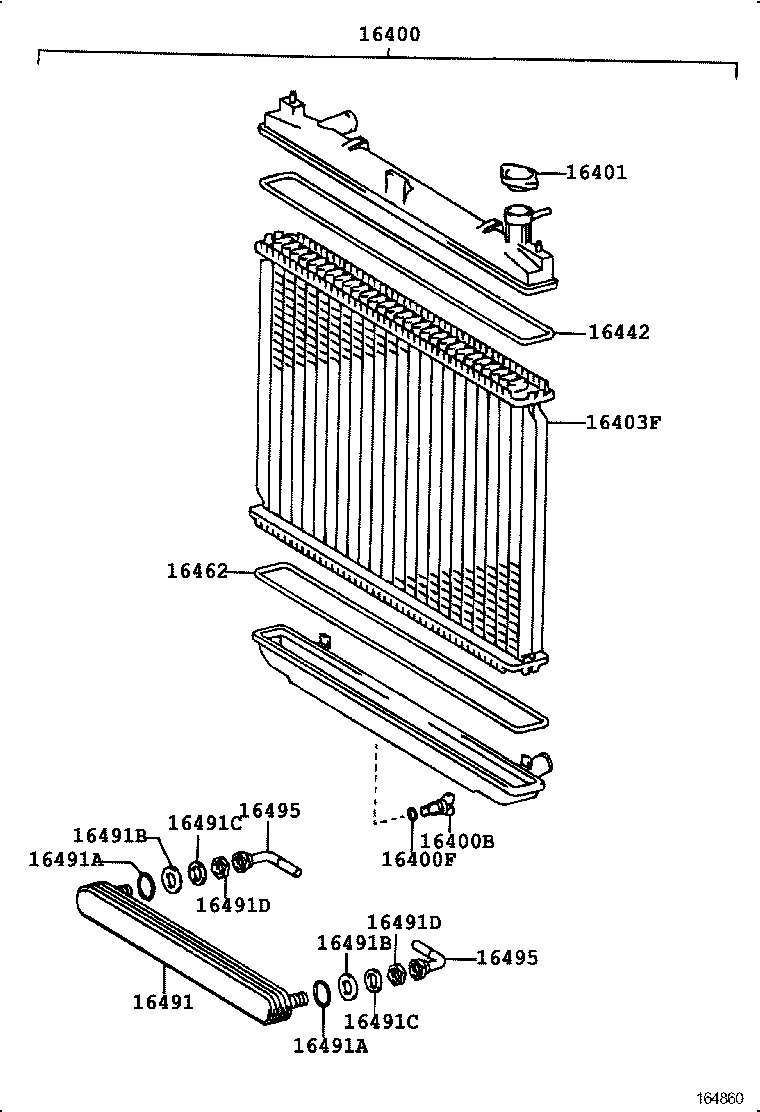

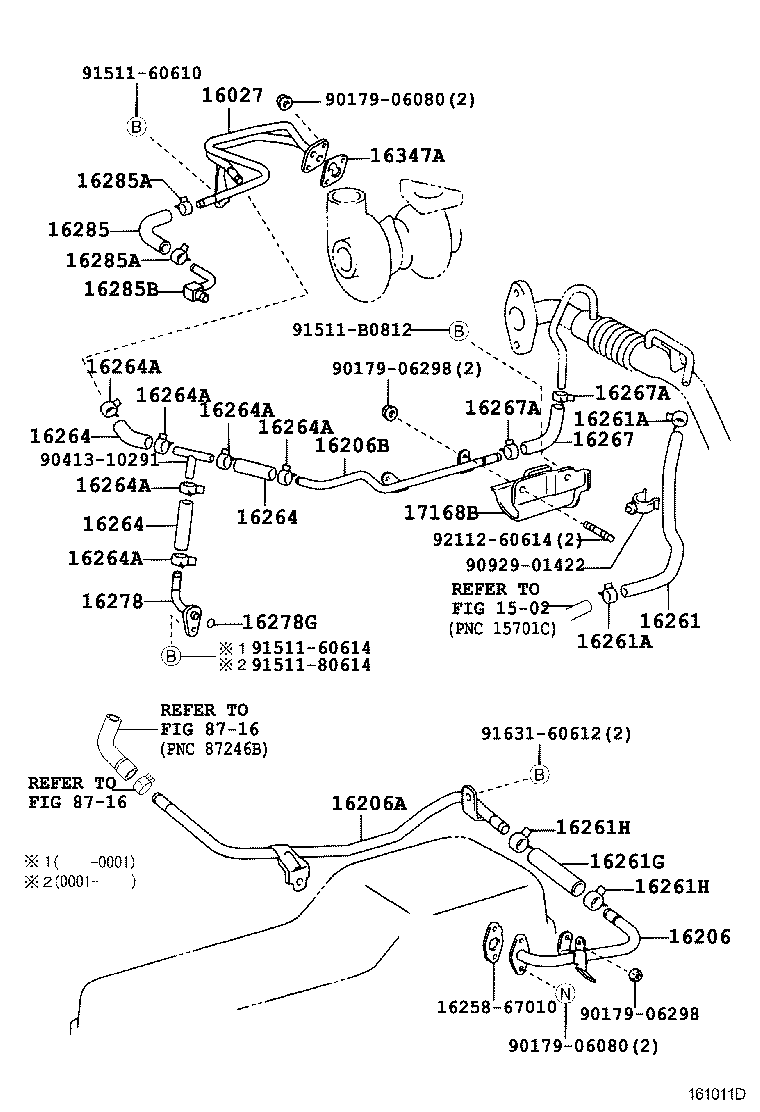

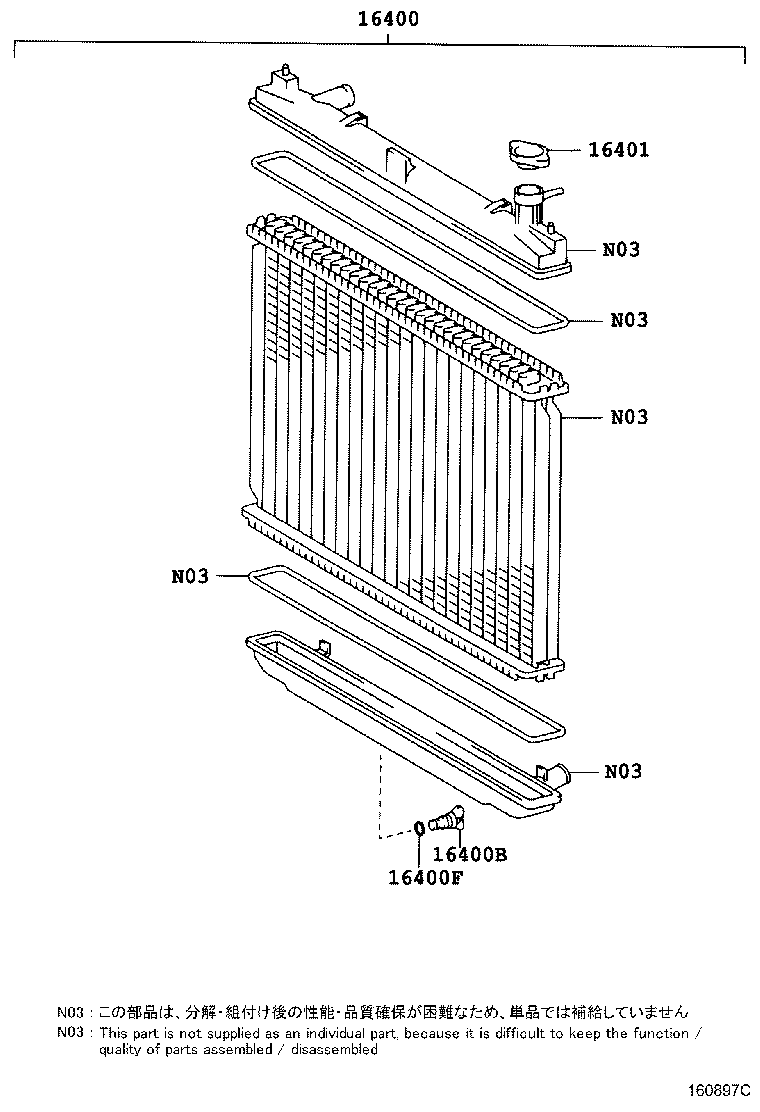

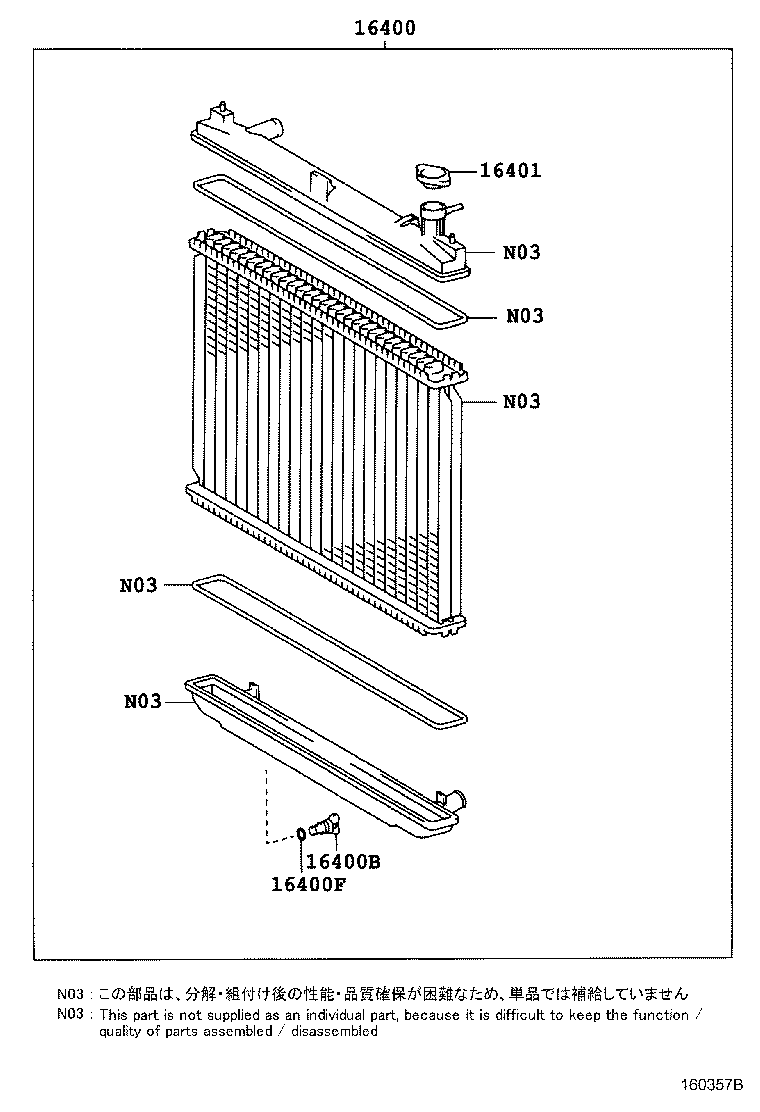

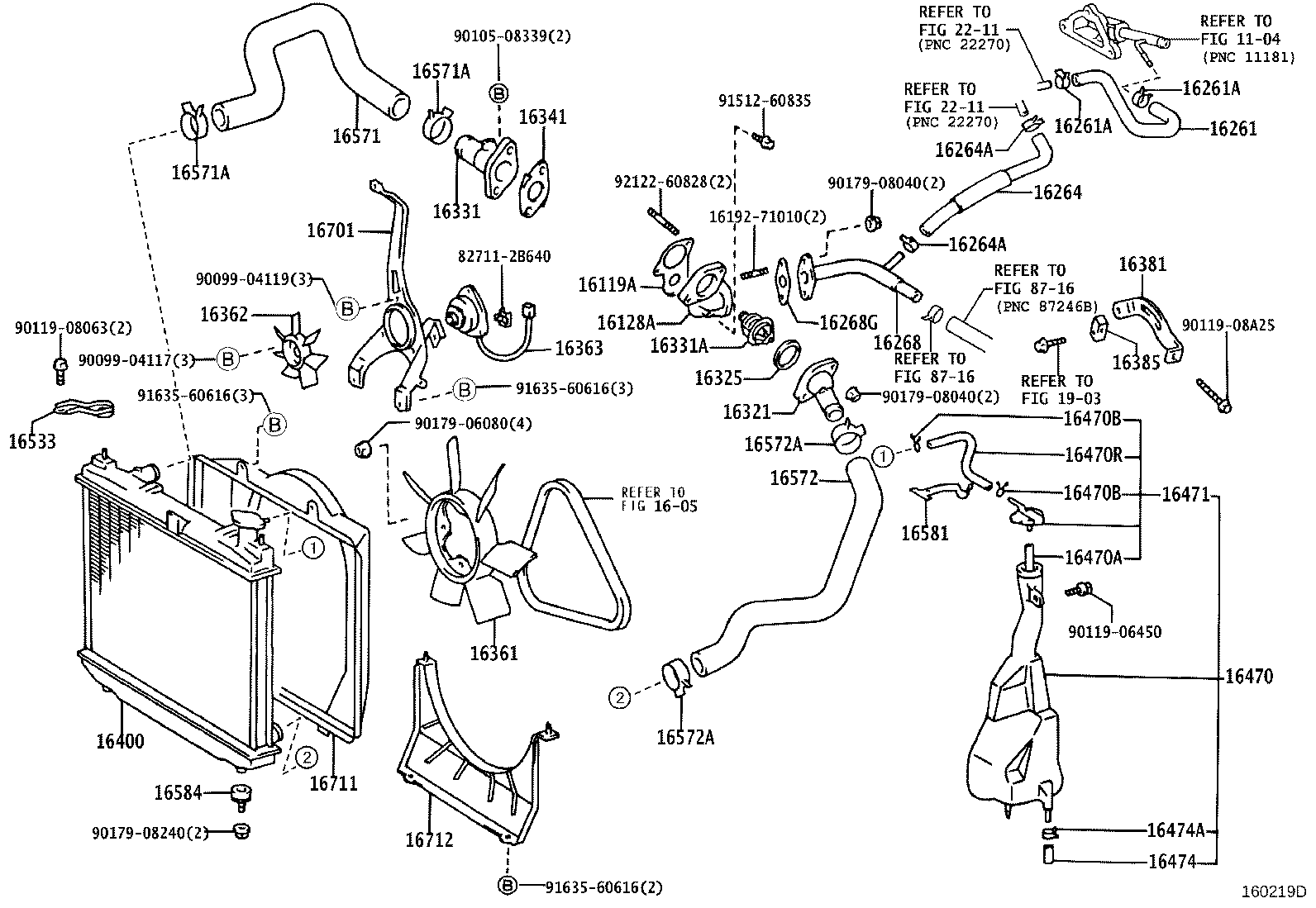

Figure 160269F 160269F 1995-08 → 1999-07 Figure 164858A 164858A 1995-08 → 1999-07 Figure 160921E 160921E 1999-07 → — Figure 161011D 161011D 1999-07 → — Figure 164859A 164859A 1999-07 → — Figure 160218C 160218C 1995-08 → 1996-08 Figure 160219D 160219D 1996-08 → 1998-04 Figure 164860 164860 1995-08 → 1998-04 Figure 160456D 160456D 1997-08 → 1999-07 Figure 160904F 160904F 1999-07 → — Figure 160357B 160357B 1997-08 → 1999-07 Figure 160897C 160897C 1999-07 → —

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16119A Gasket, Thermostat Guide
16128A Plate, Water Pump Thermostat Guide
16206 Pipe Sub-assy, Water By-pass
16206A Pipe Sub-assy, Water By-pass, NO.2
16206B Pipe Sub-assy, Water By-pass, NO.3
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16278G Ring, O(FOR WATER BY-PASS NO.2 PIPE)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16285B Union(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16321 Inlet, Water
16325 Gasket, Water Inlet Housing, NO.1
16331 Outlet, Water
16331A Thermostat
16341 Gasket, Water Outlet
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16361 Fan
16362 Fan, NO.2
16363 Motor, Cooling Fan
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16403F Core Sub-assy, Radiator
16442 Ring, O(FOR RADIATOR UPPER TANK)
16462 Ring, O(FOR RADIATOR LOWER TANK)
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16474 Cap(FOR RADIATOR RESERVE TANK DRAIN)
16474A Clamp OR Clip(FOR RADIATOR RESERVE TANK DRAIN CAP)
16482 Tank Sub-assy, Radiator Reserve
16491 Cooler, Oil(FOR ATM)
16491A Ring, O(FOR ATM OIL COOLER)
16491B Washer, Plate(FOR ATM OIL COOLER)
16491C Washer, Spring(FOR ATM OIL COOLER)
16491D Nut(FOR ATM OIL COOLER)
16495 Nut, Flare(FOR ATM OIL COOLER)
16533 Support, Radiator, Upper
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16581 Clamp, Hose(FOR WATER HOSE)
16584 Insulator, Radiator Mounting
16701 Shroud Sub-assy, Fan
16702 Shroud Sub-assy, Fan, NO.2
16711 Shroud, Fan
16712 Shroud, Fan, NO.2
17168B Insulator, Exhaust Manifold Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
