Toyota Granvia/Grand Hiace
1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan
Discontinued model
Data version 2005-07

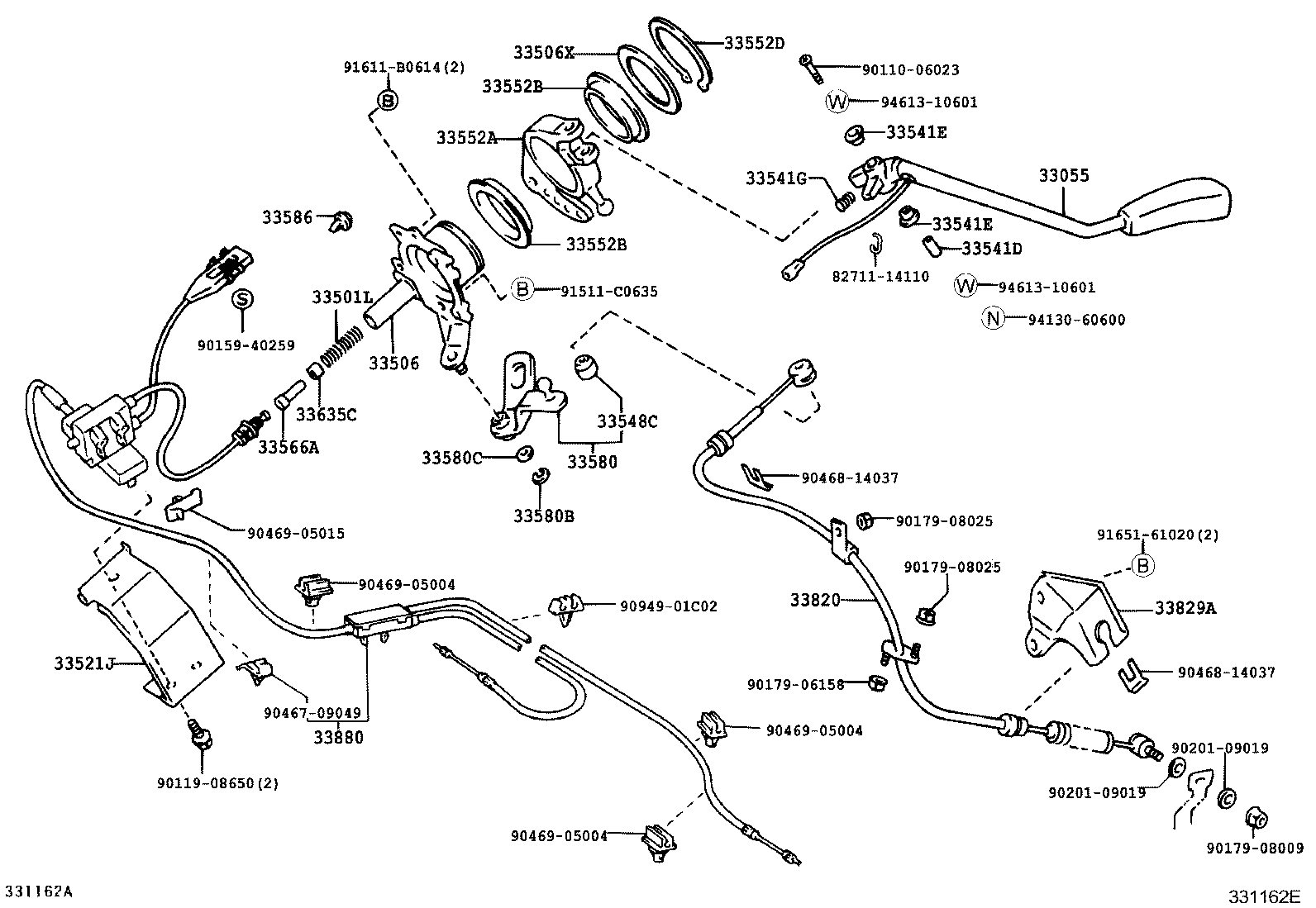

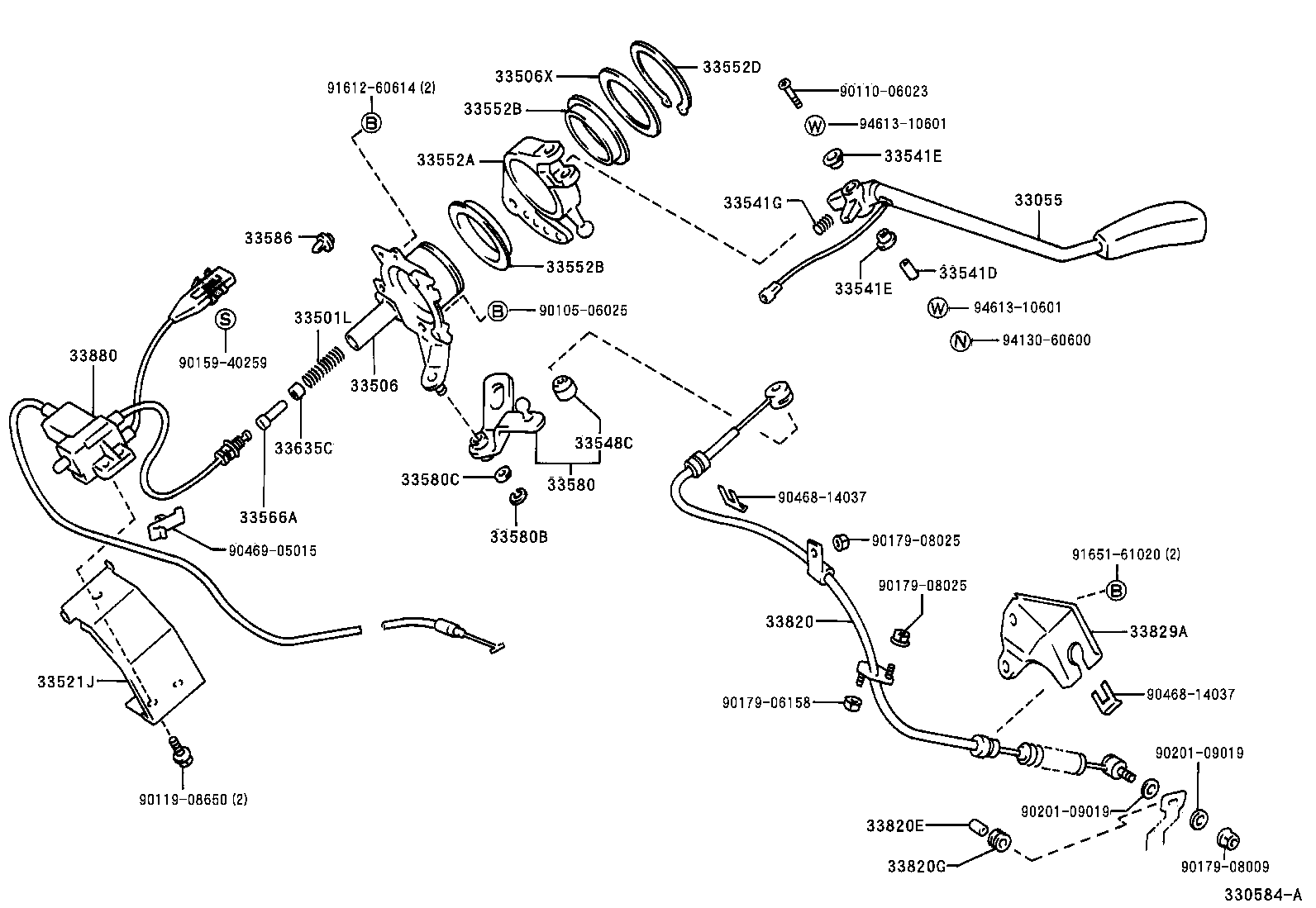

Control Shaft & Crossshaft
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33055 | Lever Sub-assy, Column Shift |
| 33501L | Spring, Compression (FOR COLUMN SHIFT CONTROL SHAFT) |
| 33506 | Retainer Sub-assy, Control Shift Lever (FOR COLUMN SHIFT) |
| 33506X | Spacer (FOR SHIFT LEVER ARM) |
| 33521J | Housing, Shift Lever (FOR COLUMN SHIFT) |
| 33541D | Collar (FOR COLUMN SHIFT LEVER) |
| 33541E | Bush (FOR COLUMN SHIFT LEVER) |
| 33541G | Spring, Compression (FOR COLUMN SHIFT LEVER) |
| 33548C | Bush, Shift Lever (FOR COLUMN SHIFT) |
| 33552A | Arm, Shift Lever |
| 33552B | Bush (FOR SHIFT LEVER ARM) |
| 33552D | Ring, Snap (FOR SHIFT LEVER ARM) |
| 33566A | Pin, Shift Lever Stop (FOR COLUMN SHIFT) |
| 33580 | Bellcrank Assy, Shifting (FOR COLUMN SHIFT) |
| 33580B | Ring, Shaft Snap (FOR SHIFTING BELLCRANK) |
| 33580C | Washer, Plate (FOR SHIFTING BELL CRANK) |
| 33586 | Stopper, Control Shift Lever |
| 33635C | Guide, Wire |
| 33820 | Cable Assy, Transmission Control (FOR COLUMN SHIFT) |
| 33820E | Bush (FOR TRANSMISSION CONTROL CABLE) |
| 33820G | Grommet (FOR TRANSMISSION CONTROL CABLE) |
| 33829A | Support, Transmission Control Cable |
| 33880 | Cable Assy, Parking Lock (FOR COLUMN SHIFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
