Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

15 part groups · 7 illustrations

Illustrations

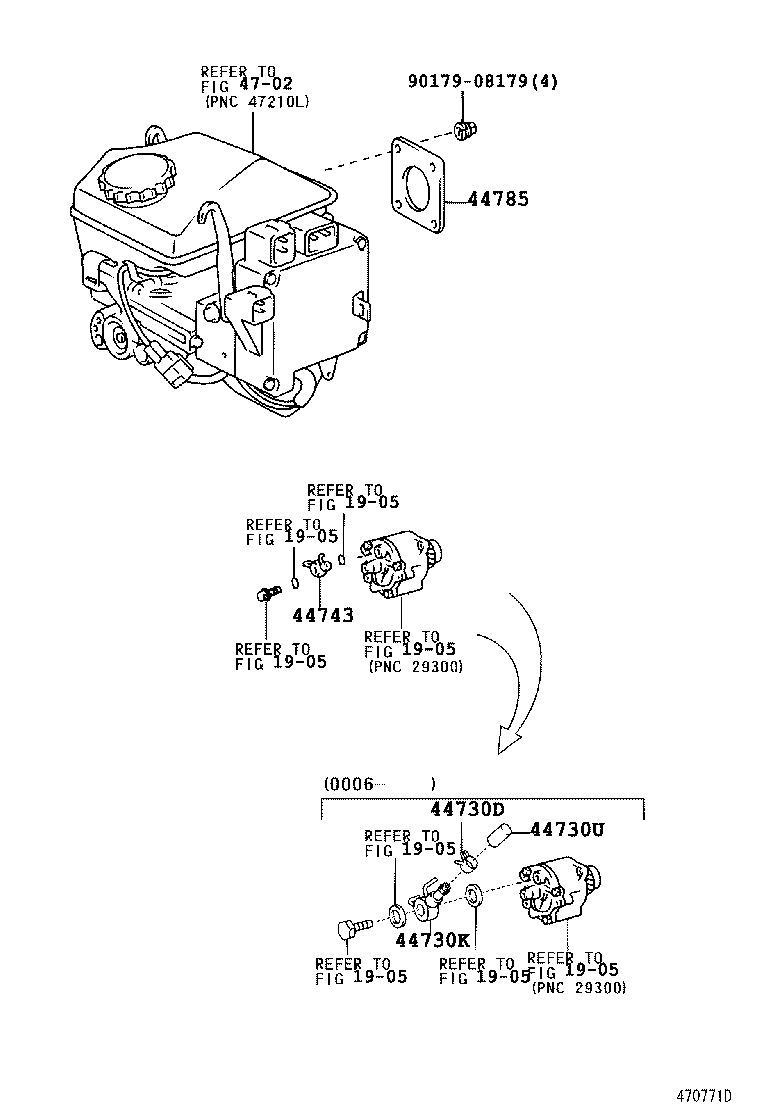

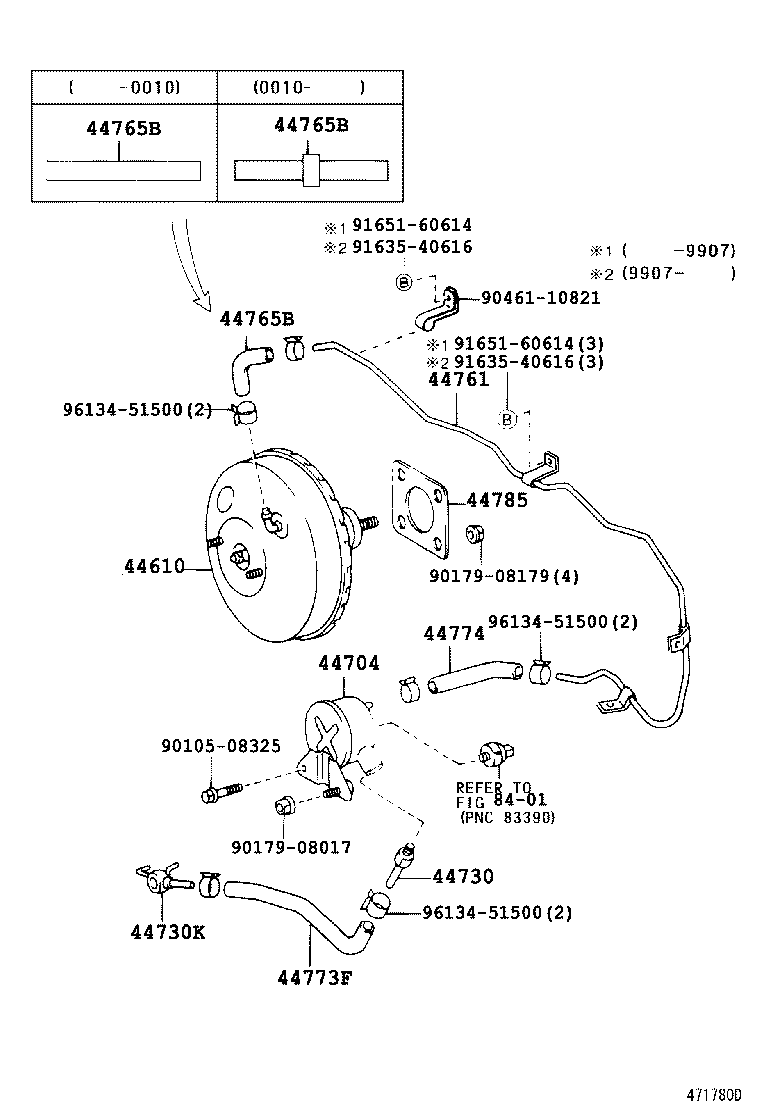

Figure 475445 475445 1995-08 → 1998-04 Figure 471780D 471780D 1995-08 → 1997-08 Figure 471780D 471780D 1997-08 → 1999-07 Figure 471780D 471780D 1999-07 → — Figure 470771D 470771D 1997-08 → 1999-07 Figure 470771D 470771D 1999-07 → — Figure 470770D 470770D 1997-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730D Clip(FOR VACUUM HOSE, NO.1)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730K Union, Vacuum Hose(FOR VACUUM PUMP)
44730U Plug(FOR VACUUM HOSE UNION)
44743 Union(FOR VACUUM PUMP)
44758 Bracket, Vacuum Check Valve
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44765B Hose, Connector TO Brake Booster
44772 Hose, Check Valve TO Connector Tube
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
