Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

10 part groups · 2 illustrations

Illustrations

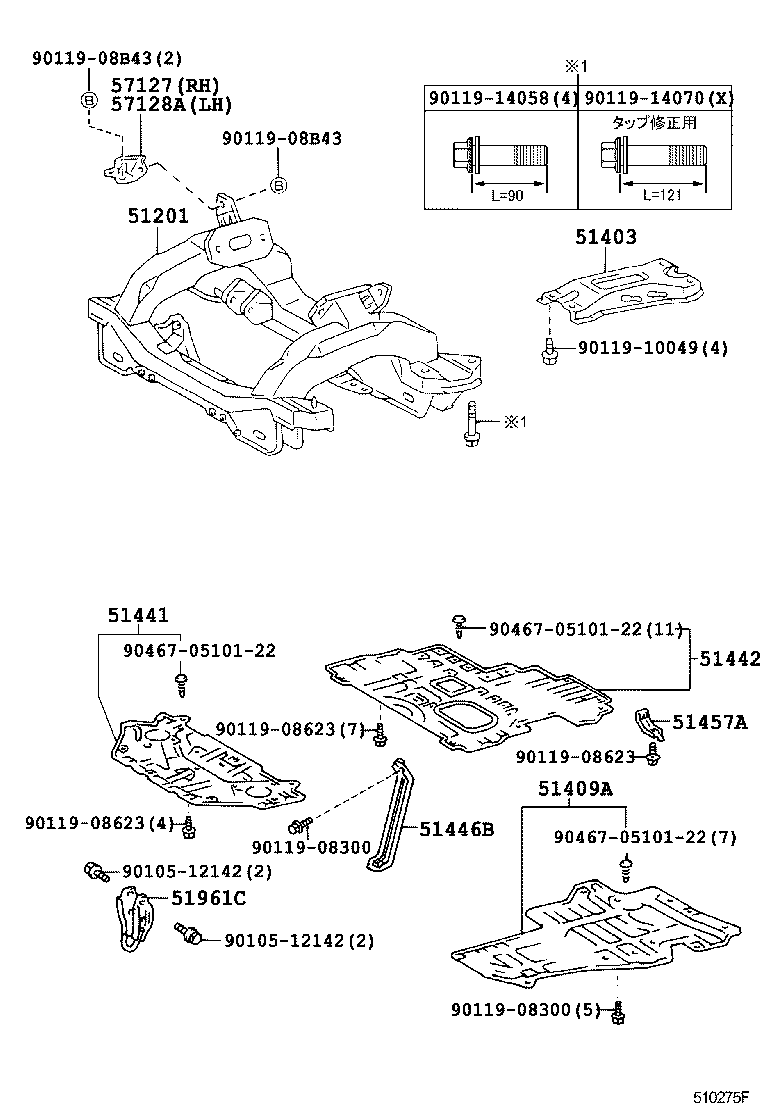

Figure 510274D 510274D 1995-08 → — Figure 510275F 510275F 1995-08 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51403 Bracket Sub-assy, Engine Rear Mounting
51409A Cover Sub-assy, Engine Under, NO.4
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51446B Bracket, Engine Under Cover, NO.2
51457A Bracket, Engine Under Cover, NO.3
51961C Hook, Front
57127 Plate, Front Suspension Member Mounting, RH
57128A Plate, Front Suspension Member Mounting, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
