Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

11 part groups · 2 illustrations

Illustrations

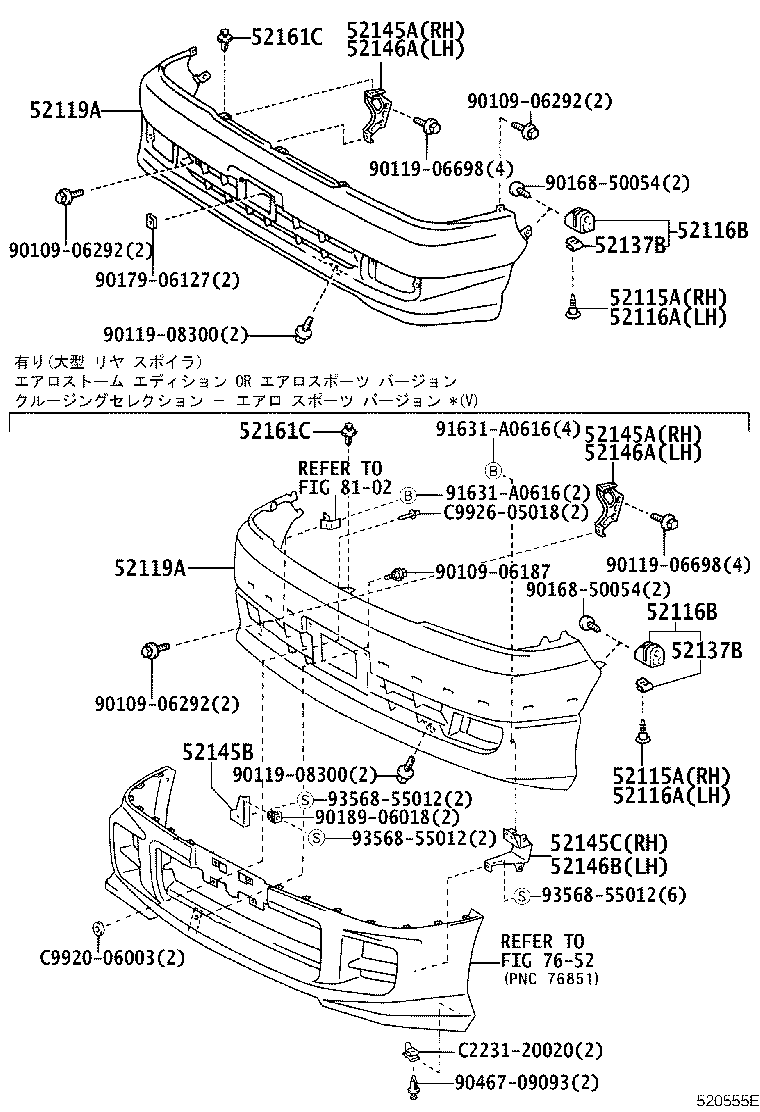

Figure 520183B 520183B 1995-08 → 1999-07 Figure 520555E 520555E 1999-07 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52137B Plate, Front Bumper Bracket, NO.1
52145A Stay, Front Bumper, NO.2 RH
52145B Bracket, Front Bumper Side Mounting
52145C Bracket, Front Bumper Side Mounting, RH
52146A Stay, Front Bumper, NO.2 LH
52146B Bracket, Front Bumper Side Mounting, LH
52161C Piece, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
