Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

16 part groups · 3 illustrations

Illustrations

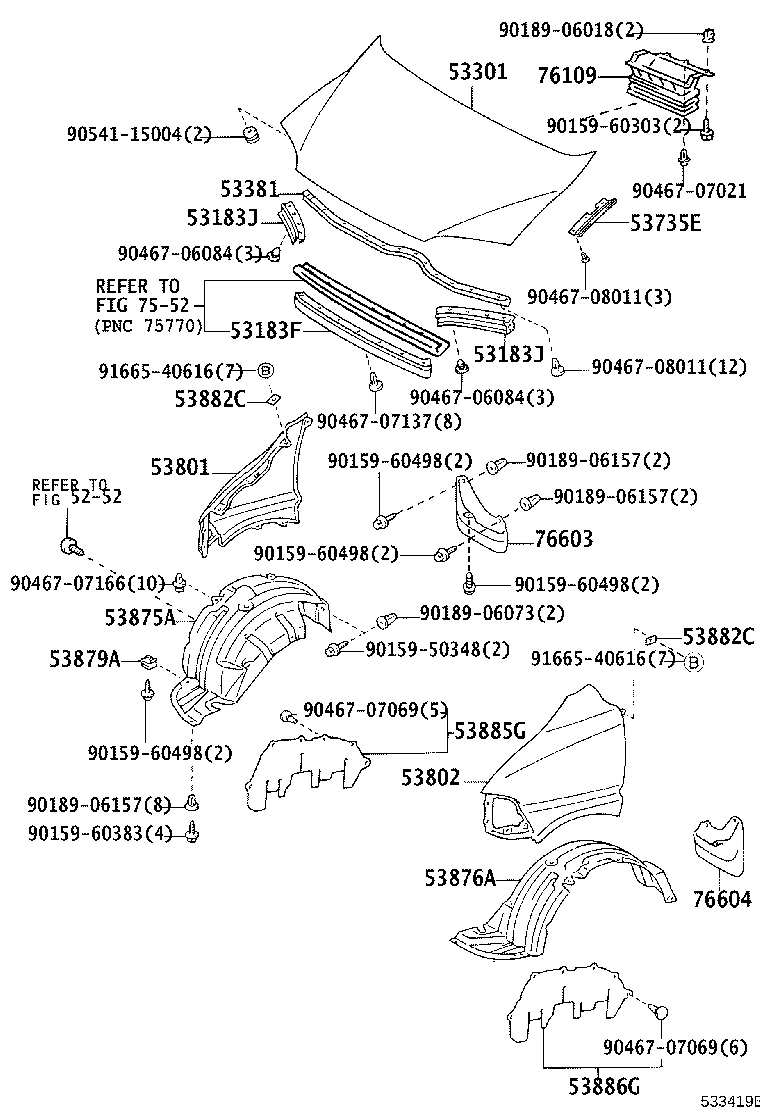

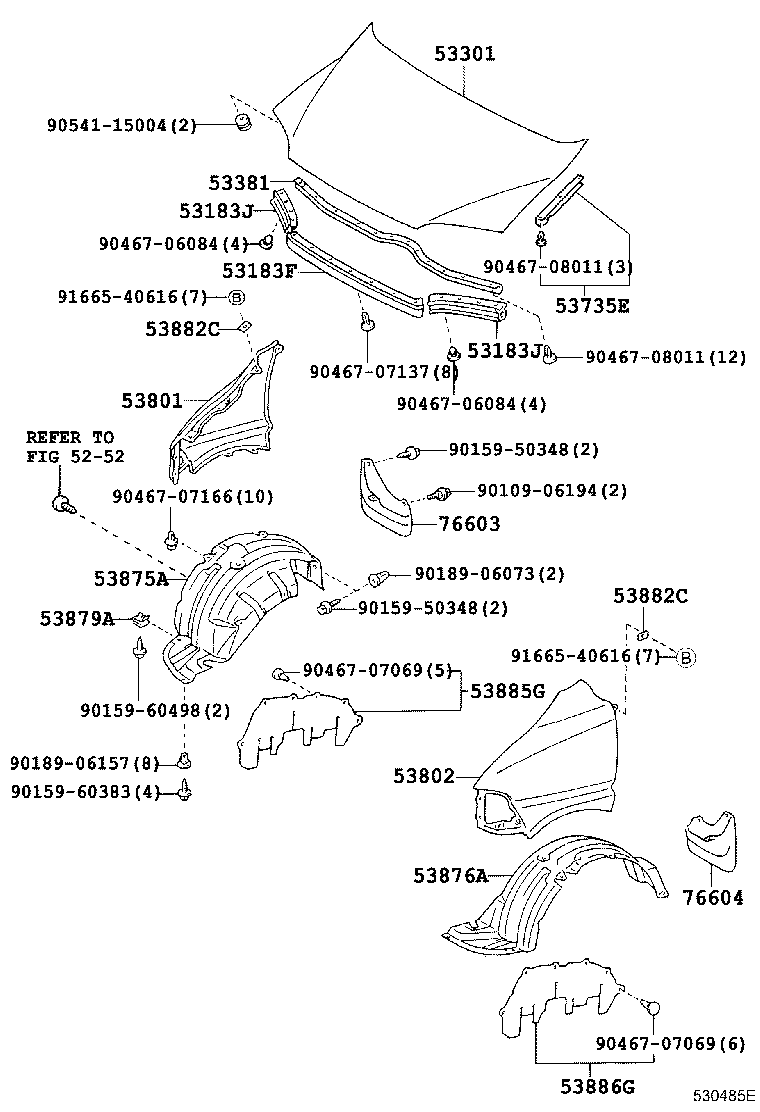

Figure 530201B 530201B 1995-08 → 1997-08 Figure 530485E 530485E 1997-08 → 1999-07 Figure 533419B 533419B 1999-07 → —

Part groups

PNCDescription
53183F Seal, Headlamp Cover TO Hood
53183J Seal, Headlamp Cover TO Hood
53301 Hood Sub-assy
53381 Seal, Hood TO Radiator Support
53735E Seal, Front Fender Apron, Upper
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882C Seal, Front Fender Main
53885G Seal Sub-assy, Fender Apron Mudguard, RH
53886G Seal, Fender Apron Mudguard, LH
76109 Guide Sub-assy, Hood Air Intake
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
