Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

82 part groups · 5 illustrations

Illustrations

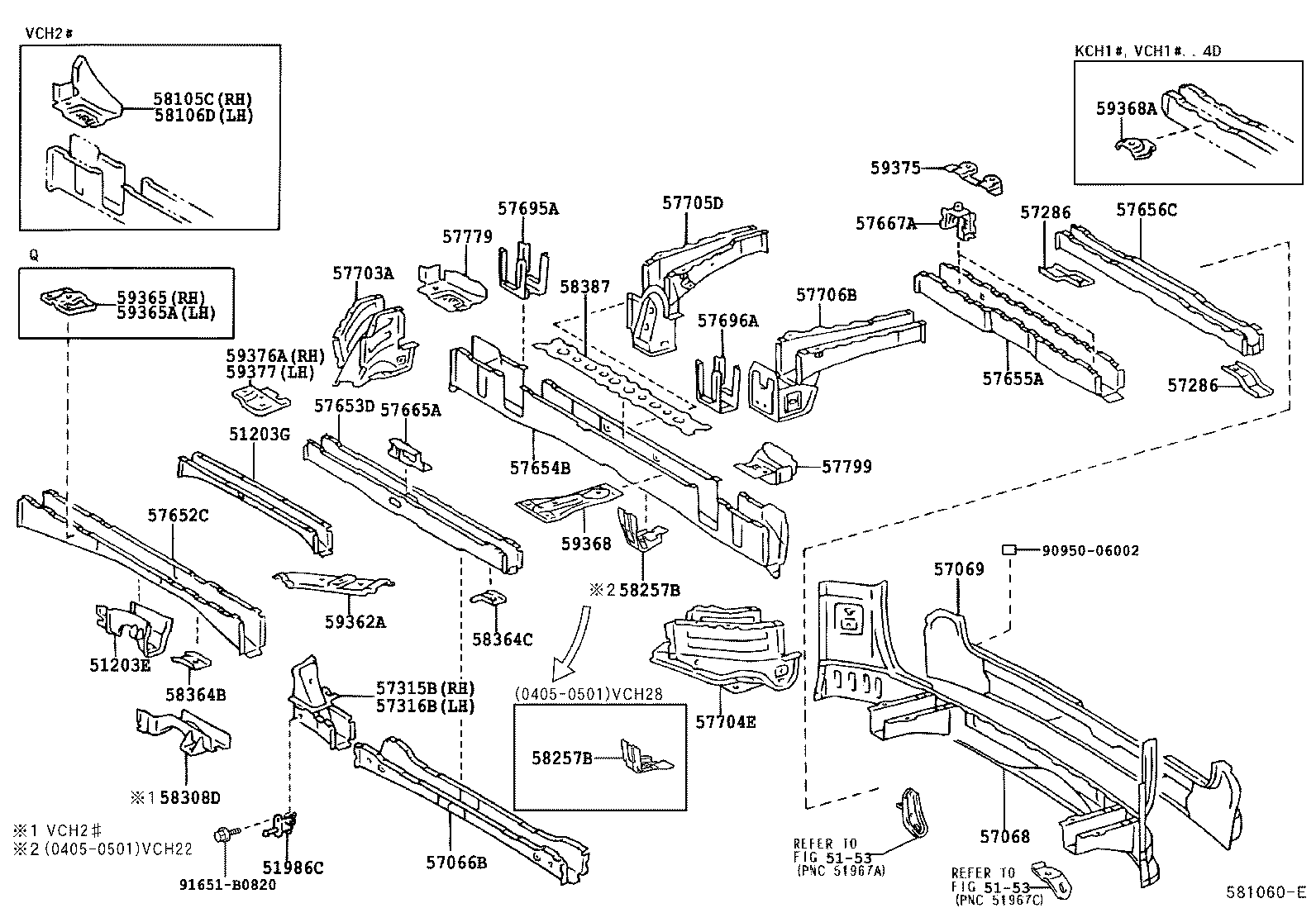

580620A 1995-08 → 1999-07

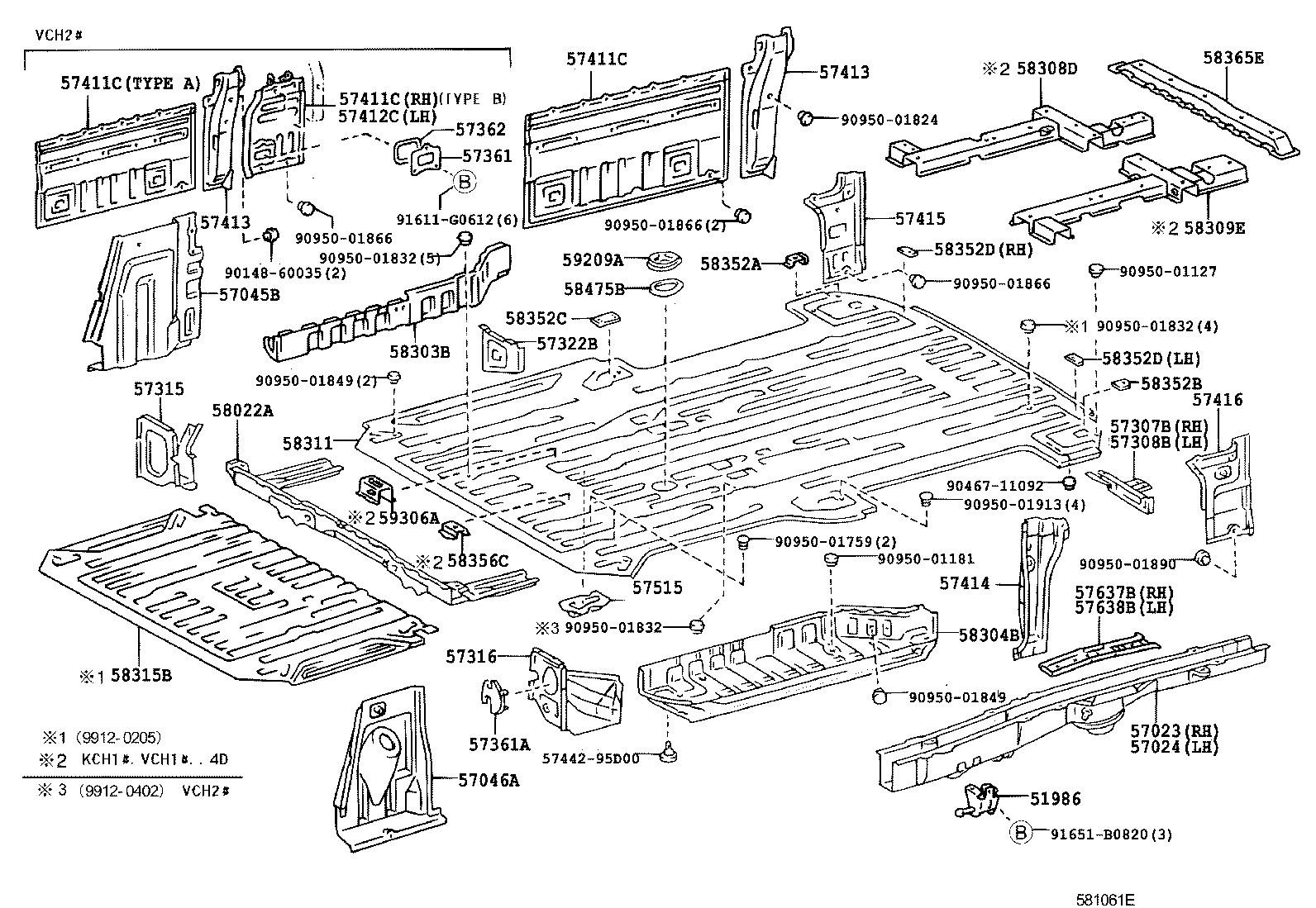

581060E 1999-07 → —

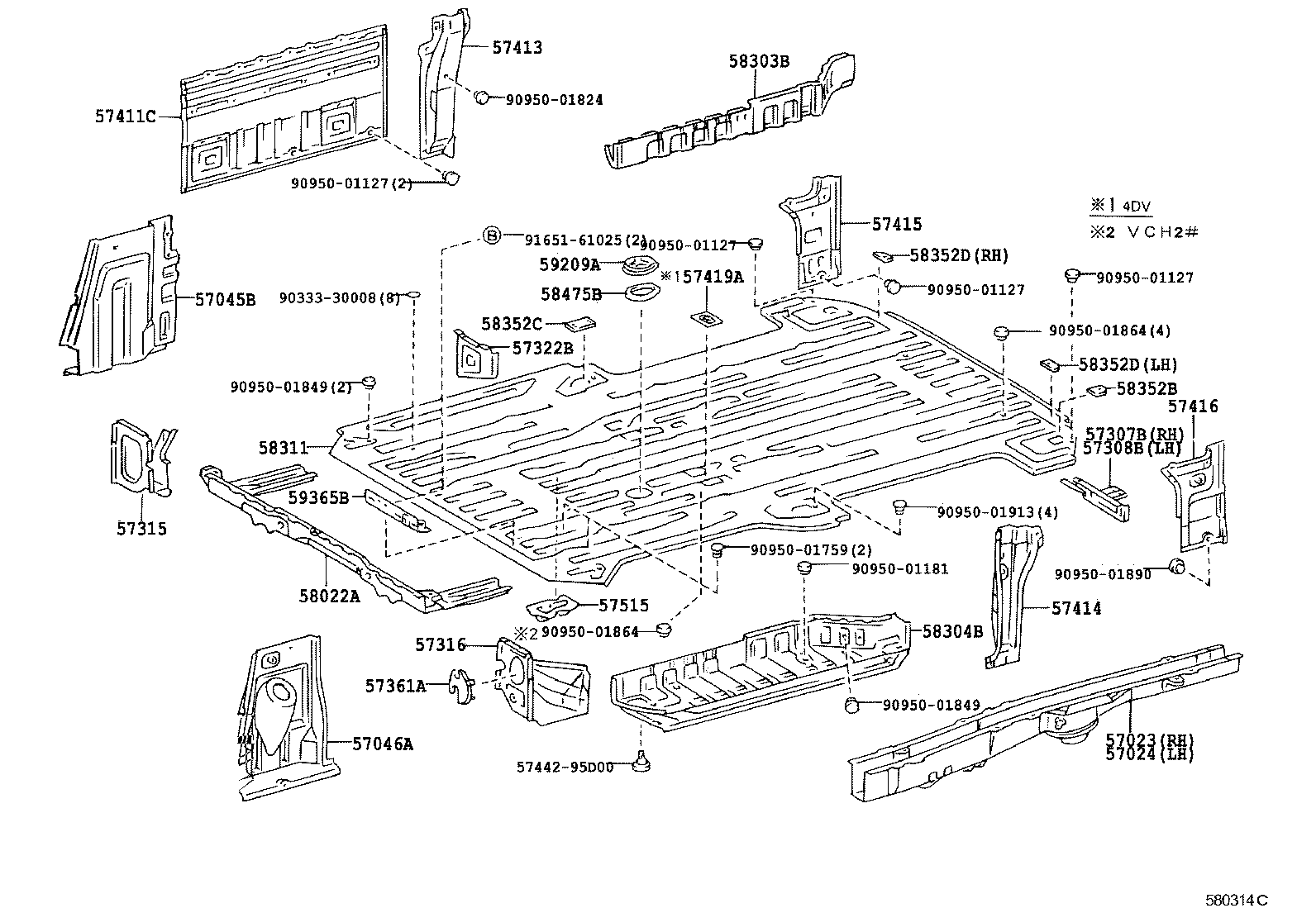

580314D 1995-08 → 1999-07

581061E 1999-07 → 2000-06

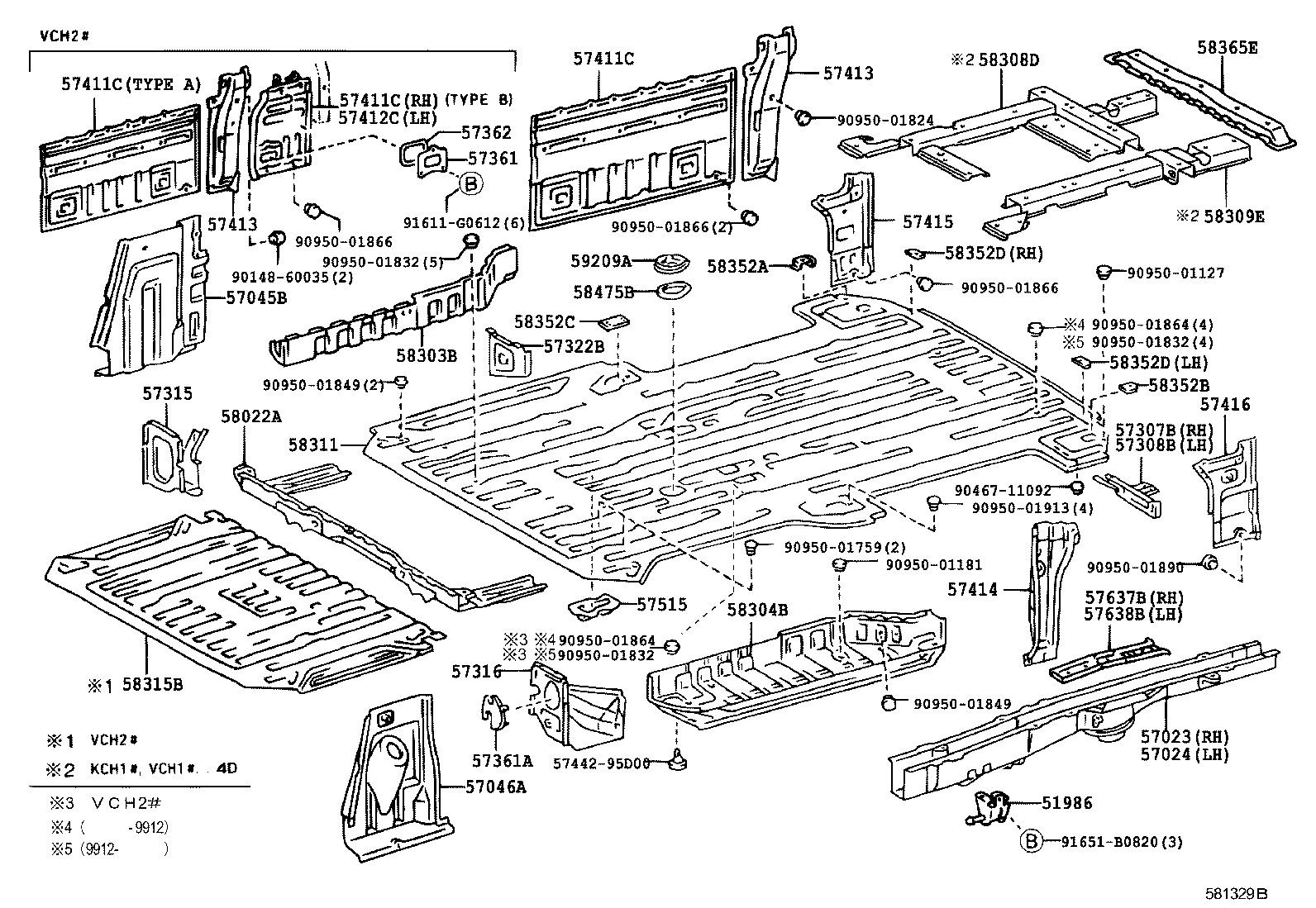

581329B 2000-06 → —

Part groups

PNC	Description
51203E	Bracket Sub-assy, Center Bearing Support
51203G	Member, Rear Floor Cross, NO.2
51986	Hanger, Exhaust Pipe Support, NO.3
51986C	Hanger, Exhaust Pipe Support, NO.3
57023	Member Sub-assy, Rear Side, RH
57024	Member Sub-assy, Rear Side, LH
57045B	Plate Sub-assy, Floor Side Rail, RH
57046A	Plate Sub-assy, Floor Side Rail, LH
57066B	Member Sub-assy, Rear Floor Cross, NO.6
57068	Member Sub-assy, Rear Floor Rear Cross, Inner
57069	Member Sub-assy, Rear Floor Rear Cross, Outer
57276	Gusset, Rear Floor Crossmember, NO.4
57286	Gusset, Rear Floor Crossmember, NO.5
57307B	Outrigger Sub-assy, NO.4 RH
57308B	Outrigger Sub-assy, NO.4 LH
57315	Outrigger, NO.3 RH
57315B	Outrigger Sub-assy, NO.3 RH
57316	Outrigger, NO.3 LH
57316B	Outrigger Sub-assy, NO.3 LH
57322B	Outrigger, NO.5, LH
57361	Cover, Outrigger Hole
57361A	Cover, NO.2 Outerigger Hole
57362	Packing, Outrigger Hole Cover
57411C	Rail, Sub-assy, Floor Side, Inner Front RH
57412C	Rail, Floor Side, LH
57413	Rail, Floor Side, Center RH
57414	Rail, Floor Side, Center LH
57415	Rail, Floor Side, Rear RH
57416	Rail, Floor Side, Rear LH
57419A	Plate, Rear Seat Lock
57515	Bracket, Parking Brake, RH
57637B	Reinforcement, Rear Floor Side Member, Center RH
57638B	Reinforcement, Rear Floor Side Member, Center LH
57652C	Member, Rear Floor Cross, NO.1
57653D	Member, Rear Floor Cross, NO.2
57654B	Member, Rear Floor Cross, NO.3
57655A	Member, Rear Floor Cross, NO.4
57656C	Member, Rear Floor Croos, NO.5
57665A	Reinforcement, Rear Floor Crossmember, NO.2
57667A	Reinforcement, Rear Floor Crossmember, NO.4
57695A	Extension, Rear Floor Crossmember Rear Side, RH
57696A	Extension, Rear Floor Crossmember Rear Side, LH
57703A	Bracket Sub-assy, Rear Suspension Arm, Front RH
57704E	Bracket Sub-assy, Rear Suspension Arm, Front LH
57705D	Bracket Sub-assy, Rear Suspension Arm, Rear RH
57706B	Bracket Sub-assy, Rear Suspension Arm, Rear LH
57779	Retainer, Upper Control Link, Upper
57799	Gusset, Rear Floor Crossmember
58022A	Reinforcement Sub-assy, Header Panel
58105C	Gusset Sub-assy, Wheelhouse Inner, Front RH
58106D	Gusset Sub-assy, Wheelhouse Inner, Front LH
58257B	Retainer, Parking Brake Mounting
58303B	Step Sub-assy, Rear Floor, RH
58304B	Step Sub-assy, Rear Floor, LH
58308D	Bracket Sub-assy, Rear Floor Crossmember
58309E	Plate Sub-assy, Rear Floor
58311	Pan, Rear Floor
58315B	Panel, Rear Floor, Front
58323B	Reinforce, Rear Bumper Arm Support, RH
58324B	Reinforce, Rear Bumper Arm Support, LH
58352A	Bracket, Rear Floor Stay
58352B	Reinforcement, Rear Floor Panel, LH
58352C	Reinforcement, Rear Floor Panel, NO.2
58352D	Bracket, Rear Floor Stay
58356C	Reinforcement, Rear Floor Panel, NO.6
58364B	Bracket, Fuel Tank Support
58364C	Bracket, Fuel Tank Support
58365E	Reinforcement, Rear Floor Panel, Center
58387	Plate, Rear Floor Finish
58475B	Packing, Inspection Hole Cover
59209A	Cover Sub-assy, Inspection Hole
59306A	Retainer Sub-assy, Rear Seat, NO.1 A
59361B	Retainer, Rear Seat, NO.1 A
59362A	Retainer, Rear Seat, NO.1 B
59365	Retainer, Rear Seat, NO.2 A
59365A	Reteiner, Rear Seat, NO.2
59365B	Retainer, Rear Seat, NO.2 A
59368	Retainer, Rear Seat, NO.2 D
59368A	Retainer, Rear Seat, NO.2
59375	Retainer, Rear Seat, NO.4
59376A	Retainer, Rear Seat, NO.4
59377	Retainer, Rear Seat, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
