Toyota Granvia/Grand Hiace
1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan
Discontinued model
Data version 2005-07

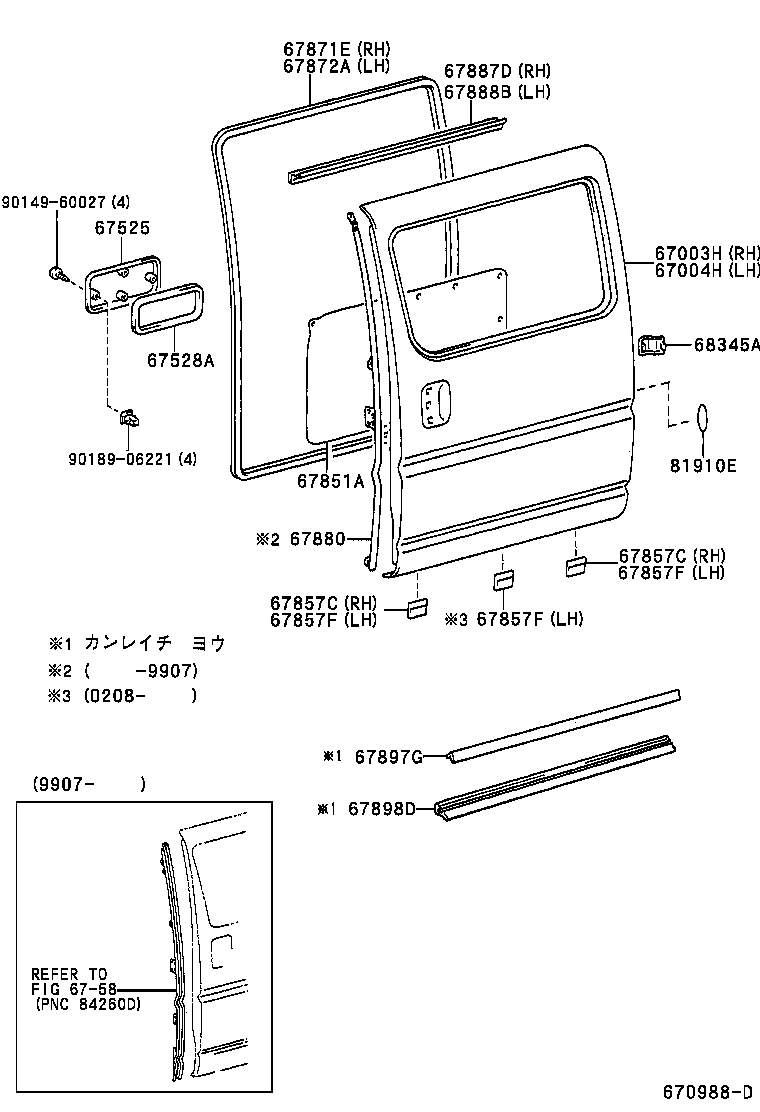

Rear Door Panel & Glass
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62597G | Clamp, Rear Door Trim |
| 67003H | Door Sub-assy, Slide, RH |
| 67004H | Door Sub-assy, Slide, LH |
| 67525 | Cover, Slide Door Panel, Lower |
| 67528A | Packing, Slide Door Lower Cover |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67607A | Clip(FOR SLIDE DOOR TRIM BOARD) |
| 67667A | Garnish, Slide Door Window, RH |
| 67668A | Garnish, Slide Door Window, LH |
| 67739 | Cover, Rear Door Trim |
| 67775 | Cover, Rear Door Trim, Lower RH |
| 67776 | Cover, Rear Door Trim, Lower LH |
| 67851A | Cover, Slide Door Service Hole, NO.1 |
| 67857C | Seal, Slide Door Panel Hole |
| 67857F | Seal, Slide Door Panel Hole |
| 67871E | Weatherstrip, Slide Door, NO.1 RH |
| 67872A | Weatherstrip, Slide Door, NO.1 LH |
| 67880 | Protector, Slide Door Edge, LH |
| 67887D | Weatherstrip, Slide Door, NO.2 RH |
| 67888B | Weatherstrip, Slide Door, NO.2 LH |
| 67897G | Seal, Slide Door, Lower |
| 67898D | Seal, Slide Door, Lower NO.2 |
| 68345A | Cover, Slide Door Center Rail |
| 81910E | Reflector Assy, Reflex |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
