Toyota Granvia/Grand Hiace
1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan
Discontinued model
Data version 2005-07
Slide Roller & Rail

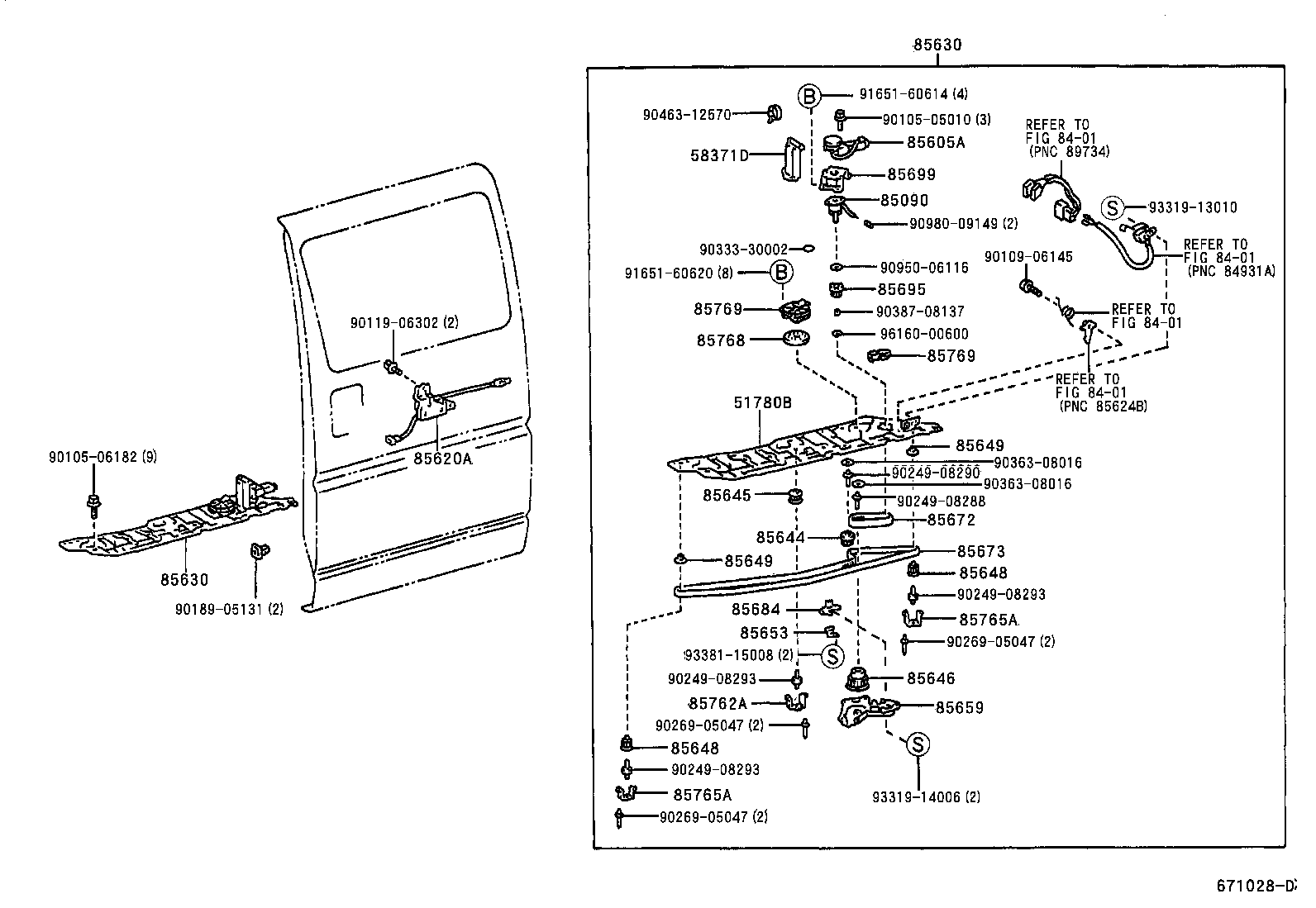

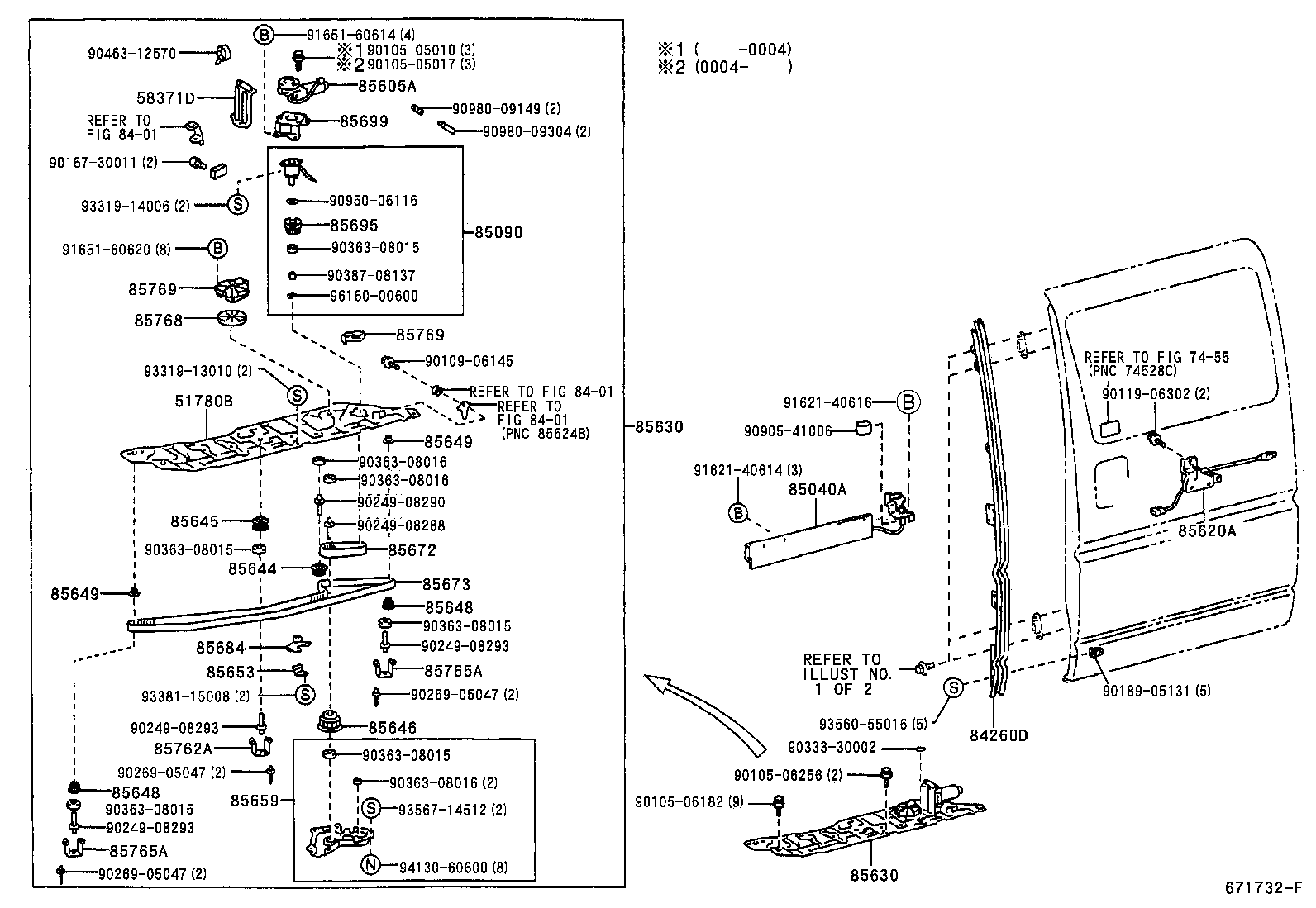

62 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51780B | Step Assy, LH |
| 58371D | Cover, Rear Floor Step, NO.1 |
| 58372D | Cover, Rear Floor Step, NO.2 |
| 68029 | Base Sub-assy, Slide Door Lower Roller |
| 68039 | Base Sub-assy, Slide Door Lower Roller, LH |
| 68303B | Rail Sub-assy, Slide Door, Center RH |
| 68304B | Rail Sub-assy, Slide Door, Center LH |
| 68308 | Rail Sub-assy, Slide Door, Upper RH |
| 68309 | Rail Sub-assy, Slide Door, Upper LH |
| 68310 | Roller Assy, Slide Door, Upper |
| 68320A | Roller Assy, Slide Door, Upper, LH |
| 68335 | Pad, Slide Door Upper Rail |
| 68336 | Arm, Slide Door Lower Roller, LH |
| 68367B | Pad, Slide Door Center Rail |
| 68373 | Moulding, Slide Rail End, RH |
| 68374 | Moulding, Slide Rail End, LH |
| 68379 | Spring, Slide Door Catch, RH |
| 68380D | Hinge Assy, Slide Door, Center RH |
| 68389 | Spring, Slide Door Catch, LH |
| 68390A | Hinge Assy, Slide Door, Center LH |
| 68395 | Packing, Slide Door Center Rail |
| 68395A | Packing, Slide Door Center Rail |
| 68395B | Packing, Slide Door Center Rail |
| 68395C | Packing, Slide Door Center Rail |
| 69106 | Rail Sub-assy, Power Slide Door |
| 69171 | Bracket, Power Slide Door Rail |
| 69405B | Stop Sub-assy, Slide Door Open |
| 69413 | Stop, Slide Door Down Male |
| 69415 | Stopper, Slide Door Down Female |
| 84260D | Sensor Assy, Power Slide Door |
| 85040A | Rail Assy, Power Slide Door Harness |
| 85062 | Roller Sub-assy, Drive |
| 85063 | Arm Sub-assy, Slide Door Motor |
| 85067 | Gear Sub-assy, Slide Door, NO.1 |
| 85090 | Clutch Assy, Slide Door Motor |
| 85600 | Pulley Assy, Drive Roller |
| 85605A | Motor Sub-assy, Slide Door |
| 85620A | Motor Assy, Slide Door Lock Release, LH |
| 85630 | Motor Assy, Slide Door |
| 85632 | Pulley, Slide Door Motor |
| 85639A | Cam, Auto Door Stopper, NO.1 |
| 85639B | Support, Slide Door Motor Arm |
| 85644 | Pulley, Belt Idle, NO.1 |
| 85645 | Pulley, Belt Idle, NO.2 |
| 85646 | Pulley, Main |
| 85648 | Pulley, Drive Belt |
| 85649 | Flange, Pulley(FOR SLIDE DOOR MOTOR) |
| 85653 | Plate, Drive Belt |
| 85659 | Cover, Belt |
| 85672 | Belt, Clutch TO Main Pulley |
| 85673 | Belt, Slide Door Motor |
| 85682 | Belt, Drive Roller |
| 85684 | Bracket, Power Slide Door Motor Arm |
| 85692 | Stopper, Slide Door Motor Gear |
| 85695 | Pulley, Clutch, NO.1 |
| 85699 | Bracket, Slide Door Motor Connector |
| 85703A | Roller Sub-assy, Guide |
| 85713A | Piece, Seal |
| 85762A | Bracket, Belt Idler, NO.2 |
| 85765A | Bracket, Drive Belt Pulley |
| 85768 | Plate, Slide Door Motor Control |
| 85769 | Cover, Slide Door Motor Control Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
