Toyota Granvia/Grand Hiace
1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan
Discontinued model
Data version 2005-07

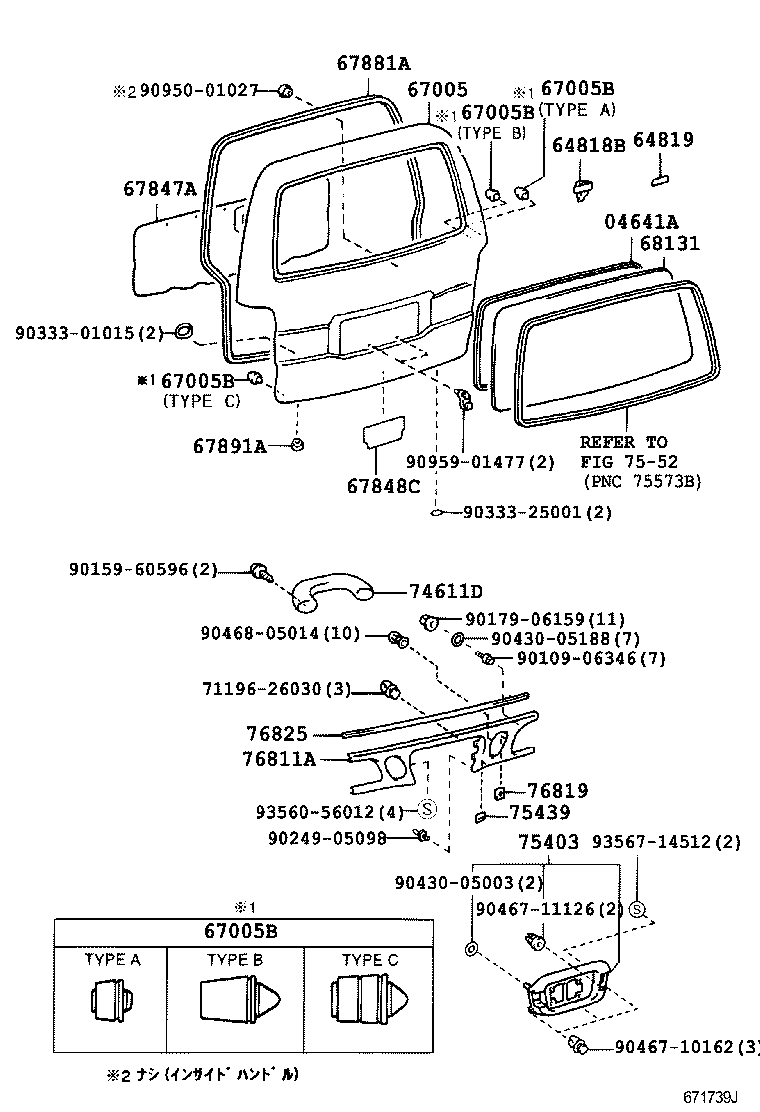

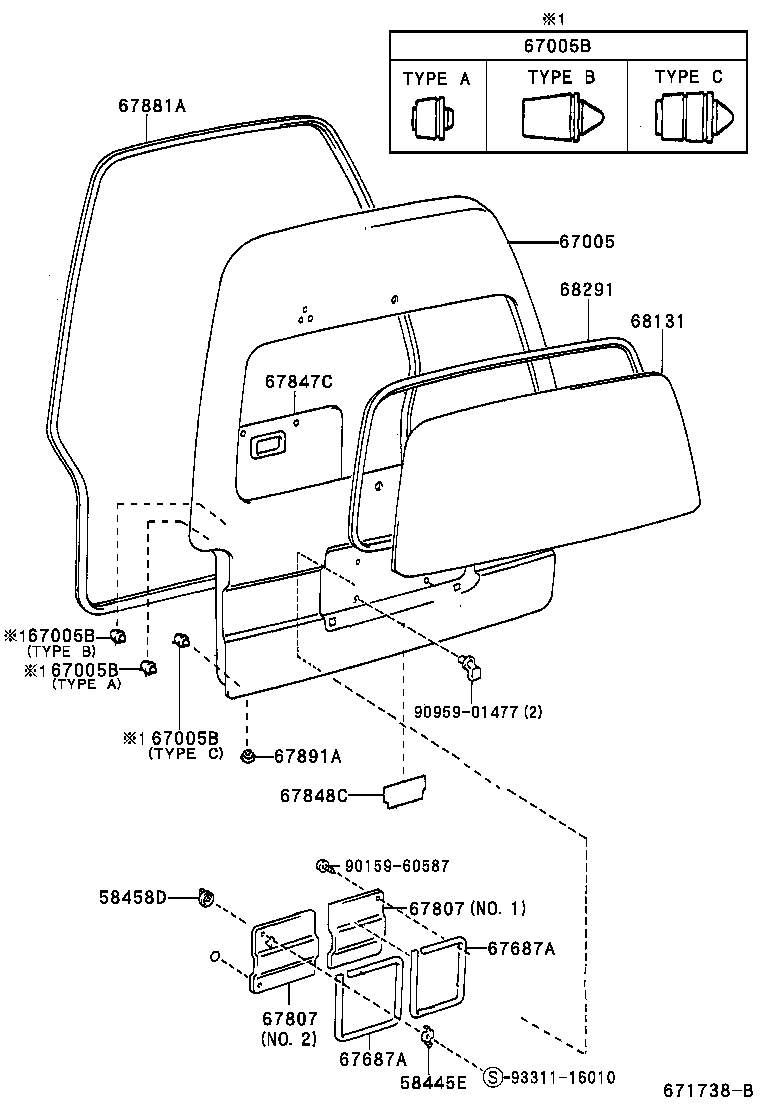

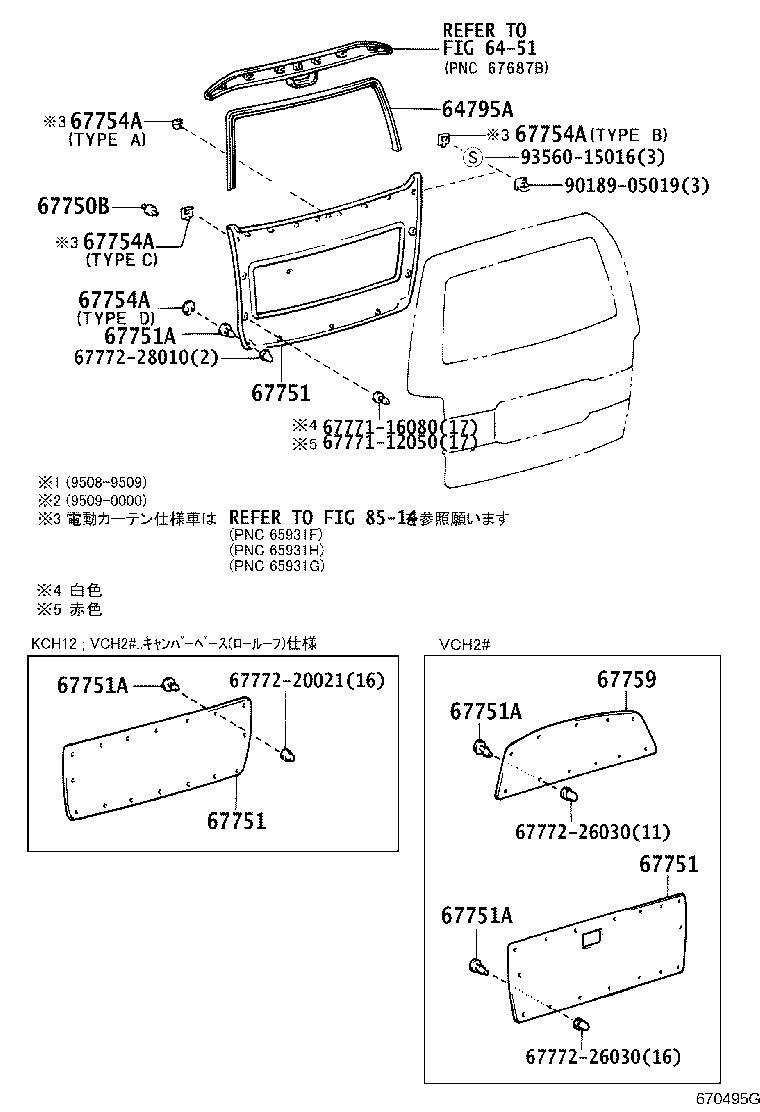

Back Door Panel & Glass
29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641A | Dam Kit, Back Window Glass Adhesive |
| 58445E | Lock, Back Door Closer Cover |
| 58458D | Knob, Back Door Closer Cover |
| 64795A | Trim, Back Window Opening |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67687A | Packing, Back Door Service Hole, NO.3 |
| 67750B | Fastner(FOR BACK DOOR TRIM) |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67754A | Cover, Back Door Hole |
| 67759 | Board, Back Door Trim, Upper |
| 67807 | Cover Sub-assy, Back Door Service Hole |
| 67847A | Cover, Back Door Service Hole |
| 67847C | Cover, Back Door Service Hole, NO.1 |
| 67848C | Cover, Back Door Service Hole, NO.2 |
| 67881A | Weatherstrip, Back Door |
| 67891A | Seal, Back Door |
| 68131 | Glass, Back Door |
| 68291 | Weatherstrip, Back Door Glass |
| 74611D | Grip, Assist, Back Door |
| 75403 | Ornament Sub-assy, Back Door |
| 75439 | Pad, Back Door Ornament, NO.2 |
| 76811A | Garnish, Back Door, Outside |
| 76817 | Clip, Back Door Outside Garnish |
| 76819 | Seal, Back Door Outside Garnish |
| 76825 | Protector, Back Door Outside Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
