Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

237 part groups · 19 illustrations

Illustrations

710874B 1995-08 → 1997-08

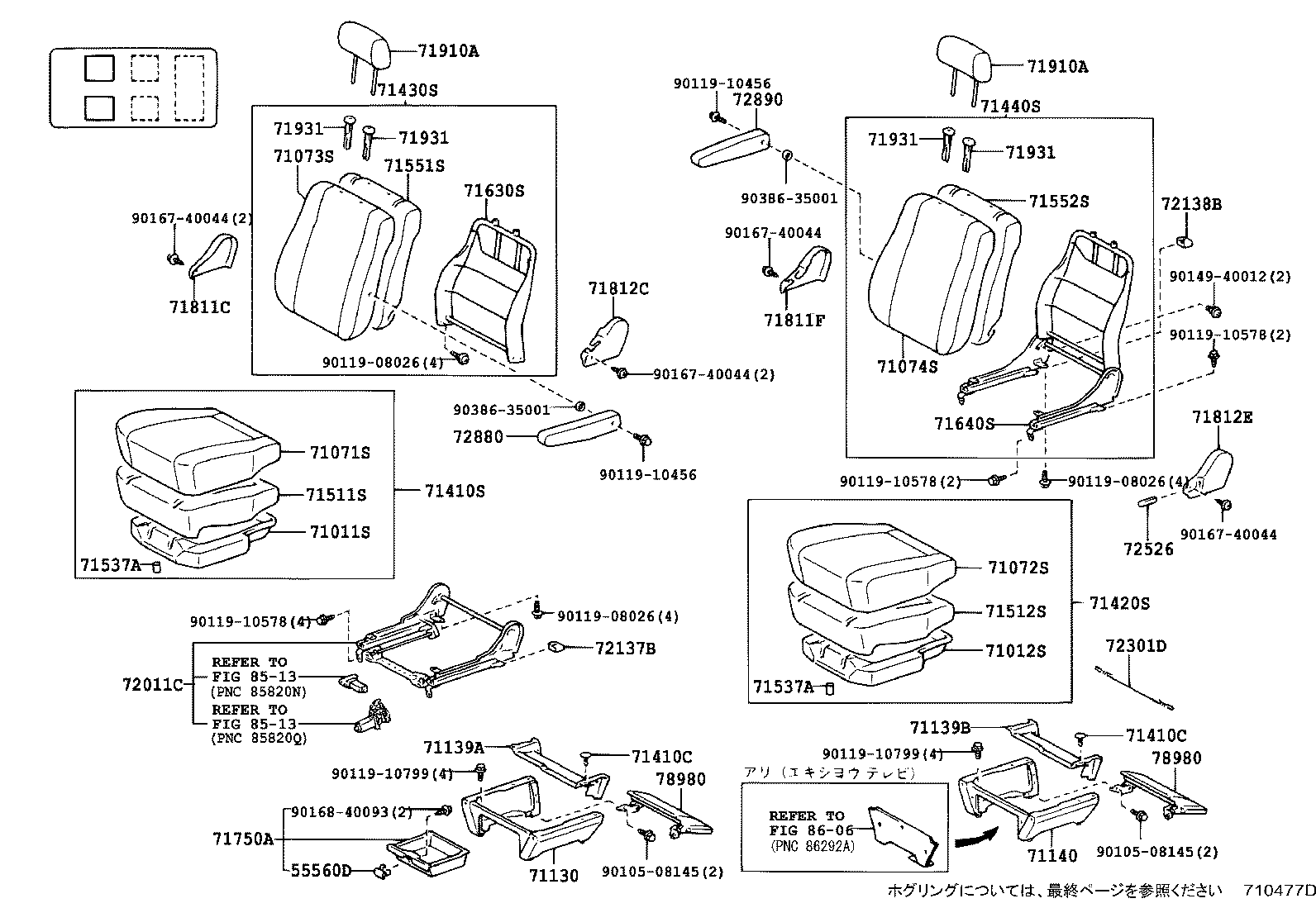

710477D 1995-08 → 1997-08

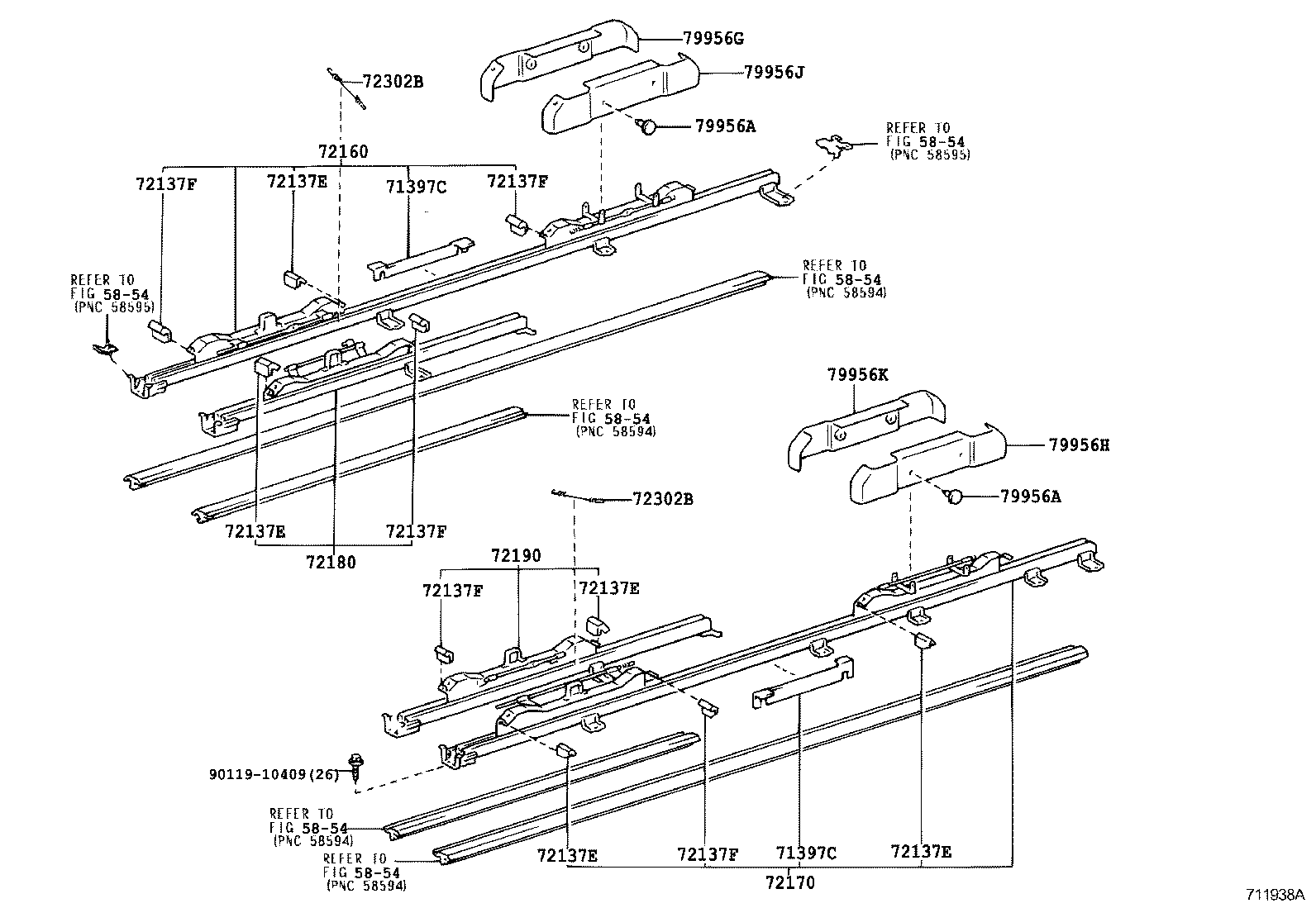

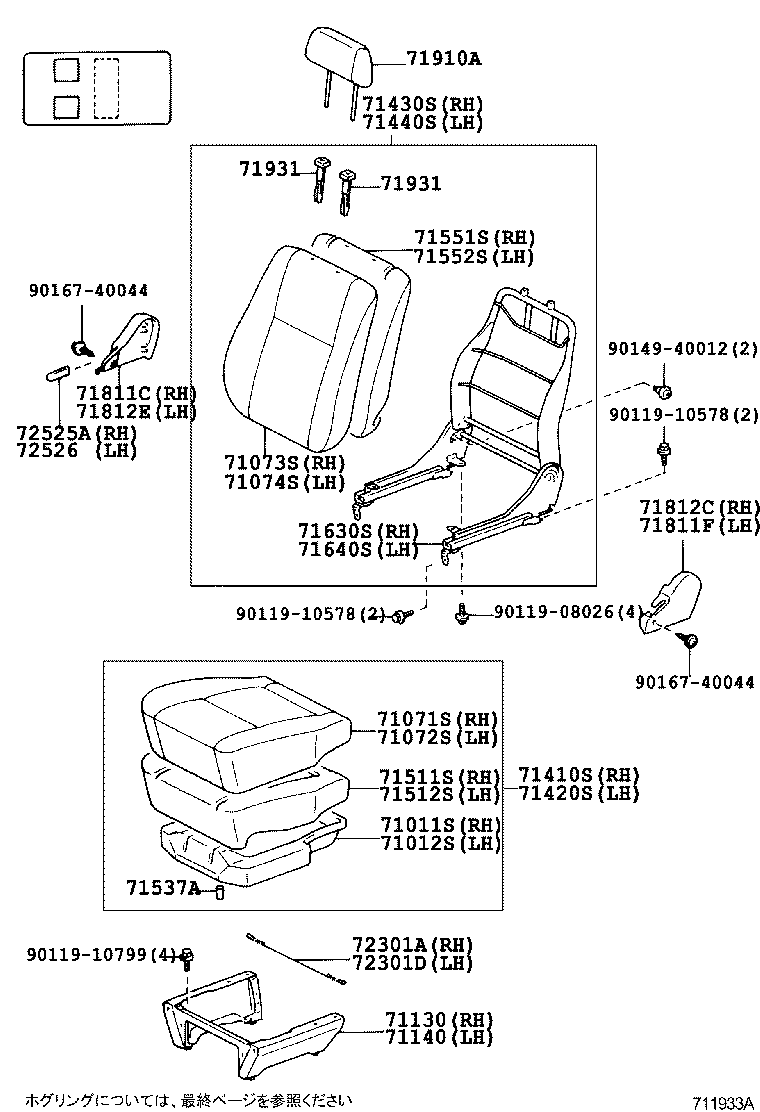

711933A 1995-08 → 1997-08

710478A 1996-08 → —

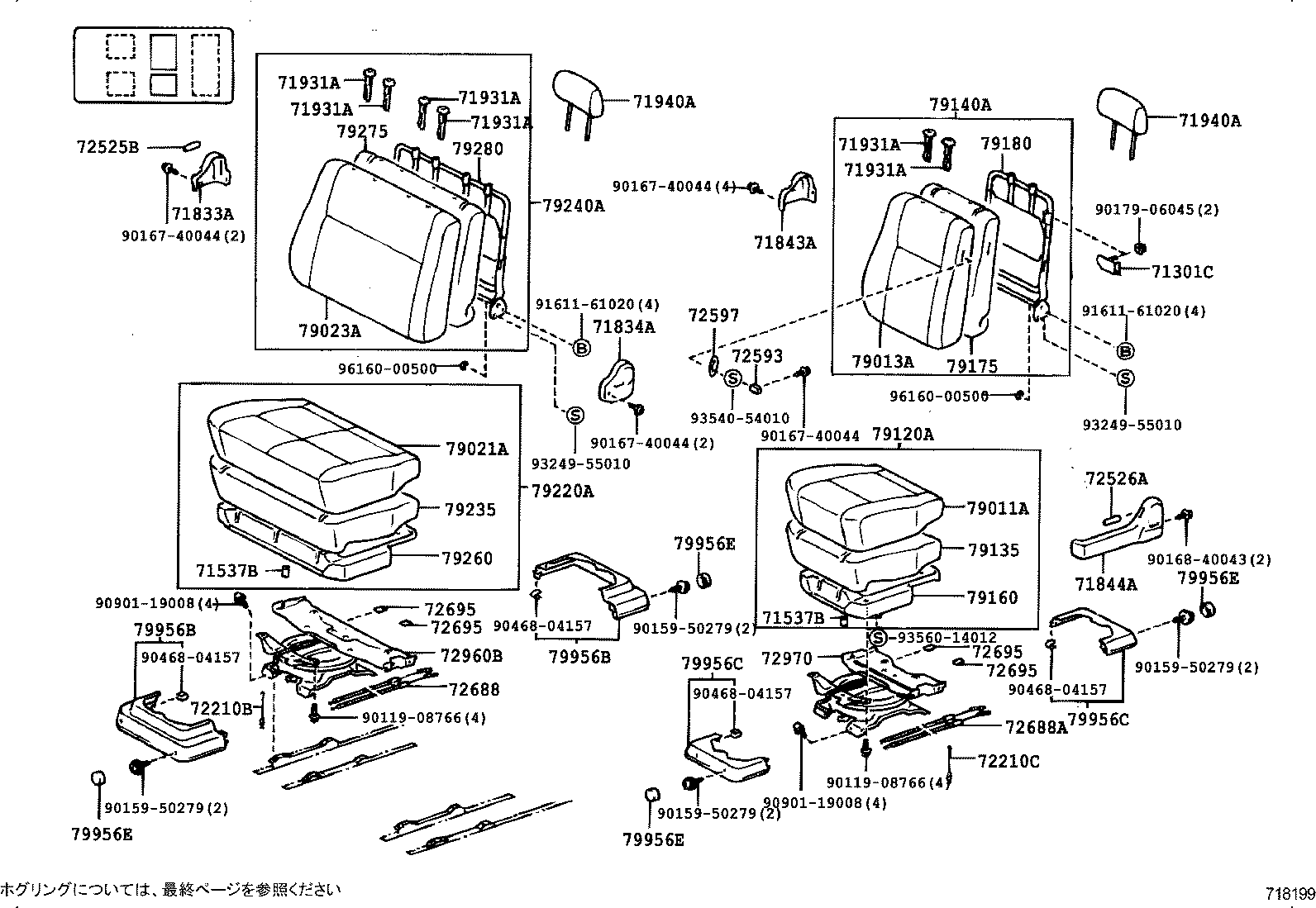

718199 1995-08 → 1997-08

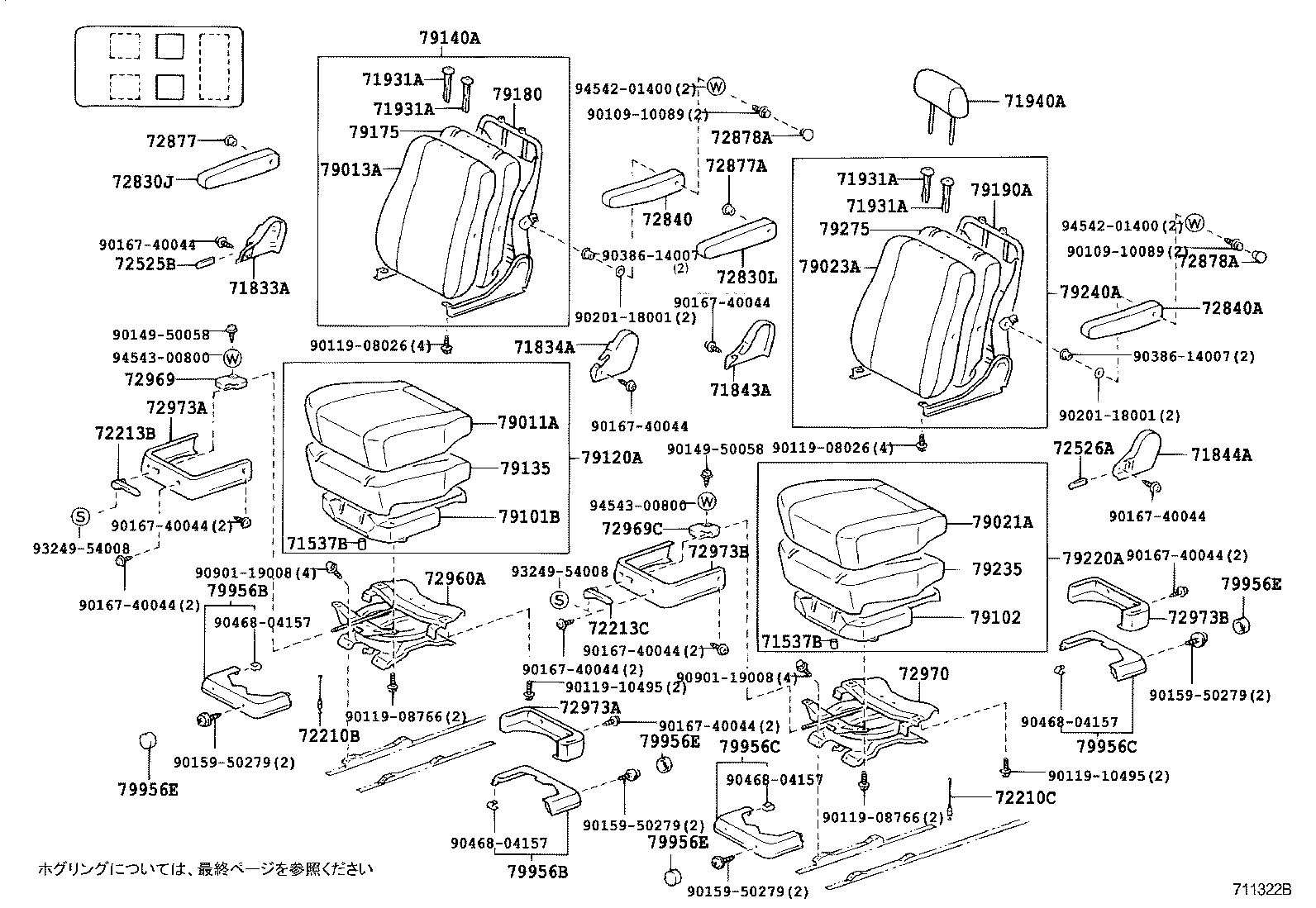

711322B 1995-08 → 1997-08

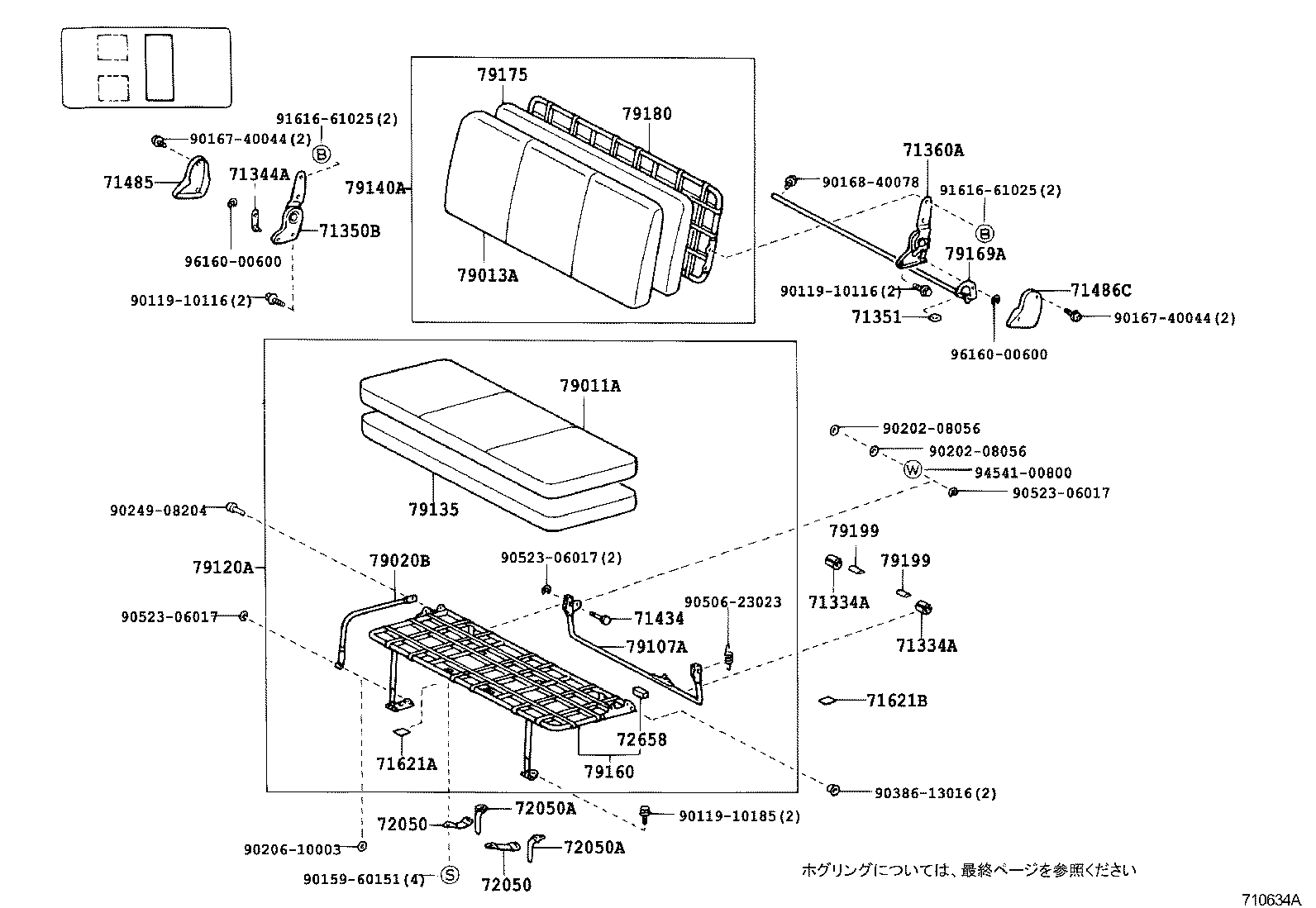

710634A 1995-08 → 1997-08

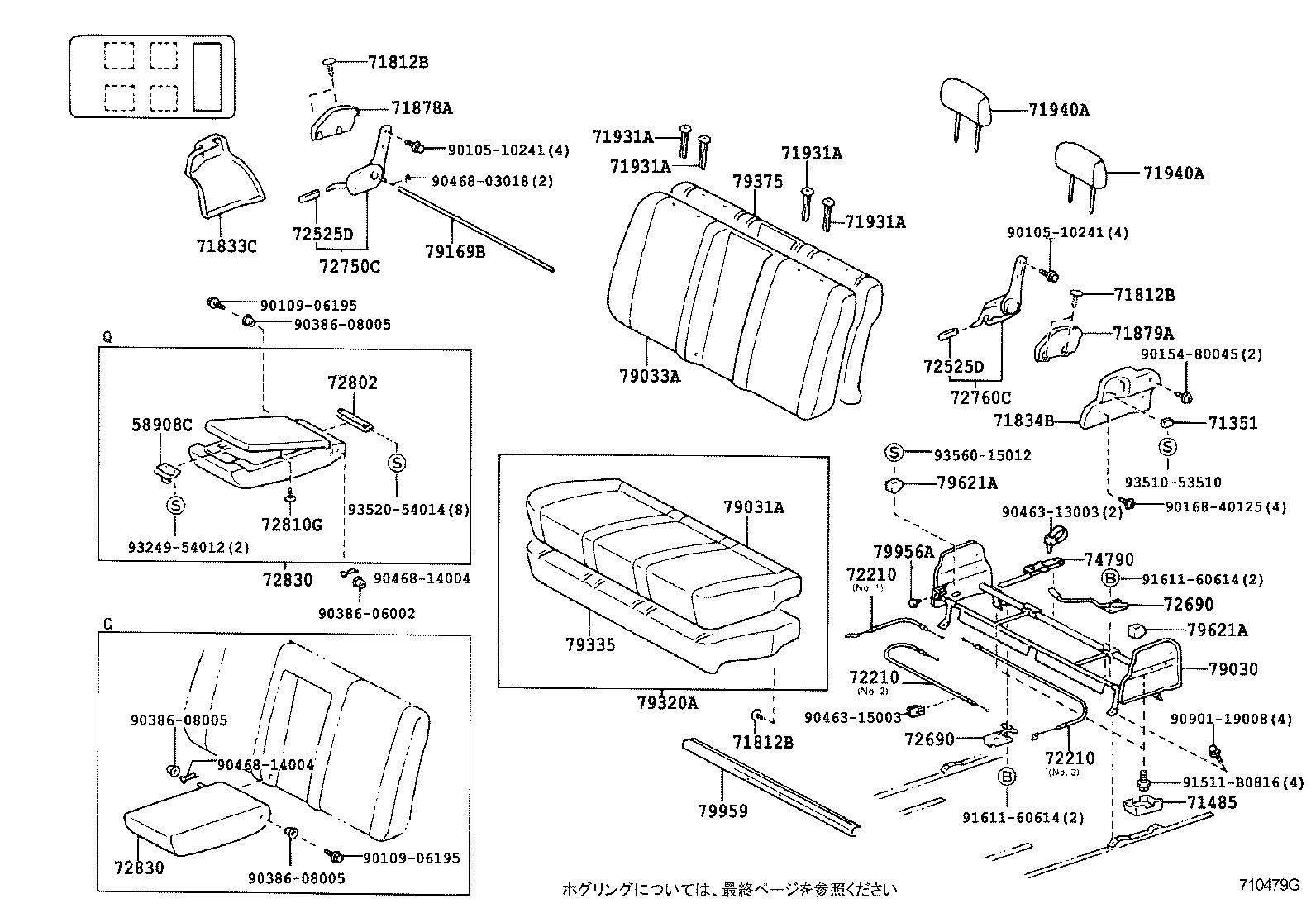

710479G 1995-08 → 1997-08

711938A 1995-08 → 1997-08

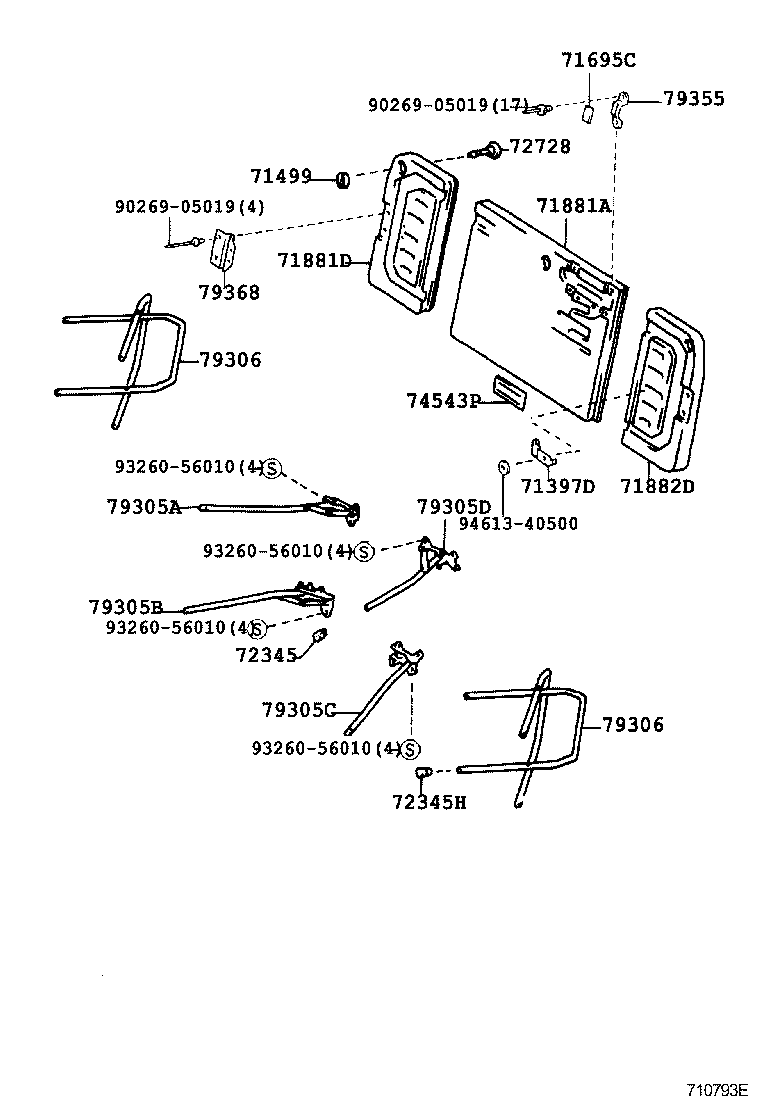

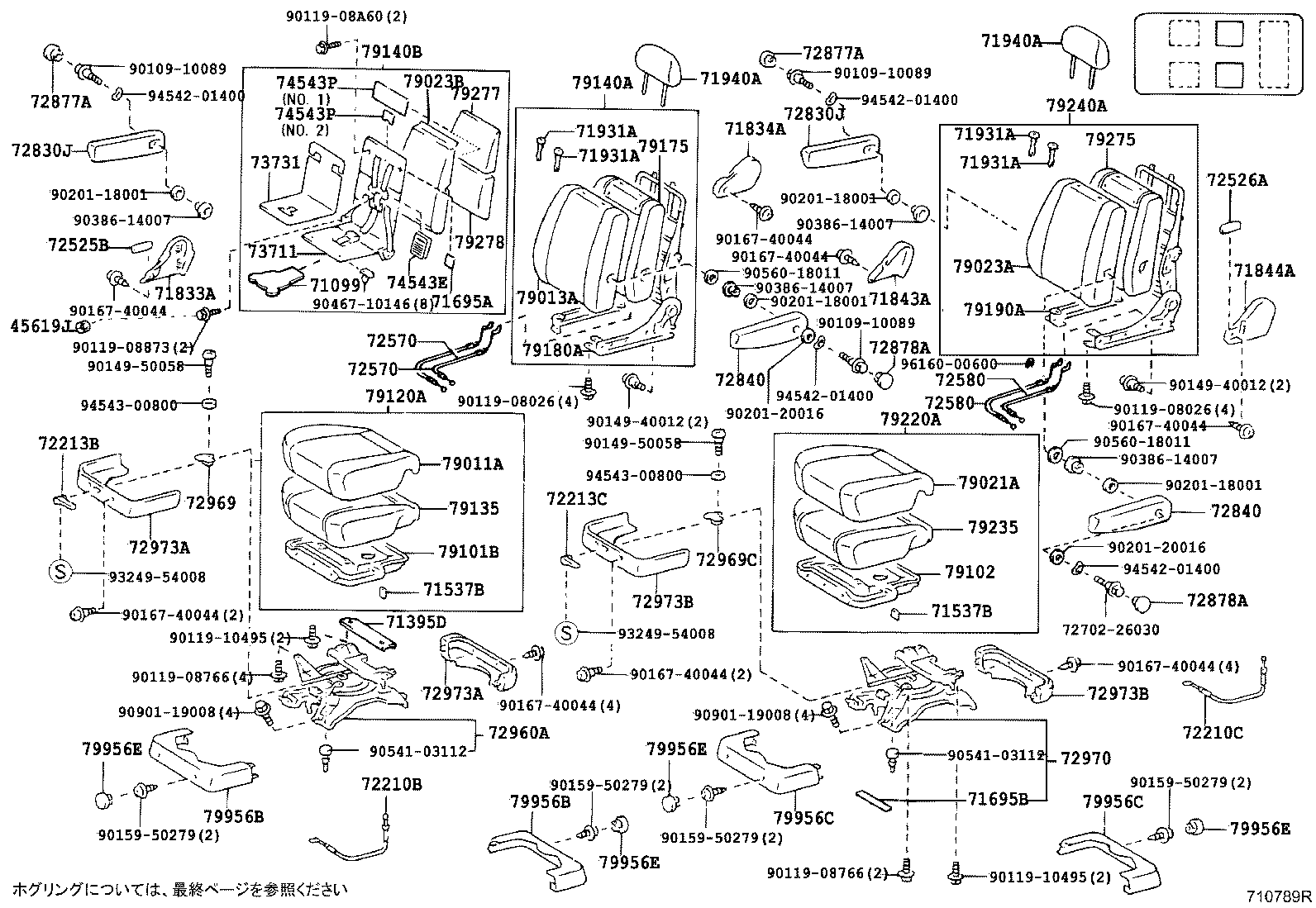

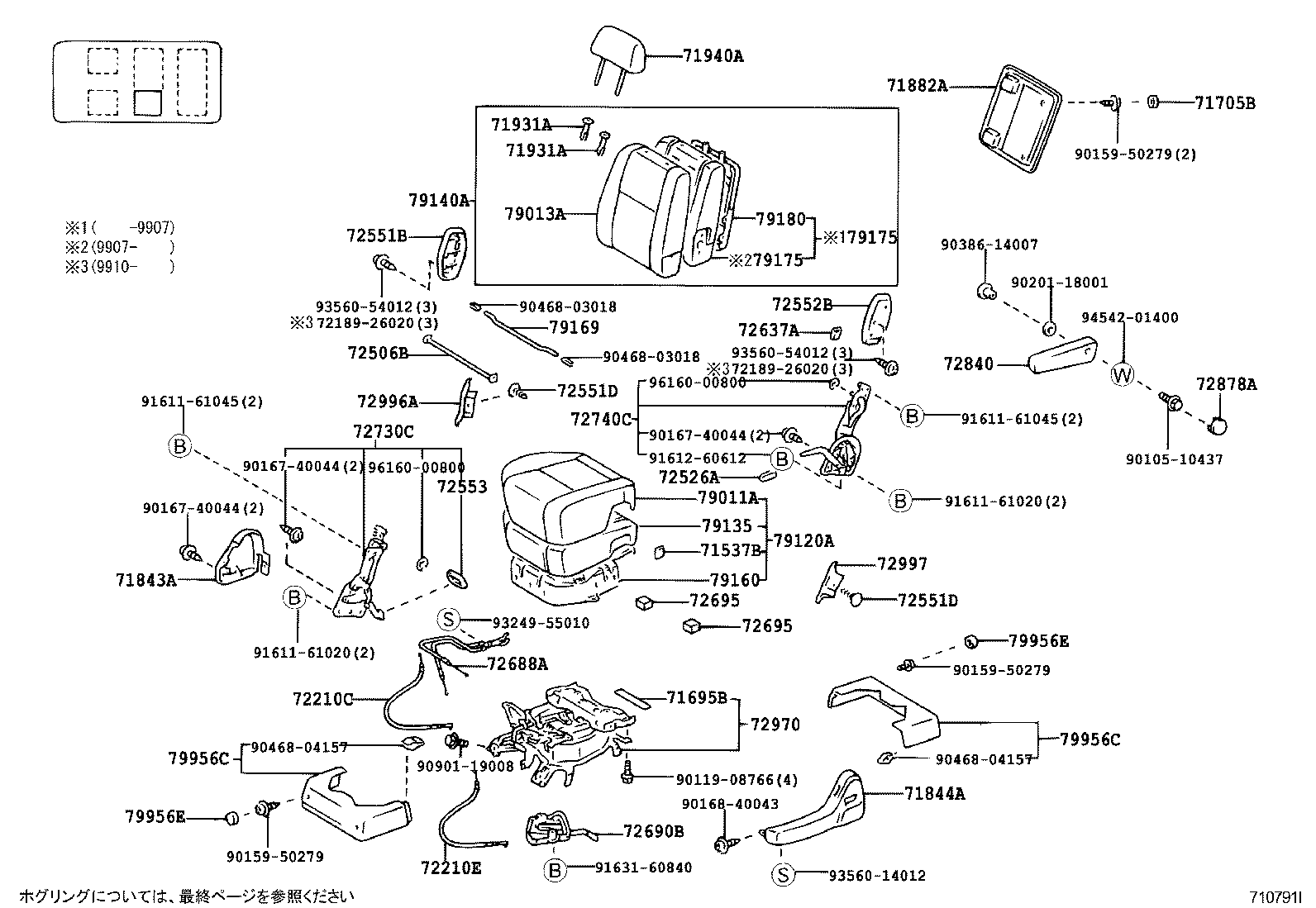

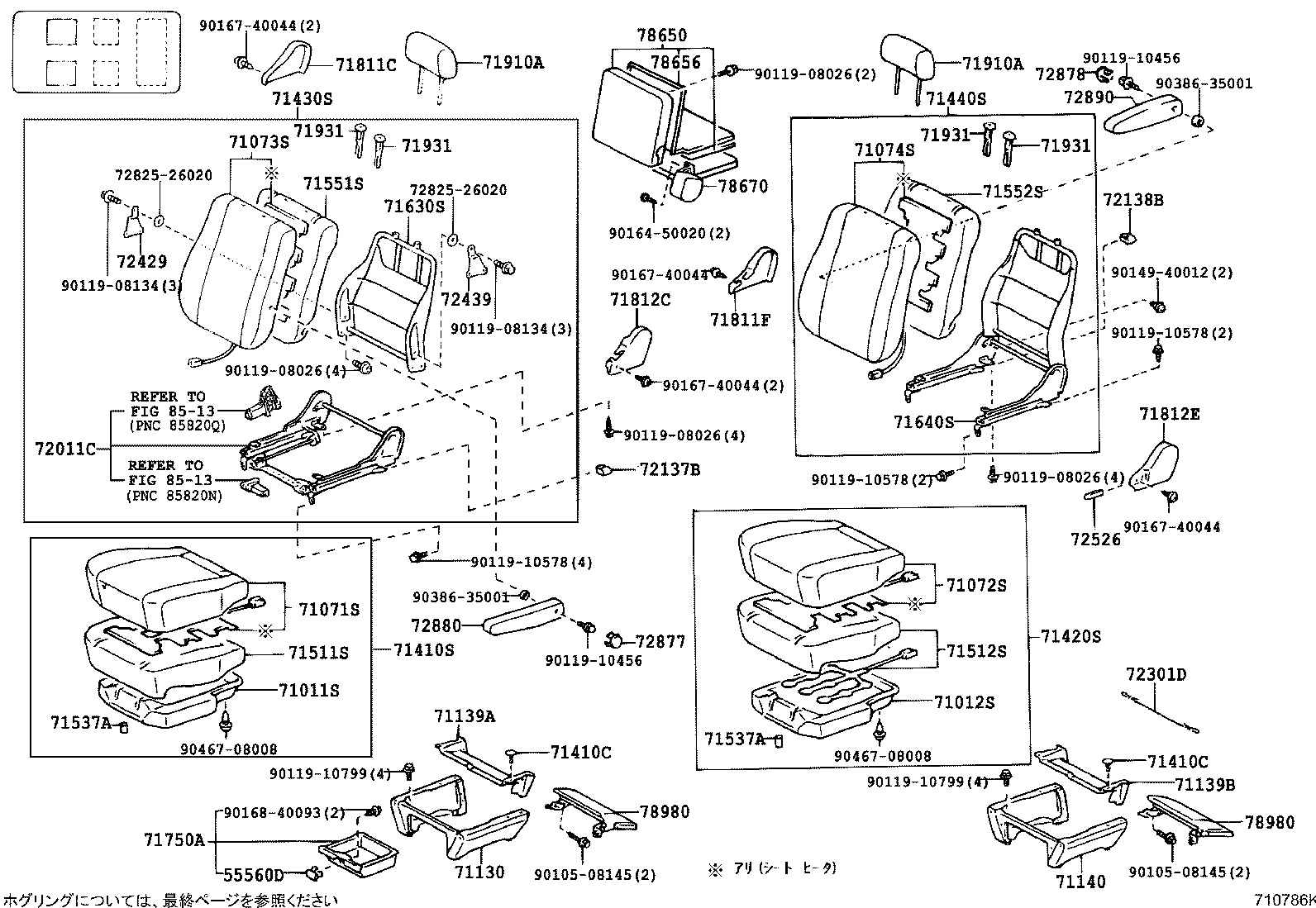

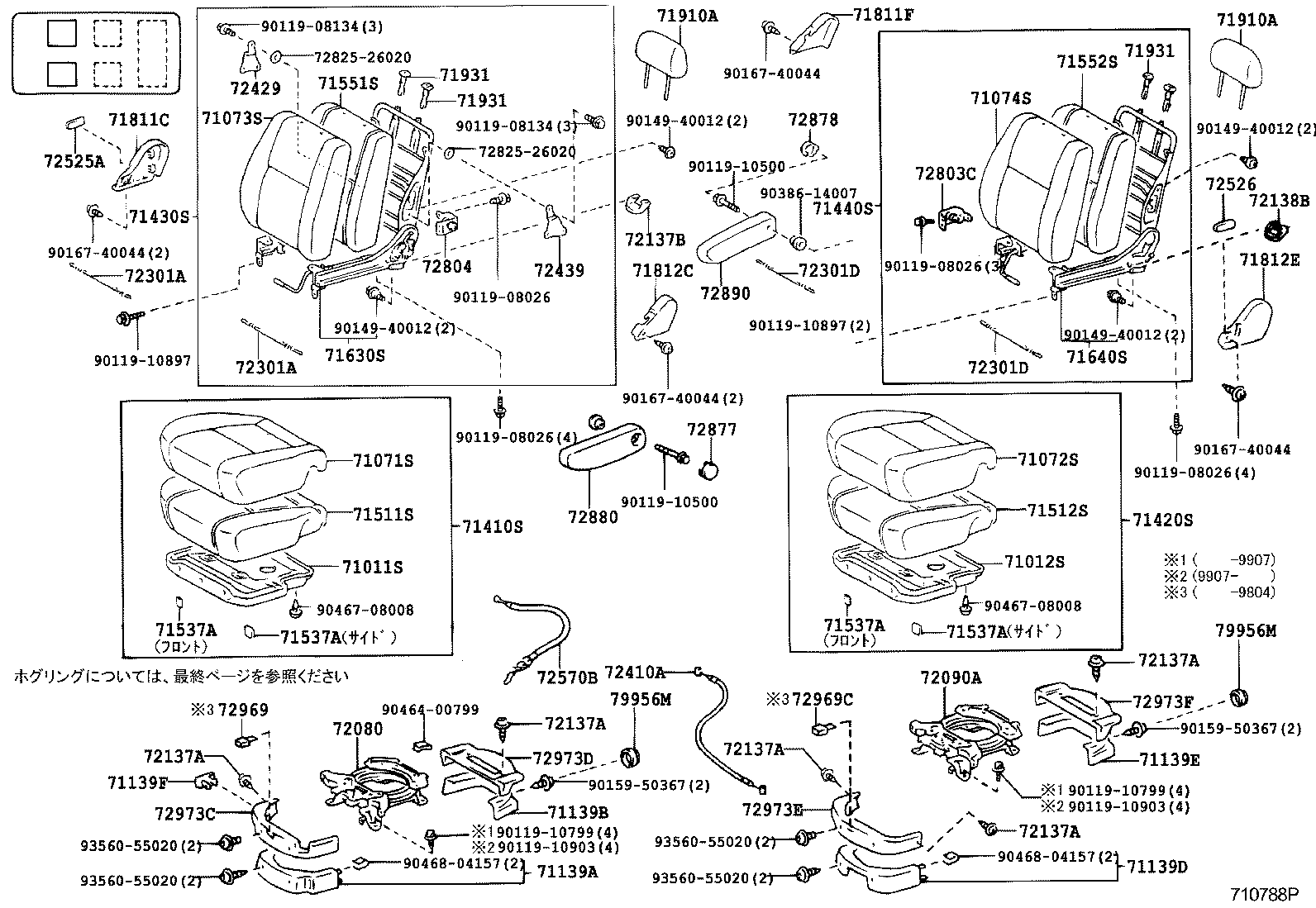

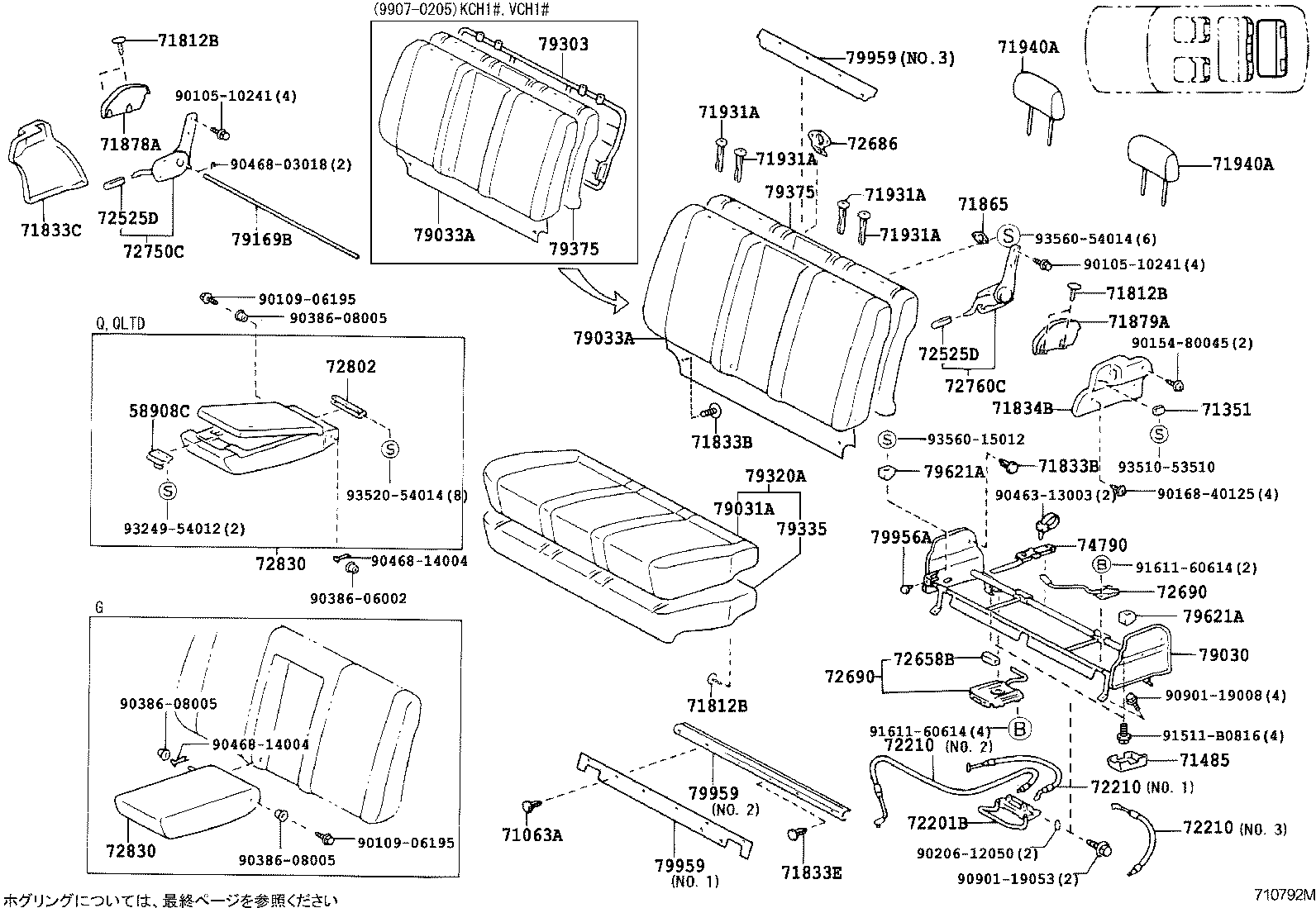

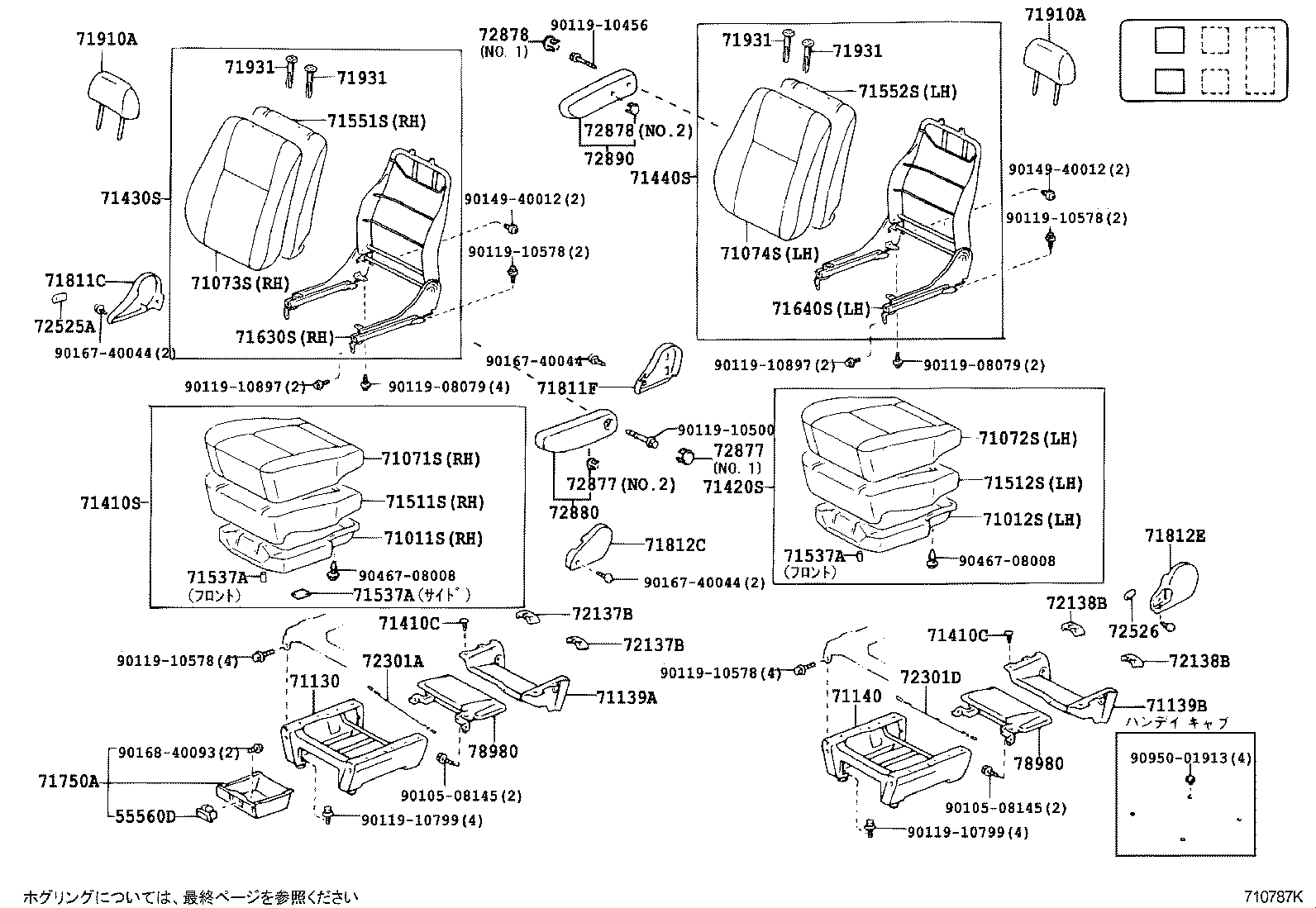

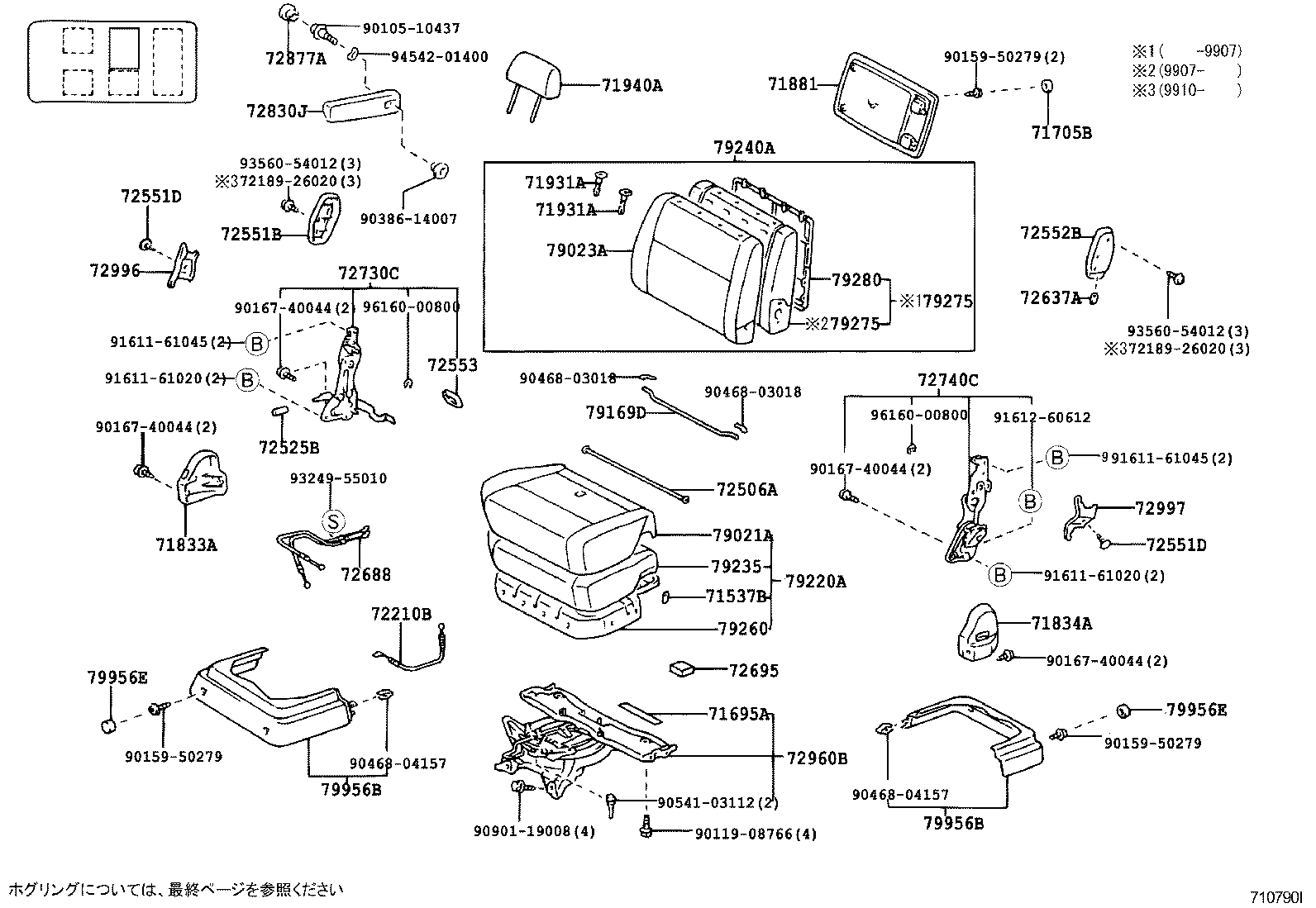

710793E 1997-08 → 1999-07

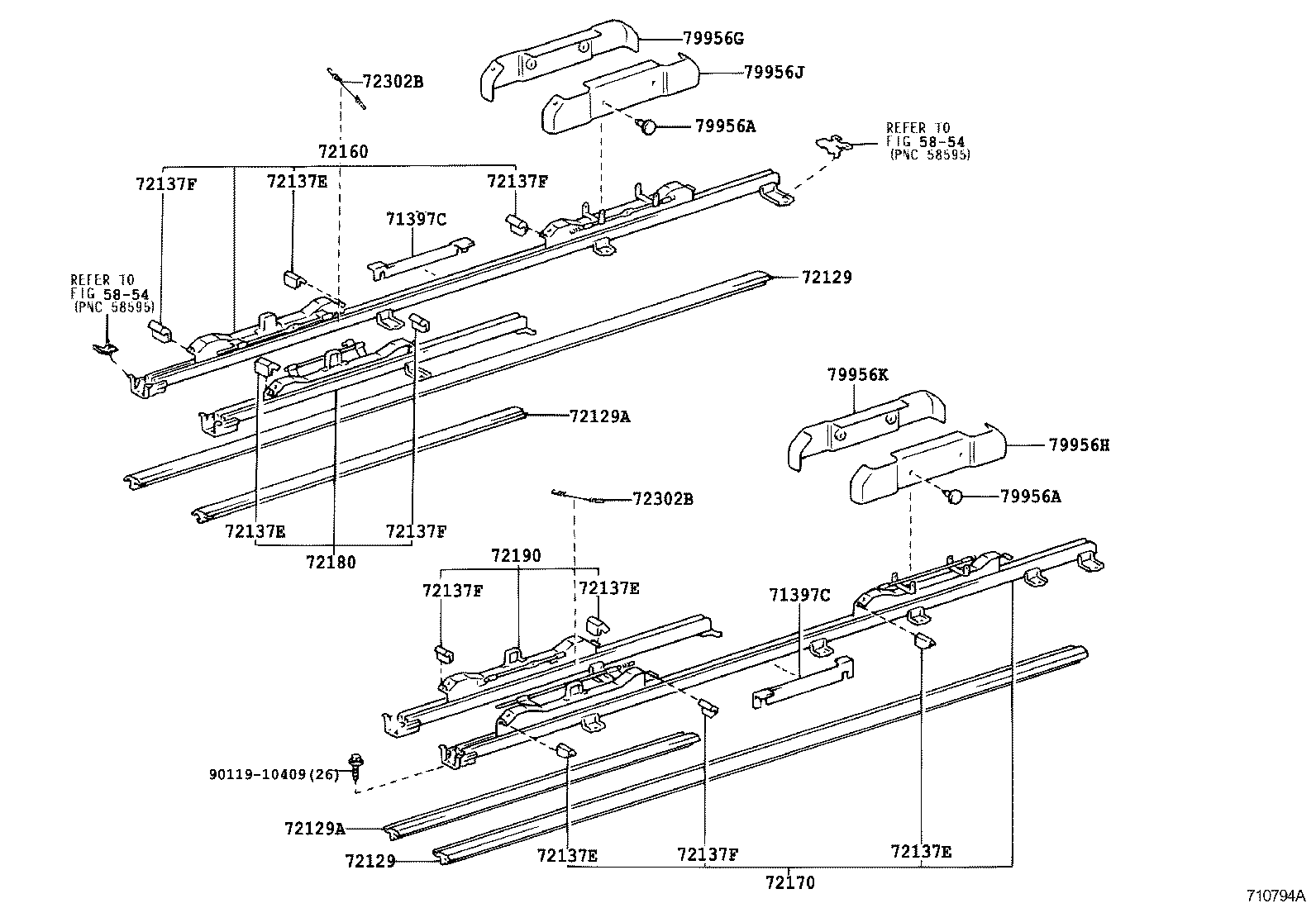

710794A 1997-08 → —

718165A 1995-08 → —

Part groups

PNC	Description
45619J	Cover, Knuckle Stopper
55560D	Lock Assy, Seat Under Tray
58908C	Lock Sub-assy, Rear Seat Armrest
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71063A	Clip, Front Seatback Cover, Rear
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71099	Cover Sub-assy, Rear Seatback, Lower LH
71130	Leg Assy, Front Seat, RH
71139A	Cover, Front Seat Leg, NO.1
71139B	Cover, Front Seat Leg, NO.2
71139D	Cover, Front Seat Leg NO.1
71139E	Cover, Front Seat Leg NO.2
71139F	Cover, Spare Switch Hole
71140	Leg Assy, Front Seat, LH
71301C	Link Sub-assy, Rear Seat Cushion
71334A	Stopper, Rear Seat Leg
71344A	Plate, Rear Seat Cushion Hinge
71350B	Hinge Assy, Rear Seat, RH
71351	Knob, Seat Hinge Lever
71360A	Hinge Assy, Rear Seat, LH
71395D	Plate, RR Seat Cushion Support
71397C	Stopper, Rear Seat
71397D	Stopper, Rear Seat
71410C	Clip(FOR FRONT SEAT CUSHION)
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71434	Pin, Rear Seat Cushion Leg, Rear
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71485	Cover, Rear Seat Hinge
71486C	Cover, Rear Seat Hinge, LH
71499	Stopper, Rear Seatback
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71537B	Protector, Rear Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71621A	Pad, Rear Seat Cushion Silencer, A
71621B	Pad, Rear Seat Cushion Silencer, NO.2
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71695A	Protector, Rear Seat, NO.1 RH
71695B	Protector, Rear Seat, NO.1 LH
71695C	Protector, Rear Seat, NO.1
71705B	Cap(FOR FRONT SEATBACK BOARD)
71750A	Tray Assy, Front Seat Under
71811C	Cover, Reclining Adjuster, RH
71811F	Cover, Reclining Adjuster, RH
71812B	Clip(FOR REAR SEAT CUSHION COVER)
71812C	Cover, Reclining Adjuster, LH
71812E	Cover, Reclining Adjuster, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833B	Clip (FOR REAR SEAT RECLINING COVER)
71833C	Cover, Rear Seat Reclining, NO.2 RH
71833E	Cover, Rear Seat Reclining, NO.3 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71865	Bezel, Rear Seat Cover, NO.1
71878A	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71881	Board, Rear Seatback, RH
71881A	Board, Rear Seatback
71881D	Board, Rear Seatback, RH
71882A	Board, Rear Seatback, LH
71882D	Board, Rear Seatback, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
72011C	Adjuster Sub-assy, Front Seat, RH
72050	Belt Assy, Rear Seat Hook
72050A	Belt Assy, Rear Seat Hook
72080	Table Assy, Front Seat Turn, RH
72090A	Table Assy, Front Seat Turn, LH
72129	Protector, Seat Track Lower Rail, NO.1
72129A	Protector, Seat Track Lower Rail, NO.2
72137A	Clip (FOR SEAT TRACK COVER)
72137B	Cover, Seat Track, RH
72137E	Cover, Seat Track, NO.1
72137F	Cover, Seat Track, NO.2
72138B	Cover, Seat Track, LH
72160	Track Assy, Rear Seat, Outer RH
72170	Track Assy, Rear Seat, Outer LH
72180	Track Assy, Rear Seat, Inner RH
72190	Track Assy, Rear Seat Inner, LH
72201B	Handle Sub-assy, Seat Track LH
72210	Cable Assy, Seat Track Control
72210B	Cable Assy, Seat Track Control, RH
72210C	Cable Assy, Seat Track Control, LH
72210E	Cable Assy, Seat Track Control(FOR WALK IN)
72213B	Knob, Seat Track Adjusting Handle, RH
72213C	Knob, Seat Track Adjusting Handle, LH
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72301D	Wire Sub-assy, Seat Track Equalizing, LH
72302B	Wire Sub-assy, Rear Seat Track Equalizing
72345	Cap, Seat Stand Frame
72345H	Cap, Seat Stand Frame
72410A	Cable Assy, Seat Adjuster Drive, NO.1
72429	Plate, Front Seat Adjuster, RH
72439	Plate, Front Seat Adjuster, LH
72506A	Rod Sub-assy, Reclining Connecting, RH
72506B	Rod Sub-assy, Reclining Connecting, LH
72525A	Handle, Reclining Adjuster Release, RH
72525B	Handle, Reclining Adjuster Release, RH
72525D	Handle, Reclining Adjuster Release, NO.2 RH
72526	Handle, Reclining Adjuster Release, LH
72526A	Handle, Reclining Adjuster Release, LH
72551B	Cover, Reclining Hinge, RH
72551D	Clip(FOR RECLINING HINGE)
72552B	Cover, Reclining Hinge, LH
72553	Cover, Reclining Pedal
72570	Adjuster Assy, Rear Reclining Seat, RH
72570B	Cable Assy, Reclining Adjusting, RH
72580	Adjuster Assy, Rear Reclining Seat, LH
72593	Knob, Reclining Remote Control Lever
72597	Bezel, Reclining Remote Control
72637A	Handle, Rear Seat Lock
72658	Knob, Rear Seat Handle
72658B	Knob, Rear Seat Lock Handle
72686	Plate, Rear Seatback Lock Belt
72688	Cable, Rear Seat Track & Turn Control
72688A	Cable, Rear Track & Turn Control
72690	Lever Assy, Seat Cushion Lock Release
72690B	Lever Assy, Seat Cushion Lock Release, RH
72695	Silencer, Rear Seatback Lock Control Rod
72728	Protector, Rear Seat Reclining, Inner RH
72730C	Adjuster Assy, NO.2 Seat Reclining, RH
72740C	Adjuster Assy, NO.2 Seat Reclining, LH
72750C	Adjuster Assy, NO.3 Seat Reclining, RH
72760C	Adjuster Assy, NO.3 Seat Reclining, LH
72802	Hinge Sub-assy, Armrest Console
72803C	Frame Sub-assy, Seat Center Armrest, RH
72804	Frame Sub-assy, Seat Center Armrest, LH
72810G	Clip, Rear Seat Armrest
72830	Armrest Assy, Rear Seat, Center
72830J	Armrest Assy, Rear NO.1 Seat, RH
72830L	Armrest Assy, Rear NO.2 Seat, RH
72840	Armrest Assy, Rear NO.1 Seat, LH
72840A	Armrest Assy, Rear NO.2 Seat, LH
72877	Cover, Seat Armrest, RH
72877A	Cover, Seat Armrest, NO.2 RH
72878	Cover, Seat Armrest, LH
72878A	Cover, Seat Armrest, NO.2 LH
72880	Armrest Assy, Seat, C RH
72890	Armrest Assy, Seat, C LH
72960A	Table Assy, Seat Turn
72960B	Table Assy, Rear Seat Turn, RH
72969	Knob, Rear Seat Turn Lock
72969C	Knob, Rear Seat Turn Lock, LH
72970	Table Assy, Rear Seat Turn, LH
72973A	Cover, Rear Seat Turn Table
72973B	Cover, Rear Seat Turn Table, NO.2
72973C	Cover, Front Seat Turn Table,NO.1
72973D	Cover, Front Seat Turn Table, NO.2
72973E	Cover, Front Seat Turn Table, NO.1
72973F	Cover, Front Seat Turn Table, NO.2
72996	Cover, Rear Seatback, RH
72996A	Cover, Rear Seatback
72997	Cover, Rear Seatback, LH
73711	Body, Child Restraint Seat
73731	Cover, Child Restraint Seat
74543E	Label, Child Restraint Seat Information
74543P	Label, Rear Seat Caution
74790	Holder Assy, Warning Reflector

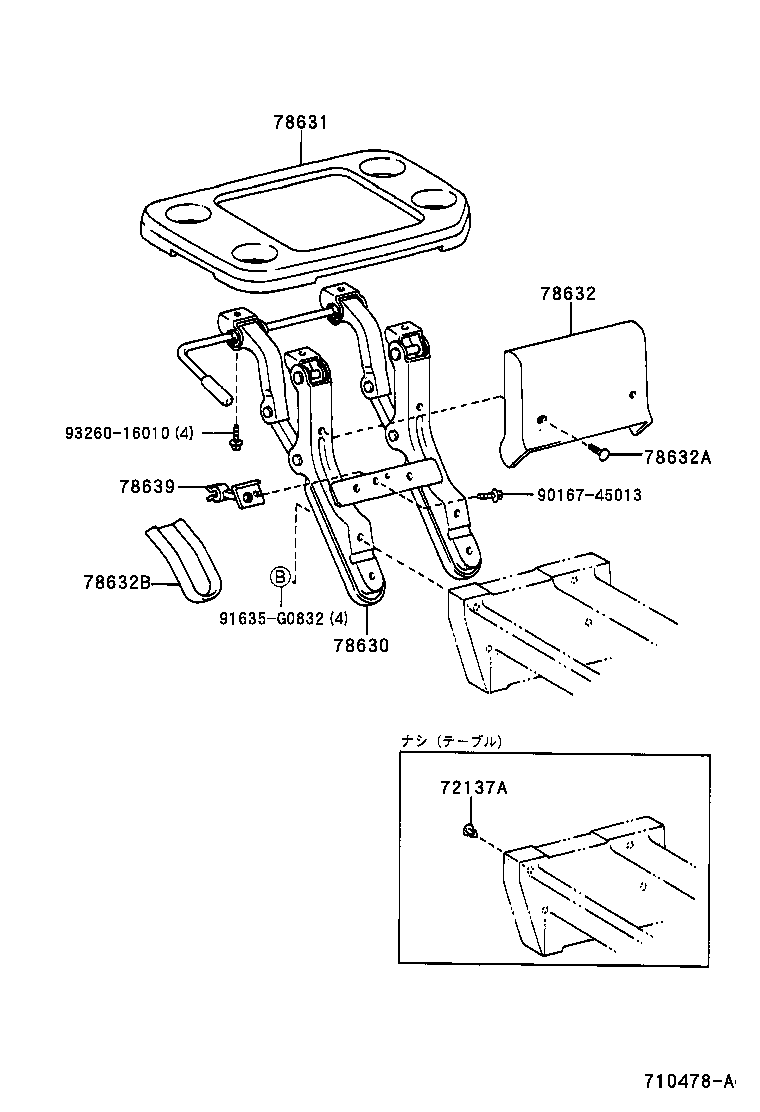

78630	Adjuster Assy, FR0NT Seat Side Table
78631	Table, Front Seat Side
78632	Cover, Front Seat Side Table
78632A	Clip, Front Seat Side Table Cover
78632B	Cover, Front Seat Side Table Leg
78639	Clip, Front Seat Side Table
78650	Legrest Assy, Rear Seat
78656	Cover, Rear Seat Legrest
78670	Adjuster Assy, Rear Seat Legrest
78980	Footrest Assy, Rear Seat
79011A	Cover Sub-assy, NO.1 Seat Cushion
79013A	Cover Sub-assy, NO.1 Seatback
79020B	Leg Assy, NO.2 Seat
79021A	Cover Sub-assy, NO.2 Seat Cushion
79023A	Cover Sub-assy, NO.2 Seatback
79023B	Cover Sub-assy, Junior Seatback
79030	Leg Assy, NO.3 Seat, RH
79031A	Cover Sub-assy, NO.3 Seat Cushion
79033A	Cover Sub-assy, NO.3 Seatback
79101B	Frame Sub-assy, NO.1 Seat Cushion, RH
79102	Frame Sub-assy, NO.1 Seat Cushion, LH
79107A	Leg Sub-assy, NO.1 Seat, Rear
79120A	Cushion Assy, NO.1 Seat
79135	Pad, NO.1 Seat Cushion
79140A	Back Assy, NO.1 Seat
79140B	Back Assy, NO.1 Junior Seat, RH
79160	Spring Assy, NO.1 Seat Cushion
79169	Rod, Rear Seat Hinge Connector
79169A	Plate Sub-assy, NO.1 Seat Cushion Hinge
79169B	Rod, Rear NO.2 Seat Hinge Connector
79169D	Rod, Rear NO.2 Seat Hinge Connector
79175	Pad, NO.1 Seatback
79180	Spring Assy, NO.1 Seatback
79180A	Spring Assy, NO.1 Seatback, RH
79190A	Spring Assy, NO.1 Seatback, LH
79199	Holder, NO.1 Seat Leg Stopper
79220A	Cushion Assy, NO.2 Seat
79235	Pad, NO.2 Seat Cushion
79240A	Back Assy, NO.2 Seat
79260	Spring Assy, NO.2 Seat Cushion
79275	Pad, NO.2 Seatback
79277	Pad, Junior Seatback Safety, A
79278	Pad, Junior Seatback Safety, B
79280	Spring Assy, NO.2 Seatback
79303	Frame Sub-assy, NO.3 Seatback
79305A	Leg Sub-assy, NO.3 Seat, RH
79305B	Leg Sub-assy, NO.3 Seat NO.2
79305C	Leg Sub-assy, NO.3 Seat NO.3
79305D	Leg Sub-assy, NO.3 Seat NO.4
79306	Leg Sub Assy, NO.3 Seat, LH
79320A	Cushion Assy, NO.3 Seat
79335	Pad, NO.3 Seat Cushion
79355	Plate, NO.3 Seatback
79368	Support, NO.3 Seatback
79375	Pad, NO.3 Seatback
79621A	Stopper, NO.3 Seat Cushion
79956A	Clip (FOR REAR SEAT LEG BRACKET COVER)
79956B	Cover, Rear Seat Leg Side, RH
79956C	Cover, Rear Seat Leg Side, LH
79956E	Cap(FOR REAR SEAT LEG SIDE COVER)
79956G	Cover, NO.3 Seat Leg Side, RH
79956H	Cover, NO.3 Seat Leg Side, LH
79956J	Cover, NO.3 Seat Leg, Inner RH
79956K	Cover, NO.3 Seat Leg, Inner LH
79956M	Cap(FOR FRONT SEAT LEG SIDE COVER)
79959	Cover, RR Seat Leg

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
