Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

23 part groups · 2 illustrations

Illustrations

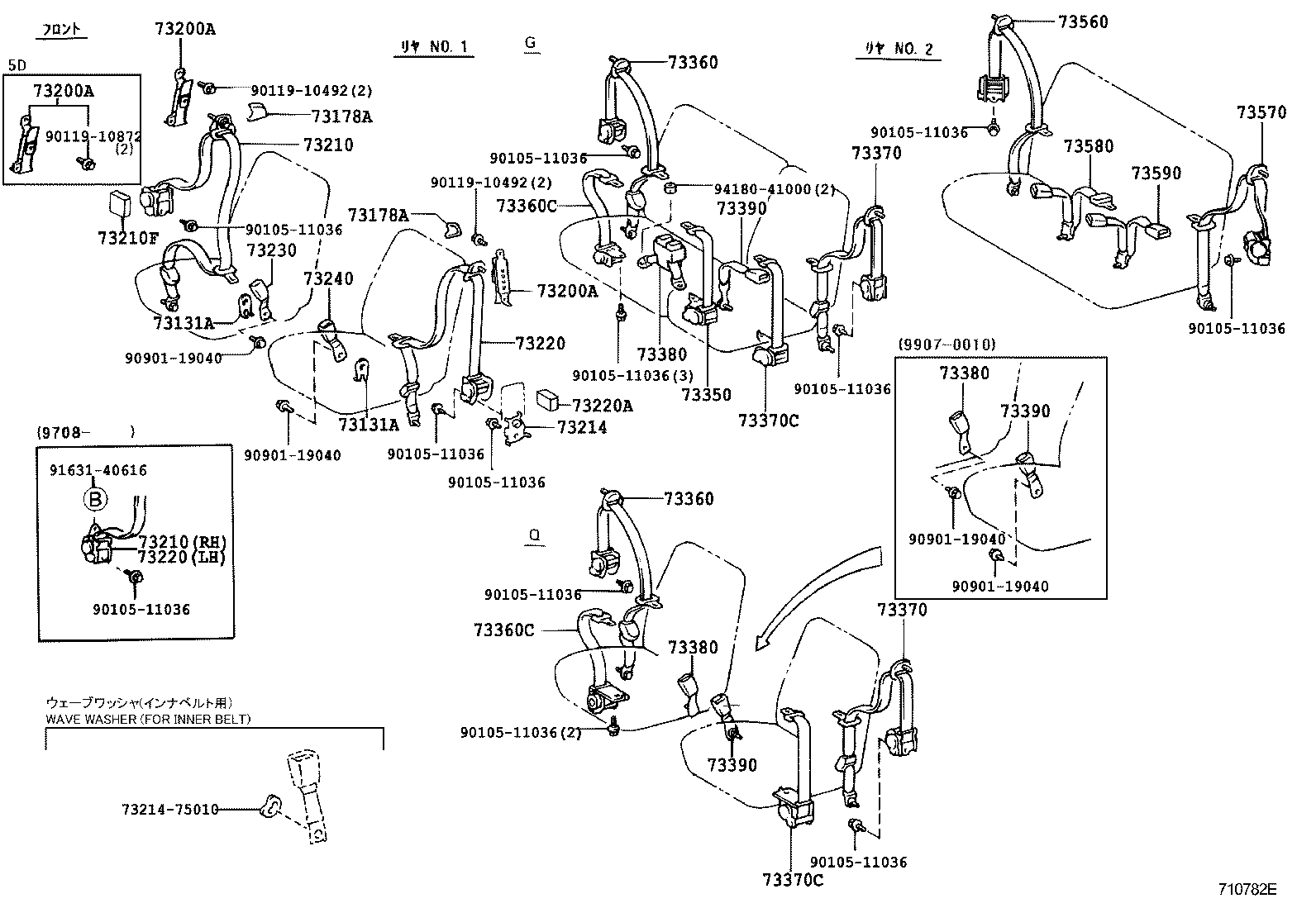

Figure 711034B 711034B 1995-08 → 1997-08 Figure 710782E 710782E 1995-08 → —

Part groups

PNCDescription
73131A Bracket, Seat Belt
73139B Cover, Seat Belt Anchor
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73210F Pad, Front Seat Belt, Outer RH
73214 Plate, Front Seat Belt Anchor
73220 Belt Assy, Front Seat Outer, LH
73220A Pad, Front Seat Belt, Outer LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73252A Cover, Shoulder Belt Anchor Adjust
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
