Toyota Granvia/Grand Hiace
1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan
Discontinued model
Data version 2005-07
Caution Plate
30 part groups · 2 illustrations
Part groups

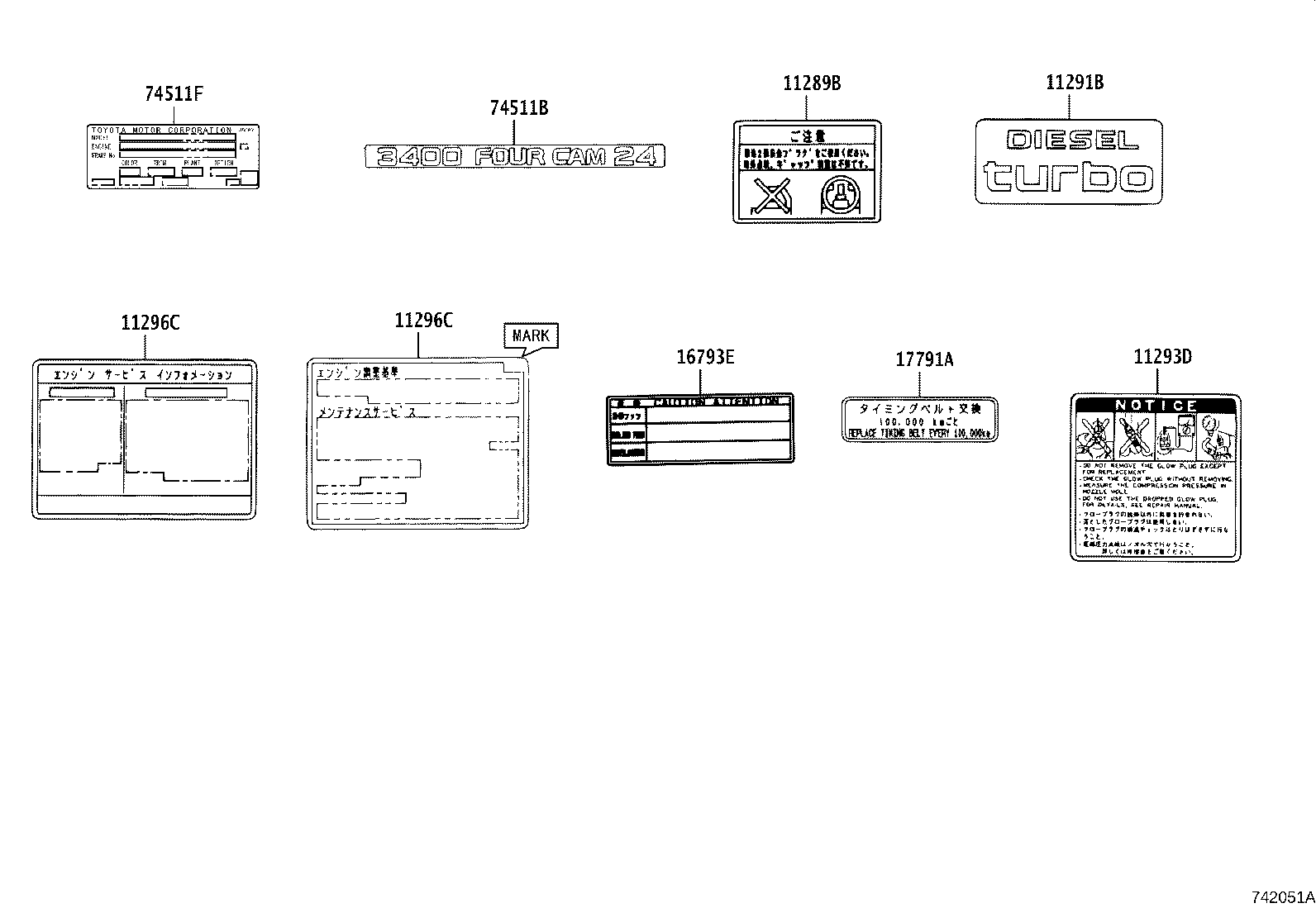

| PNC | Description |
|---|---|
| 11289B | Label, Spark Plug Notice |
| 11291B | Plate, Engine Name |
| 11293D | Label, Engine Caution |
| 11296C | Label, Engine Service Information |
| 16793E | Label, Cooling Fan Caution |
| 17791A | Label, Maintenance Information |
| 28897A | Plate, Battery Caution |
| 46275A | Label, Parking Brake Release Information, NO.1 |
| 74511B | Plate, Name |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74517 | Plate, Exhaust Temperature Caution |
| 74528C | Label, Power Slide Door Notice |
| 74528E | Label, Power Slide Door Notice |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74529A | Plate, Back Door Caution |
| 74529D | Plate, Child Protector Lock Caution |
| 74539B | Plate, Radiator Shutter Caution |
| 74541 | Plate, Tire Pressure Caution |
| 74541F | Label, Slide Door Glass Caution |
| 74541G | Plate, Safety Caution |
| 74543D | Plate, Rear Seat Caution, NO.1 |
| 74543R | Label, Rear Seat Caution |
| 74544D | Plate, Tire Carrier Caution |
| 74553E | Label, Front Seat Caution |
| 74559A | Plate, Fuel Caution |
| 74562B | Label, Emission Information |
| 74563 | Plate, Emission Control Device Identification |
| 74574 | Plate, Noise Identification |
| 85628C | Label, Automatic Door |
| 89176A | Label, Airbag Deployment Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
