Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

13 part groups · 3 illustrations

Illustrations

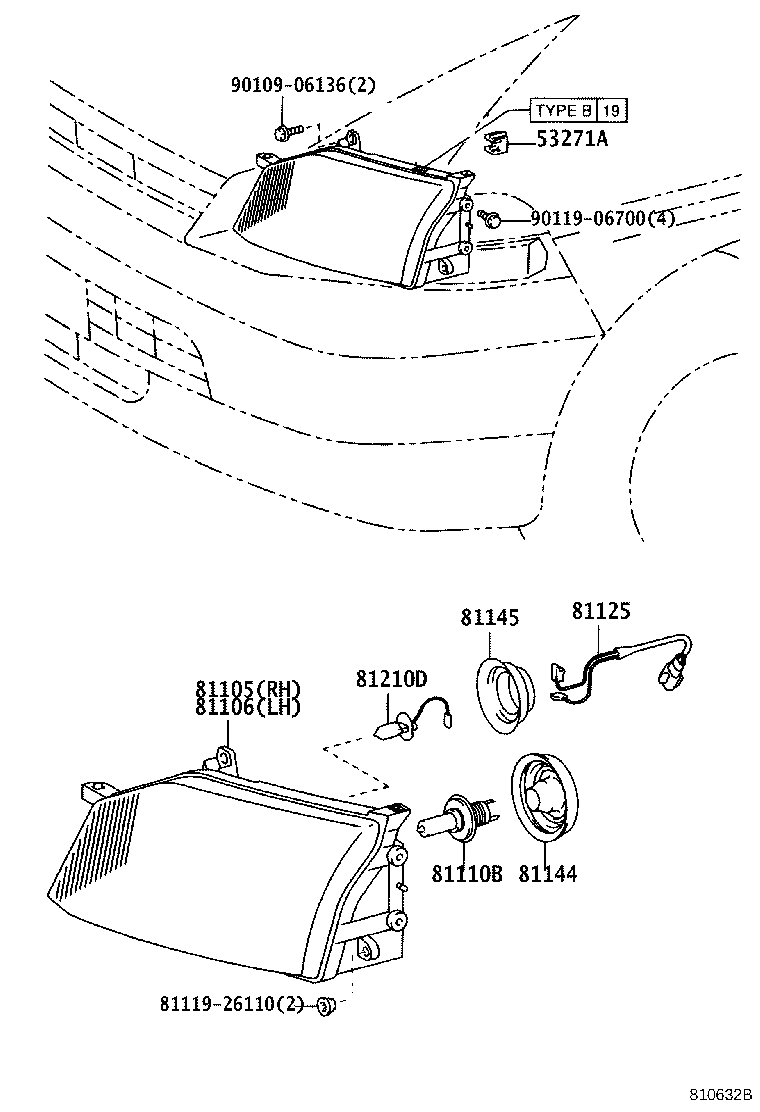

Figure 810858A 810858A 1995-08 → 1995-12 Figure 810632B 810632B 1995-12 → 1999-07 Figure 811211G 811211G 1999-07 → 2005-01

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81114 Ring, Sealed Beam Mounting, NO.2 RH
81125 Cord, Headlamp
81144 Cover, Headlamp, NO.1
81145 Cover, Headlamp, NO.2
81210D Bulb, Fog Lamp
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
