Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

16 part groups · 6 illustrations

Illustrations

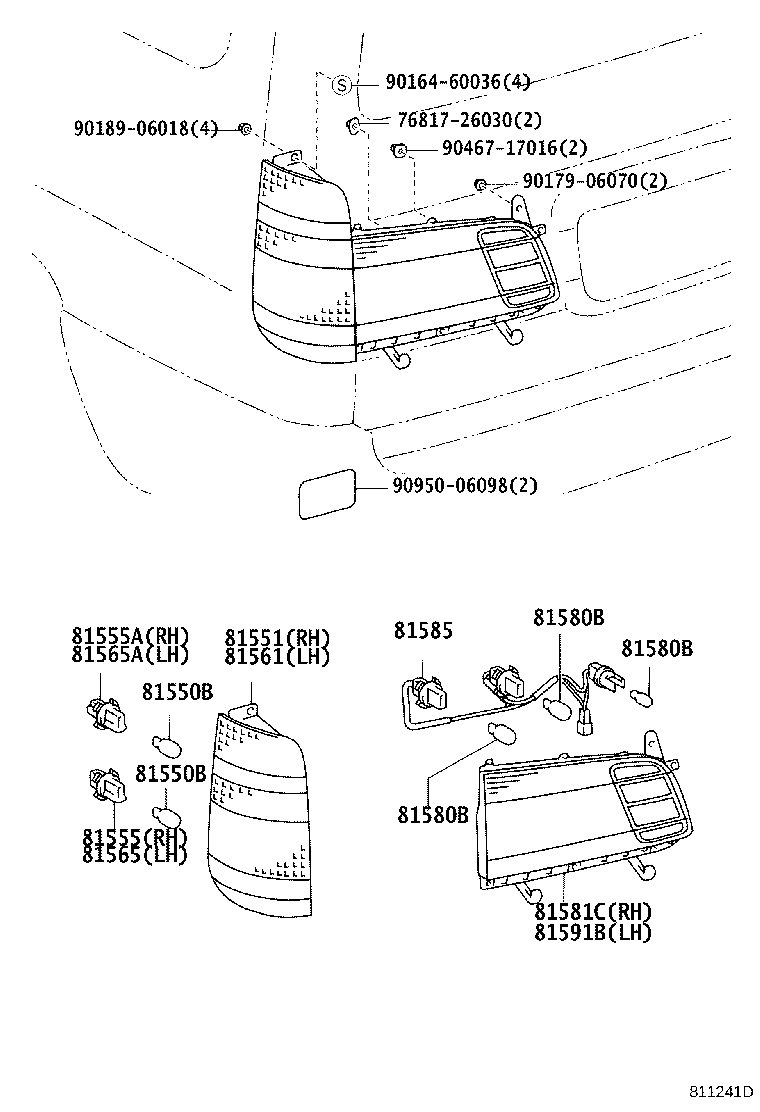

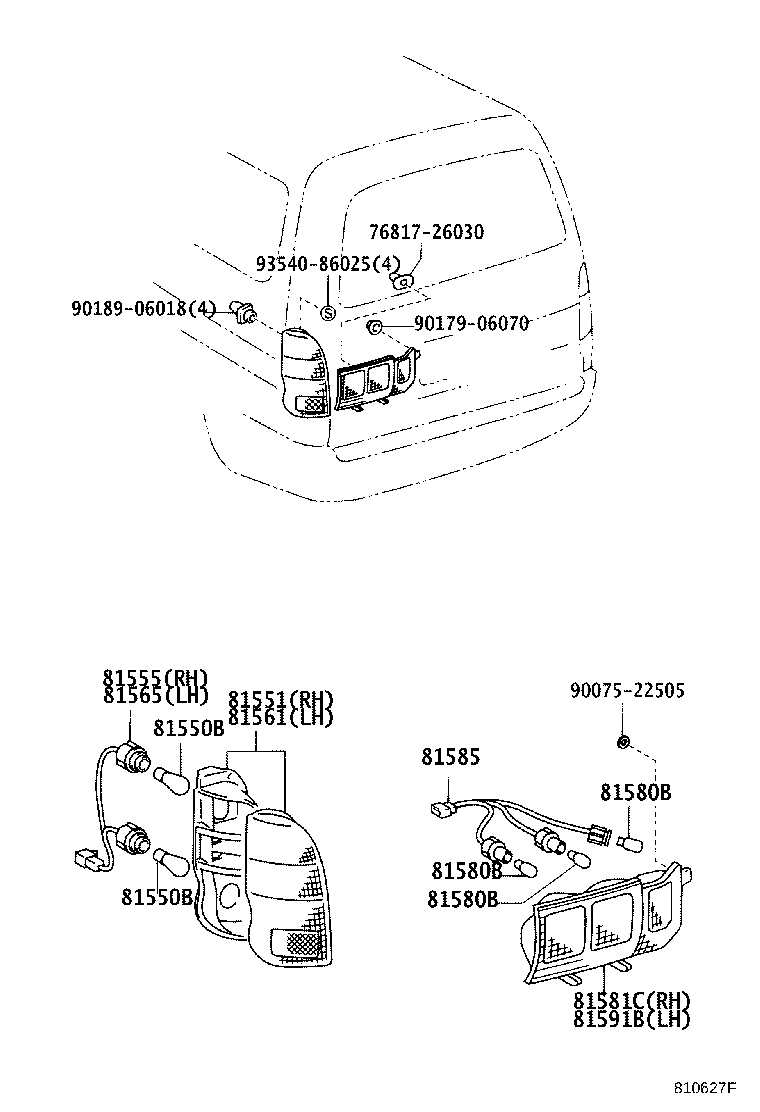

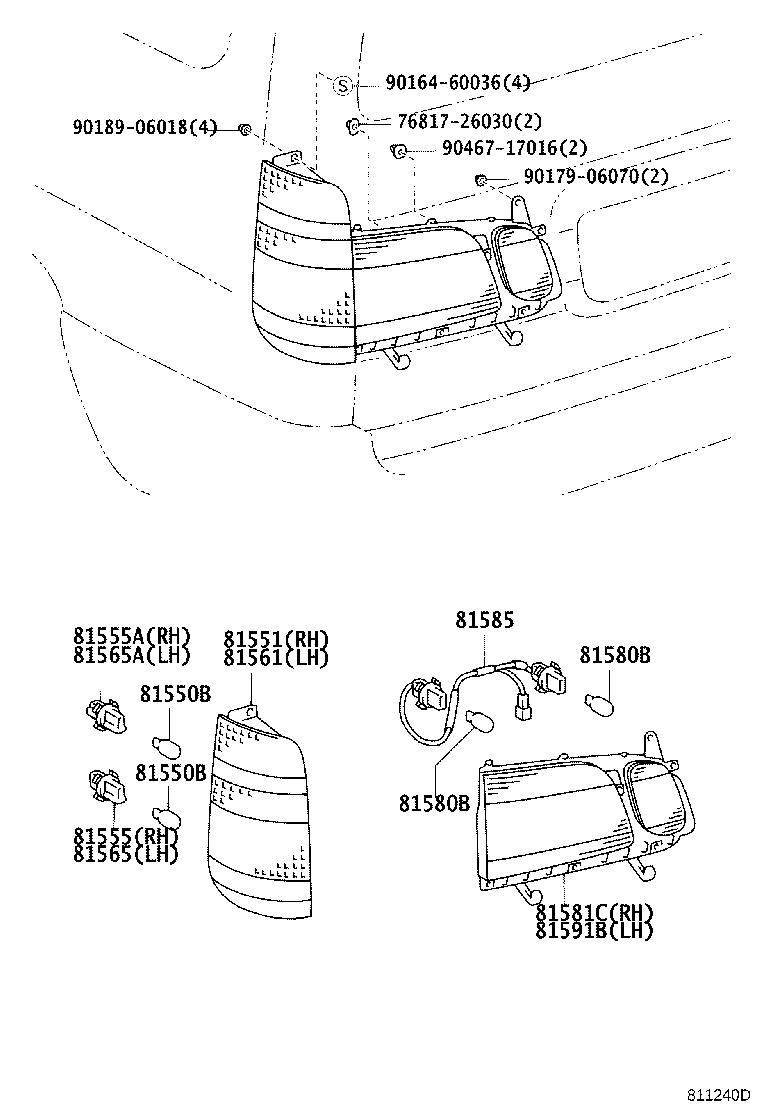

Figure 810760C 810760C 1995-08 → 1997-08 Figure 810627F 810627F 1997-08 → 1999-07 Figure 811239C 811239C 1995-08 → 1997-08 Figure 811239C 811239C 1999-07 → 2005-01 Figure 811240D 811240D 1999-07 → 2002-05 Figure 811241D 811241D 1999-07 → 2002-05

Part groups

PNCDescription
81550B Bulb(FOR REAR COMBINATION LAMP)
81550C Lamp Assy, Rear Combination, RH
81550D Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81551A Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555A Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560A Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81561A Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81565A Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81581C Lens And Body, Rear Lamp, RH
81585 Socket & Wire, Rear Lamp
81591B Lens And Body, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
