Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

61 part groups · 18 illustrations

Illustrations

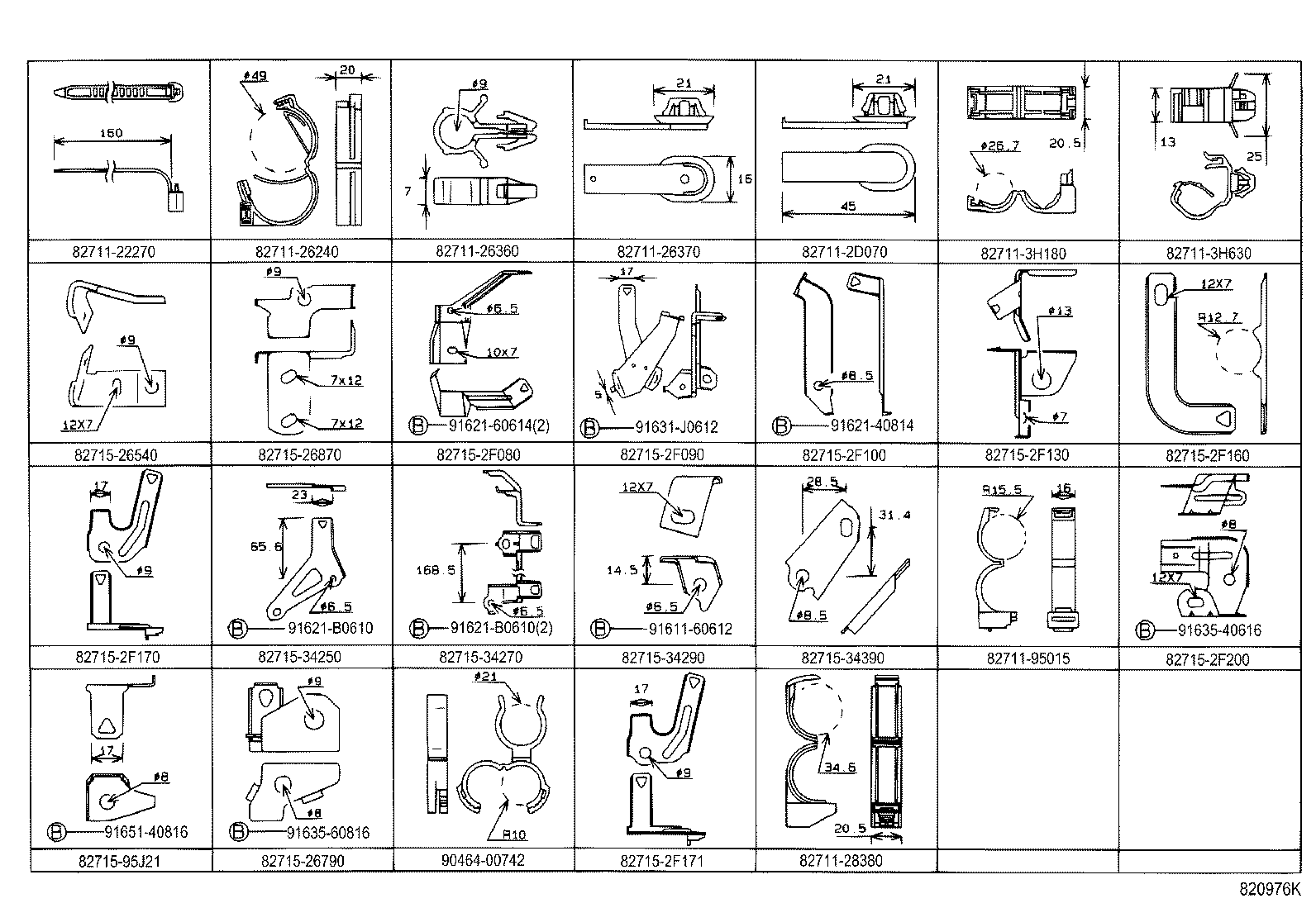

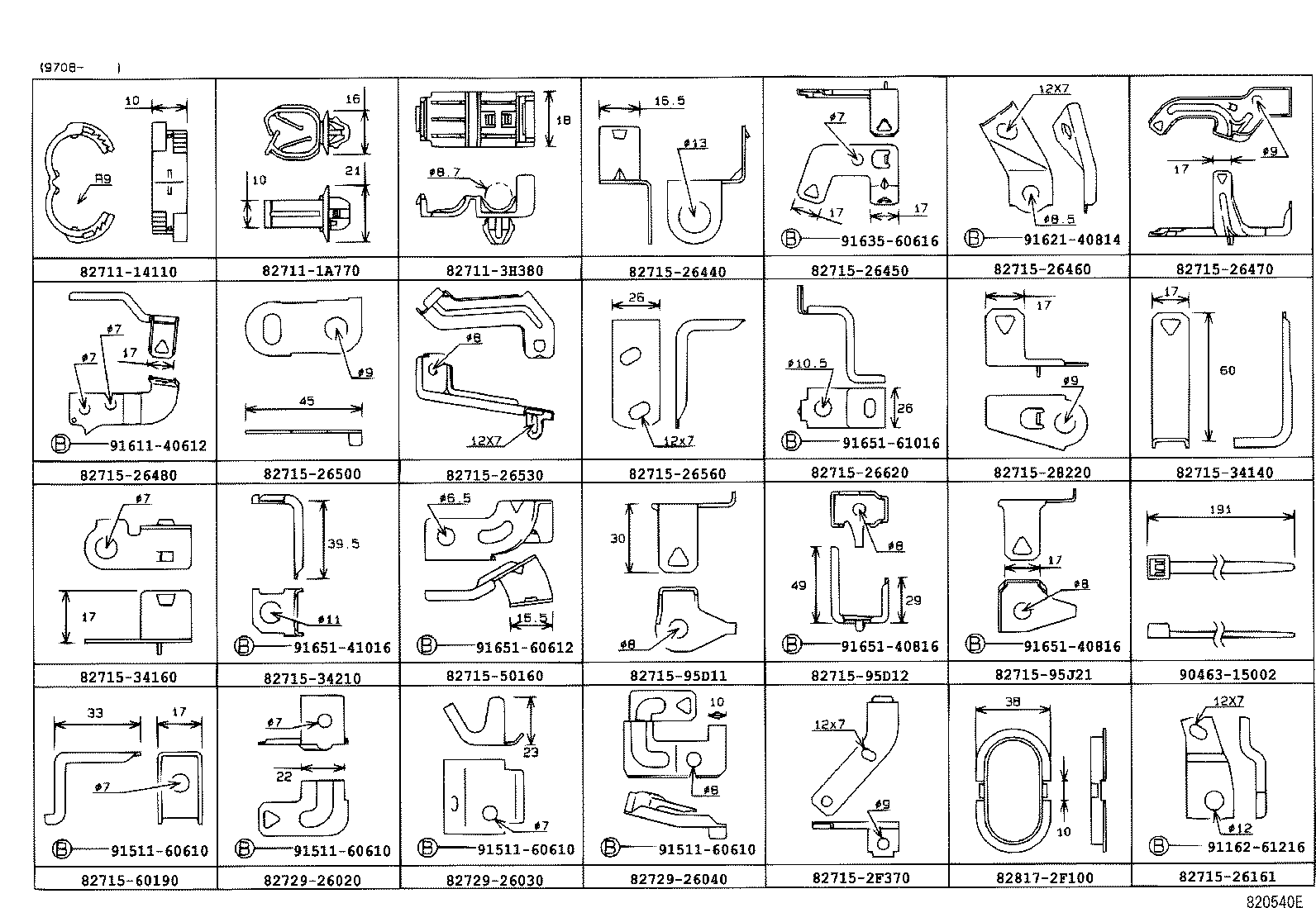

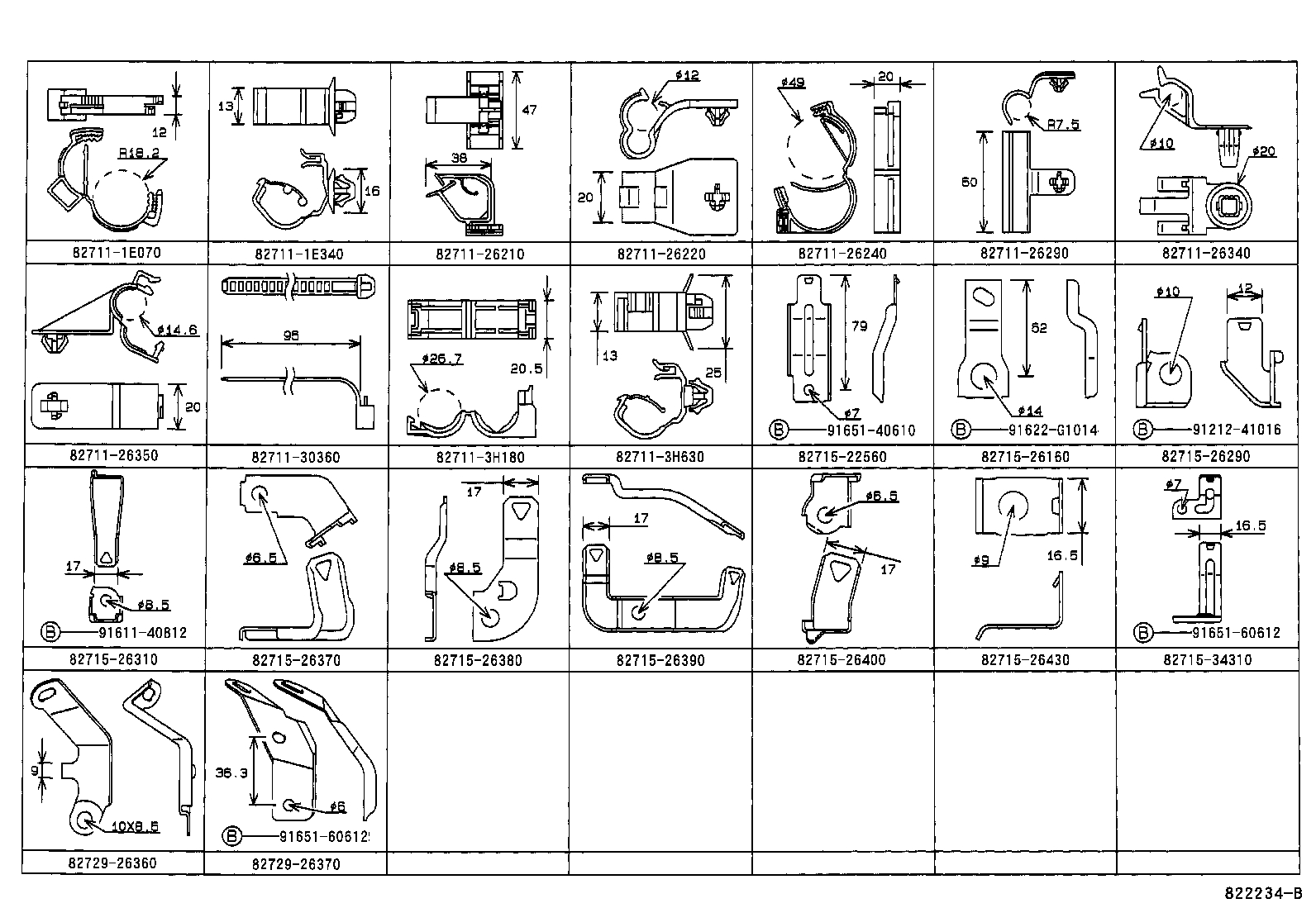

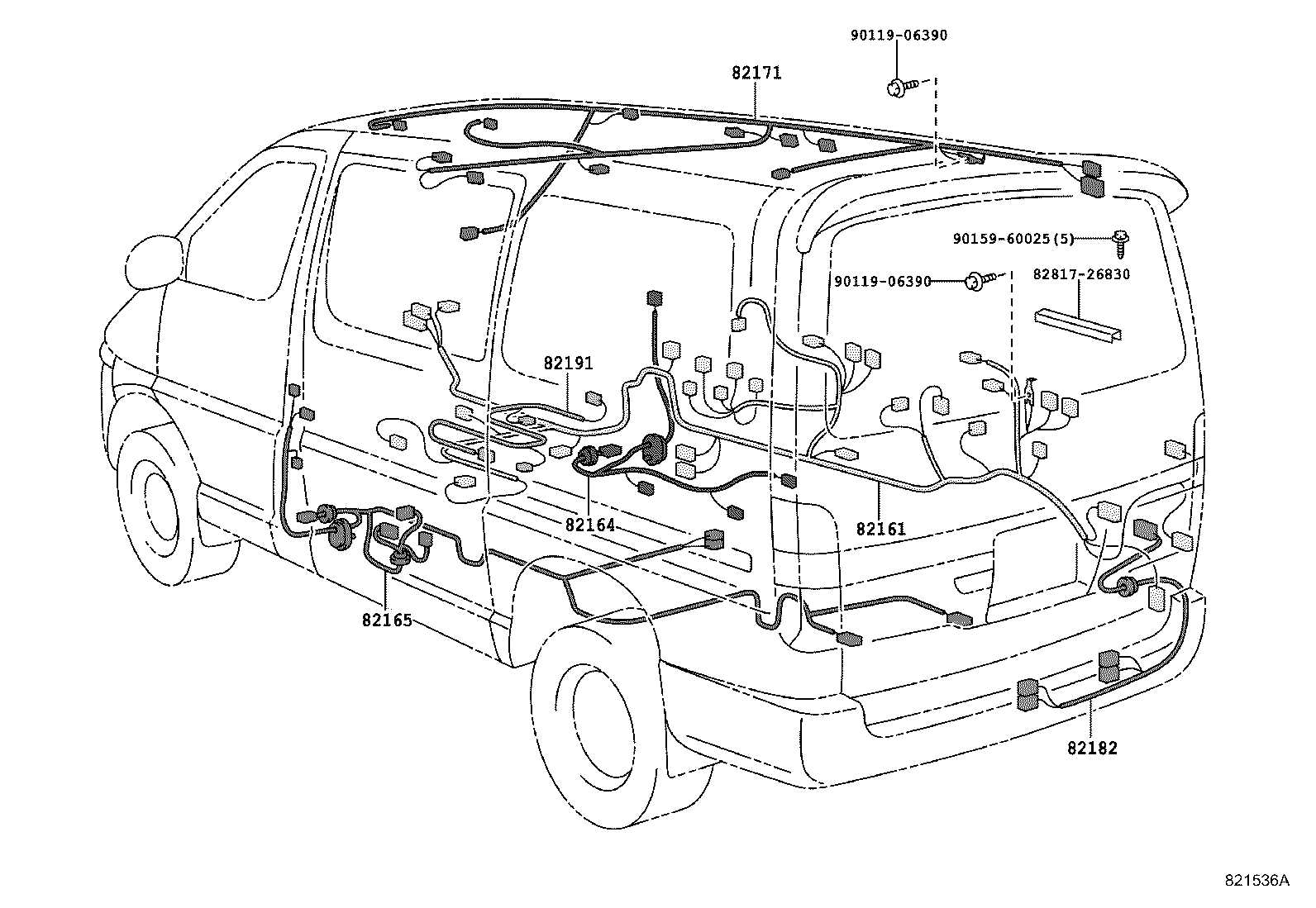

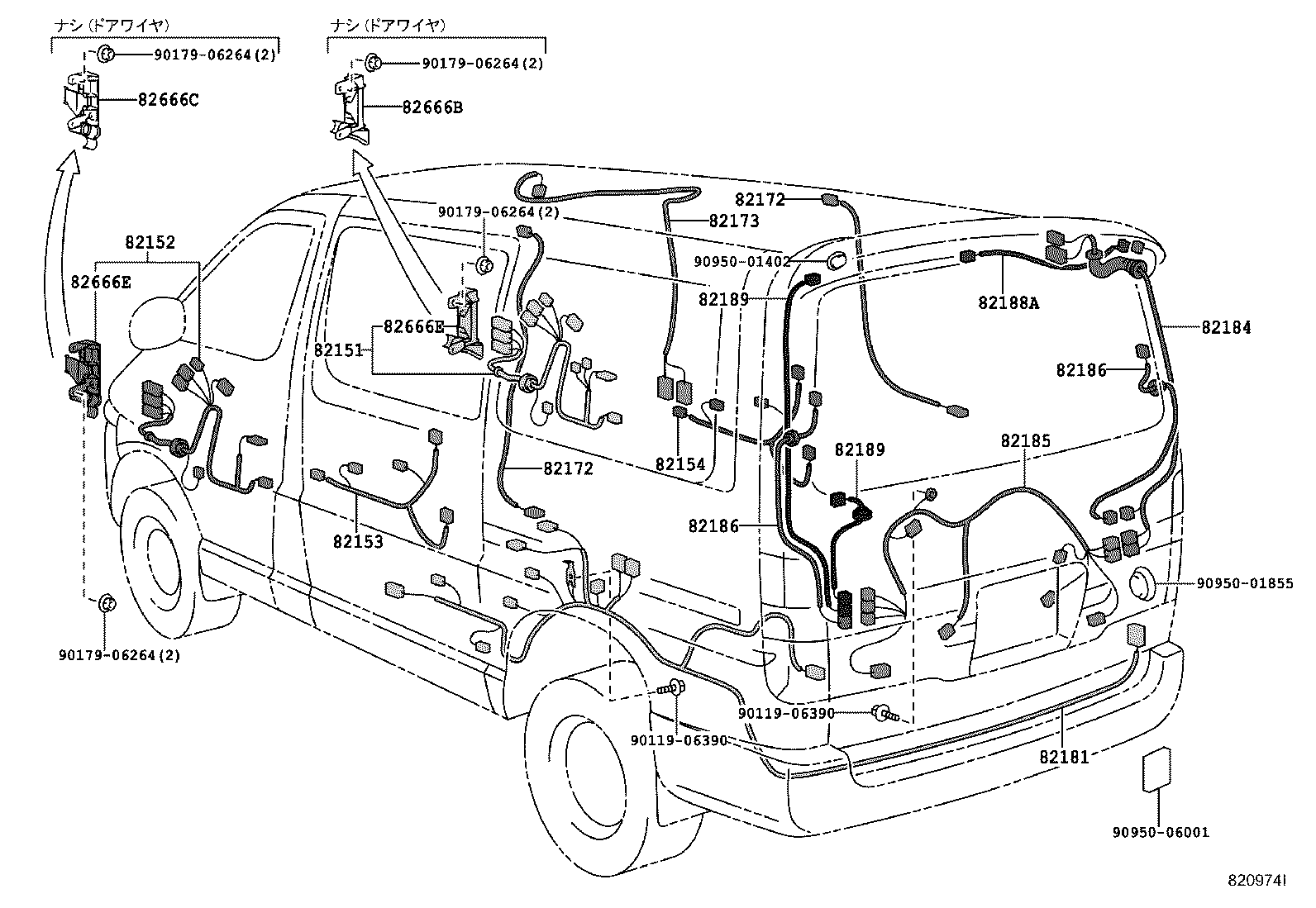

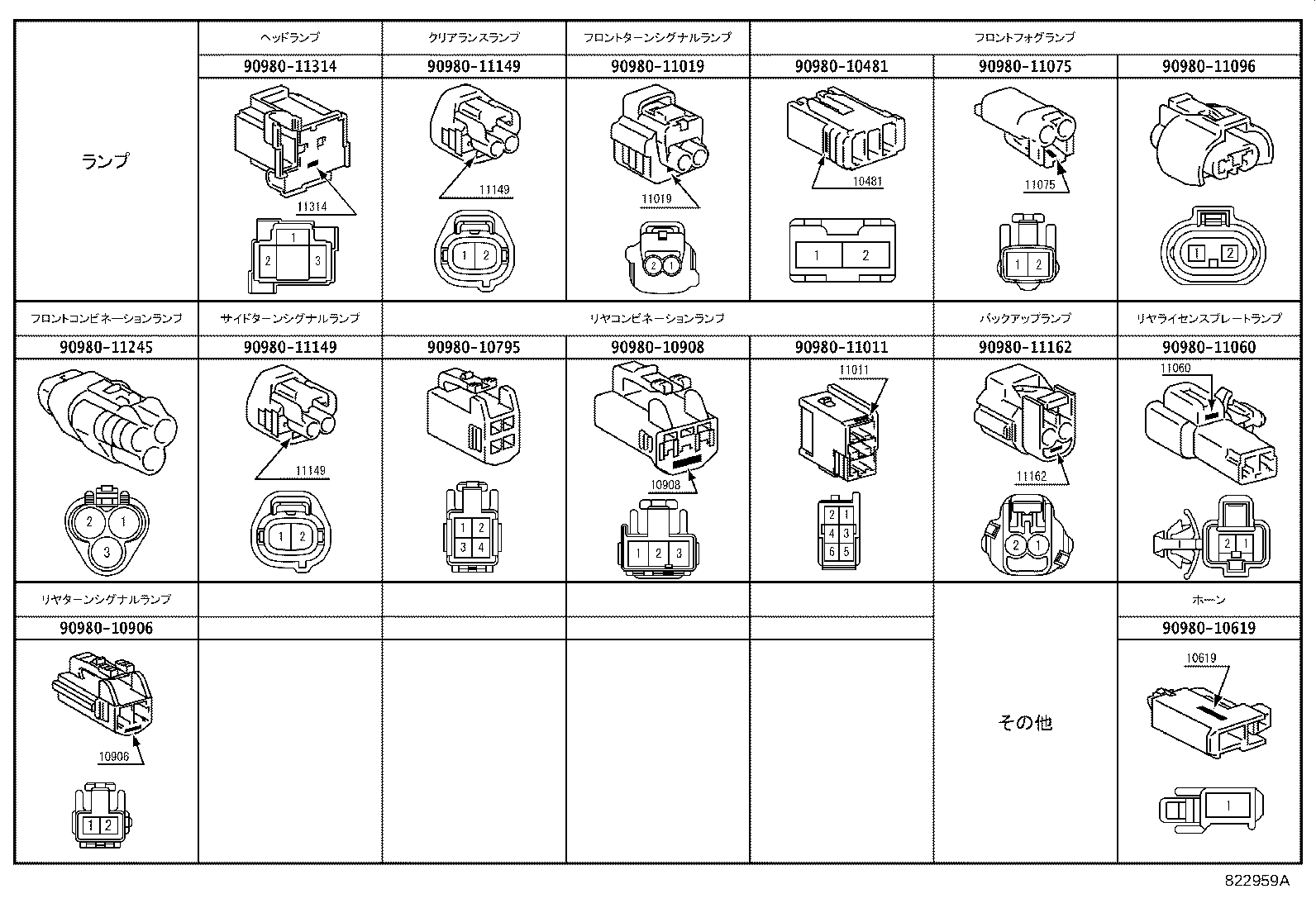

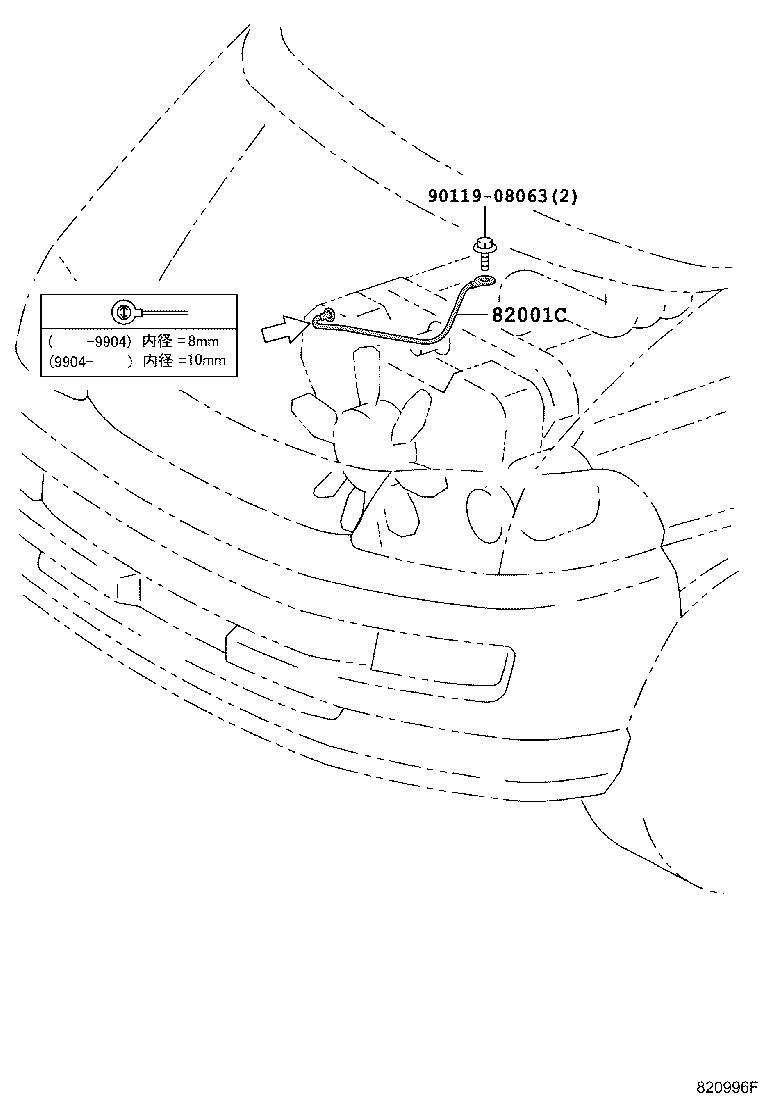

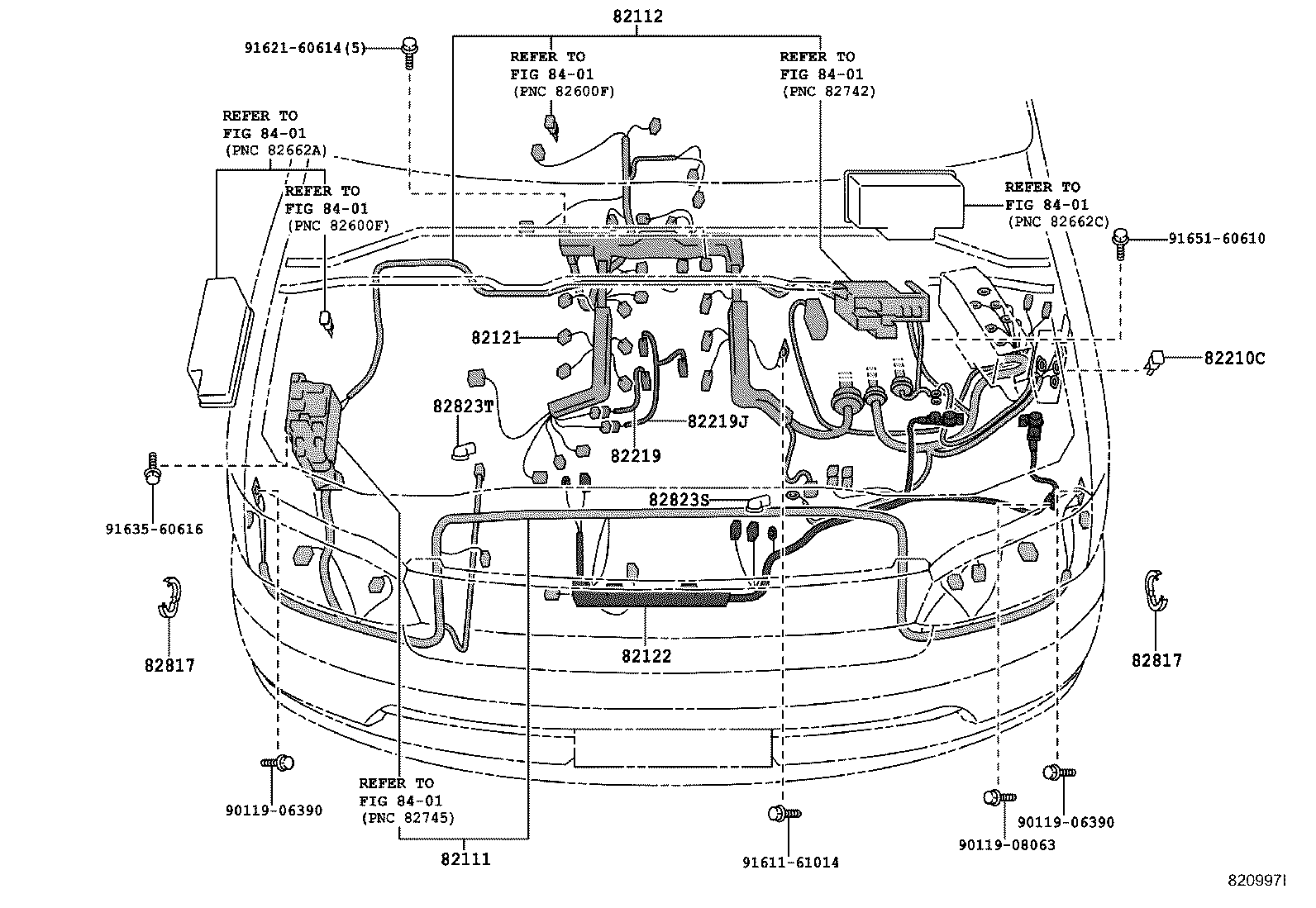

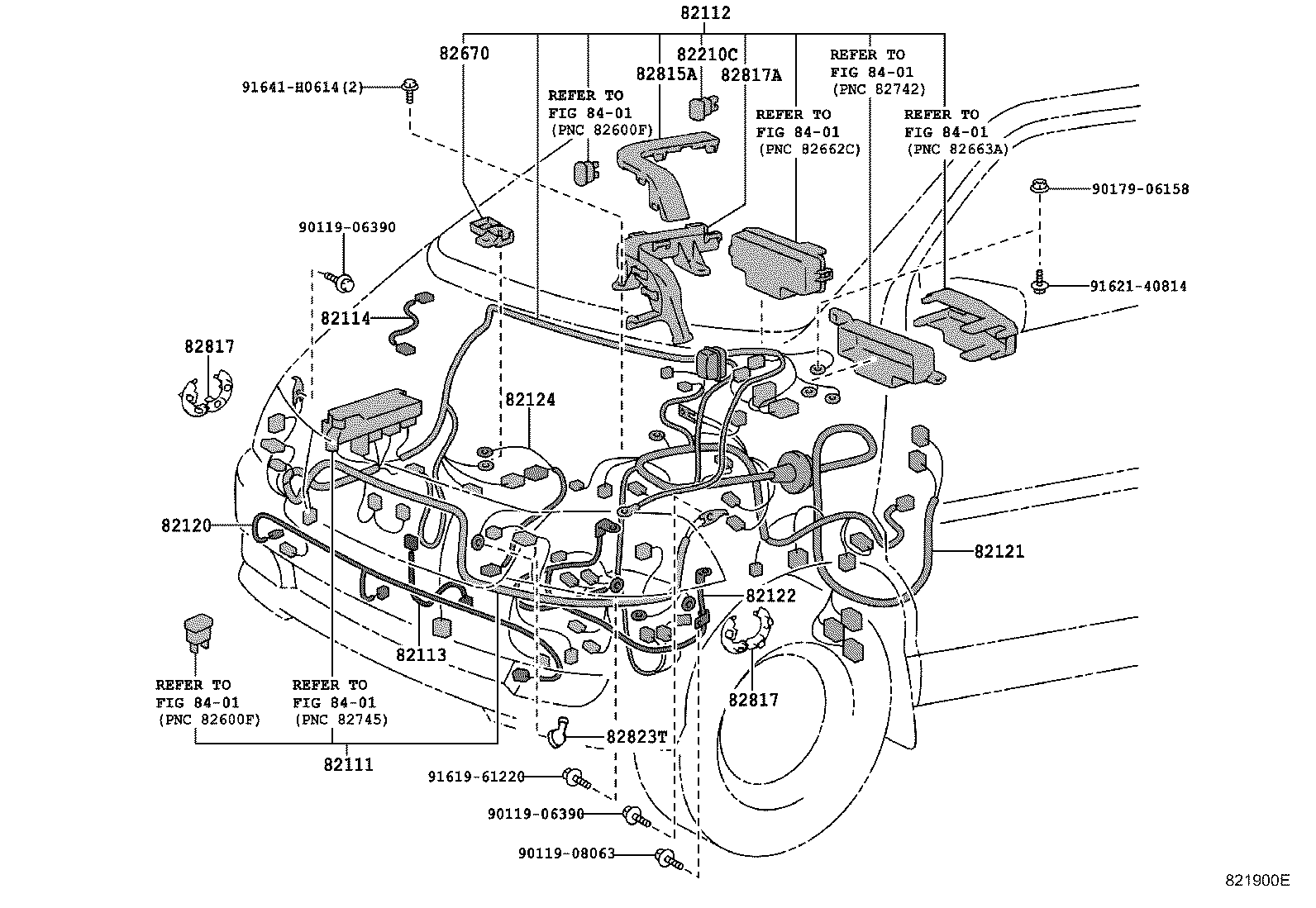

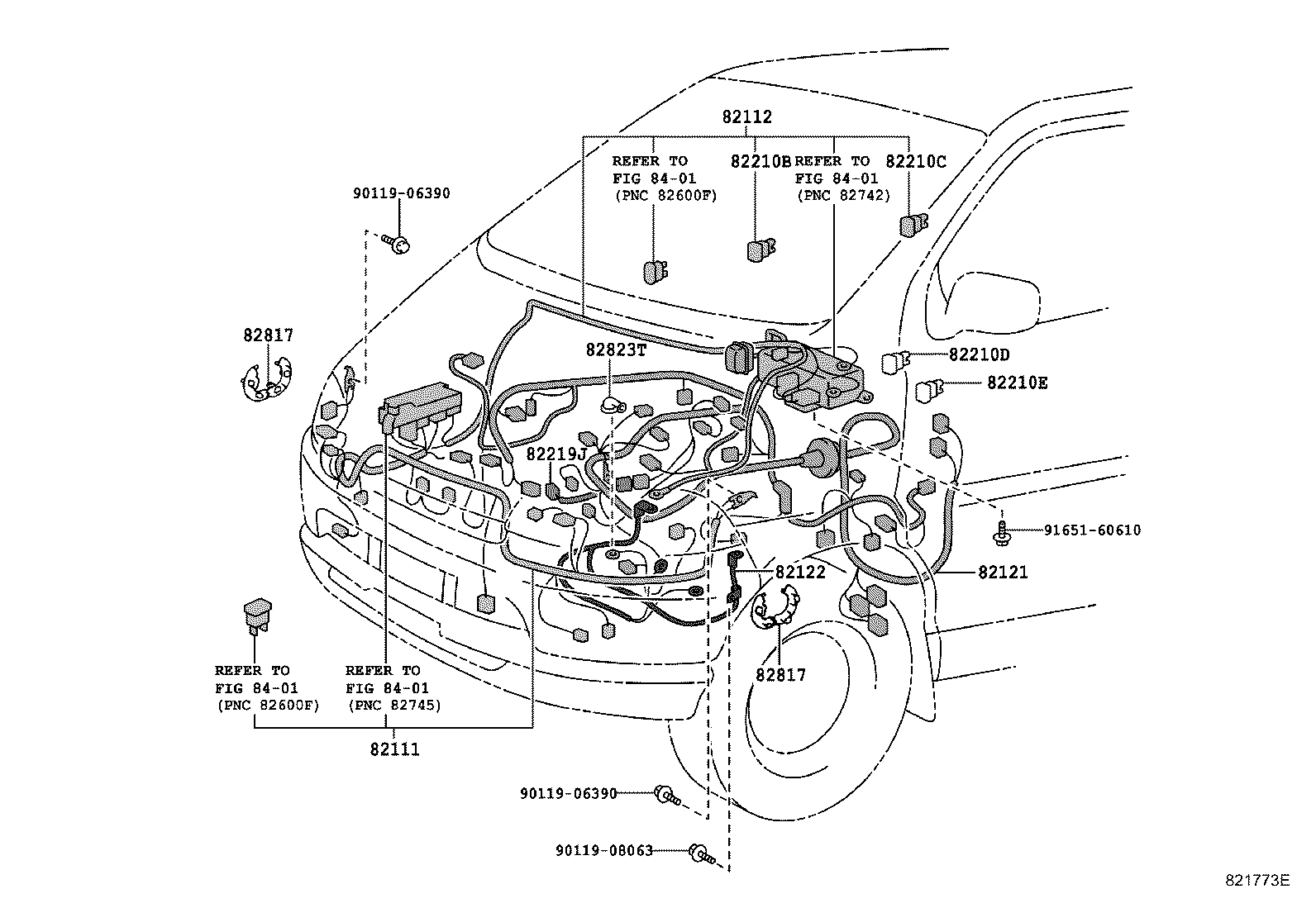

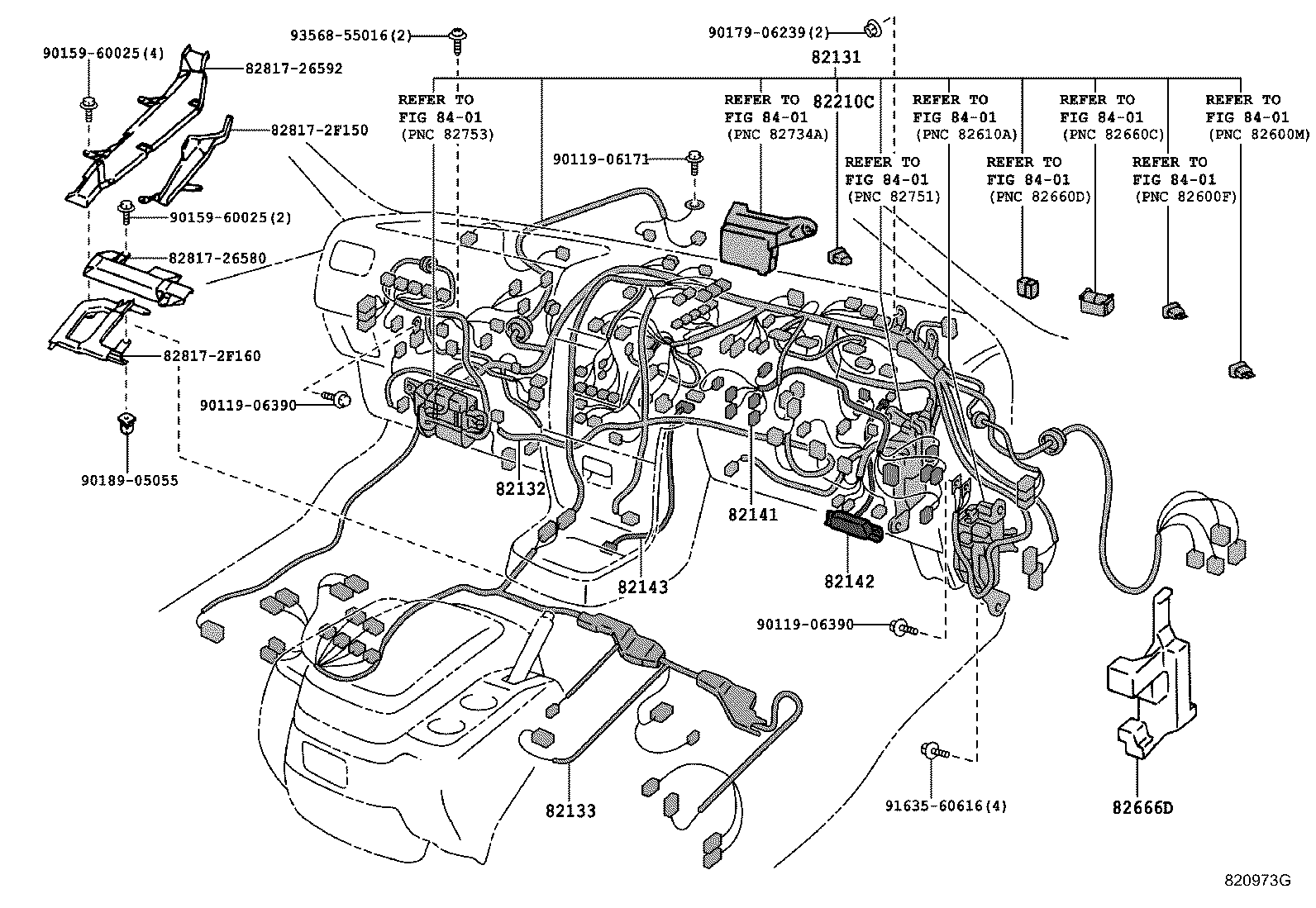

Figure 821535G 821535G 1995-08 → 1999-07 Figure 821900E 821900E 1999-07 → — Figure 821773E 821773E 1995-08 → 1998-04 Figure 820997I 820997I 1997-08 → 1999-07 Figure 821901G 821901G 1999-07 → — Figure 820973G 820973G 1995-08 → 1999-07 Figure 821902G 821902G 1999-07 → — Figure 820974I 820974I 1995-08 → — Figure 821536A 821536A 1995-08 → — Figure 820975E 820975E 1997-08 → — Figure 822234B 822234B 1995-08 → — Figure 820540E 820540E 1995-08 → — Figure 820976K 820976K 1995-08 → — Figure 822233B 822233B 1995-08 → — Figure 821949B 821949B 1997-08 → — Figure 820996F 820996F 1997-08 → — Figure 822232 822232 1995-08 → — Figure 822959A 822959A 1995-08 → —

Part groups

PNCDescription

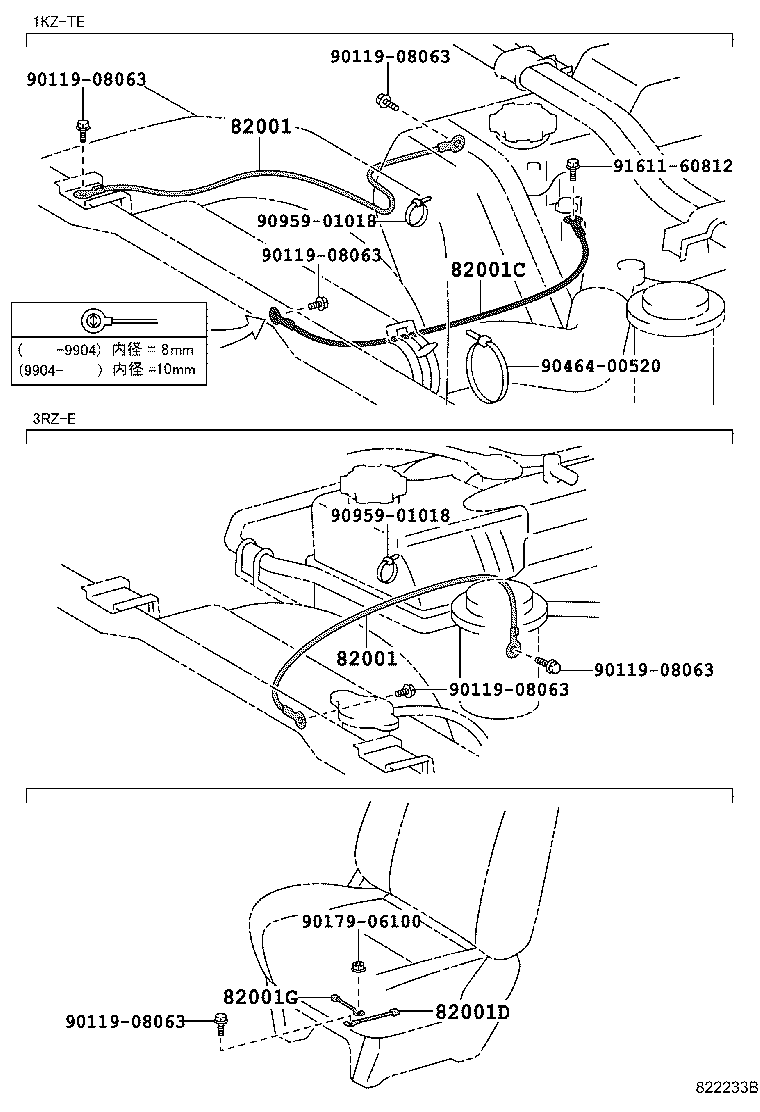

82001 Cable, Bond, NO.1
82001B Strap, Bond
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82001G Cable, Bond, NO.4

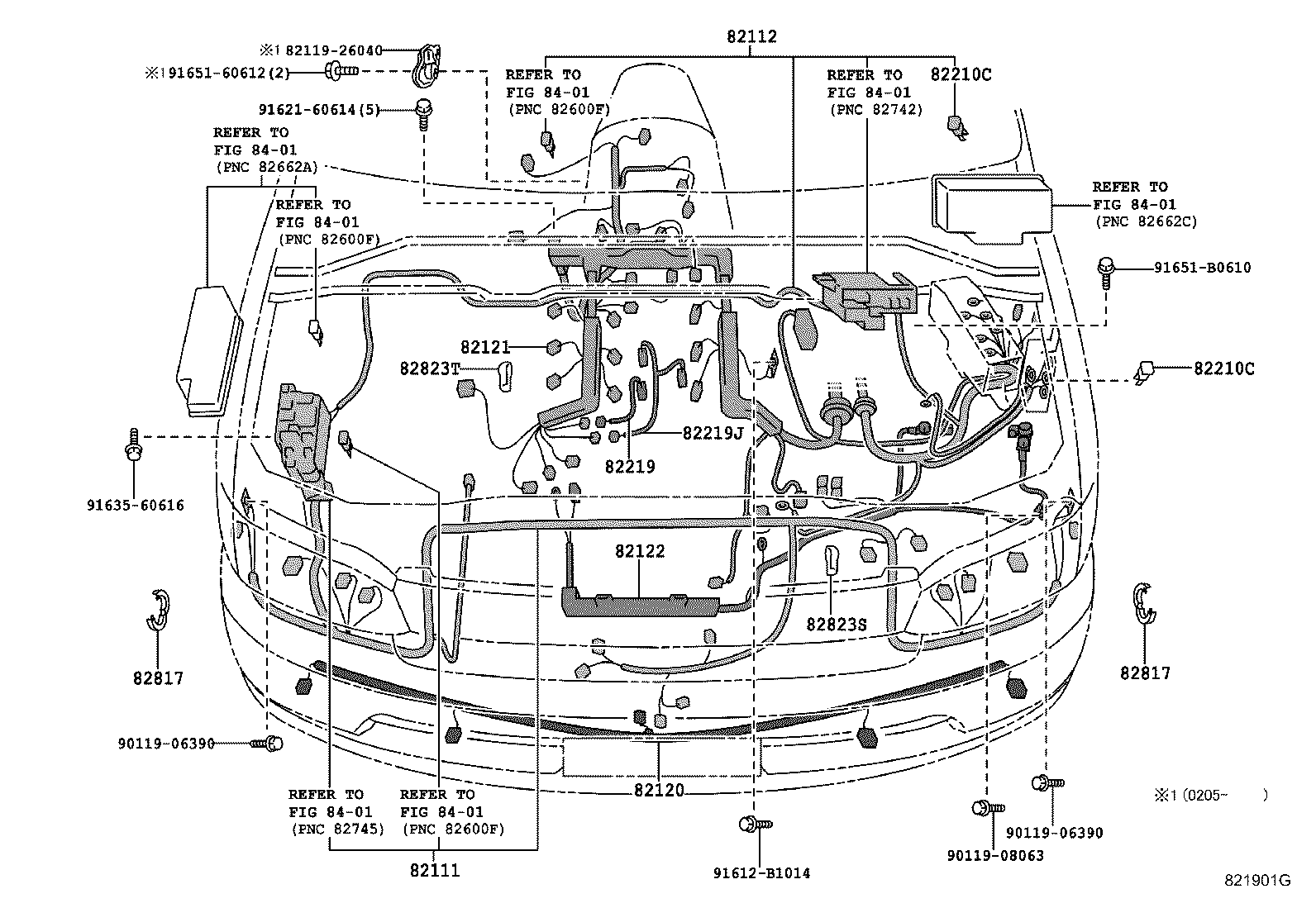

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82120 Harness Assy, Front End Wire
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4

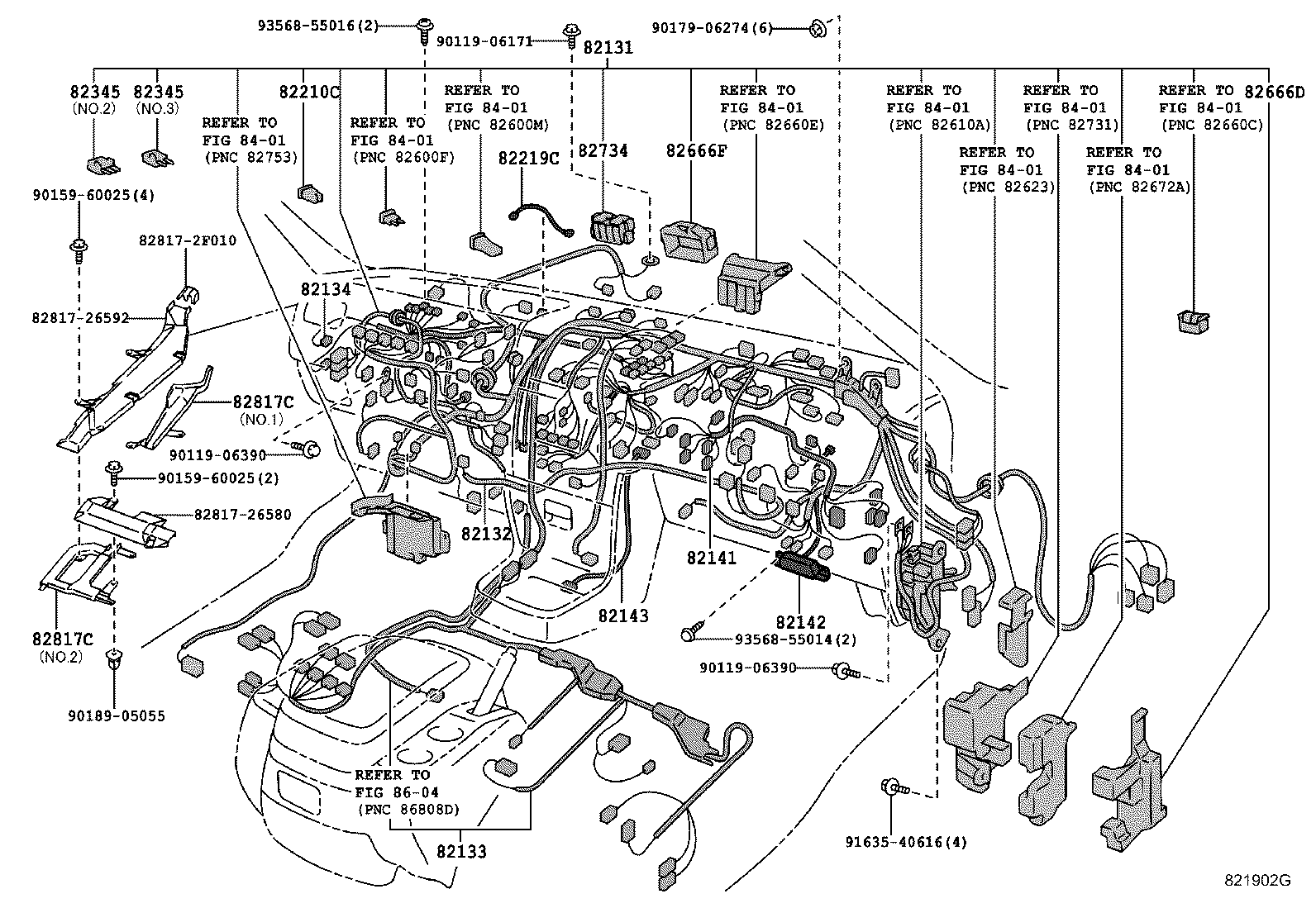

82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82134 Wire, Cowl, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82210B Fusible Link
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82219 Wire, Thermo Sensor
82219C Wire, Sensor
82219J Wire, Knock Sensor
82345 Diode
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82670 Block Assy, Junction, NO.1
82734 Block, Center Junction
82815A Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
