Toyota Granvia/Grand Hiace
1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan
Discontinued model
Data version 2005-07
Switch & Relay & Computer
139 part groups · 14 illustrations
Illustrations
Part groups

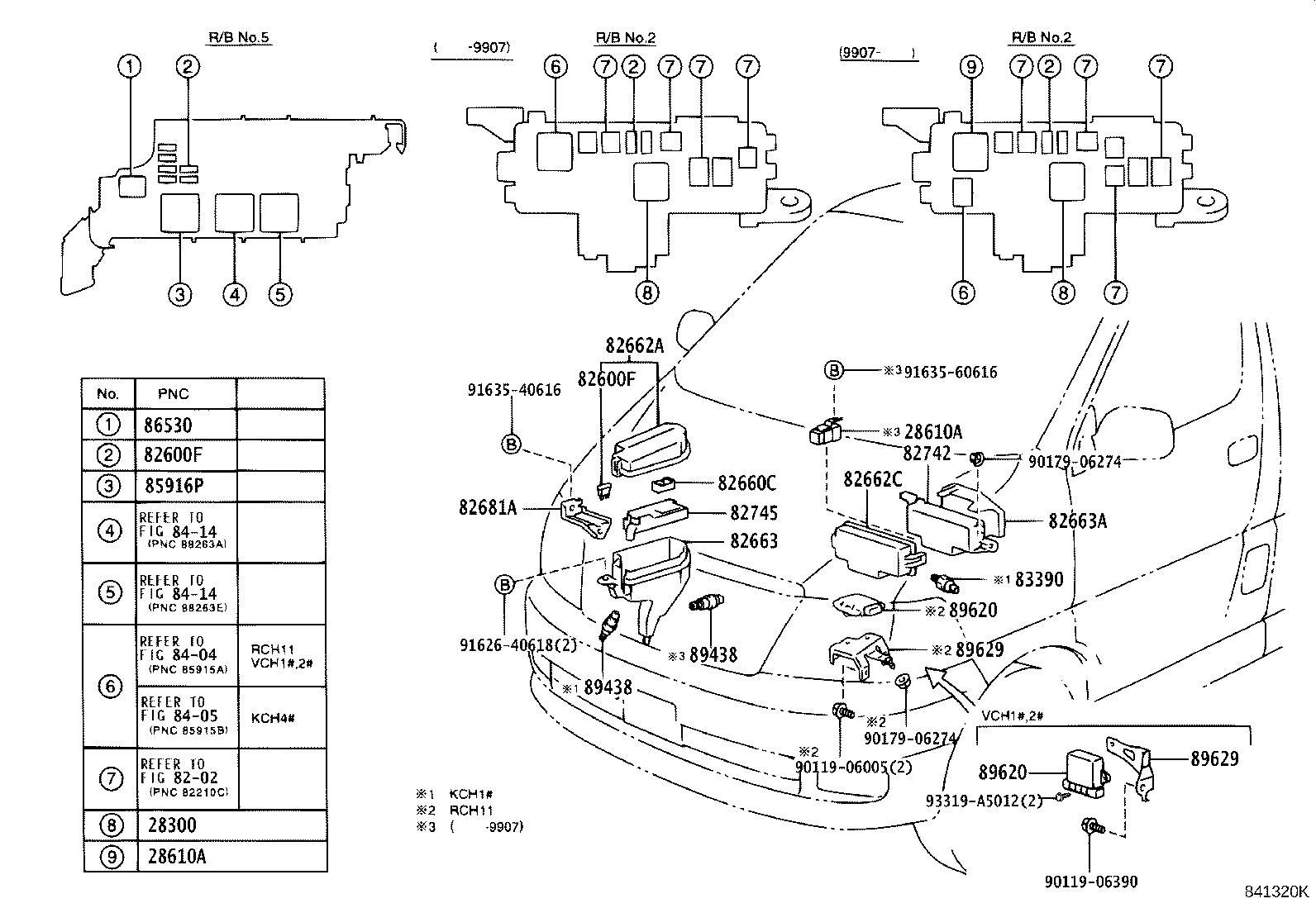

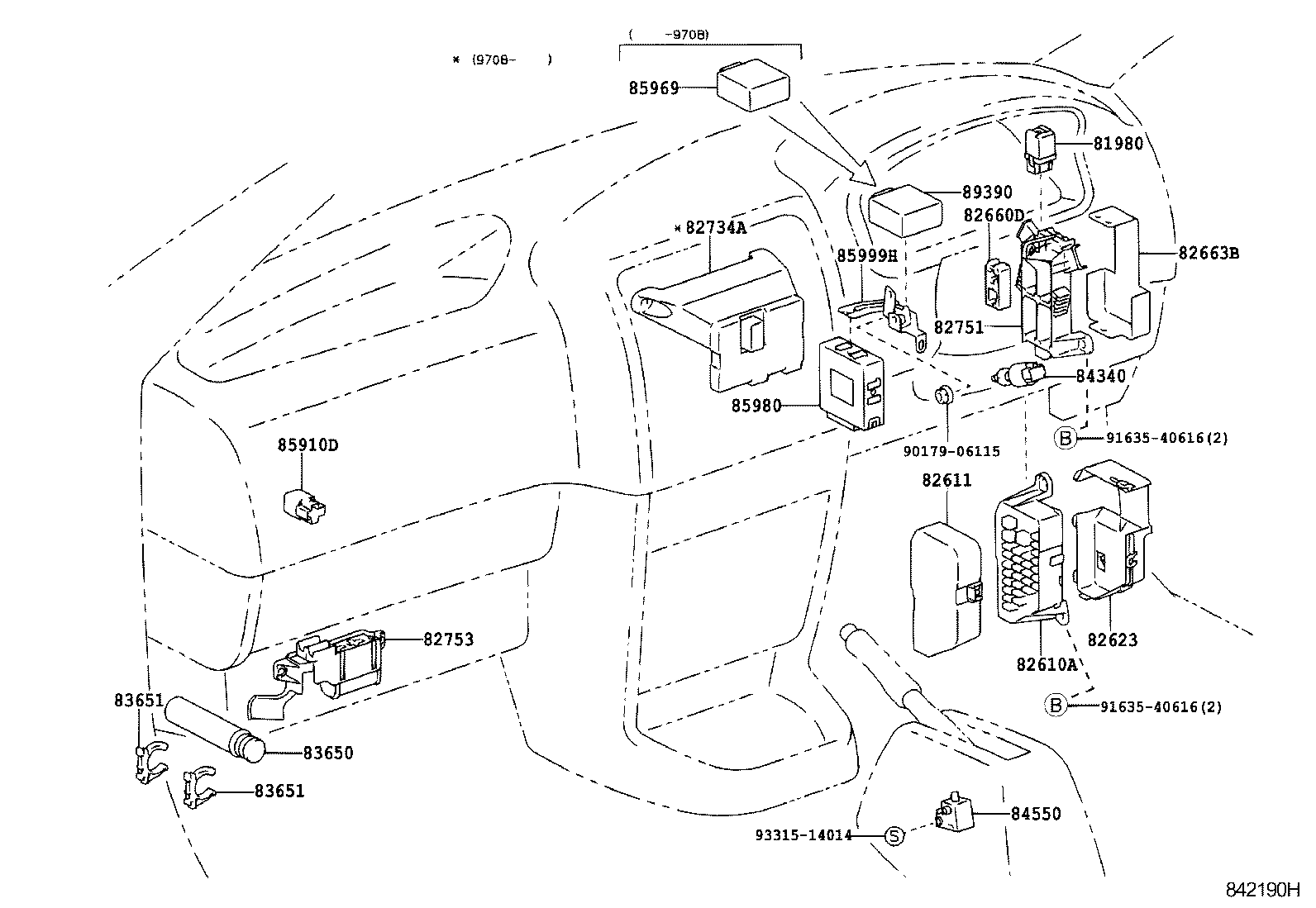

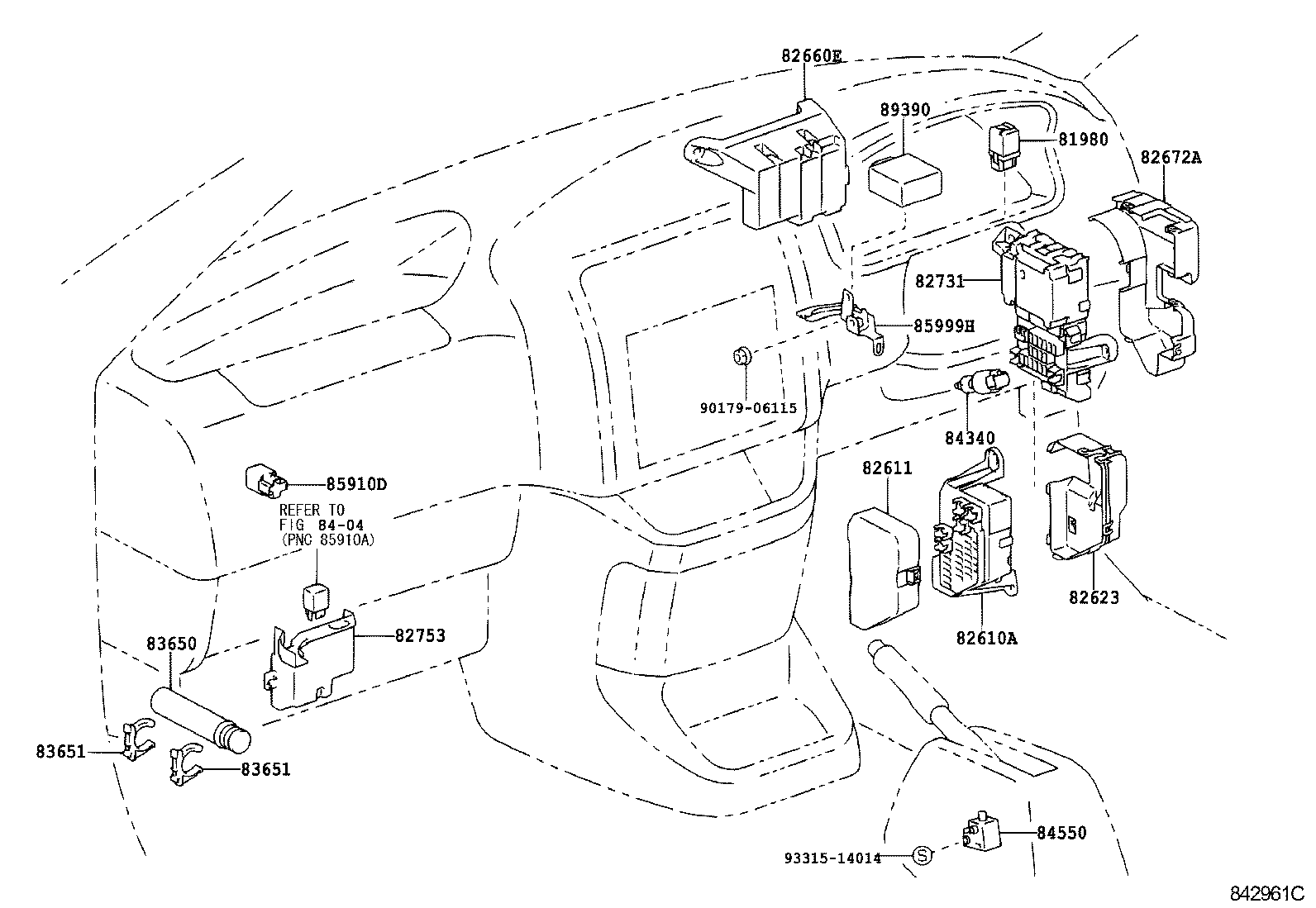

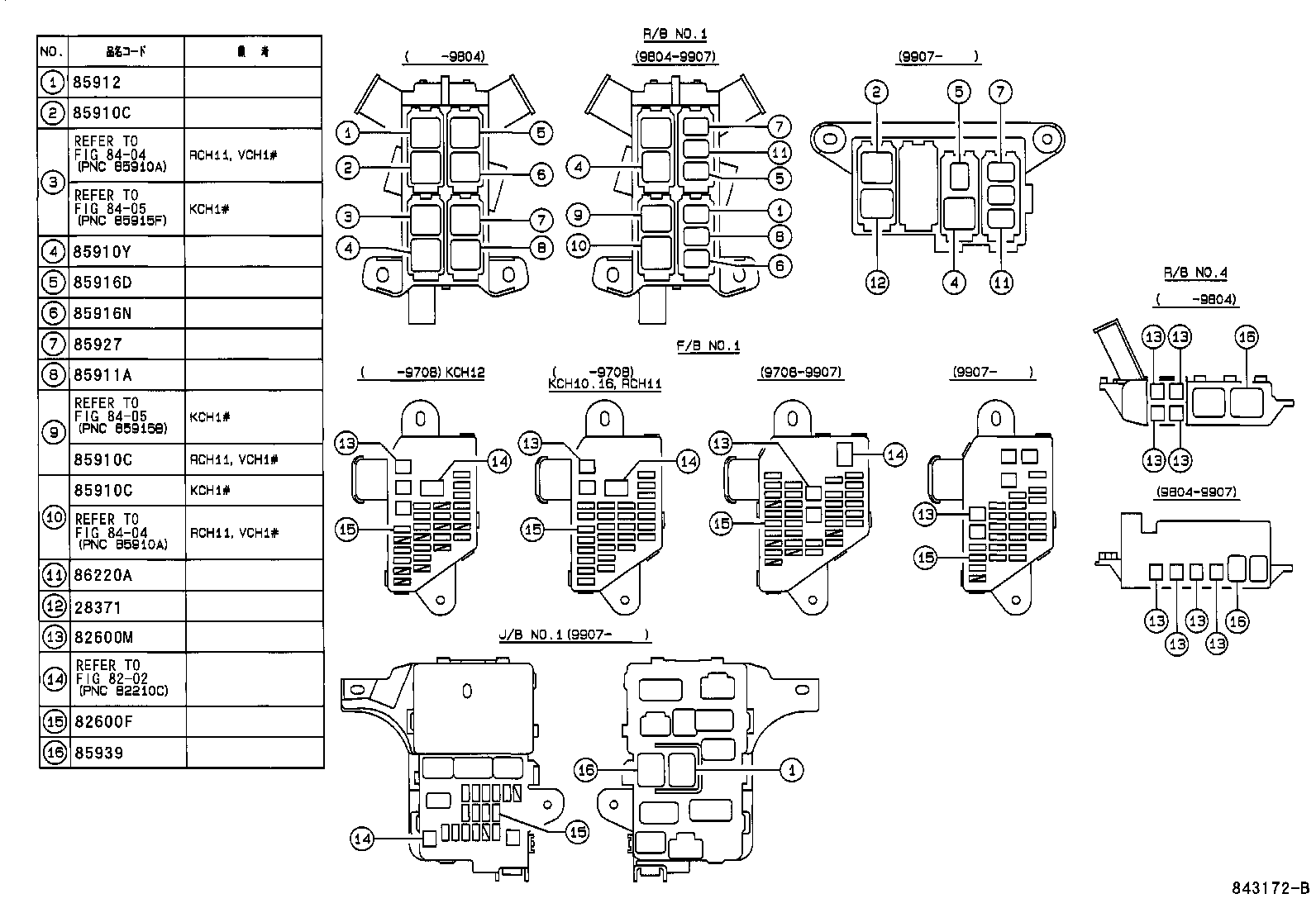

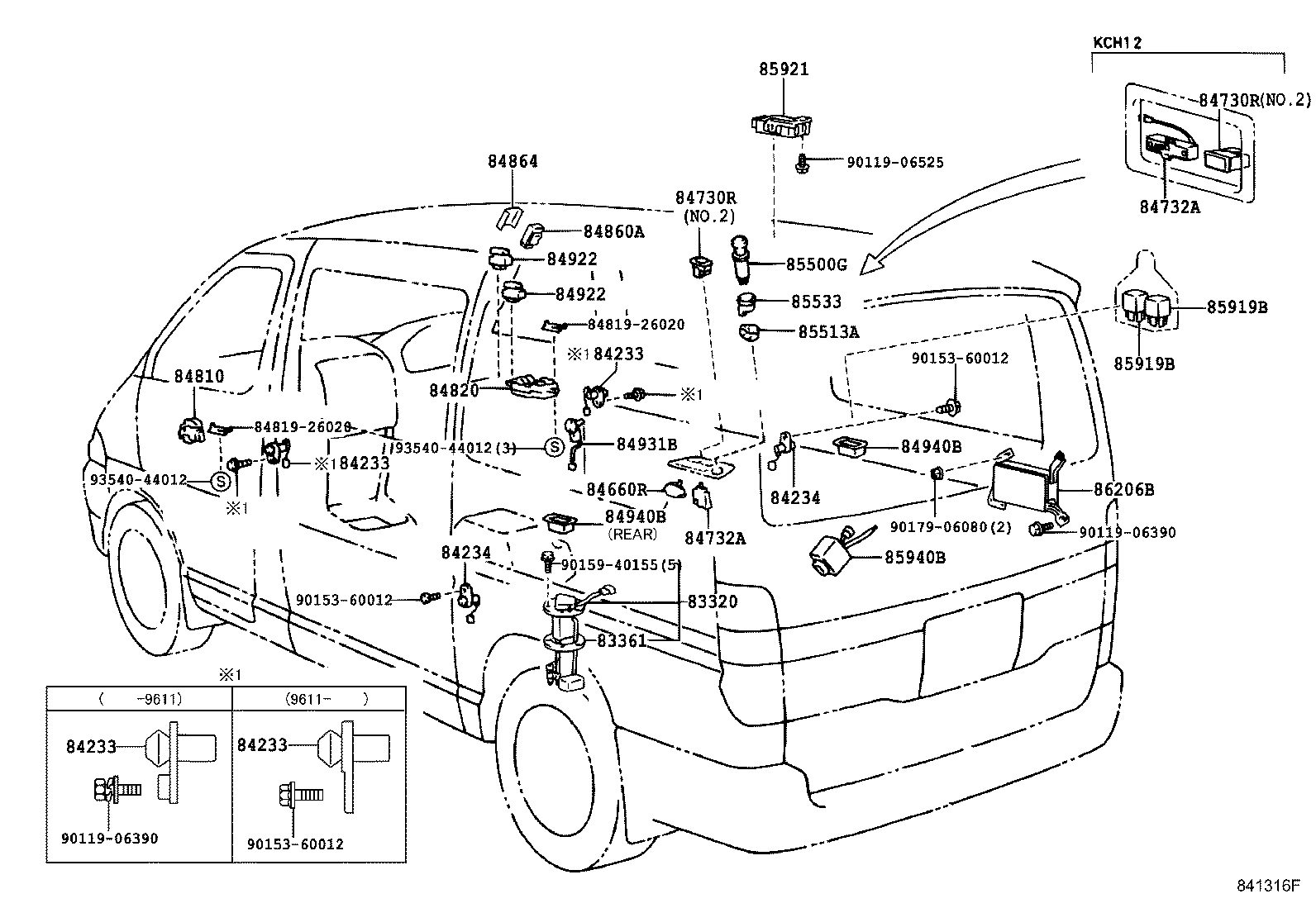

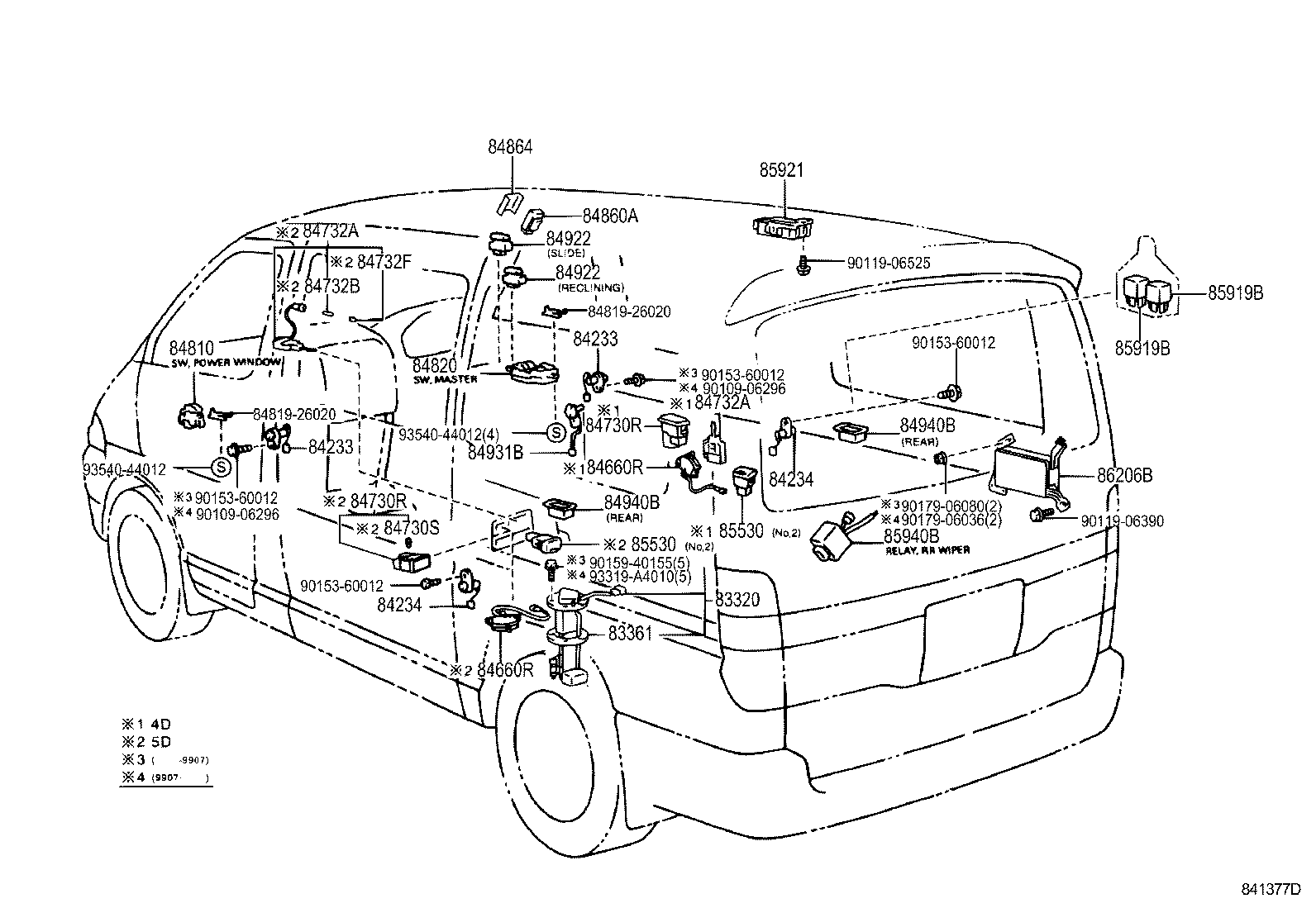

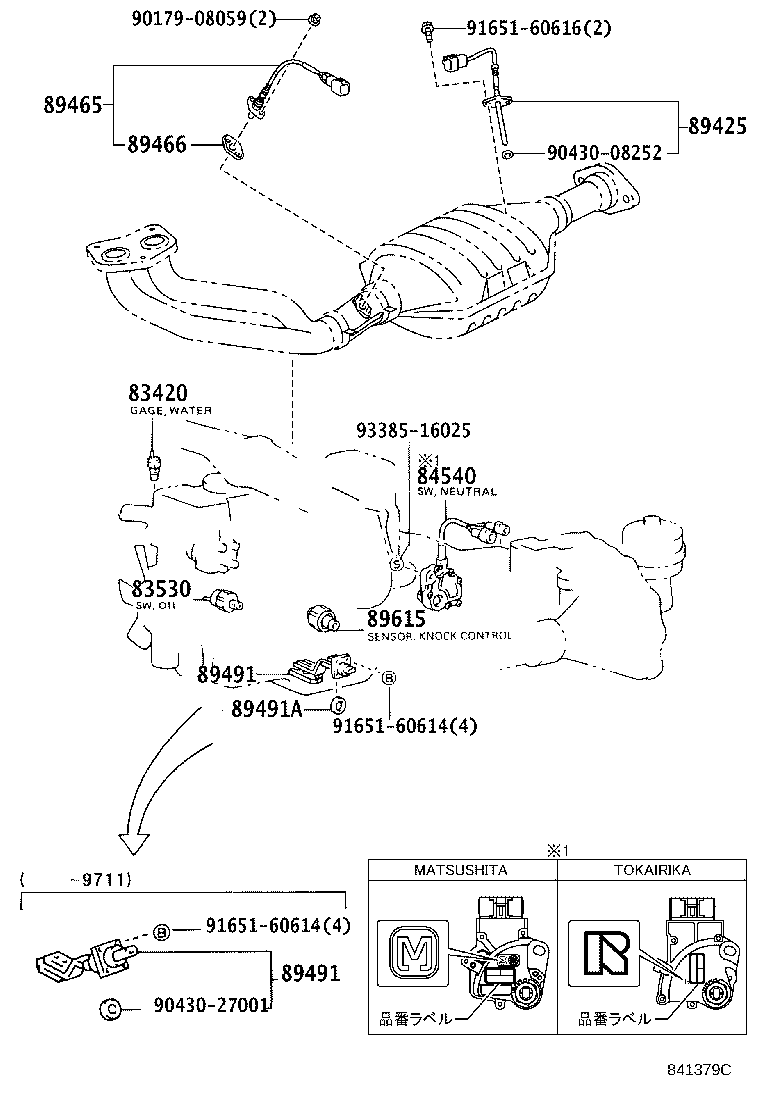

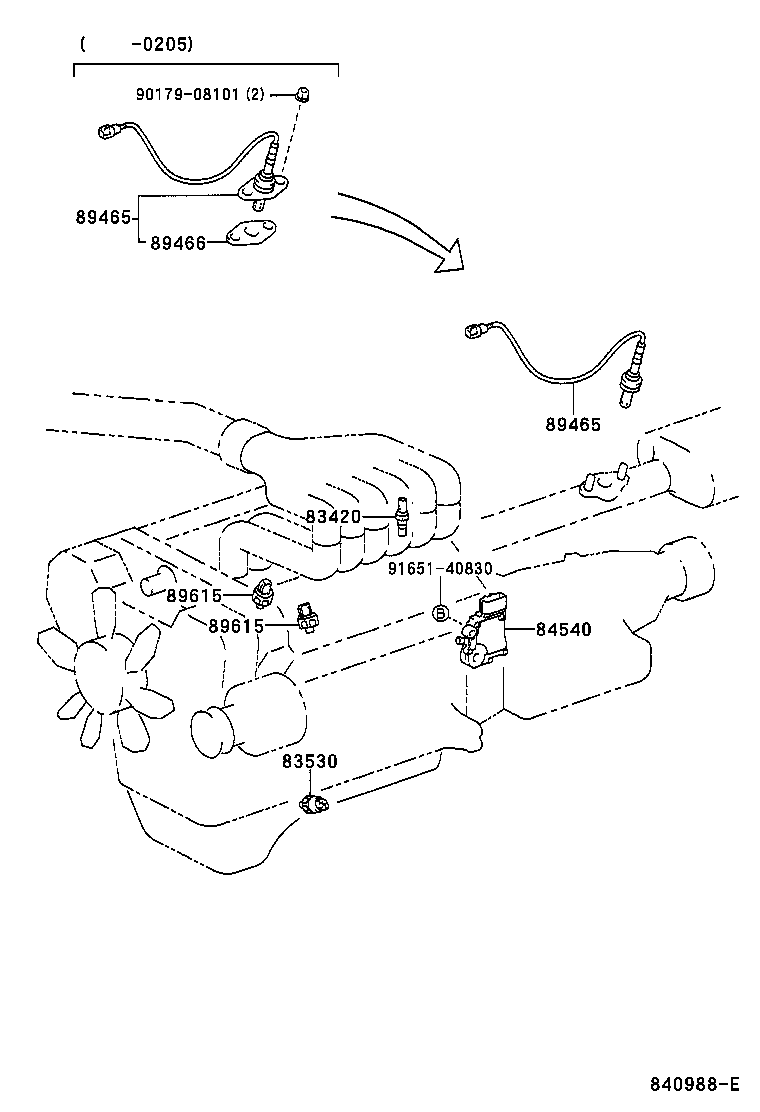

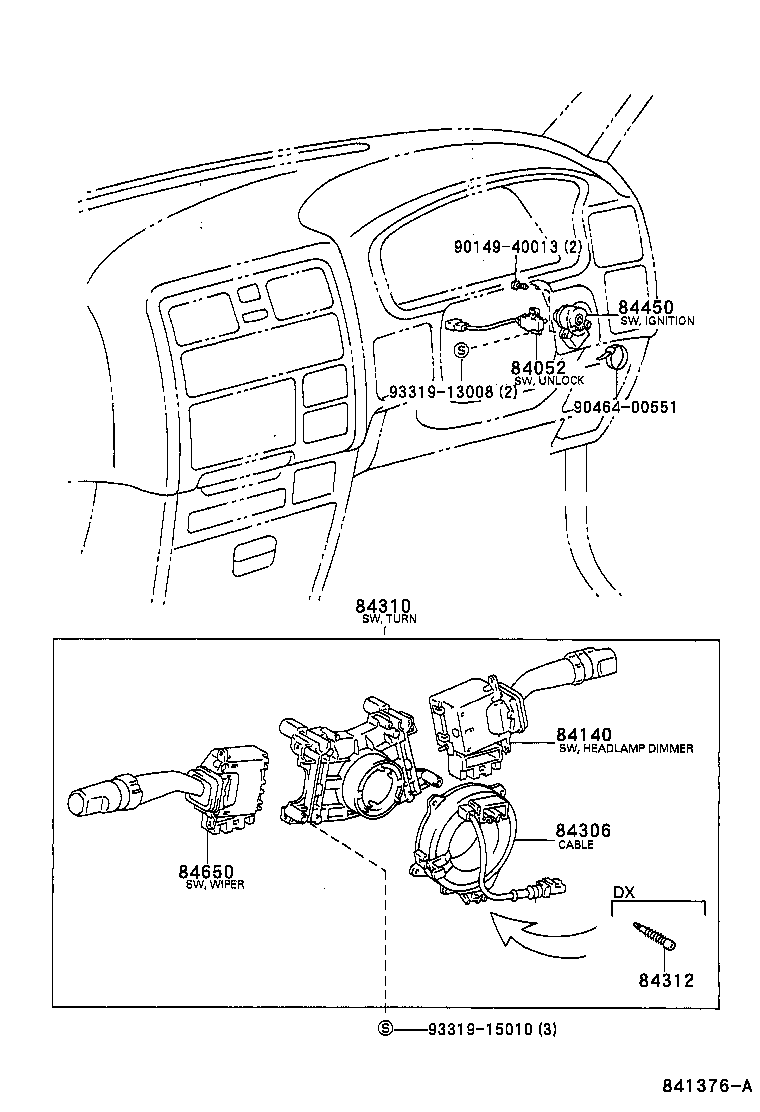

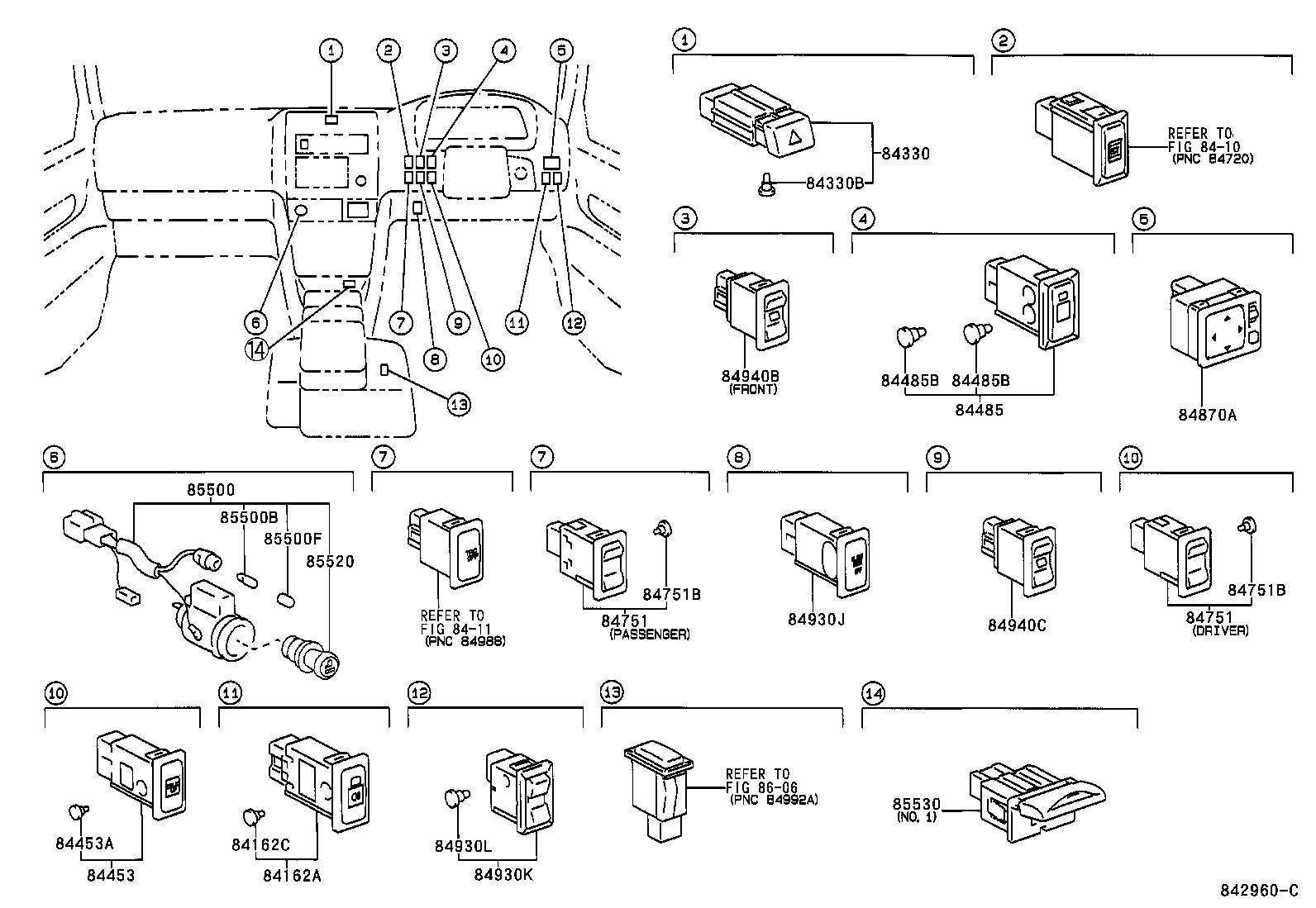

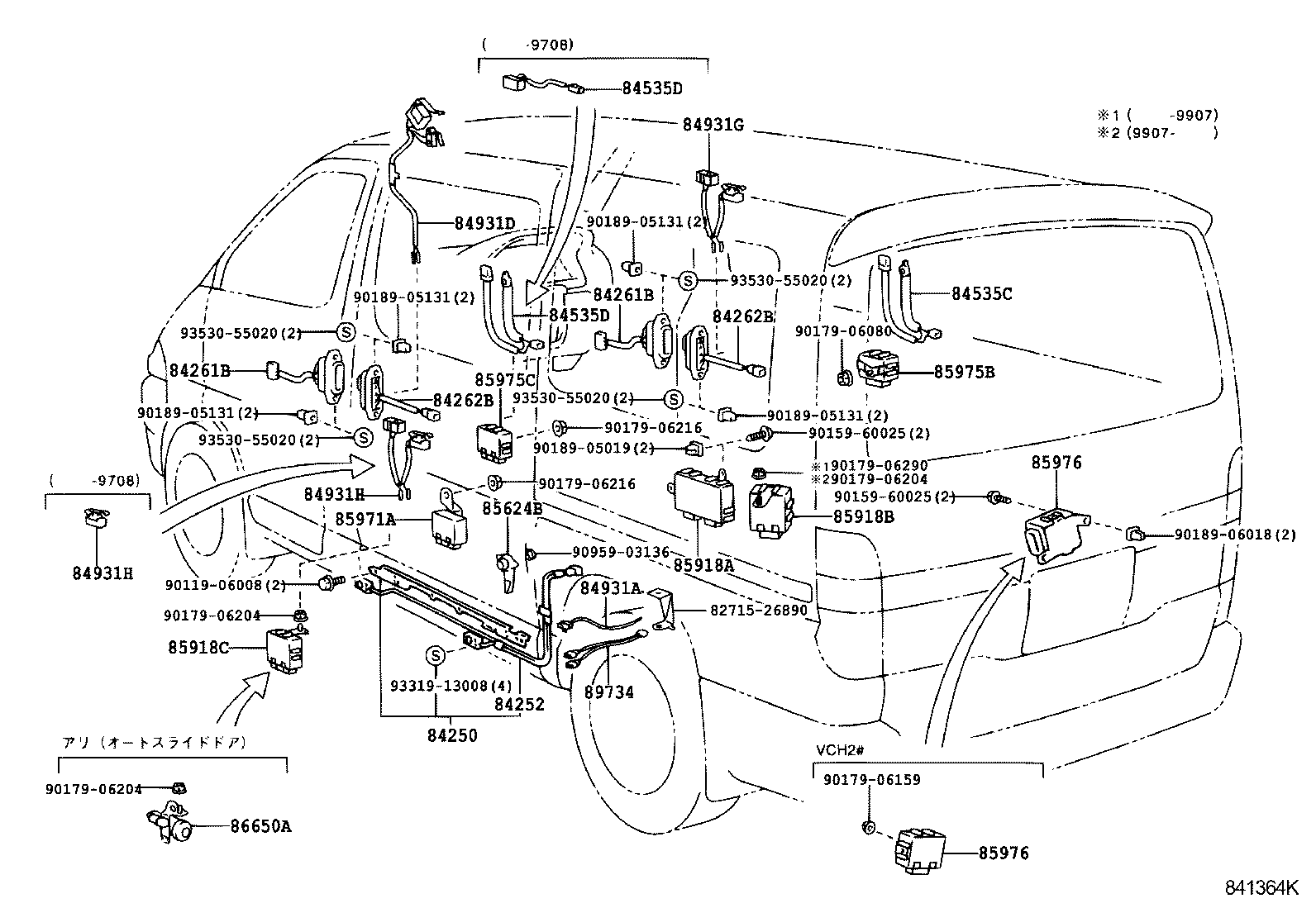

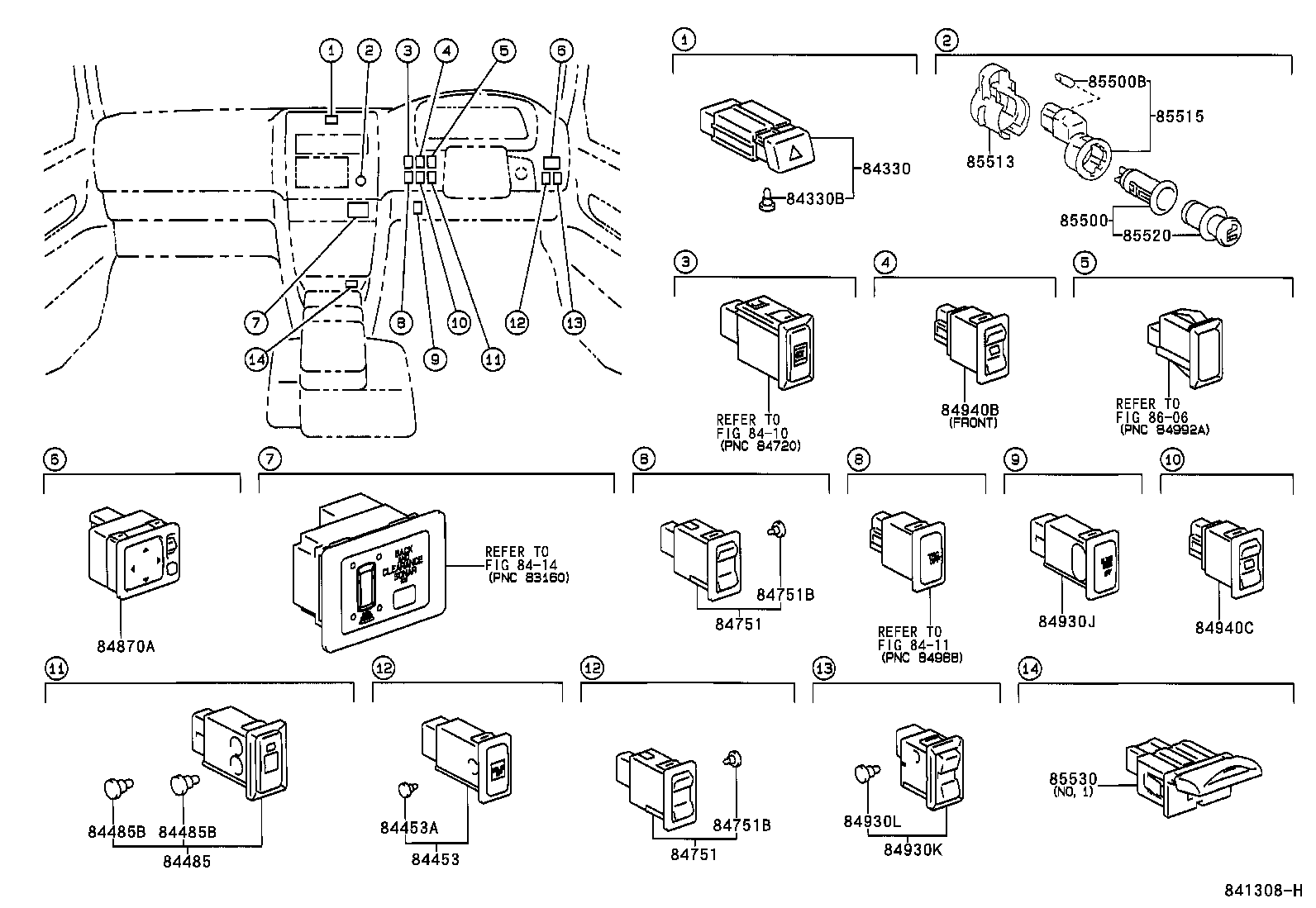

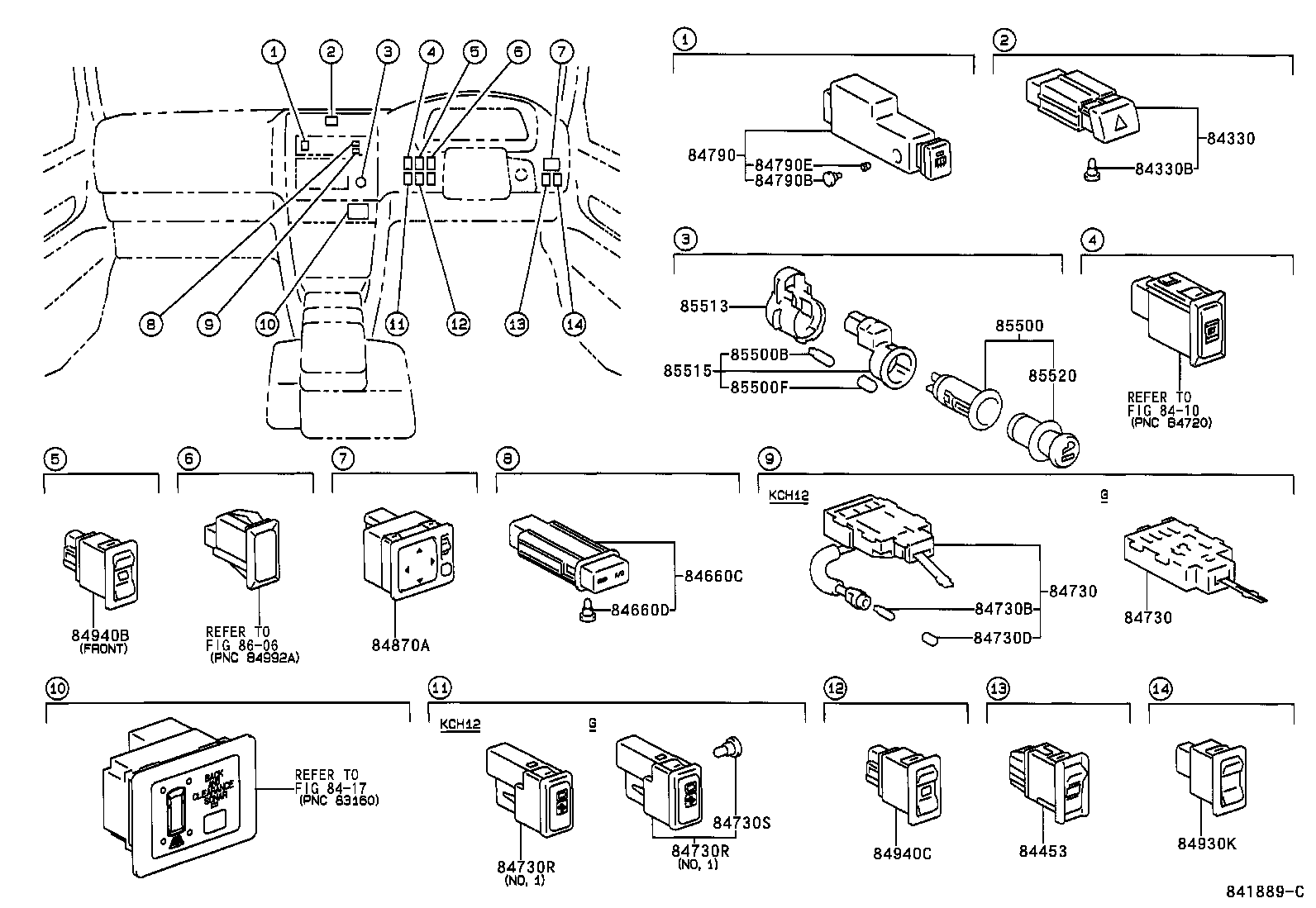

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600M | Fuse, Medium Current |
| 82610A | Block Assy, Fuse |
| 82611 | Cover, Fuse Block |
| 82623 | Cover, Fusible Link, Lower |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82672A | Cover, Junction Block |
| 82681A | Bracket, Fuse Block |
| 82731 | Block, Driver Side Junction |
| 82734A | Block, Center Junction |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82745 | Block, Engine Room Relay, NO.5 |
| 82751 | Block, Driver Side Relay |
| 82753 | Block, Passenger Side Relay |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 83651 | Clamp, Fusee |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84162A | Switch, Rear Fog Lamp |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250 | Switch Assy, Dump Warning |
| 84252 | Sensor, Proximity |
| 84261B | Junction, Slide Door Control,Male |
| 84262B | Junction, Slide Door Control, Female |
| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84453 | Switch, Idle UP |
| 84453A | Bulb, Idle UP Switch |
| 84485 | Switch, Power Outlet(AC100V ACCESSORY SOCKET) |
| 84485B | Bulb, Power Outlet(ACCESSORY SOCKET) Switch |
| 84535C | Switch, Door Lock, RH |
| 84535D | Switch, Door Lock, LH |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84660R | Switch, Cooler(REAR) |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84730D | Cap, Heater Blower Switch Bulb |
| 84730R | Switch Assy, Heater Blower |
| 84730S | Bulb, Heater Blower Switch |
| 84732A | Switch, Rear Heater Blower |
| 84732B | Bulb, Rear Heater Blower Switch |
| 84732F | Cap, Rear Heater Blower Switch |
| 84751 | Switch, Seat Heater |
| 84751B | Bulb, Seat Heater Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84790E | Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84860A | Switch Assy, Sliding Roof |
| 84864 | Cover, Slide Roof Motor Switch |
| 84870A | Switch Assy, Outer Mirror |
| 84922 | Switch, Front Power Seat |
| 84930J | Switch Assy, Auto Slide Door Main |
| 84930K | Switch Assy, Auto Slide Door Control |
| 84930L | Bulb, Auto Slide Door Control Switch |
| 84931A | Switch, Automatic Door Control |
| 84931B | Switch, Door Control |
| 84931D | Switch, Slide Door Control |
| 84931G | Switch, Slide Door Control, RH |
| 84931H | Switch, Slide Door Control, LH |
| 84940B | Switch Assy, Curtain(SIDE) |
| 84940C | Switch Assy, Curtain(BACK) |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85500G | Lighter Assy, Cigarette, Rear |
| 85513 | Cover, Cigarette Lighter |
| 85513A | Cover, Cigarette Lighter, Rear |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85624B | Lever, Auto Door Regulator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910D | Relay (FOR HEATER IDLE UP) |
| 85910Y | Relay, Rear Heater |
| 85911A | Relay, Auto Curtain |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85918A | Relay, Door Control |
| 85918B | Relay, Door Control, RH |
| 85918C | Relay, Door Control, LH |
| 85919B | Relay Assy, Seat Adjuster |
| 85921 | Relay, Sliding Roof Control |
| 85927 | Relay, Cooling Fan |
| 85939 | Relay, Power Window |
| 85940B | Relay Assy, Rear Wiper |
| 85969 | Relay, Light Reminder |
| 85971A | Relay, Door Opening |
| 85975B | Relay, Slide Door Closer, RH |
| 85975C | Relay, Slide Door Closer, LH |
| 85976 | Relay, Back Door Closer |
| 85980 | Relay Assy, Door Control |
| 85999H | Bracket, Relay |
| 86206B | Inverter Sub-assy, Voltage |
| 86220A | Relay, Inverter |
| 86530 | Relay Assy, Horn |
| 86650A | Buzzer Assy, Door Opening |
| 89390 | Relay, Brake Warning |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89438 | Switch, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
| 89734 | Sensor, Auto Door Speed Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
