Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

9 part groups · 5 illustrations

Illustrations

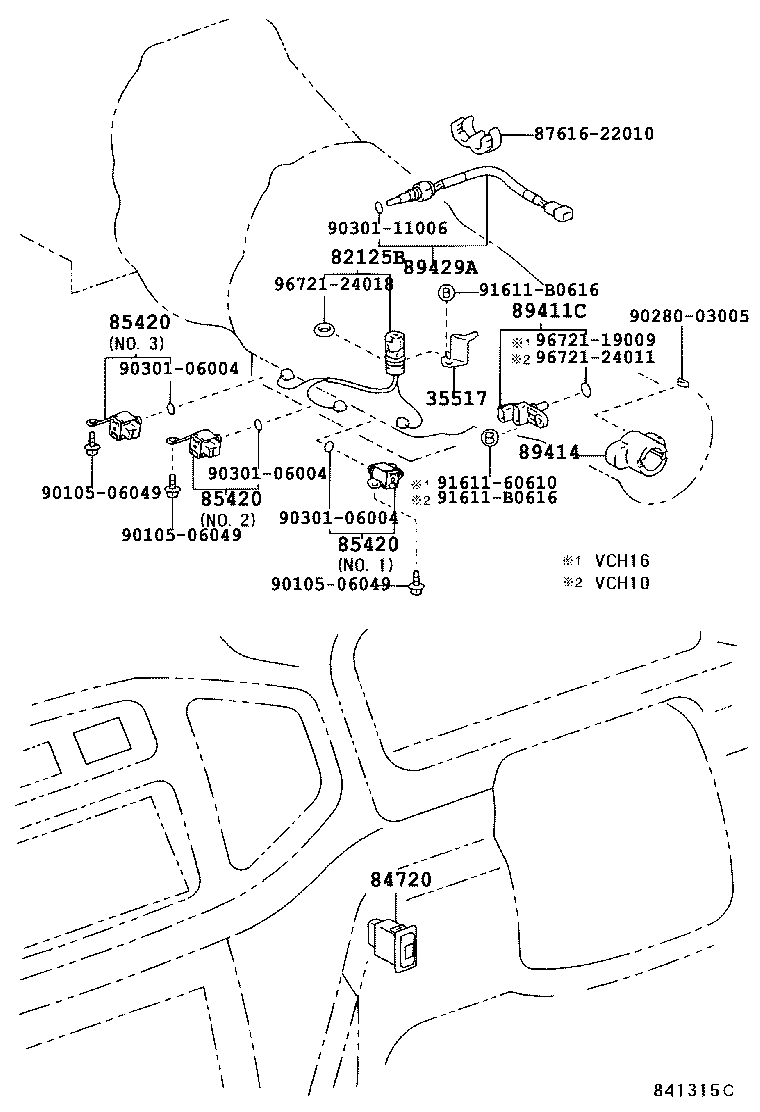

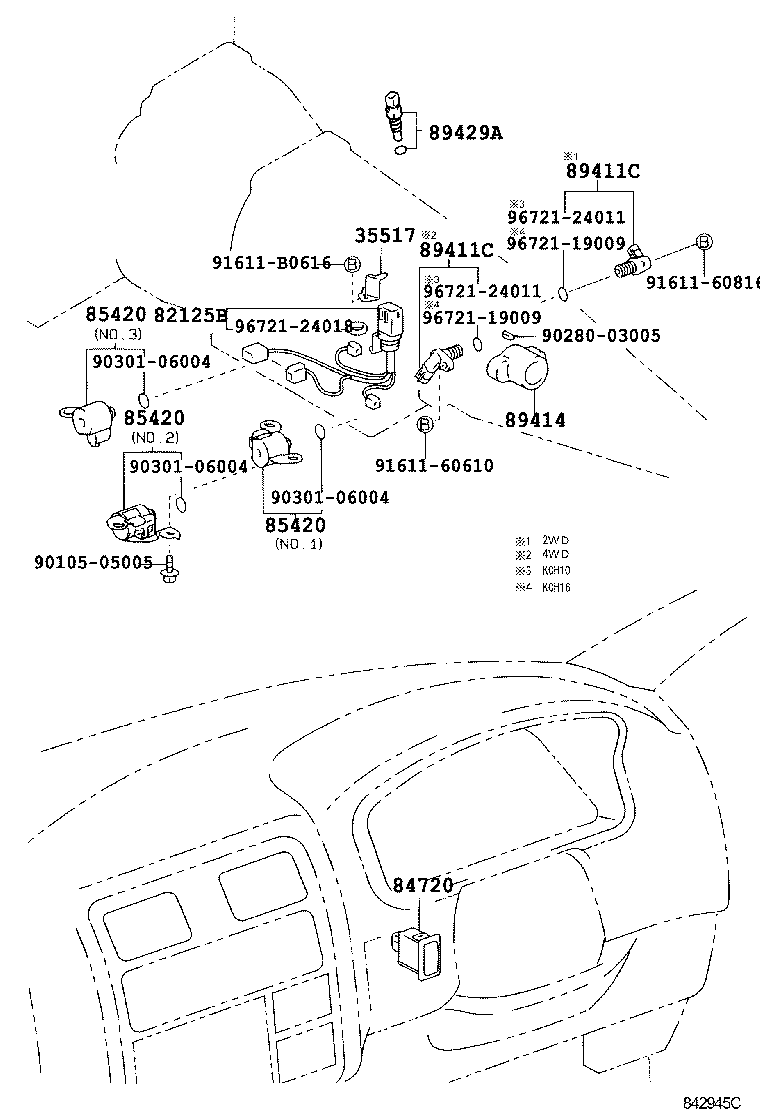

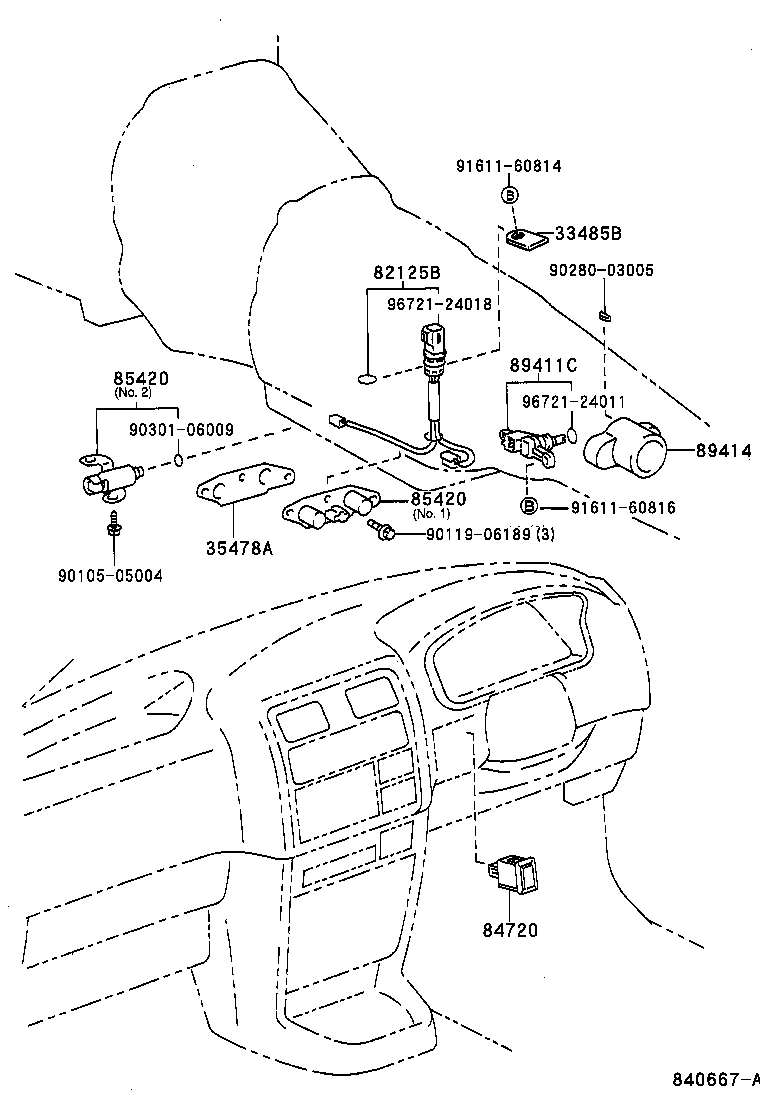

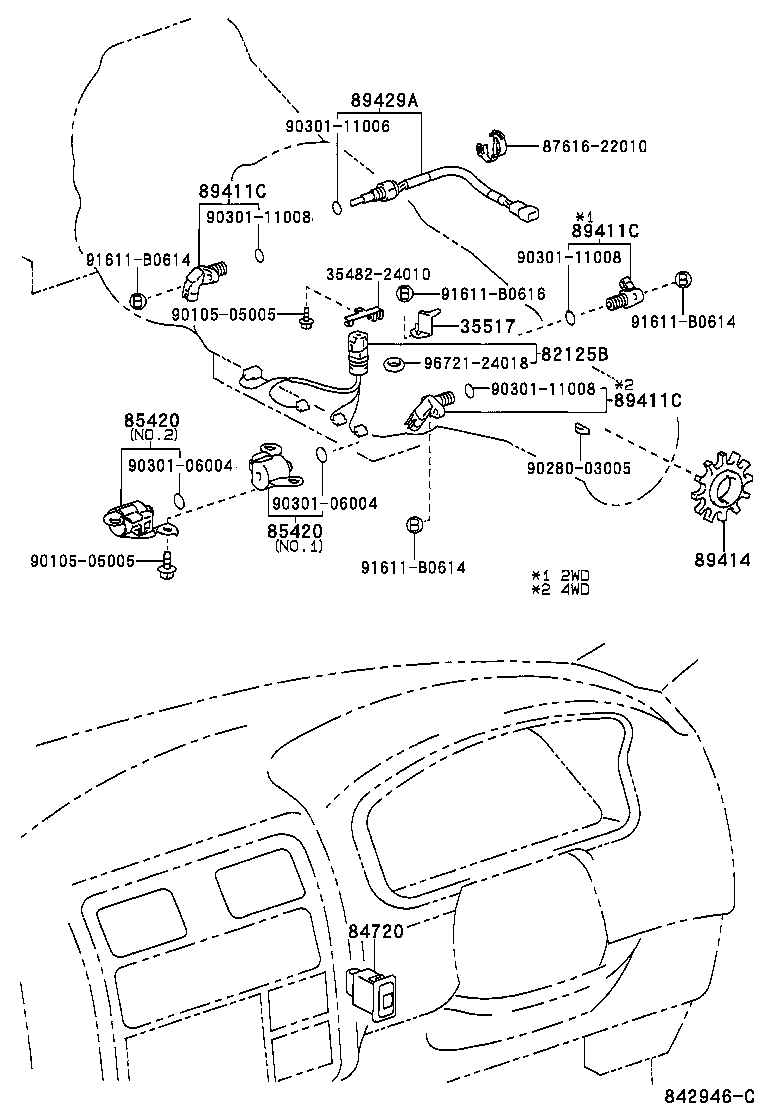

Figure 840666D 840666D 1995-08 → 1999-07 Figure 842945C 842945C 1999-07 → 2005-01 Figure 840667A 840667A 1995-08 → 1998-04 Figure 841315C 841315C 1997-08 → 1999-07 Figure 842946C 842946C 1999-07 → 2005-01

Part groups

PNCDescription
33485B Plate, Transmission Wire
35478A Gasket, Shift Control Solenoid
35517 Plate, Transmission Wire Lock
82125B Wire, Transmission
84720 Switch Assy, Pattern Select
85420 Solenoid Assy, Transmission
89411C Sensor, Speed
89414 Rotor, Sensor
89429A Sensor, Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
