Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 5 illustrations

Illustrations

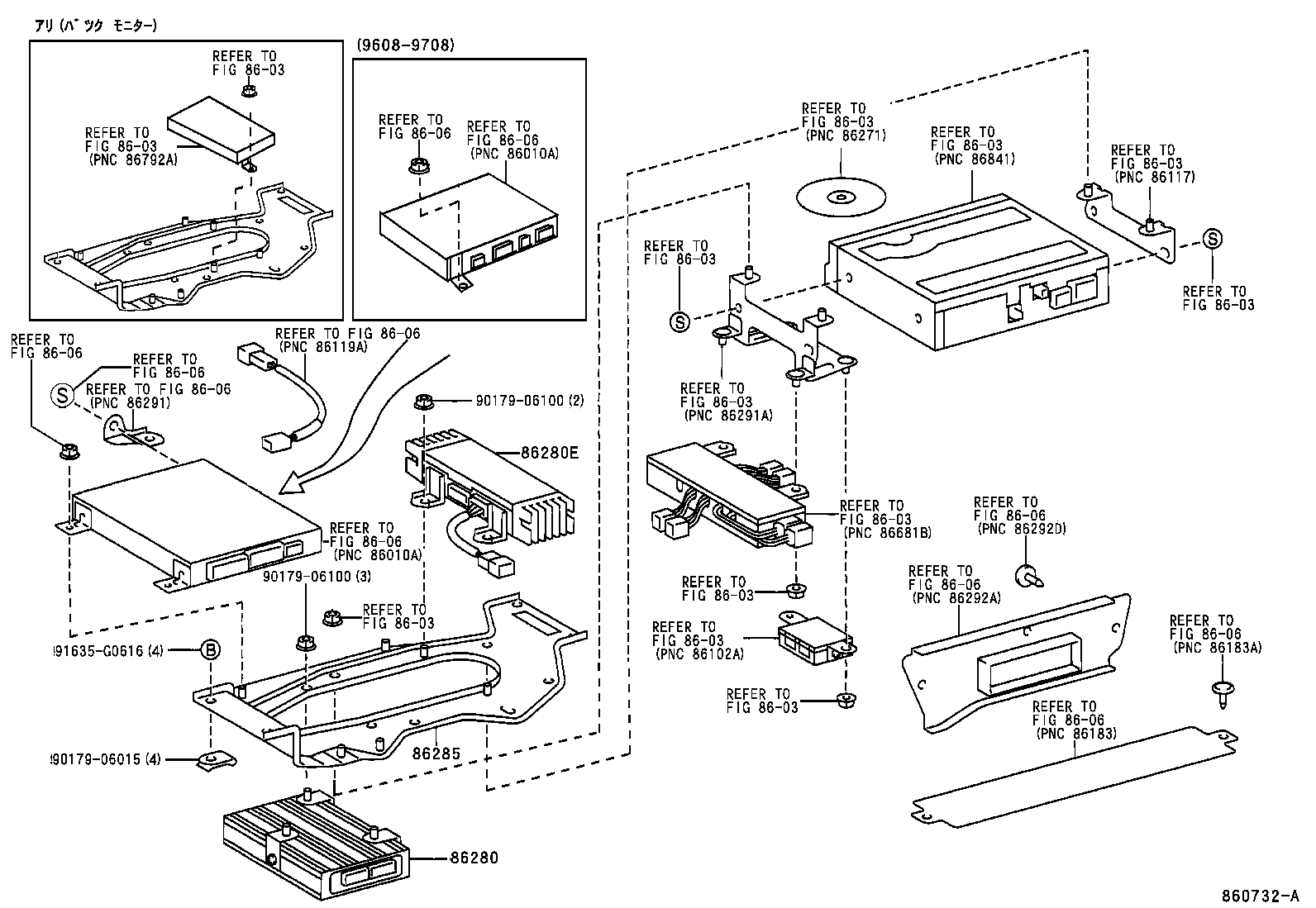

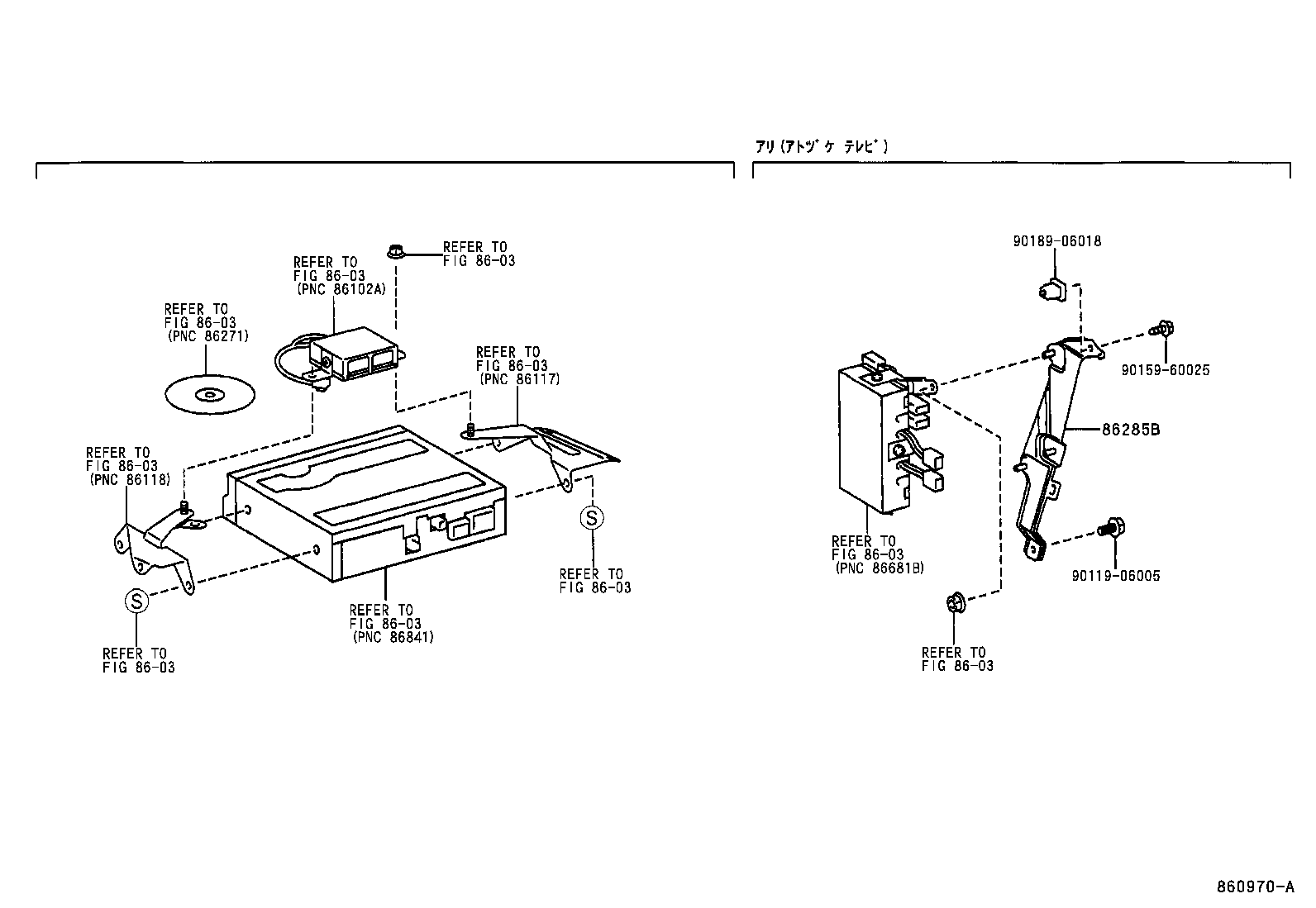

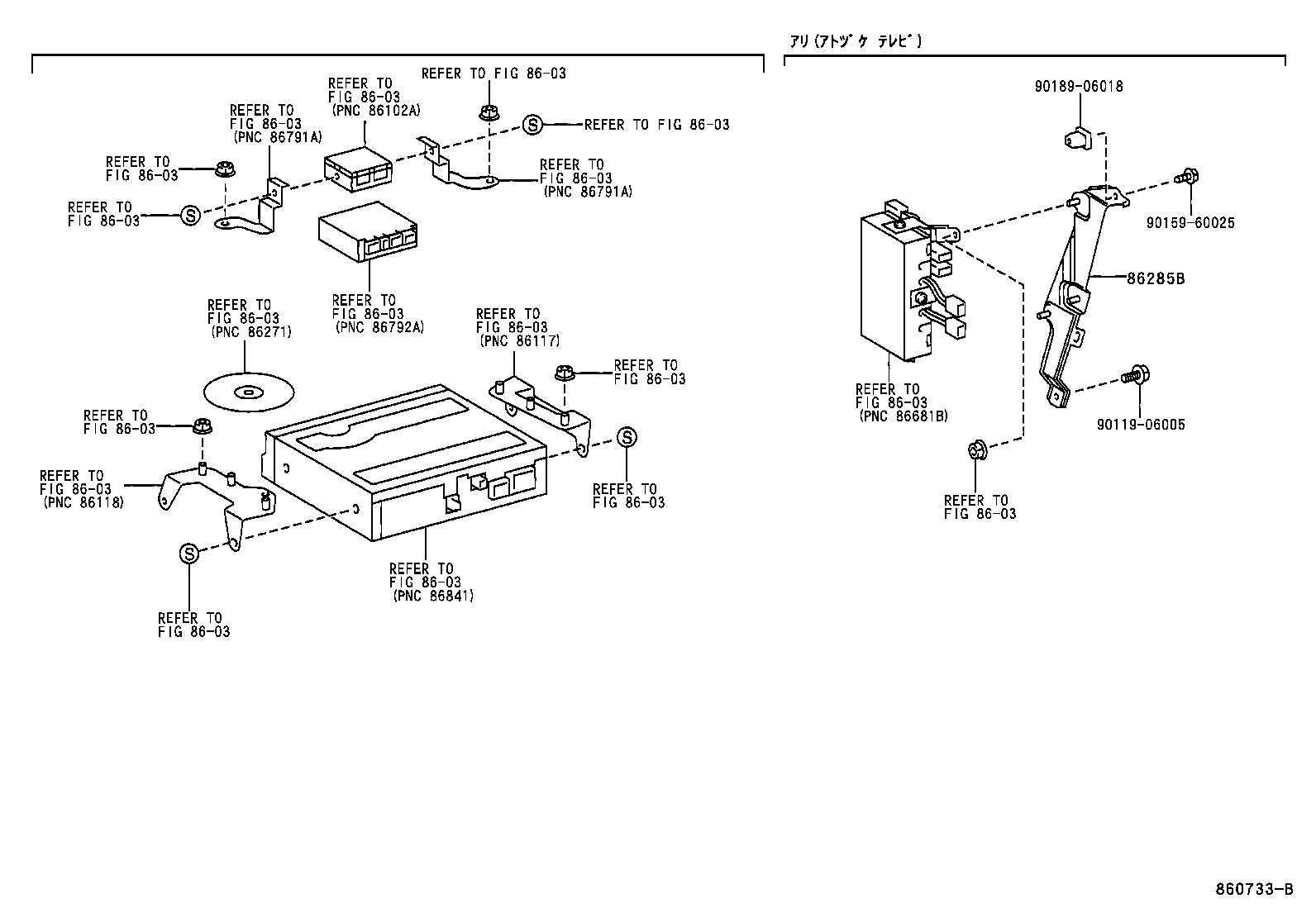

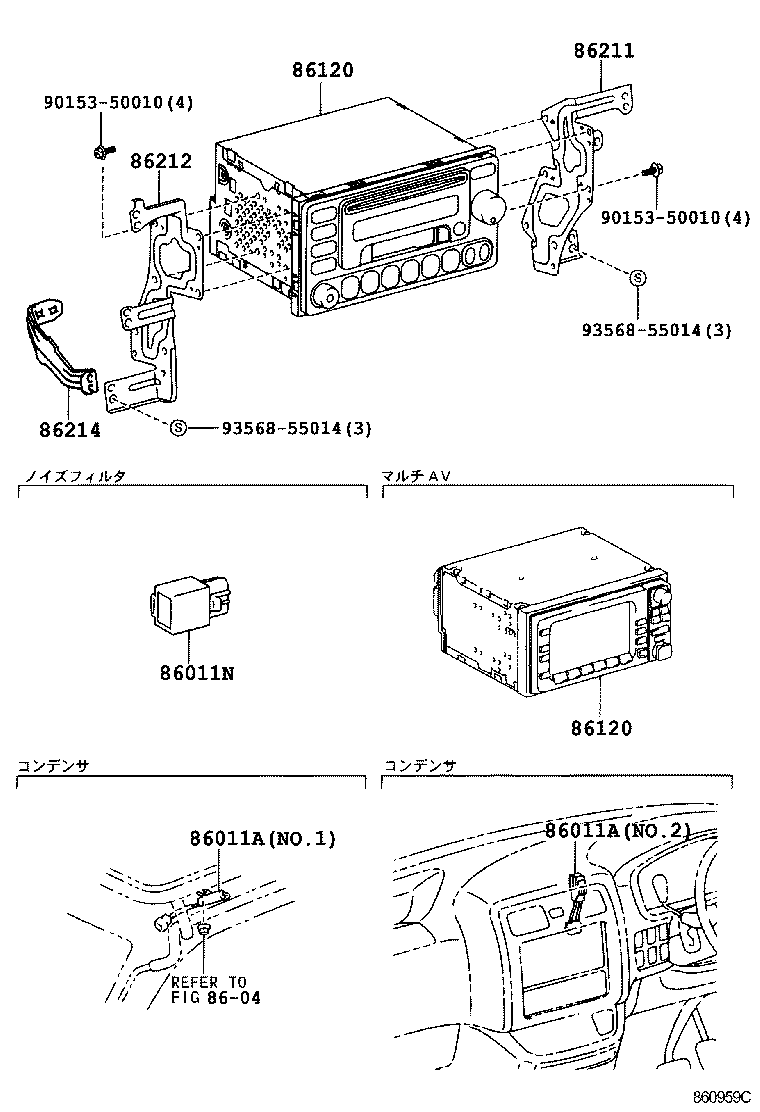

Figure 860731C 860731C 1995-08 → 1999-07 Figure 860959C 860959C 1999-07 → — Figure 860732A 860732A 1996-08 → — Figure 860733B 860733B 1997-08 → 1999-07 Figure 860970A 860970A 1999-07 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011N Filter, Noise
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86214 Bracket, Radio, NO.4
86280 Amplifier Assy, Stereo Component
86280E Amplifier Set, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
