Toyota Granvia/Grand Hiace
1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan
Discontinued model
Data version 2005-07
Speaker
6 part groups · 2 illustrations
Part groups

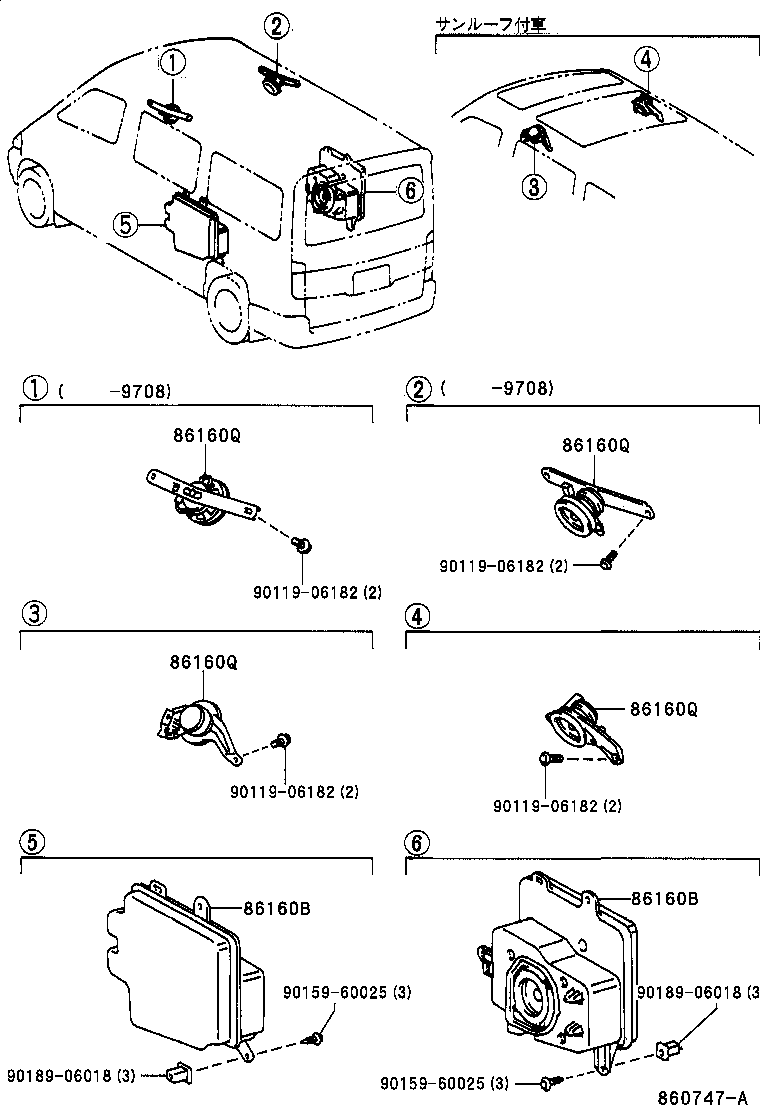

| PNC | Description |
|---|---|
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86160P | Speaker Assy, Front NO.2 |
| 86160Q | Speaker Assy, Roof |
| 86280F | Amplifier Assy, Stereo Component |
| 86285C | Bracket, Amplifier, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
