Toyota Granvia/Grand Hiace
1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan
Discontinued model
Data version 2005-07
Navigation & Front Monitor Display

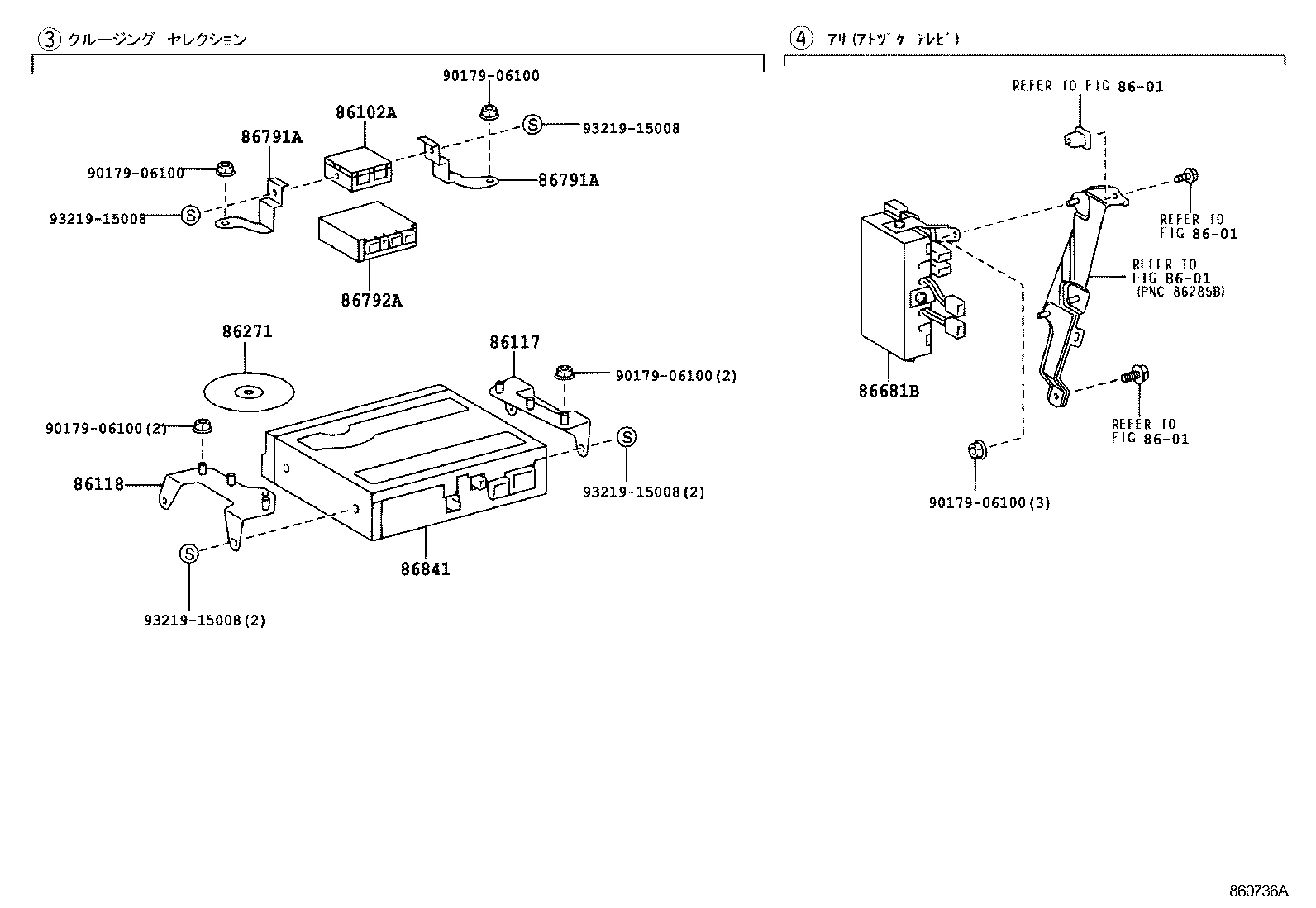

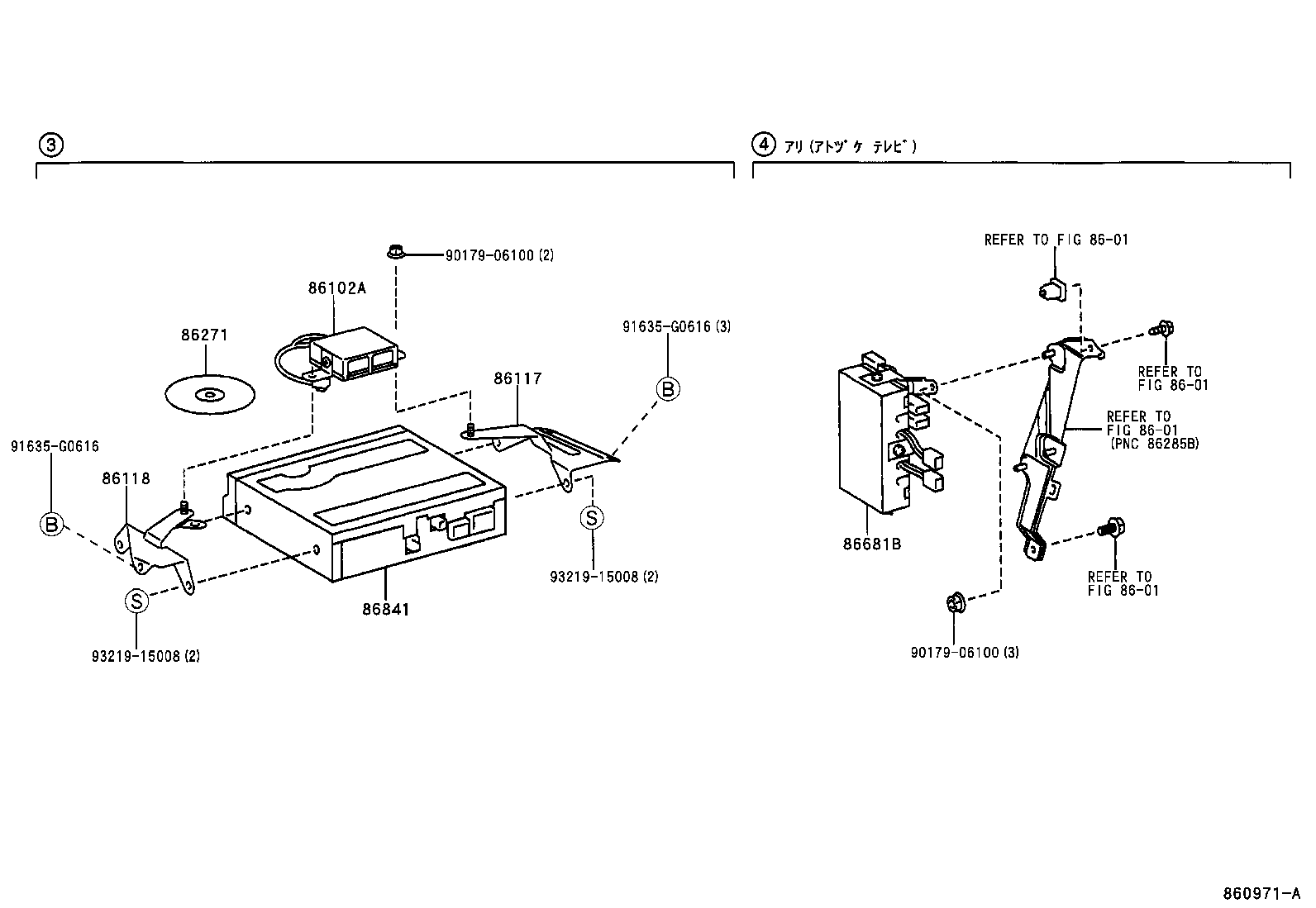

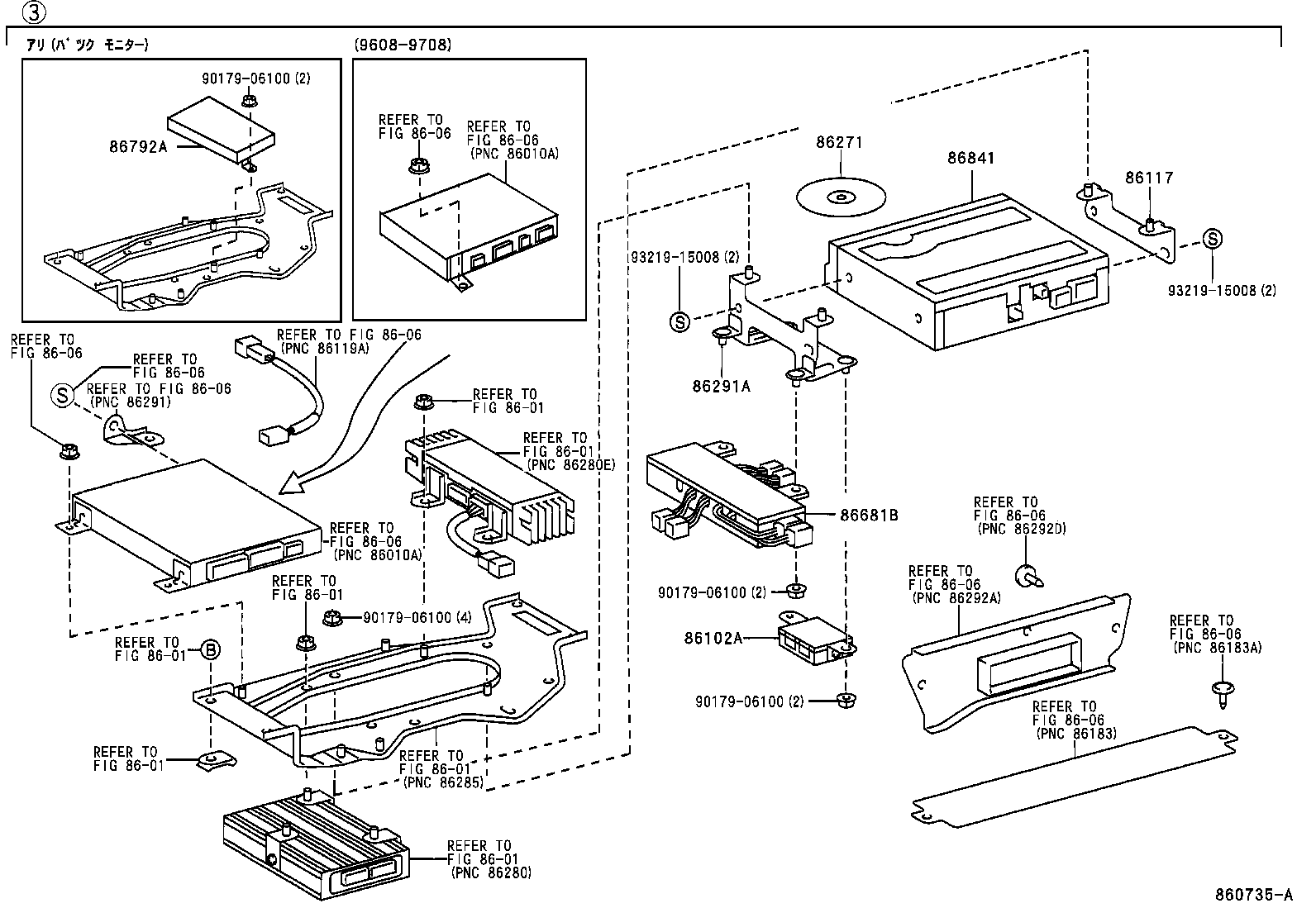

12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86102A | Selector Sub-assy, Antenna |
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86271 | Disc, Disc Player |
| 86291A | Bracket, Television |
| 86681B | Divider, Antenna |
| 86790A | Camera Assy, Television |
| 86791A | Bracket, Selector Sub-assy Antena |
| 86792A | Controller, Television Camera |
| 86841 | Computer, Navigation |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
