Heating & Air Conditioning - Cooler Unit

51 part groups · 10 illustrations

Illustrations

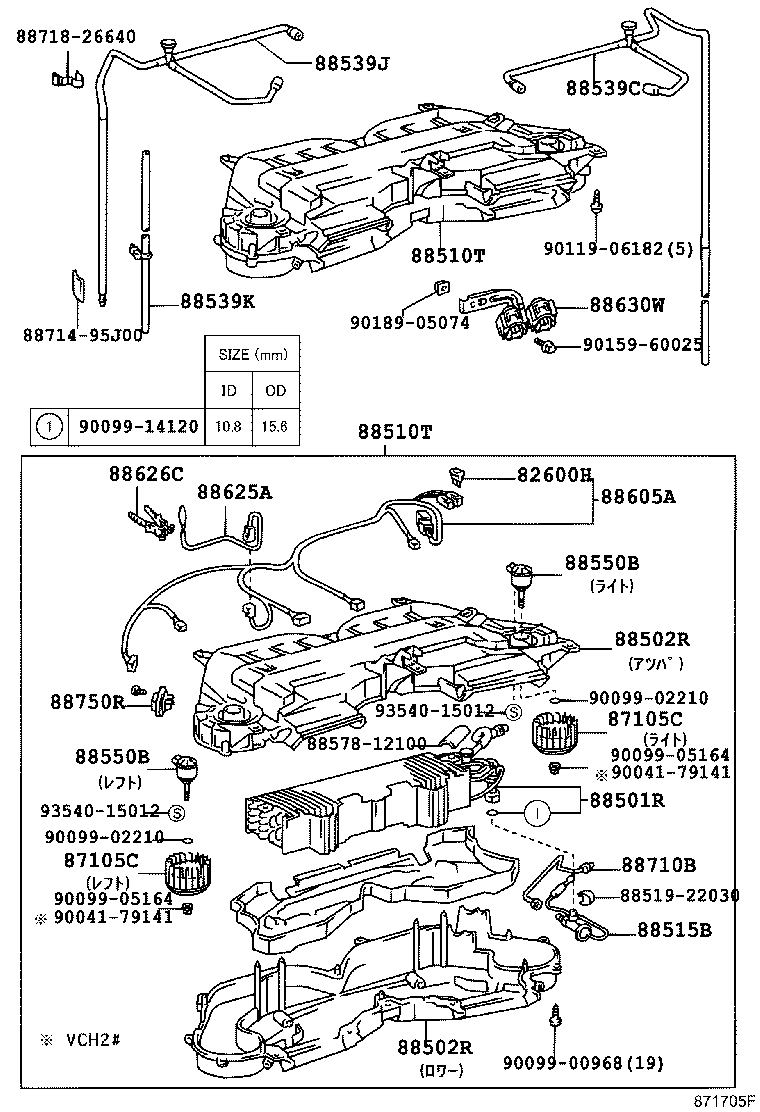

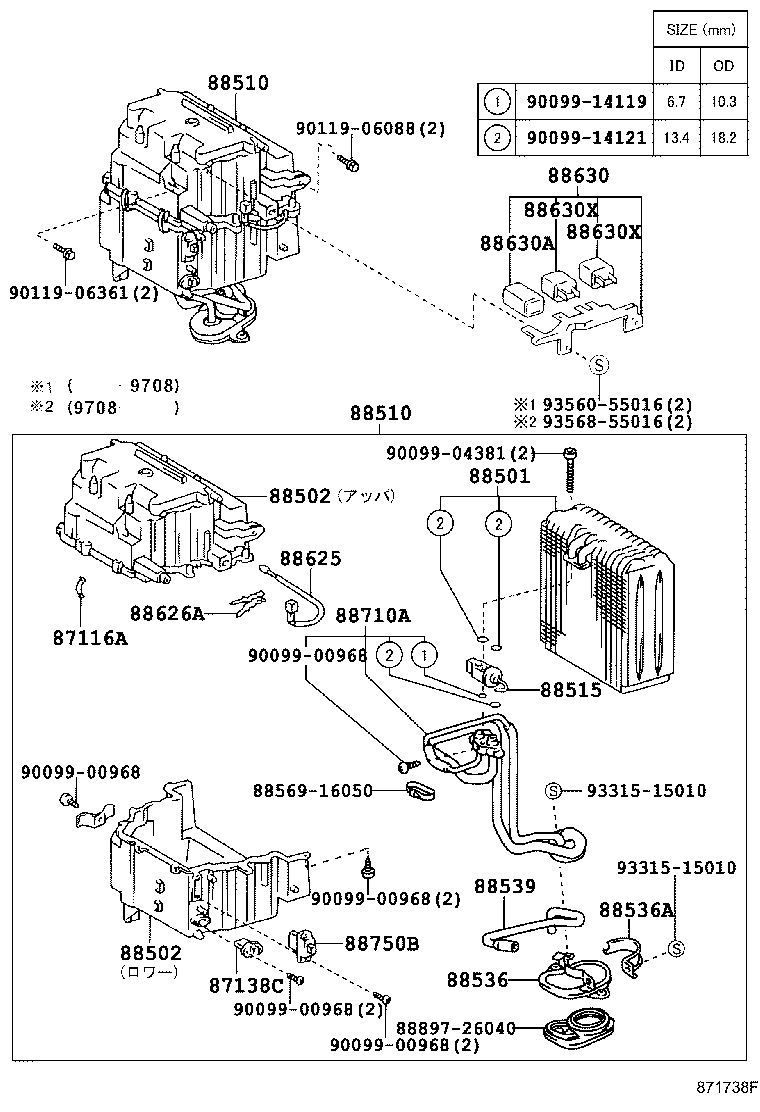

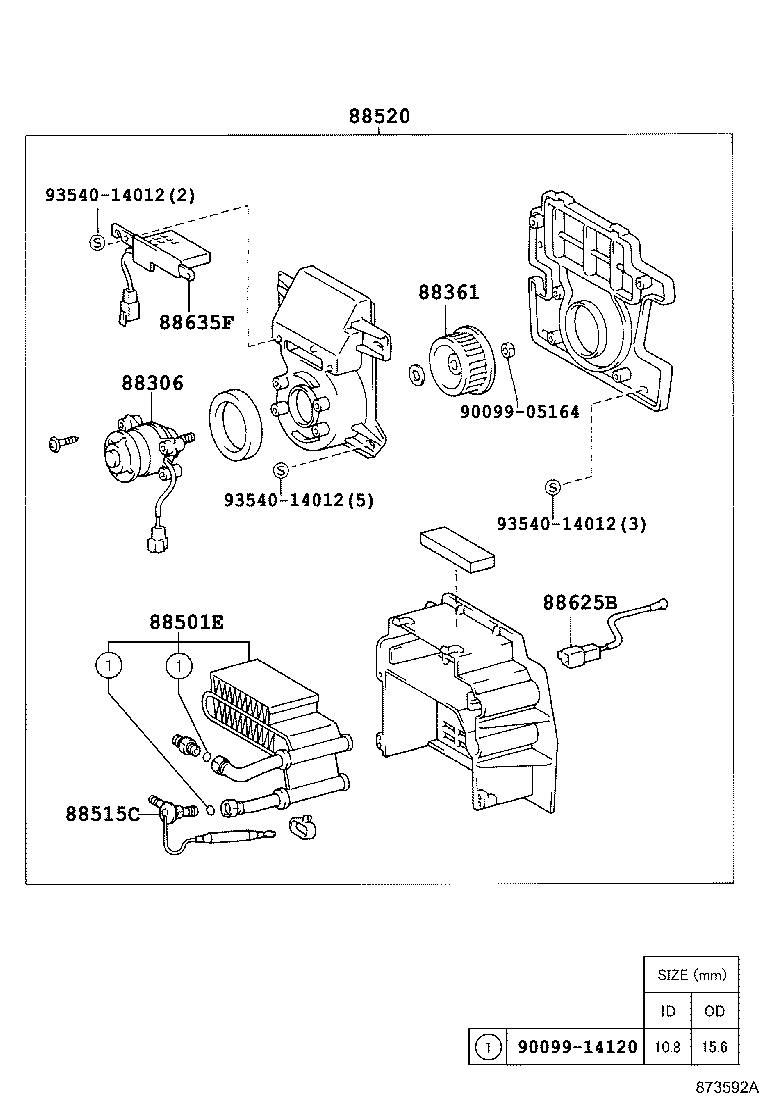

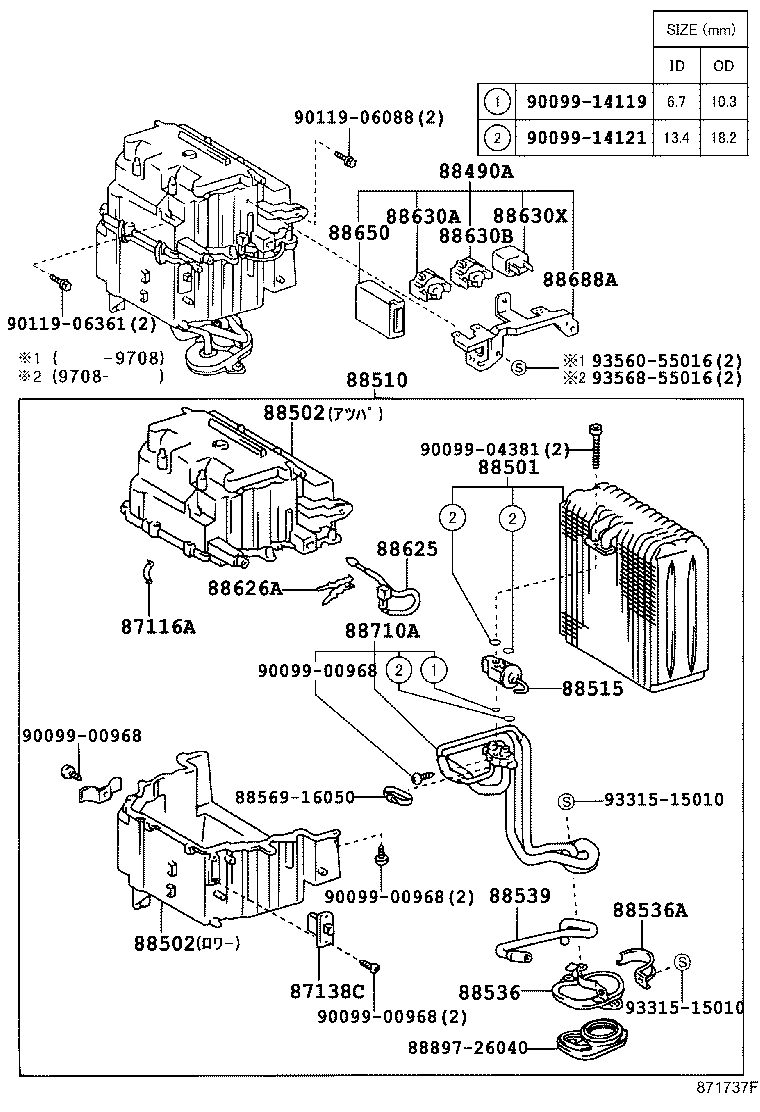

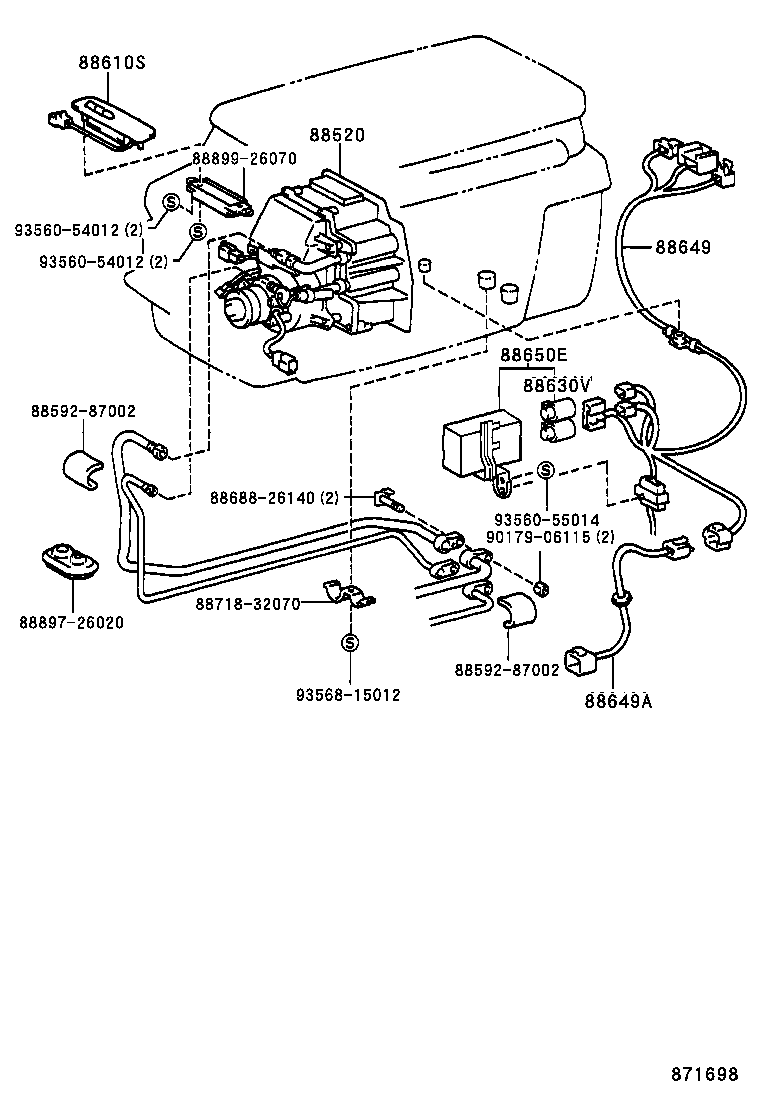

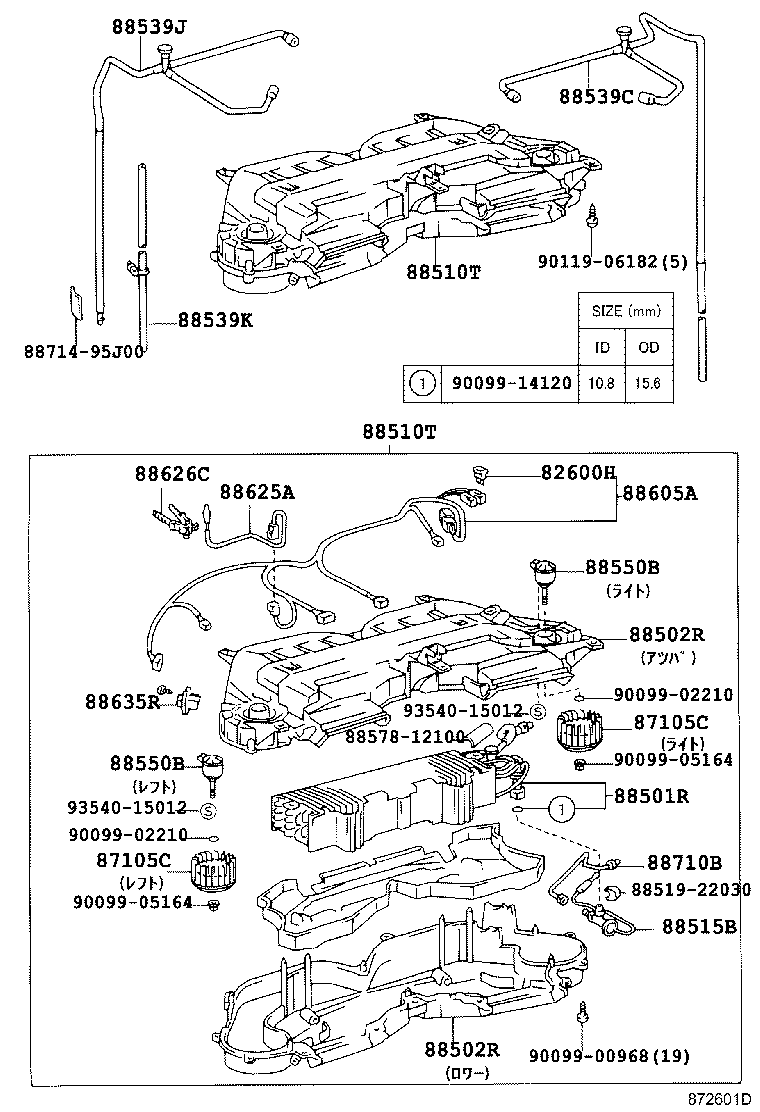

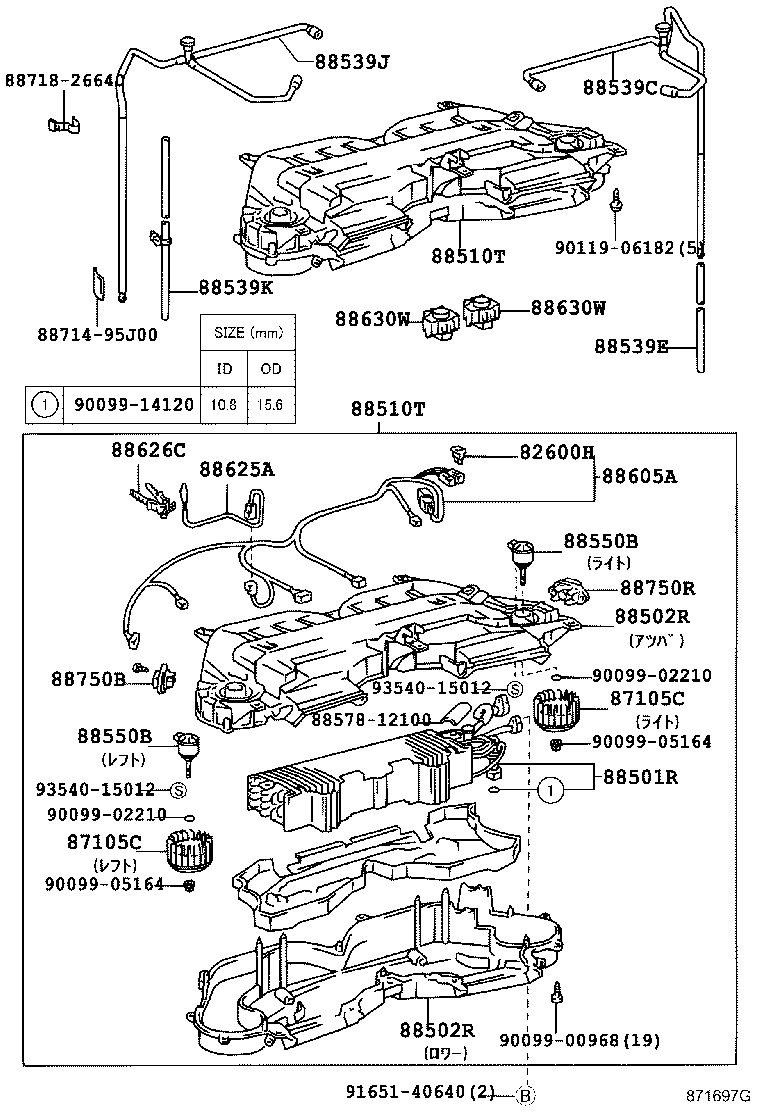

Figure 871704E 871704E 1995-08 → 1997-08 Figure 871737F 871737F 1995-08 → 2002-05 Figure 871738F 871738F 1995-08 → 1996-08 Figure 871738F 871738F 1996-08 → — Figure 872601D 872601D 1995-08 → 2002-05 Figure 871705F 871705F 1995-08 → 1996-08 Figure 871705F 871705F 1996-08 → — Figure 871697G 871697G 1997-08 → 2002-05 Figure 871698 871698 1995-08 → 2002-05 Figure 873592A 873592A 1995-08 → 2002-05

Part groups

PNCDescription
82600H Fuse, Fuse Block
87105C Fan Sub-assy, Blower, Rear
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88490A Parts Assy, Electrical
88501 Evaporator Sub-assy, Cooler, NO.1
88501E Evapolator Sub-assy, Cooler (COOL BOX)
88501R Evaporator Sub-assy (REAR)
88502 Case Sub-assy, Cooling Unit
88502R Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88515C Valve, Cooling Box Expansion
88520 Box Assy, Cooling
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88550B Motor Assy, Blower
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605A Harness Sub-assy, Cooler Wiring
88610S Switch Assy, Control
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88625B Thermistor, Cooler NO.3
88626A Holder, Thermistor
88626C Holder, Thermistor, Rear
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88630V Relay Assy
88630W Relay Assy
88630X Relay Assy
88635F Resister, Cooler Blower
88635R Resistor, Blower
88649 Wiring, Cooler, NO.2
88649A Wiring, Cooler, NO.3
88650 Amplifier Assy, Cooler Stabilizer
88650E Amplifier Assy, Air Conditioner, NO.1
88688A Bracket, Cooler Stabilizer Amplifier
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
88750B Transistor Assy, Blower Resistor
88750R Transistor Assy, Blower Resistor(REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
