Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

36 part groups · 12 illustrations

Illustrations

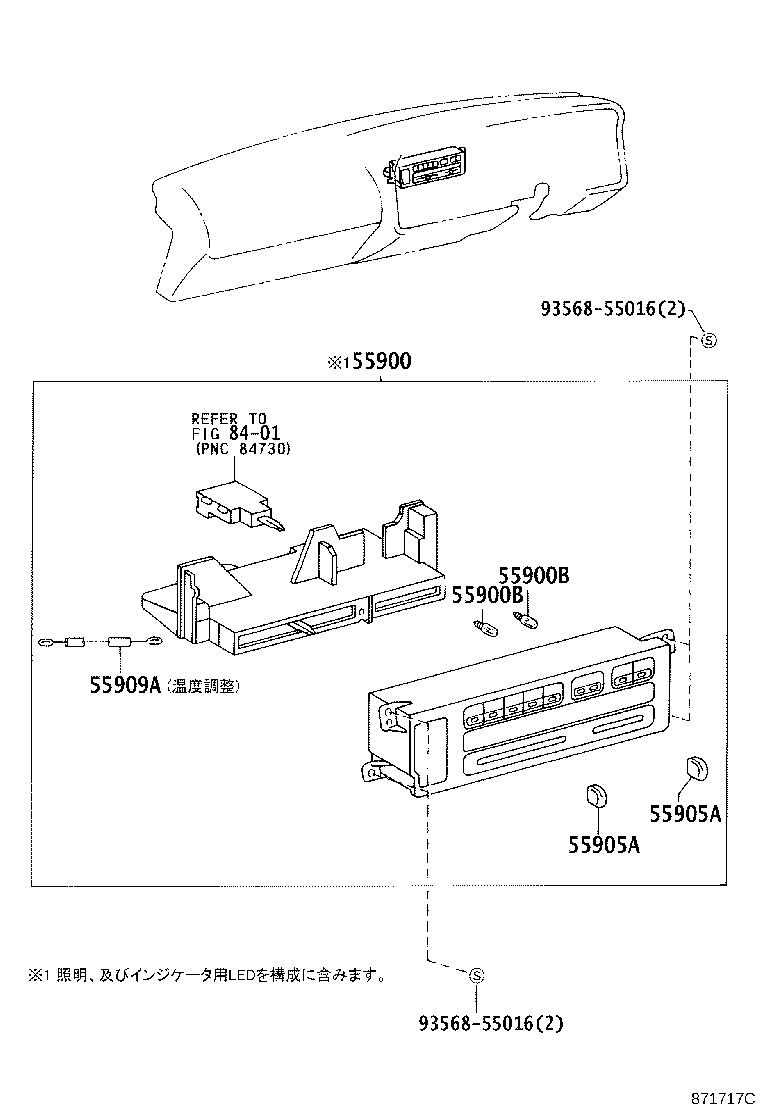

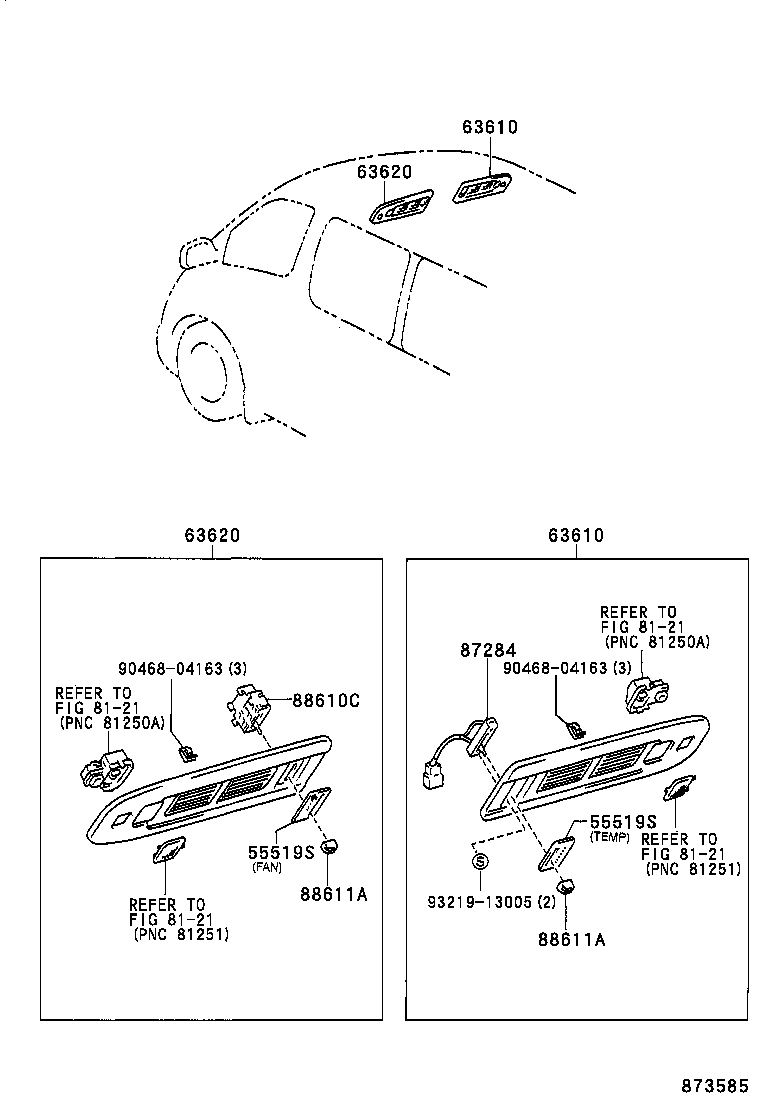

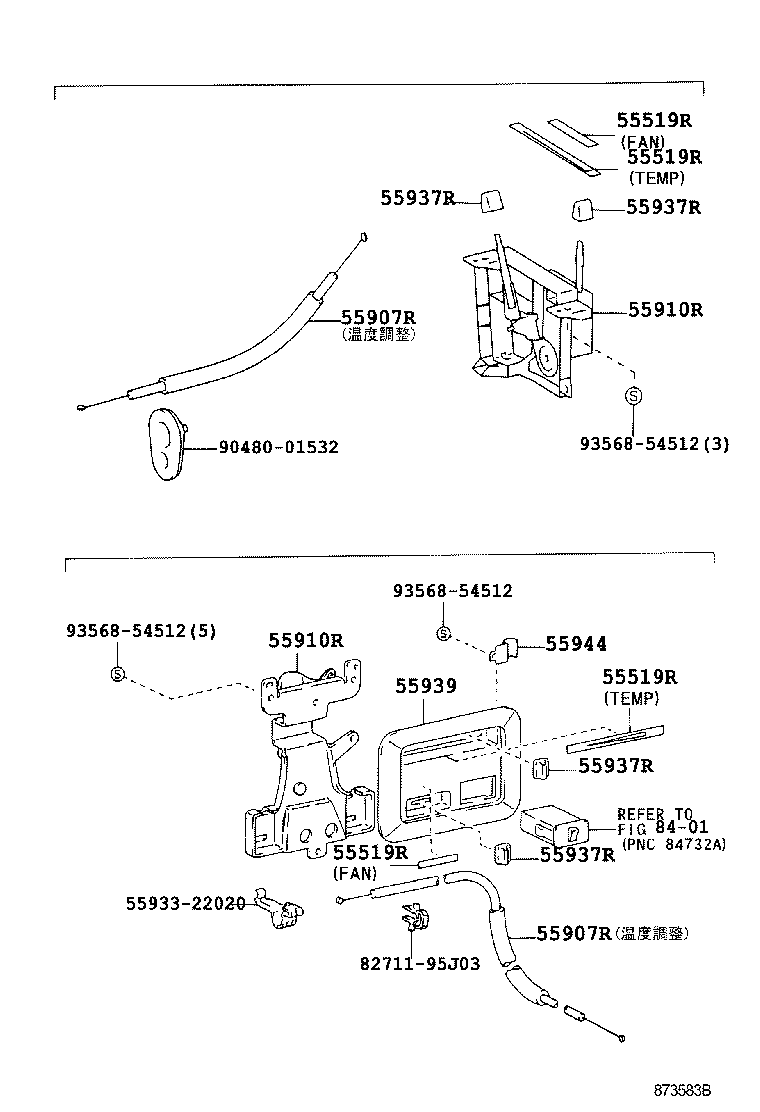

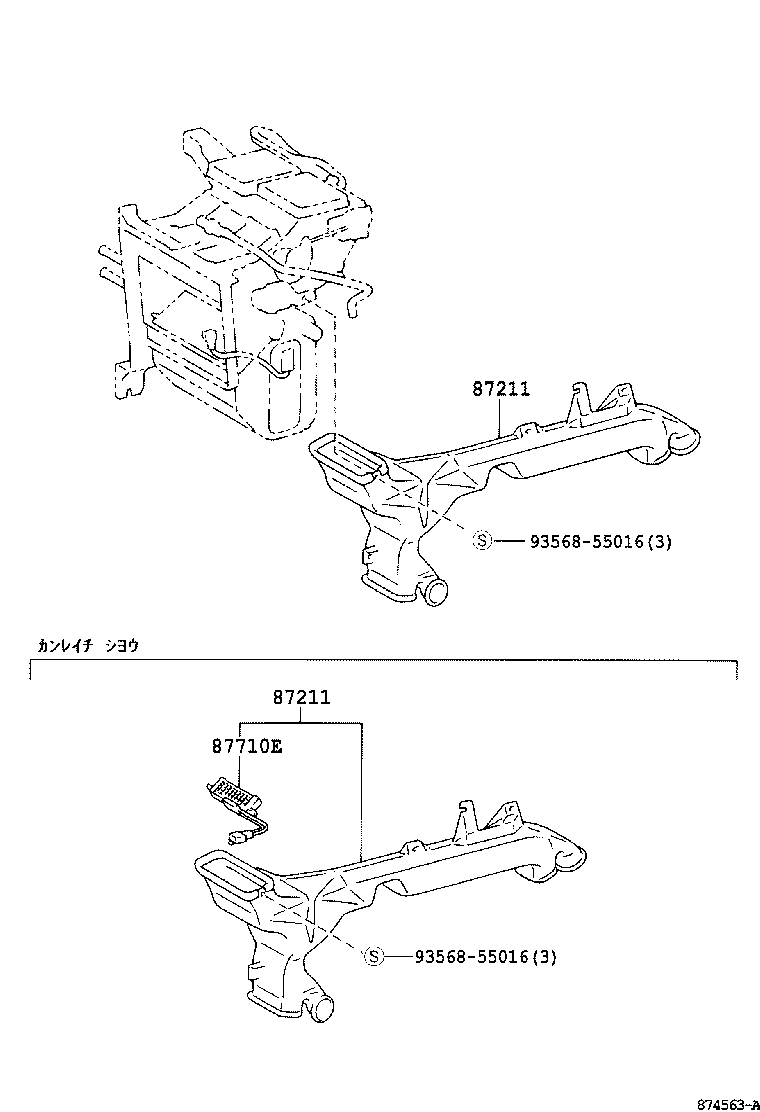

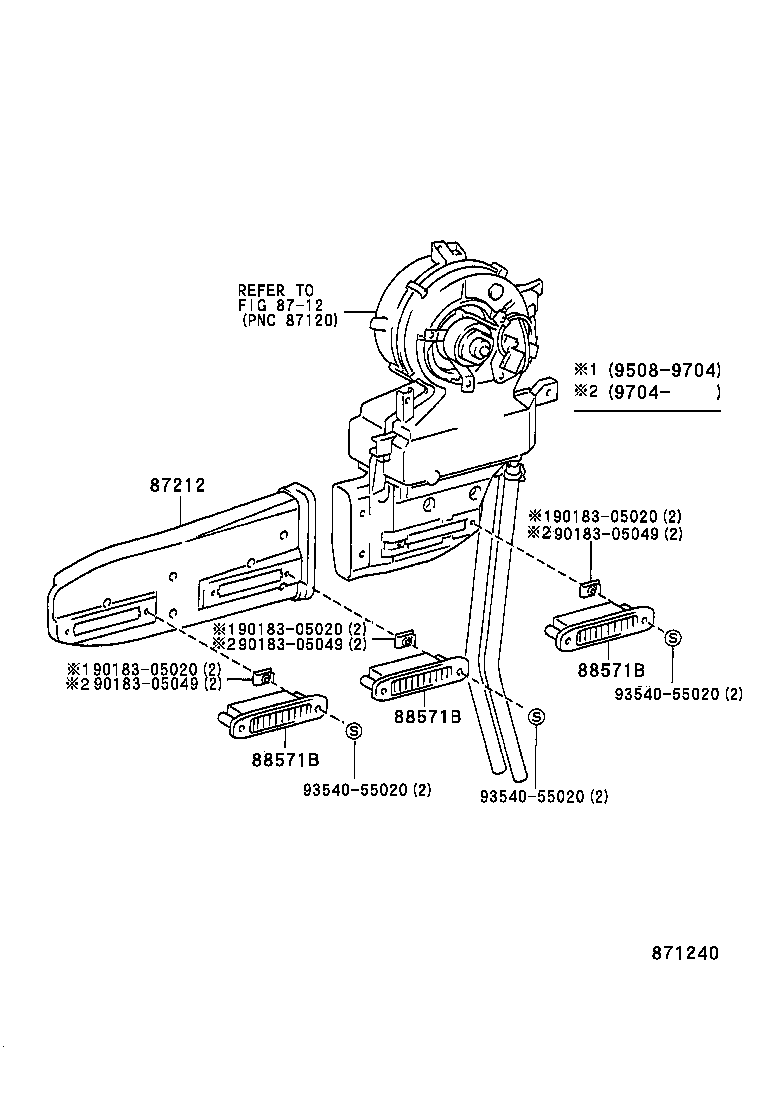

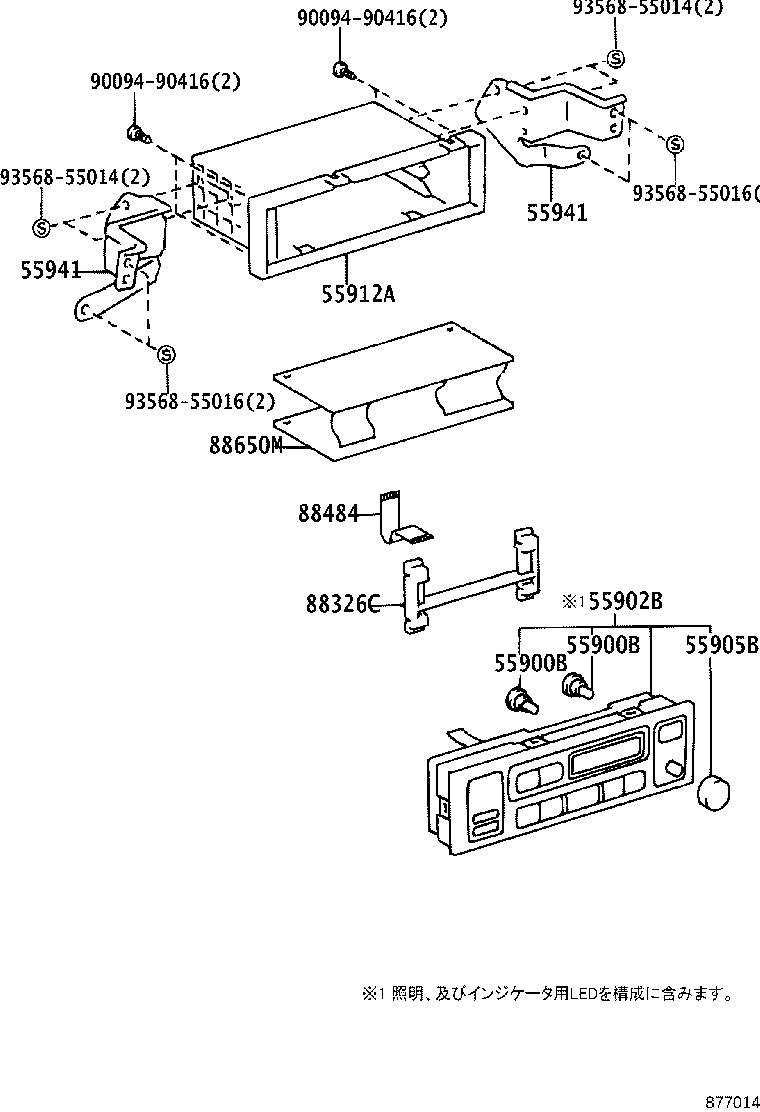

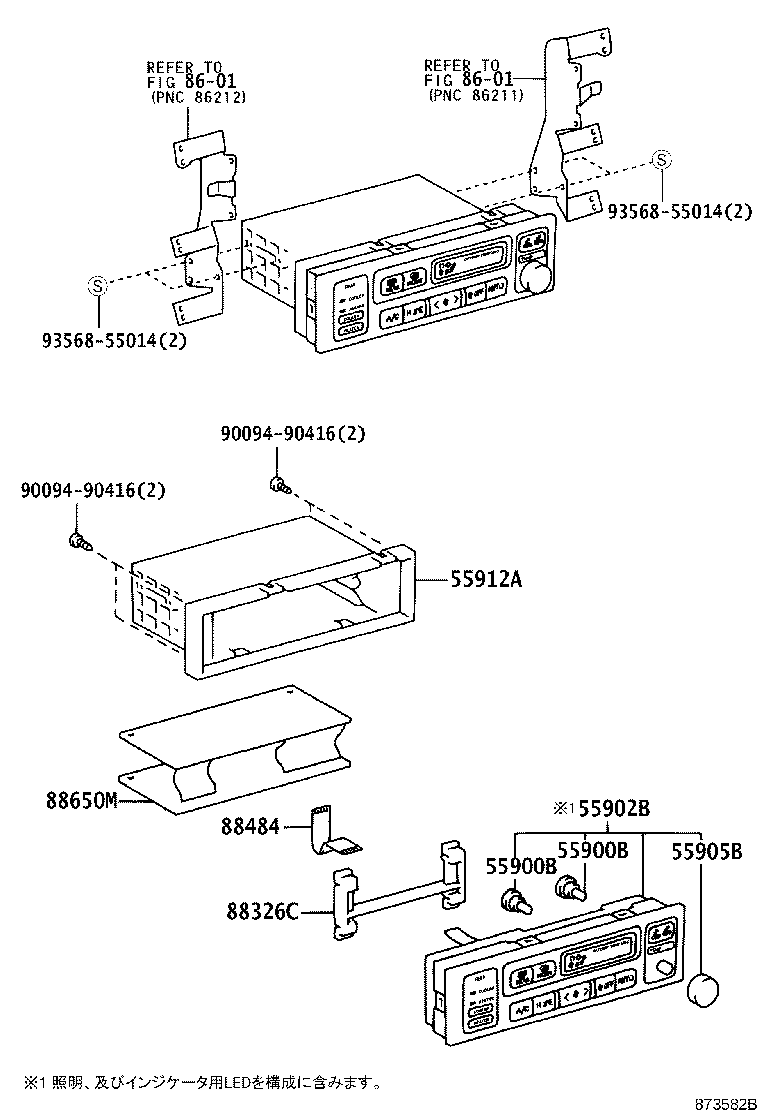

Figure 877013A 877013A 1995-08 → 1997-08 Figure 871717C 871717C 1995-08 → 1999-07 Figure 877014A 877014A 1995-08 → 1996-08 Figure 877014A 877014A 1996-08 → 1999-07 Figure 873582B 873582B 1999-07 → — Figure 874563A 874563A 1995-08 → — Figure 873583B 873583B 1995-08 → — Figure 873584B 873584B 1997-08 → — Figure 871240 871240 1995-08 → — Figure 872676A 872676A 1998-04 → — Figure 873585 873585 1995-08 → — Figure 872868A 872868A 1995-08 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55519R Plate, Heater Control Name
55519S Label, Rear Cooler Control Information
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55907R Cable Sub-assy, Temperature Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910R Control Assy, Heater
55912A Housing, Heater Control
55937R Knob, Heater Control Lever
55939 Ornament, Heater Control
55941 Bracket, Heater Control
55944 Plate, Heater Control Support
63610 Register Assy, Air Outlet, NO.1
63620 Register Assy, Air Outlet, NO.2
81942A Sheet, Heater Control Name, NO.1
87125B Grille, Heater Air Outlet
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87284 Resistor Sub-assy, Variable
87710E Quick Heater Assy
88326C Plate, Cover
88484 Wire, Cooler, NO.1
88571B Grille, Air Outlet
88610C Switch Assy, Cooler Control
88611A Knob, Cooler Control Switch
88625C Thermistor, Cooler
88648A Wiring, Cooler
88650M Computer Assy, Air Conditioner
88669A Hose (FOR COOLER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
