Toyota Granvia/Grand Hiace

1995-08 → 2005-01 · chassis KCH1#,RCH11,VCH1#,2# · catalogue 713110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

54 part groups · 19 illustrations

Illustrations

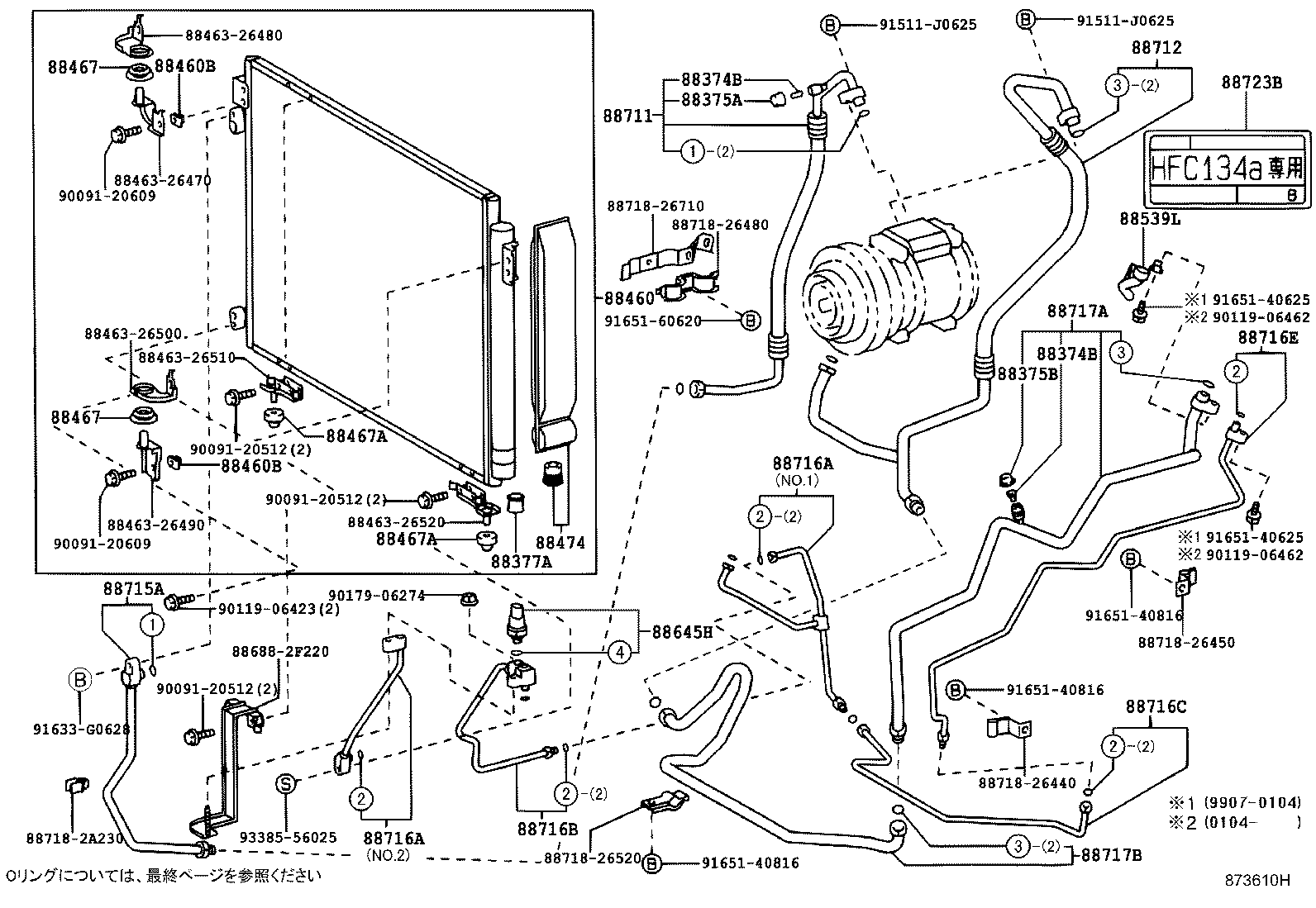

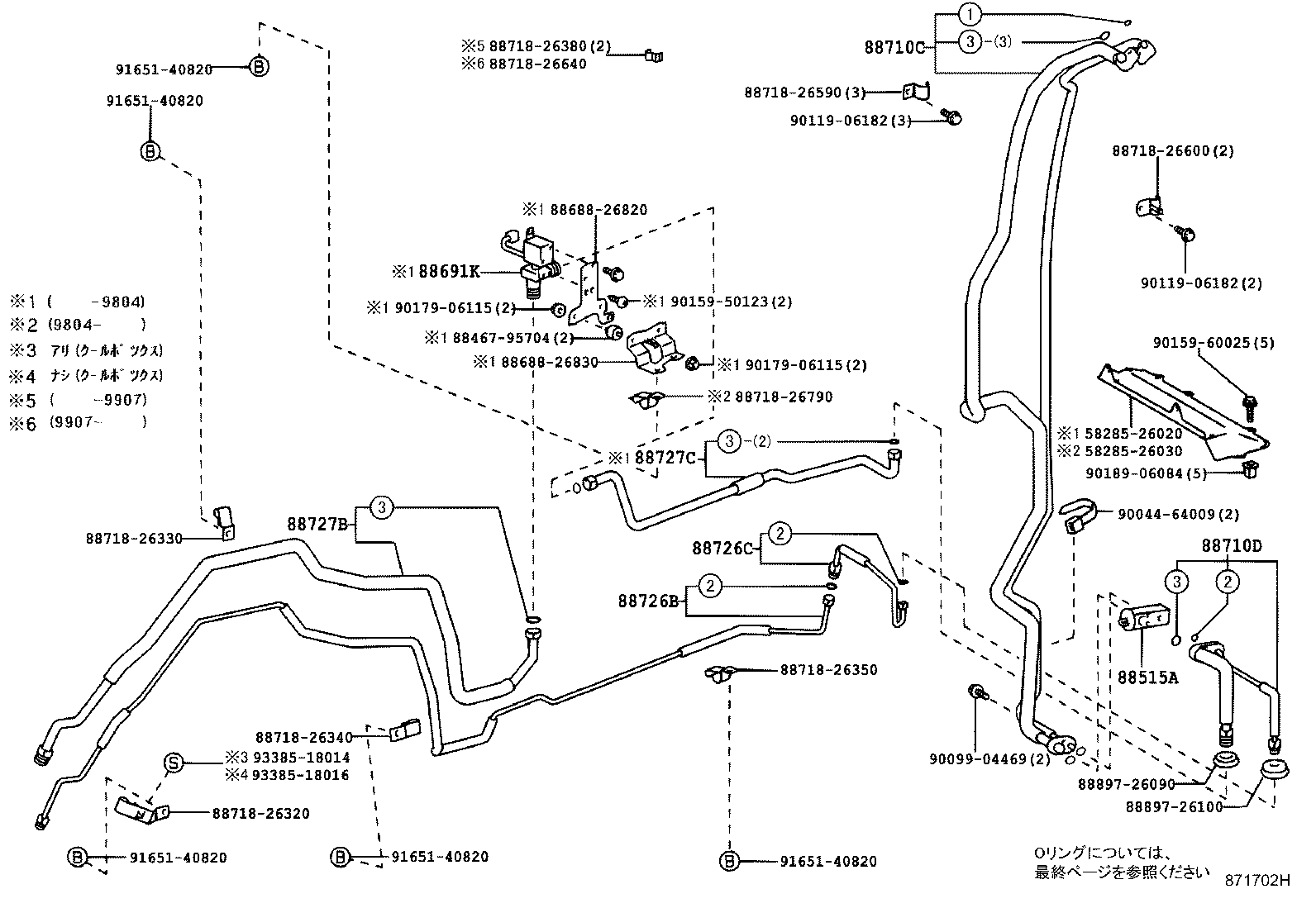

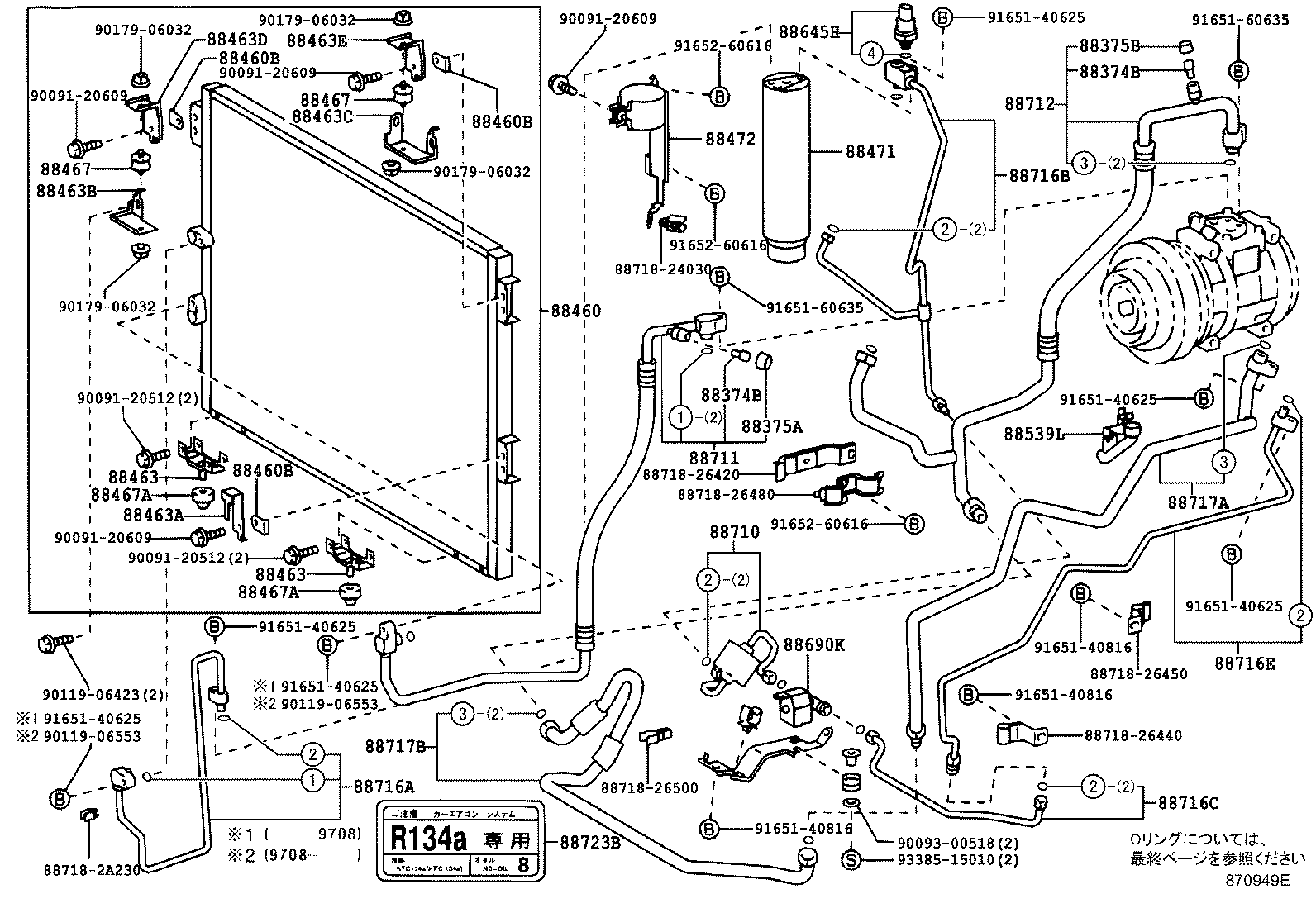

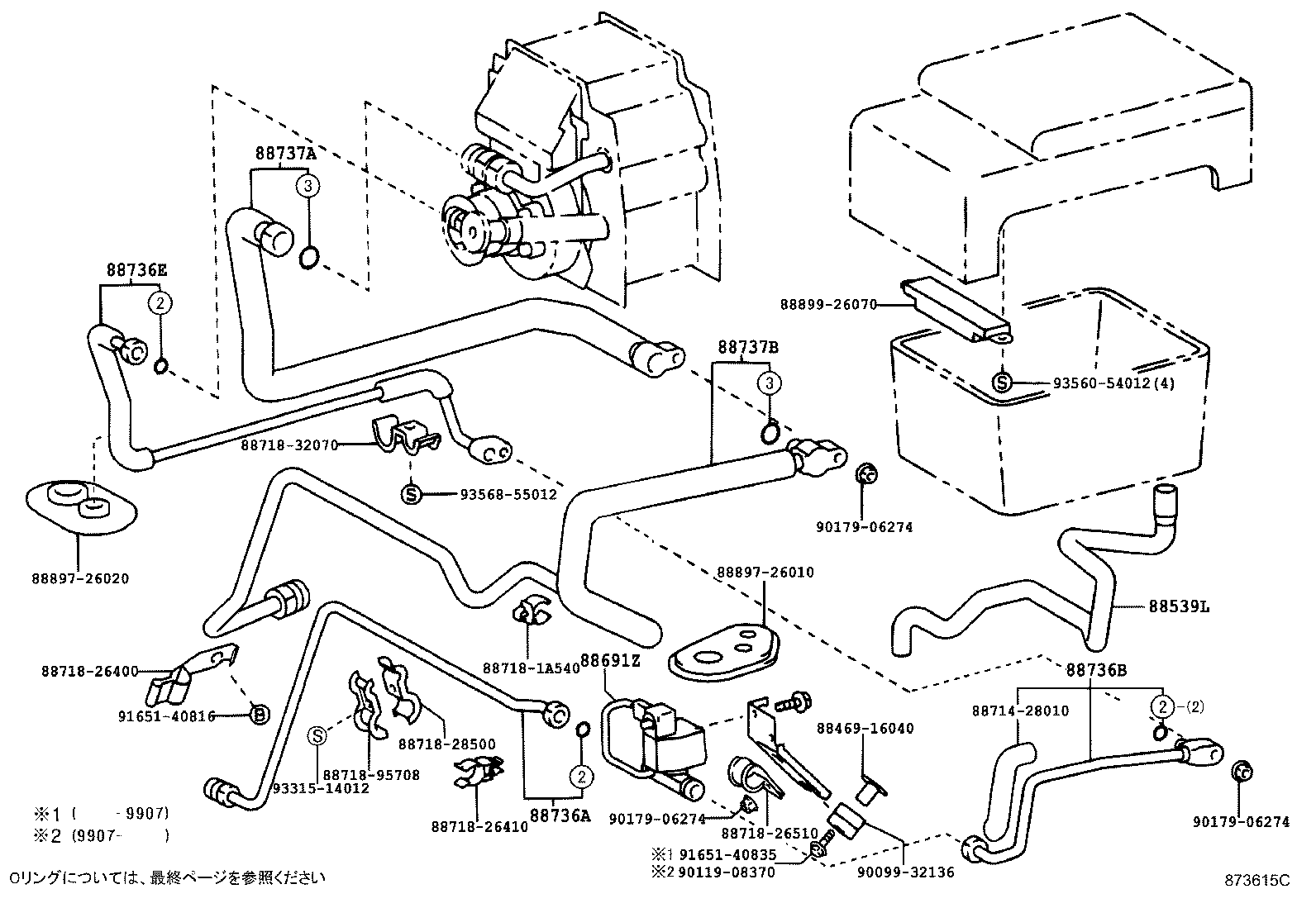

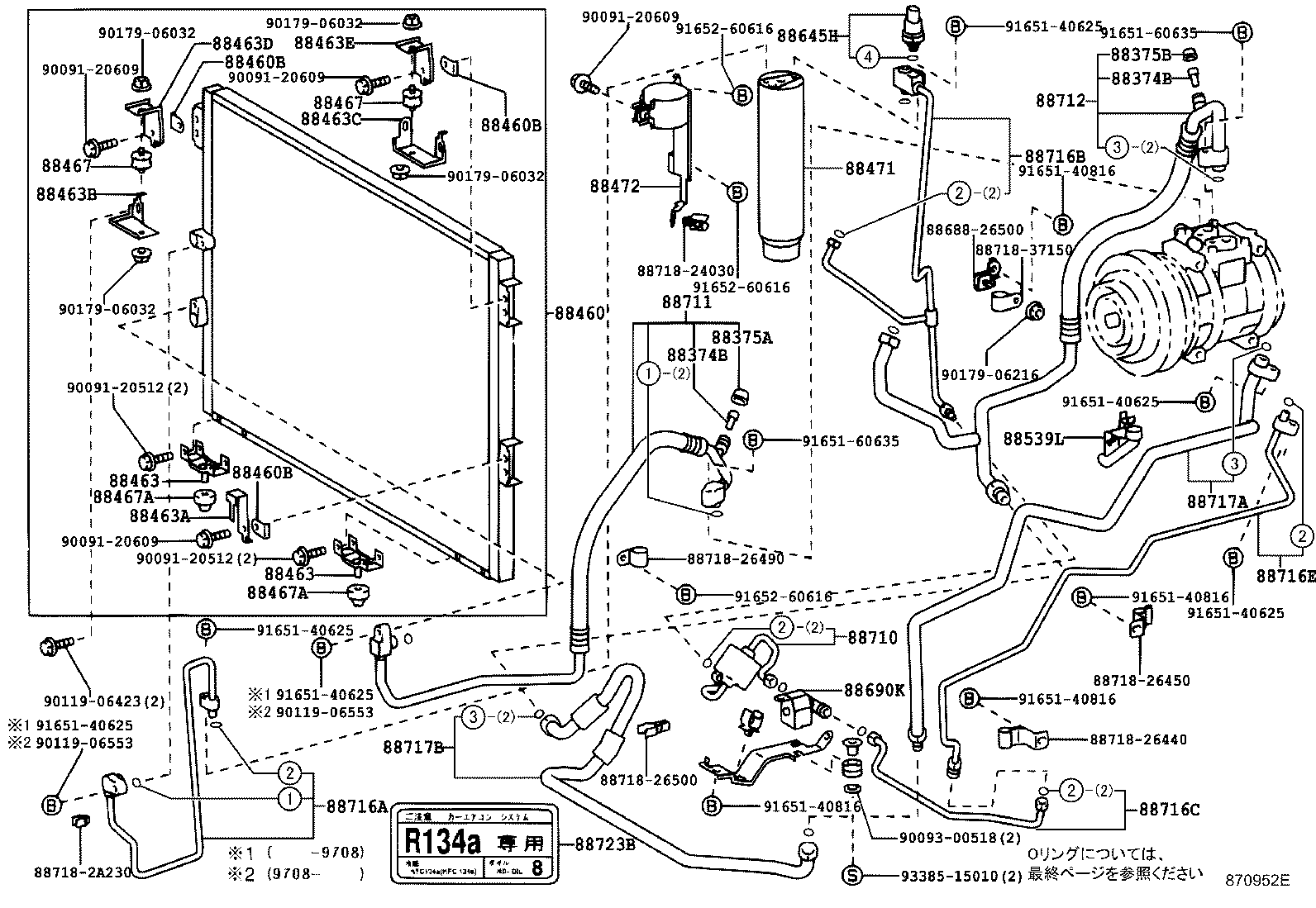

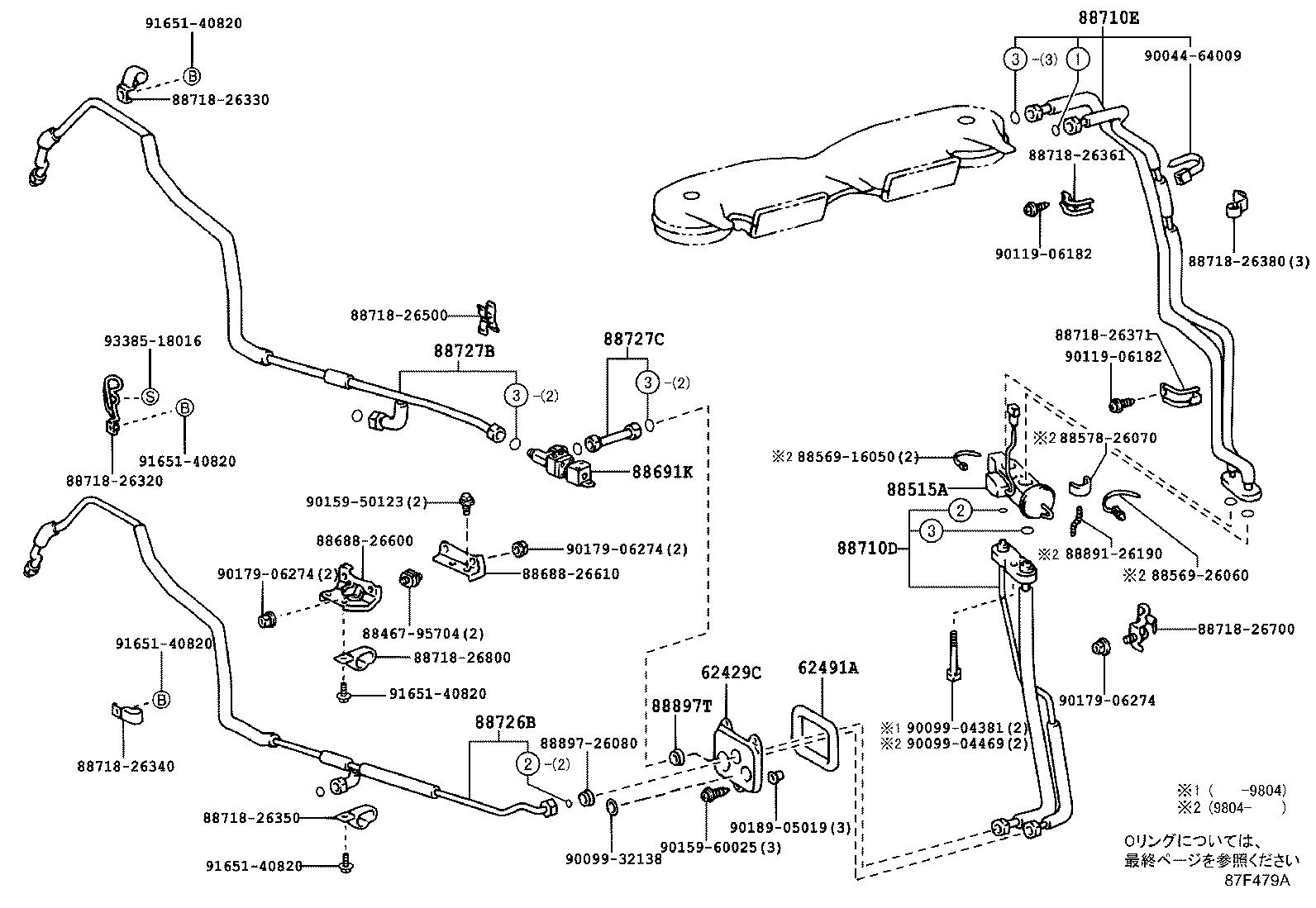

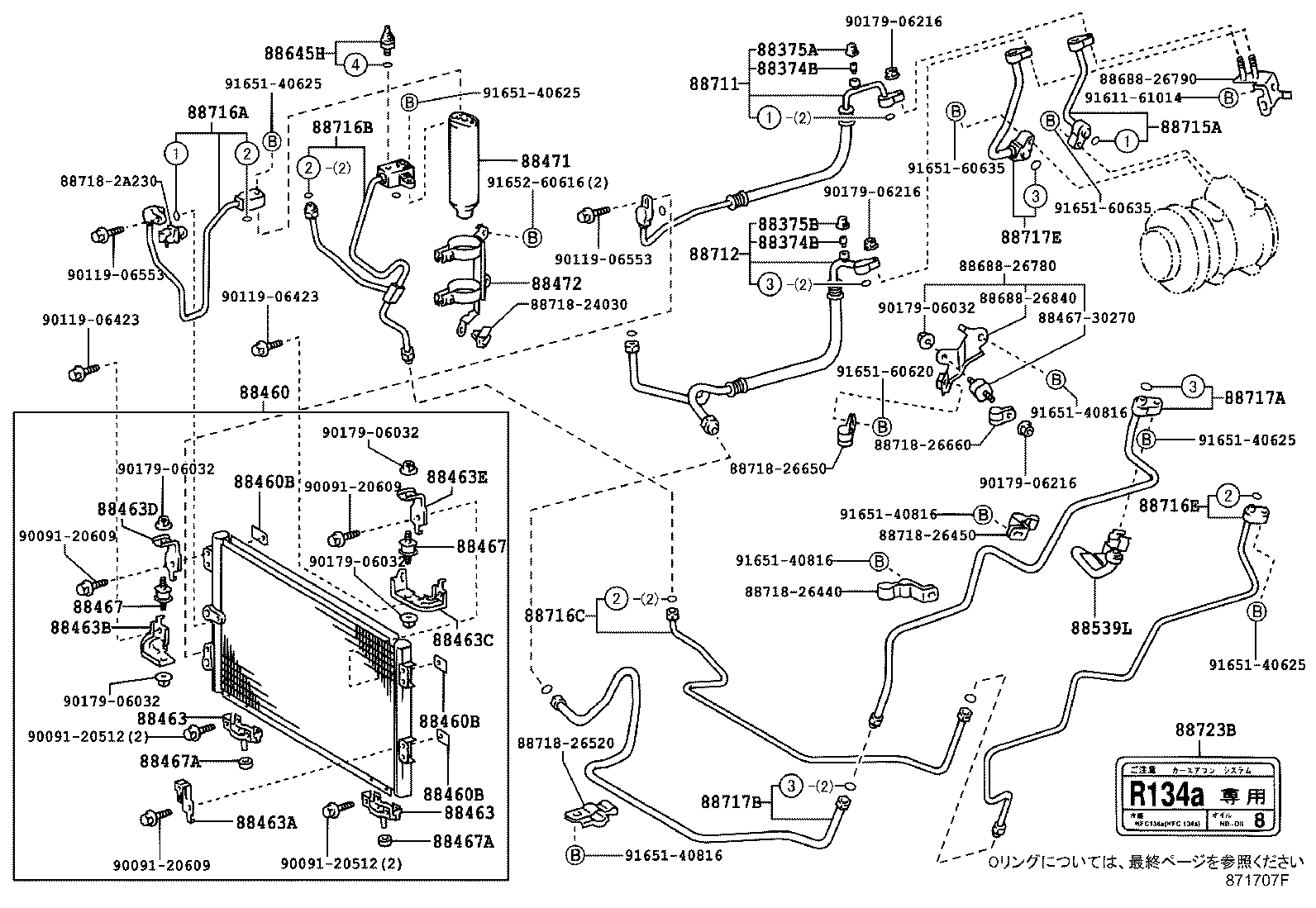

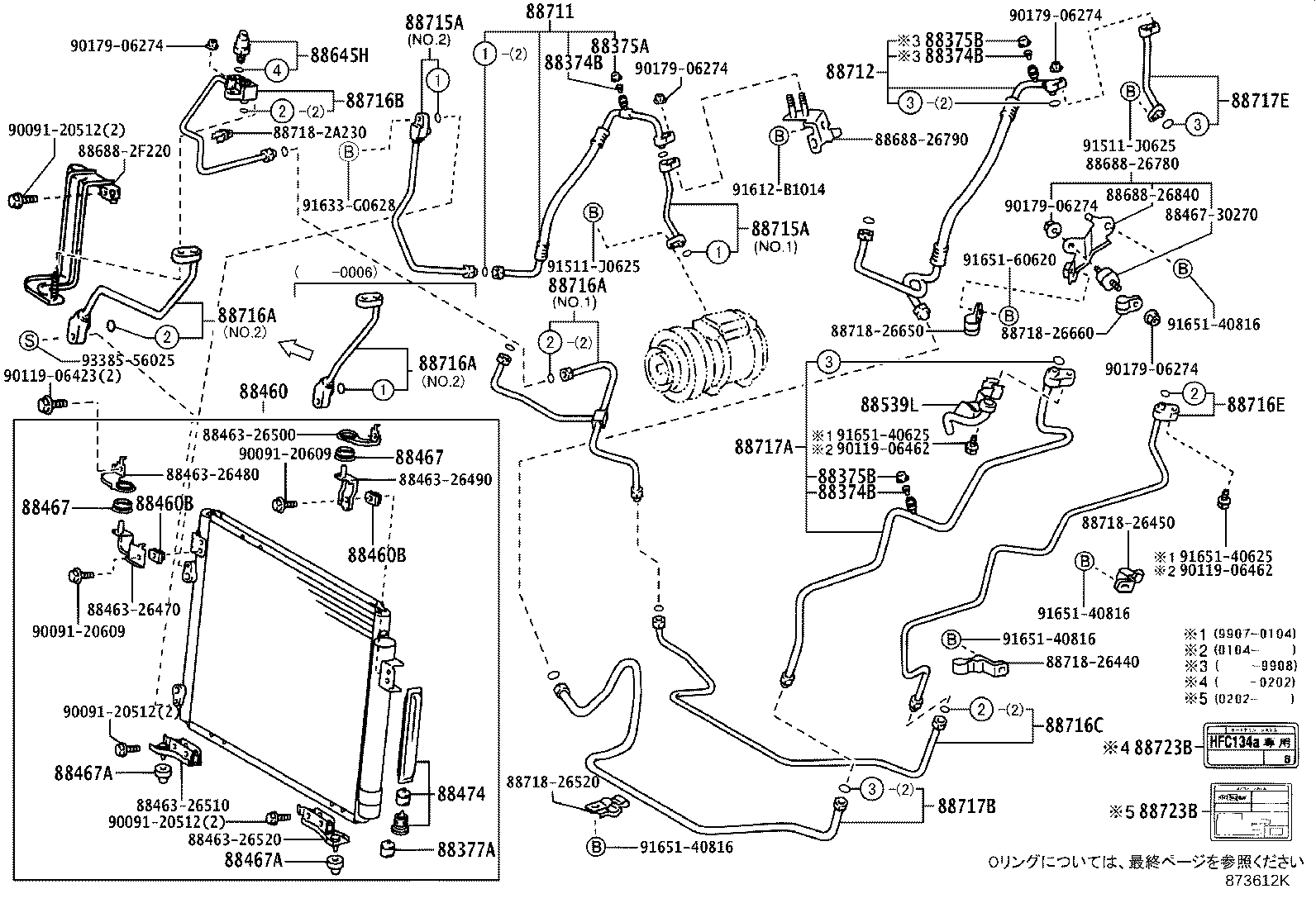

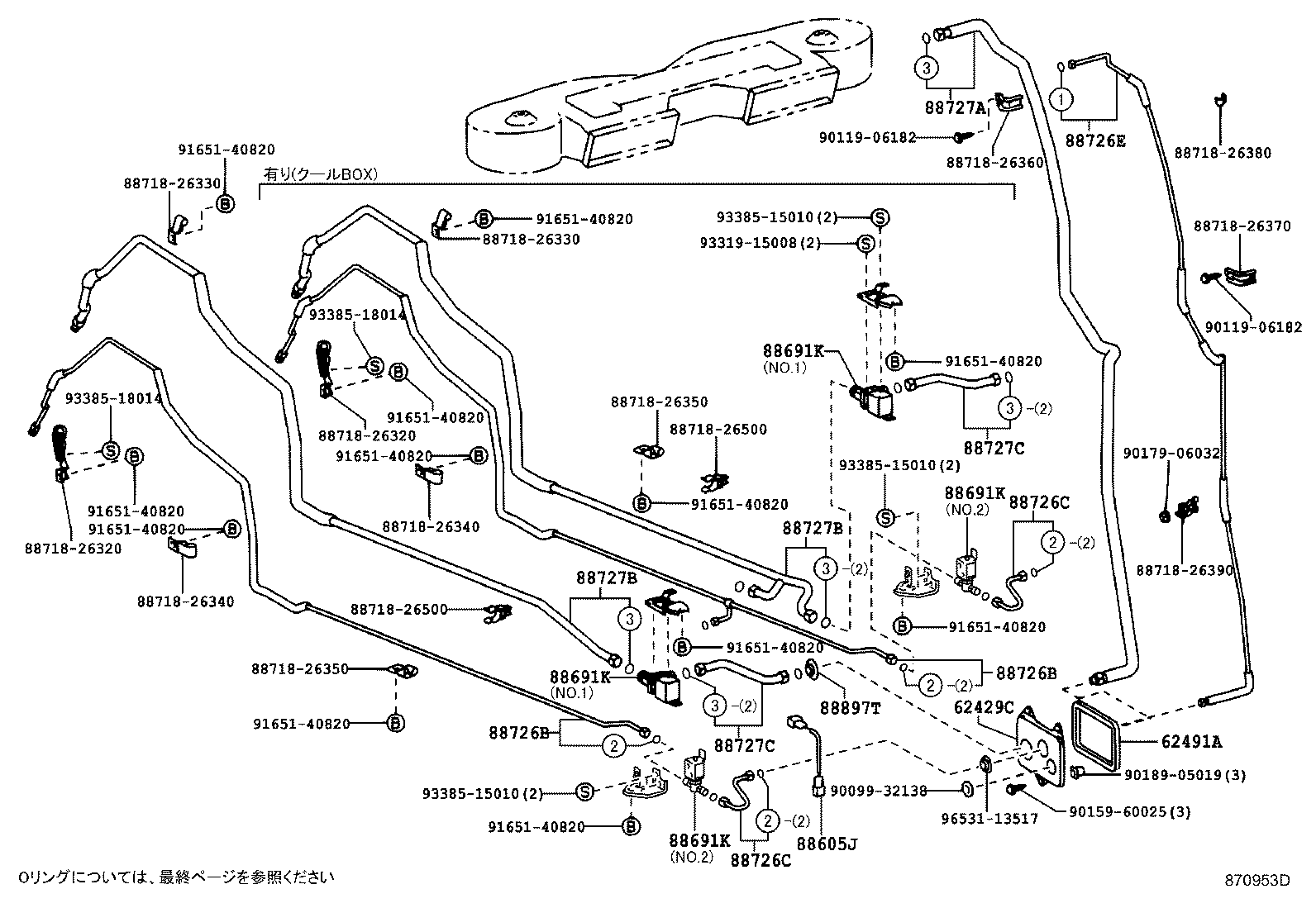

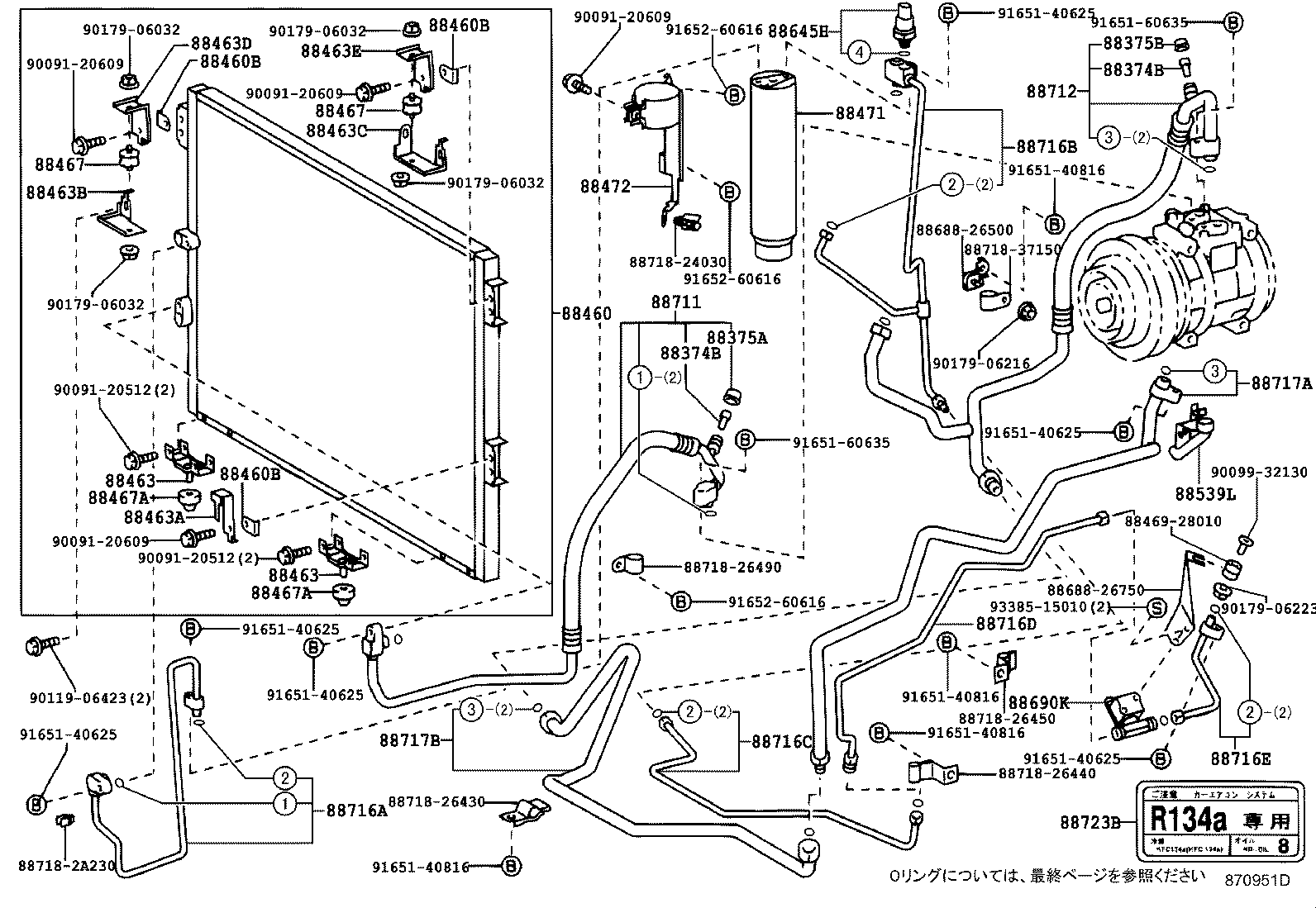

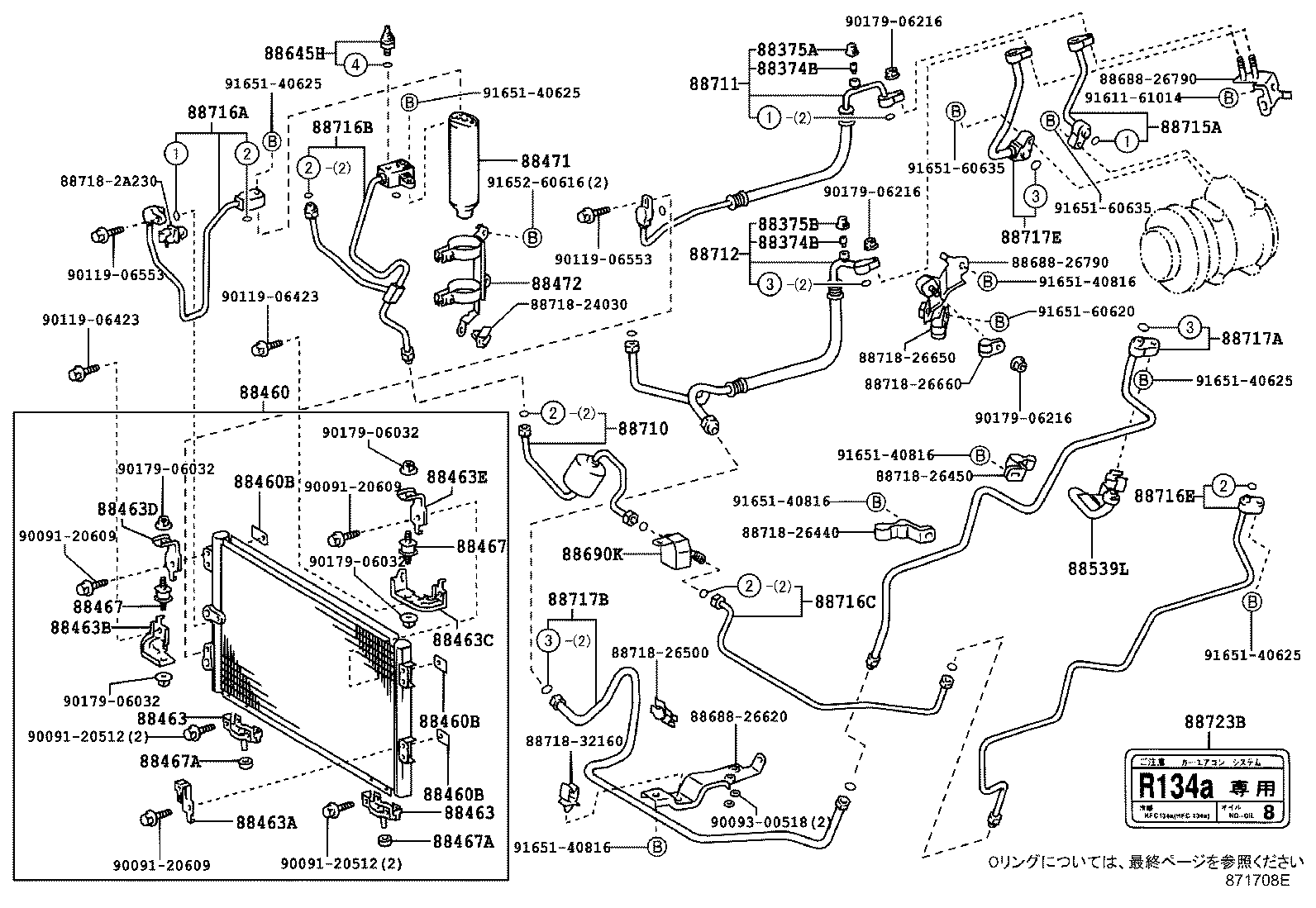

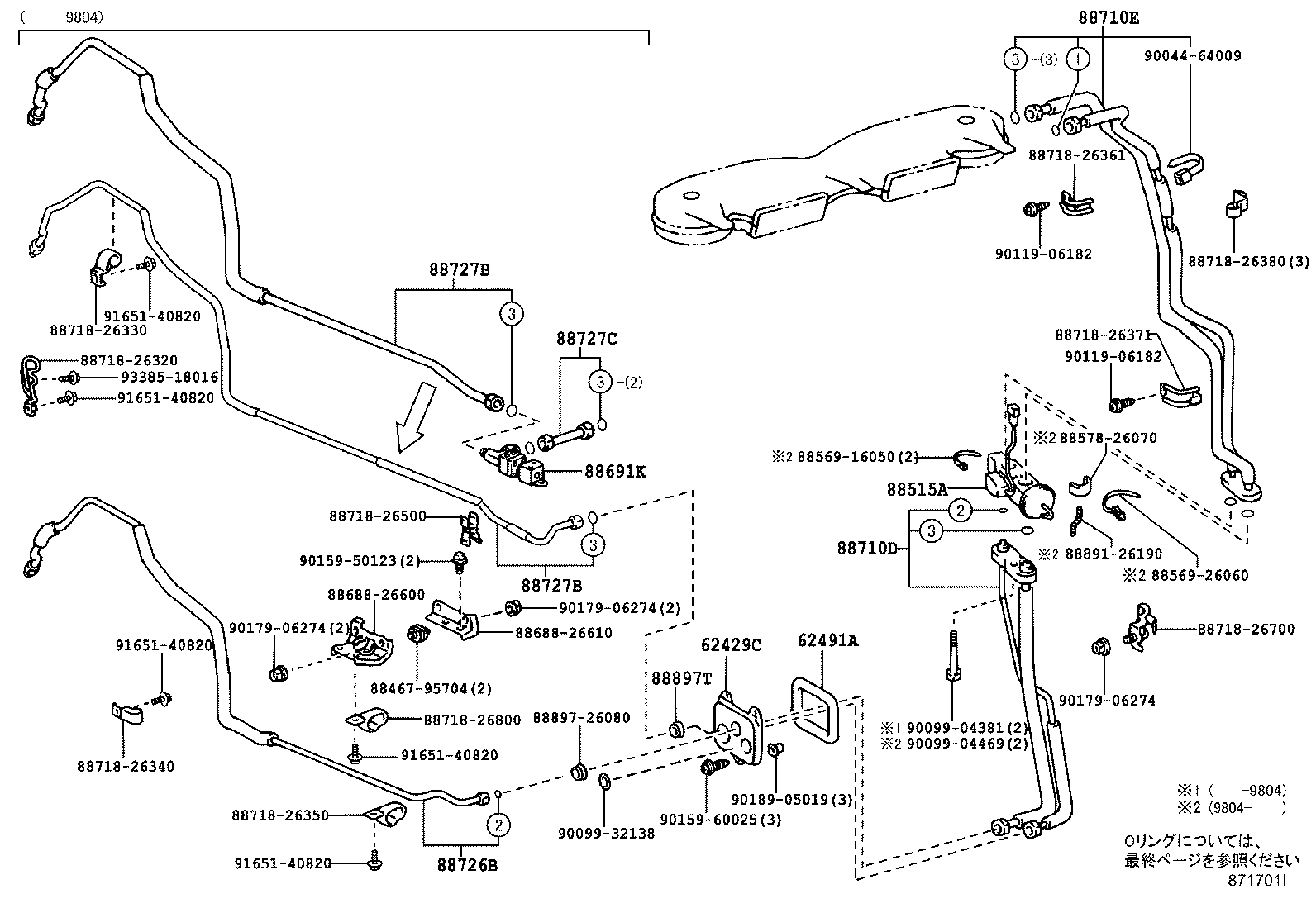

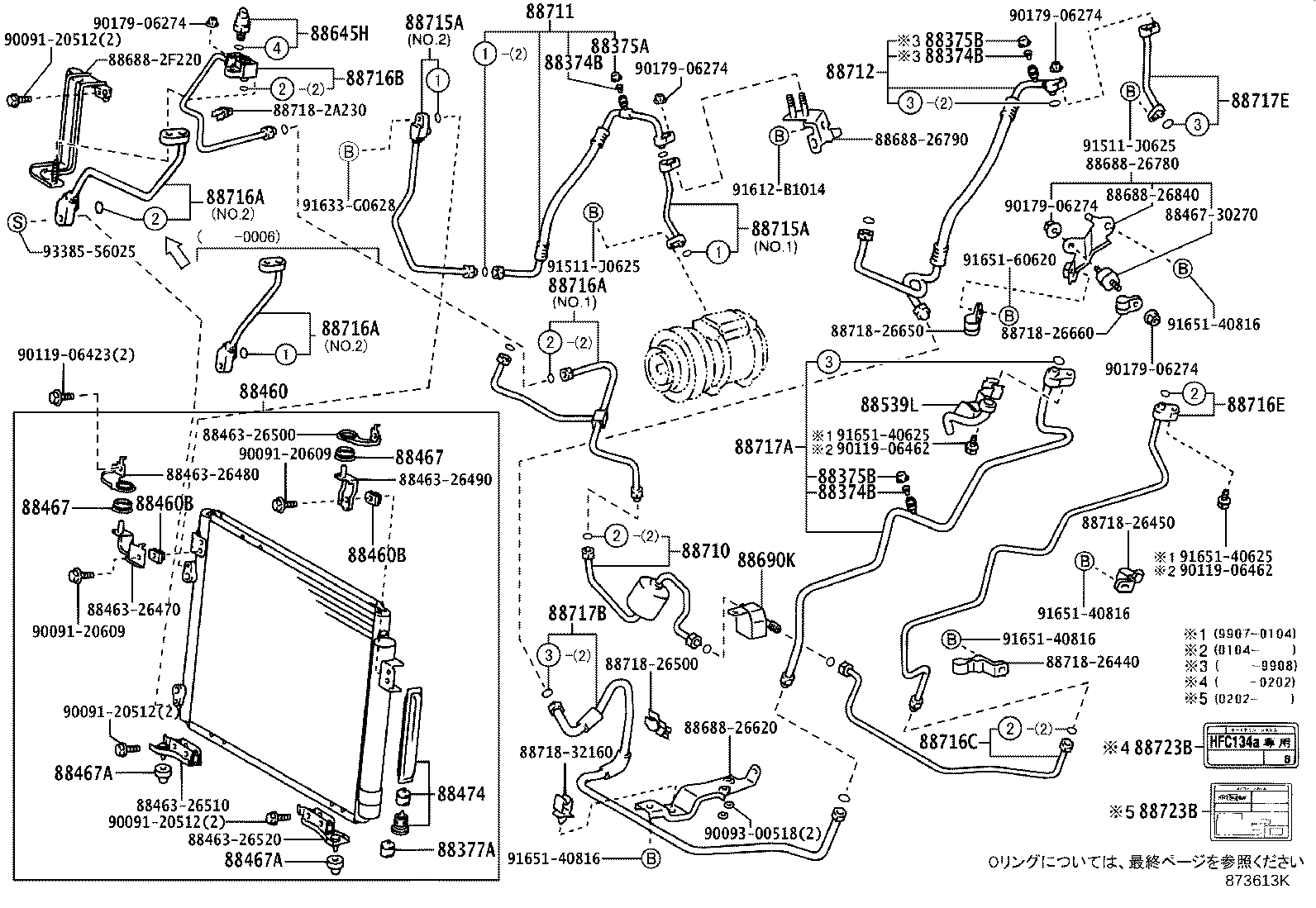

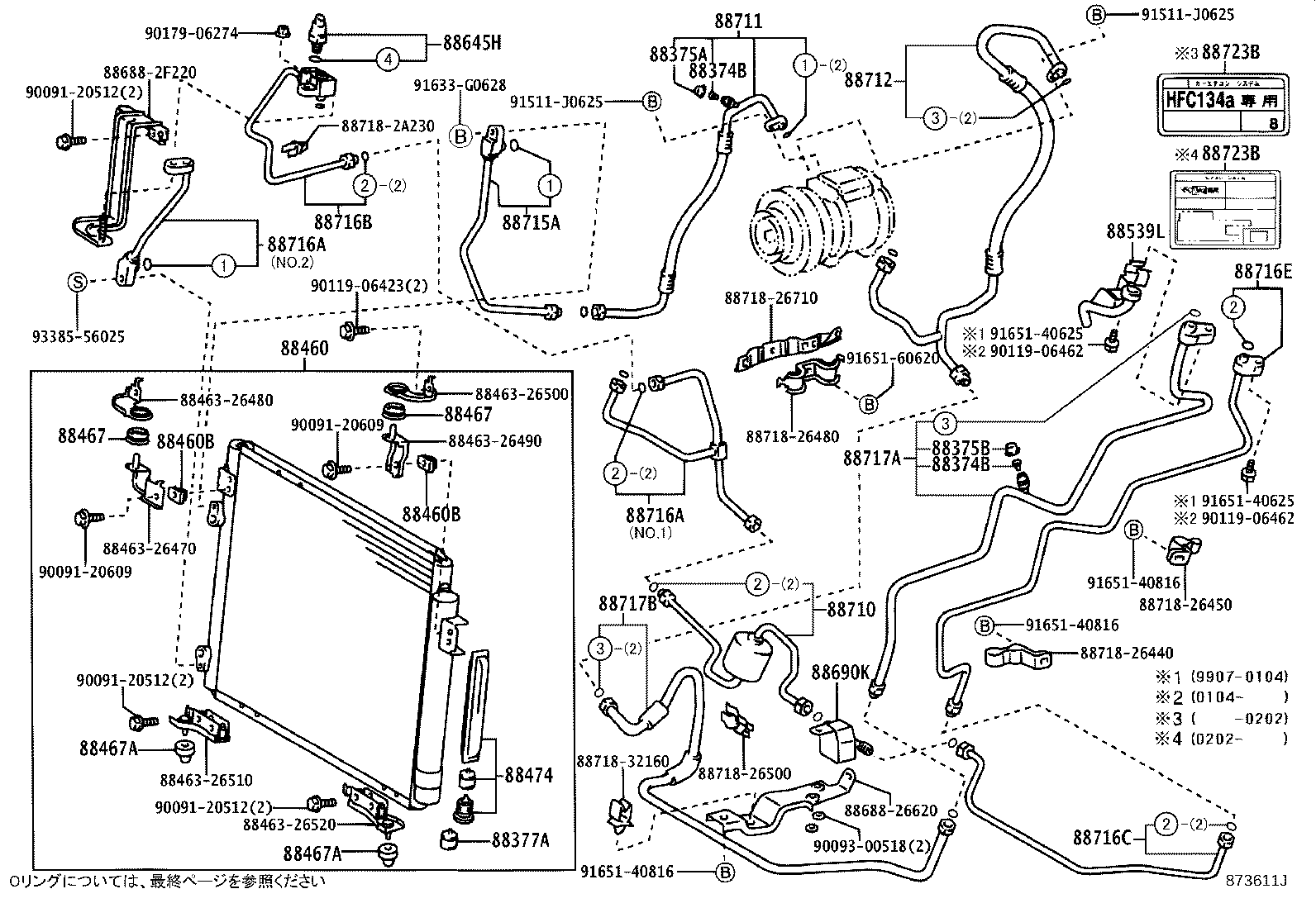

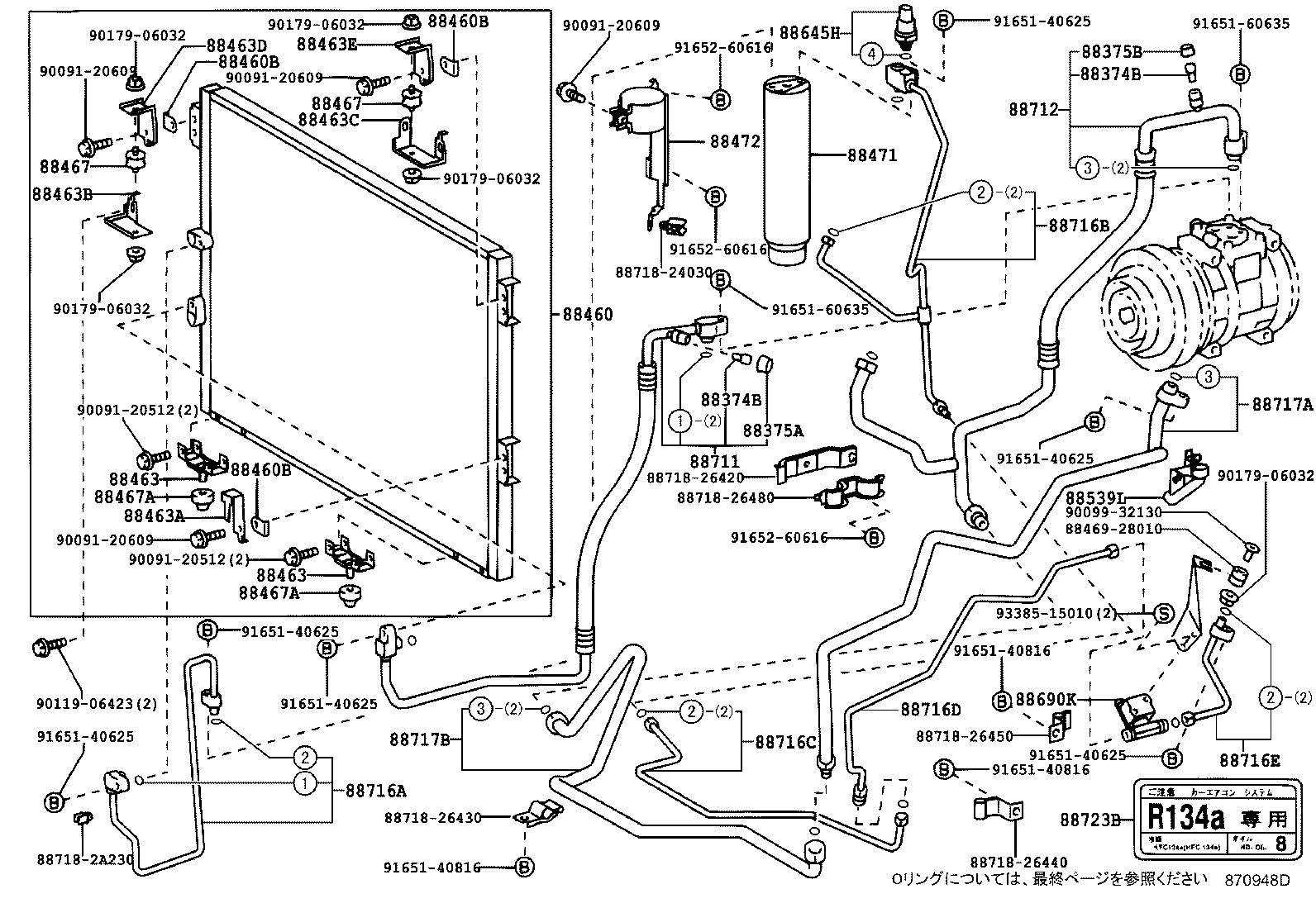

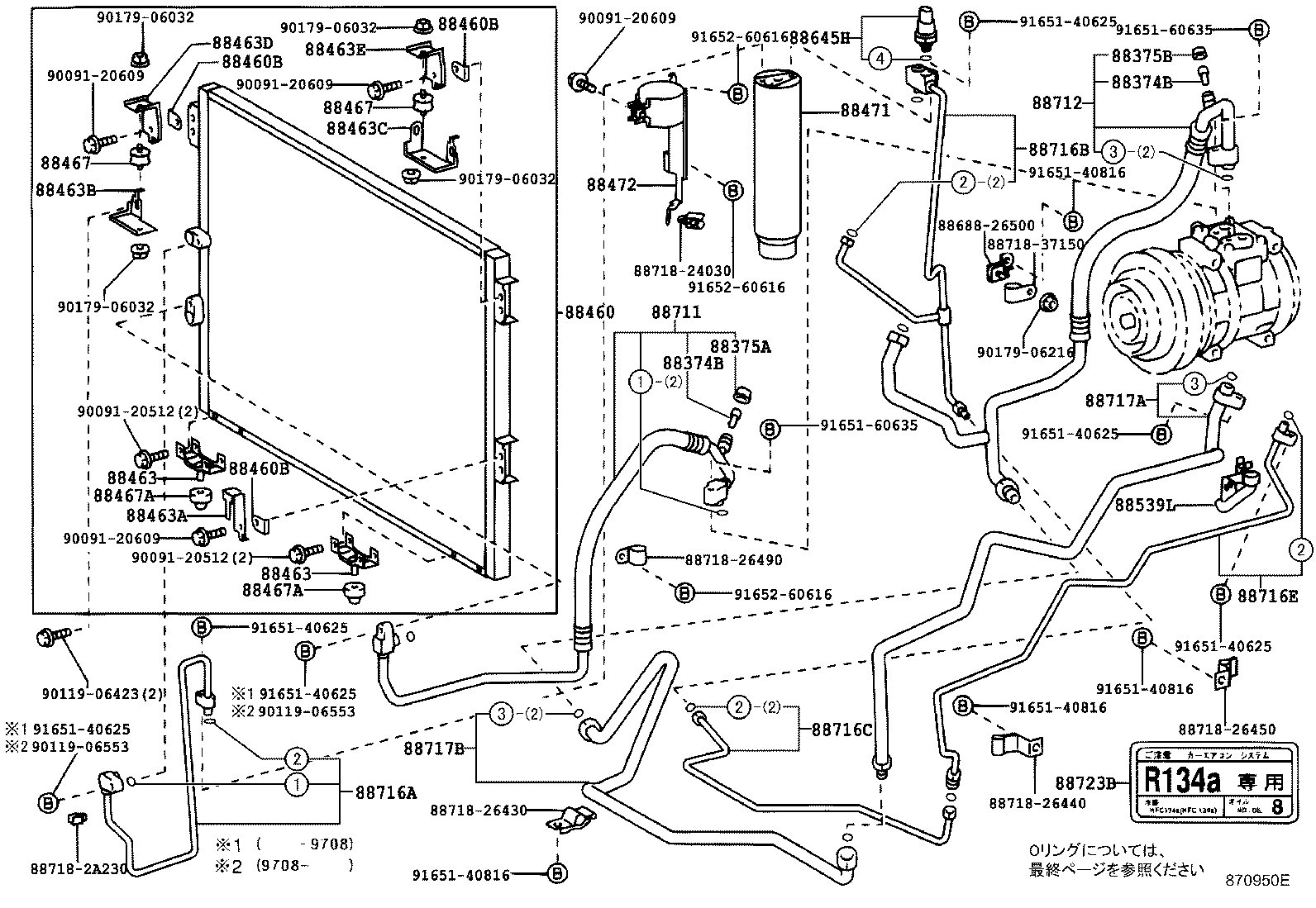

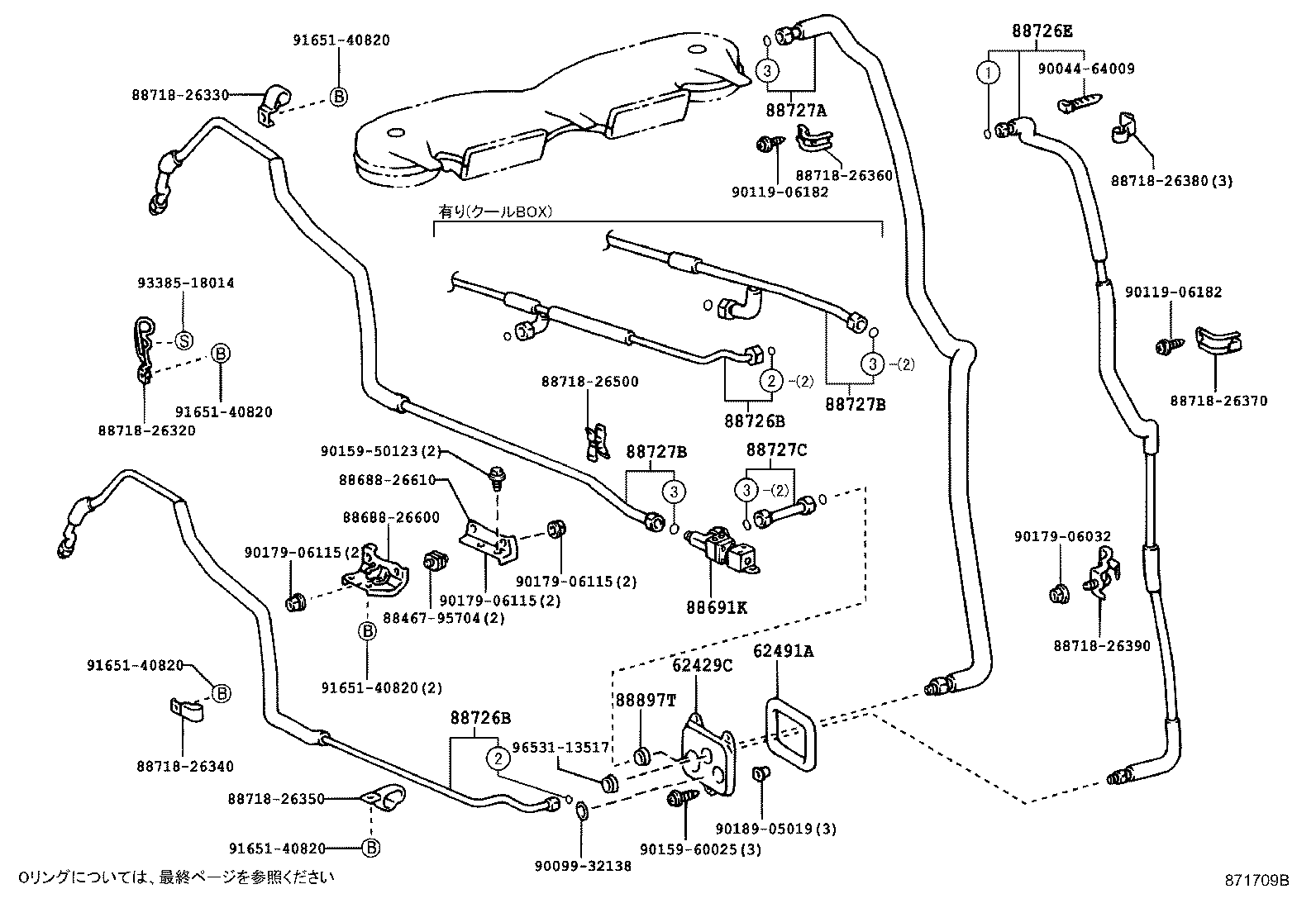

Figure 870947E 870947E 1995-08 → 1999-07 Figure 873610H 873610H 1999-07 → 2002-05 Figure 870948D 870948D 1995-08 → 1996-05 Figure 870949E 870949E 1996-05 → 1999-07 Figure 873611J 873611J 1999-07 → 2002-05 Figure 870950E 870950E 1995-08 → 1998-04 Figure 870951D 870951D 1995-08 → 1996-05 Figure 870952E 870952E 1996-05 → 1998-04 Figure 871707F 871707F 1997-08 → 1999-07 Figure 873612K 873612K 1999-07 → — Figure 871708E 871708E 1997-08 → 1999-07 Figure 873613K 873613K 1999-07 → 2002-05 Figure 870953D 870953D 1995-08 → 1996-05 Figure 871709B 871709B 1996-05 → 1997-03 Figure 871701I 871701I 1997-03 → — Figure 87F479A 87F479A 1997-03 → — Figure 871702H 871702H 1997-08 → 2002-05 Figure 873615C 873615C 1995-08 → — Figure 870975A 870975A 1995-08 → —

Part groups

PNCDescription
62429C Cover, Center Pillar Service Hole
62491A Packing, Center Pillar Servise Hole Cover, Upper
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88377A Filter, Refrigerant
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4
88463D Bracket, Cooler Condenser, NO.5
88463E Bracket, Cooler Condenser, NO.6
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88474 Dryer, Cooler
88515A Valve, Cooler Expansion
88539L Hose, Drain Cooler
88605J Harness Sub-assy, Air Conditioner Wiring
88645H Switch, Pressure NO.1
88690K Valve Assy, Magnet
88691K Valve Assy, Magnet
88691Z Valve, Magnet (COOL BOX)
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88710D Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717E Pipe, Cooler Refrigerant Suction, E
88723B Label, Cooler Service Caution
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88726E Pipe, Cooler Refrigerant Liquid, E
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
88736A Tube, Liquid, A(FOR COOL BOX)
88736B Tube, Liquid, B(FOR COOL BOX)
88736E Tube, Liquid, E(FOR COOL BOX)
88737A Tube, Suction, A(FOR COOL BOX)
88737B Tube, Suction, B(FOR COOL BOX)
88897T Grommet, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
