Toyota Alphard G/V

2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

6 part groups · 2 illustrations

Illustrations

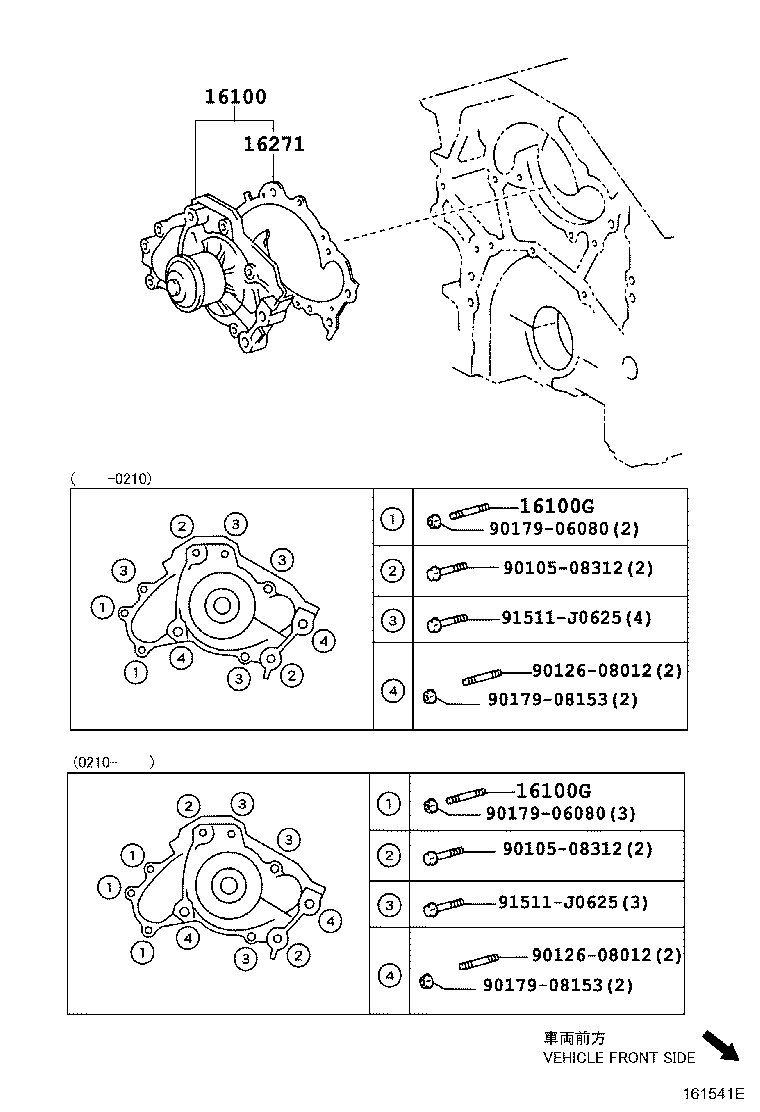

Figure 161538V 161538V 2002-05 → — Figure 161541E 161541E 2002-05 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100G Bolt, Stud(FOR WATER PUMP SET)
16173 Pulley, Water Pump
16271 Gasket, Water Pump
16601 Tensioner Sub-assy, V-ribbed Belt
16620 Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
