Vane Pump & Reservoir (POWER STEERING)

16 part groups · 3 illustrations

Illustrations

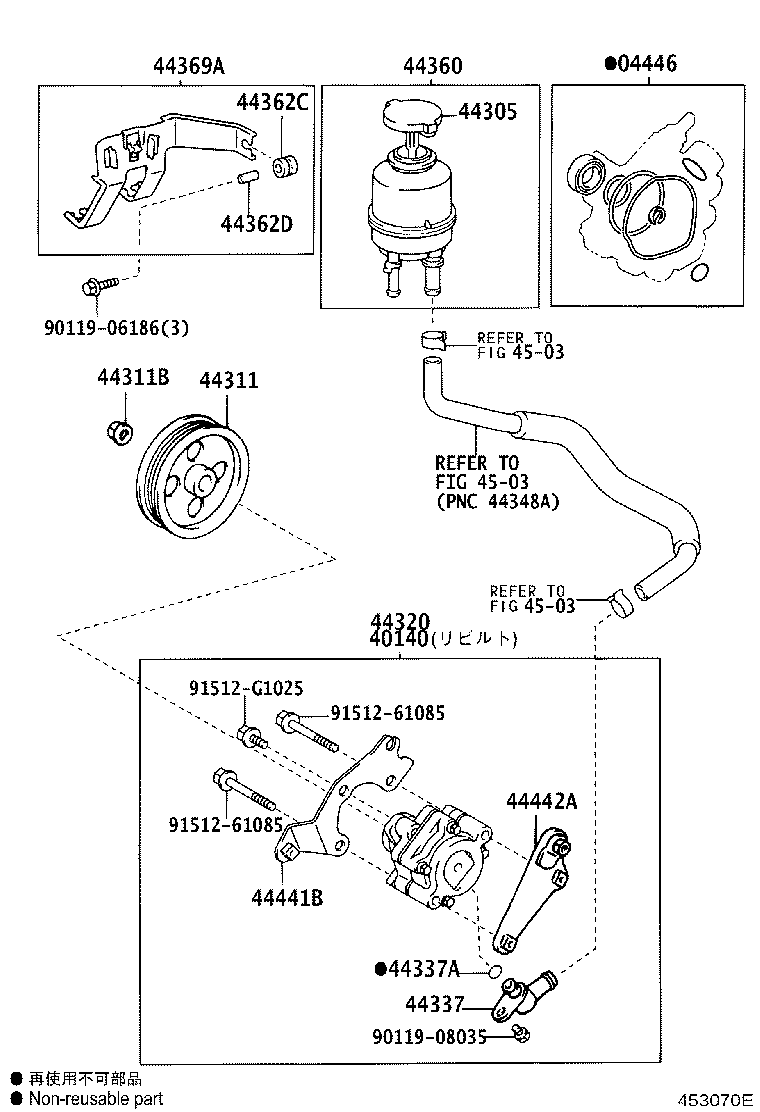

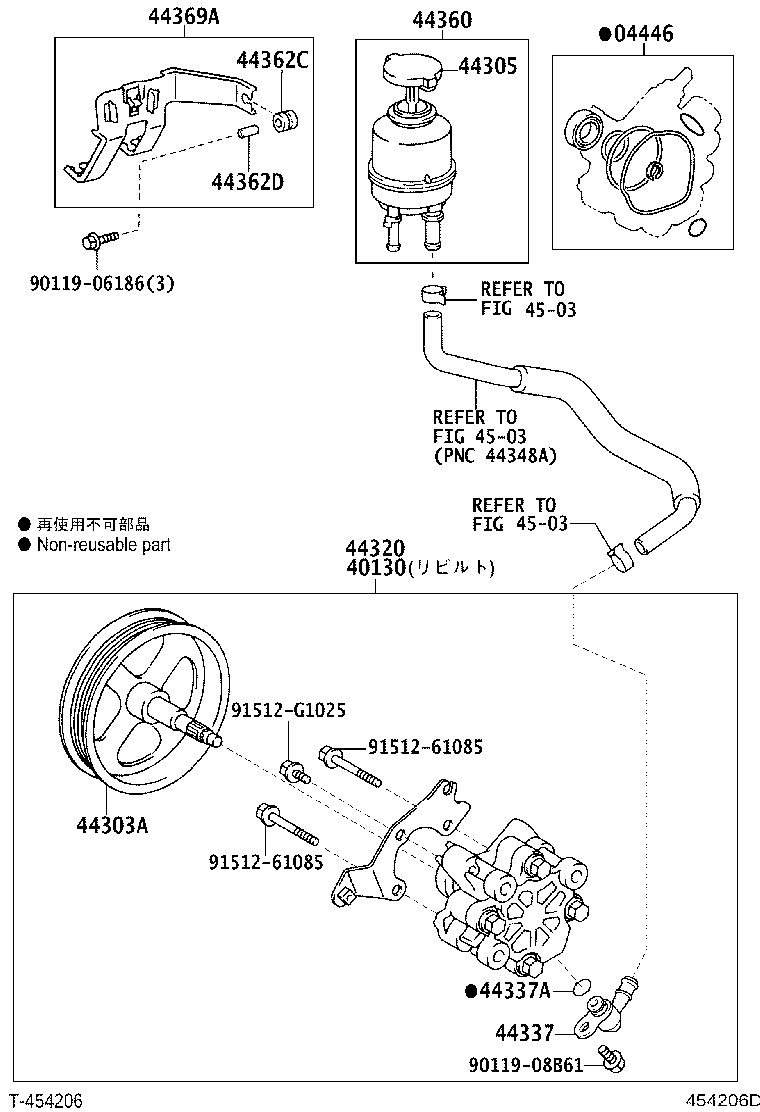

Figure 453069C 453069C 2002-05 → — Figure 453070E 453070E 2002-05 → 2005-04 Figure 454206D 454206D 2005-04 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
40130 Pump Assy,Vane Rebuilt
40140 Pump Assy,Vane Rebuilt
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44311 Pulley, Vane Pump
44311B Nut(FOR VANE PUMP PULLEY)
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44362C Cushion(FOR VANE PUMP OIL RESERVOIR)
44362D Spacer(FOR VANE PUMP OIL RESERVOIR)
44369A Bracket, Oil Reservoir, NO.1
44441B Bracket, Pump, Front
44442A Bracket, Vane Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
