Brake Master Cylinder

10 part groups · 2 illustrations

Illustrations

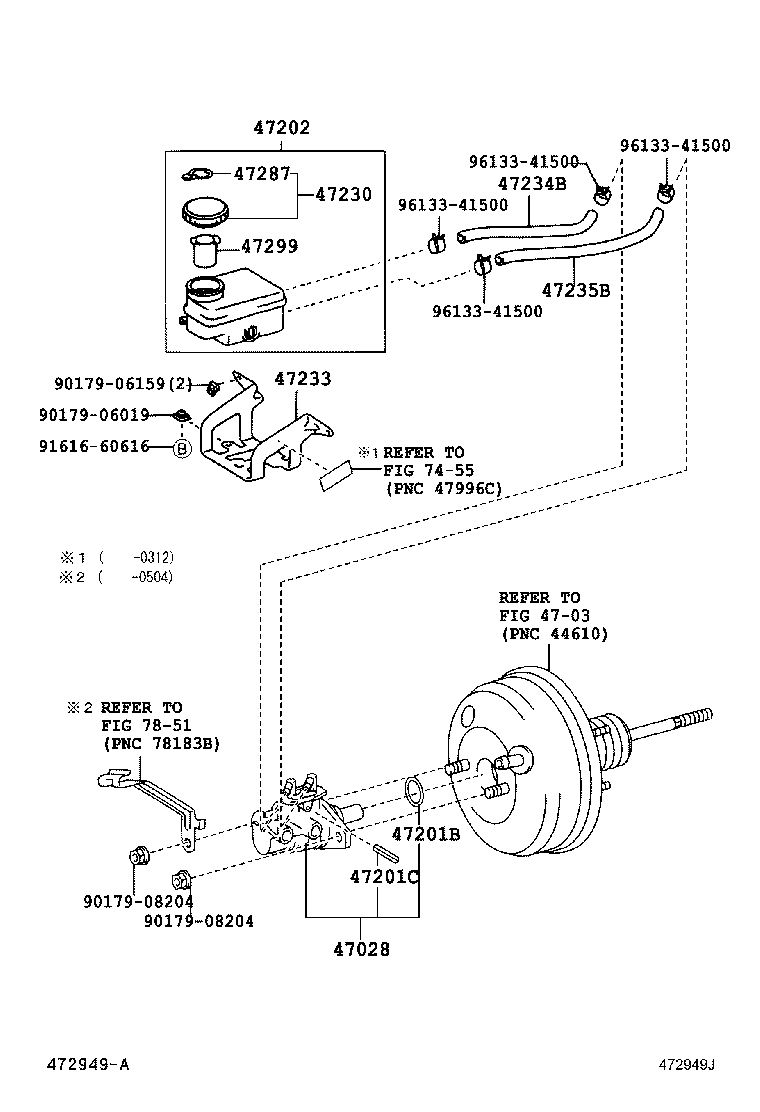

Figure 472948H 472948H 2002-05 → — Figure 472949J 472949J 2002-05 → —

Part groups

PNCDescription
47028 Cylinder Sub-assy, Brake Master W/Plate
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47201C Ring Pin, Brake Master Cylinder
47202 Reservoir Sub-assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 Bracket, Reservoir
47234B Tube, Reservoir, NO.1
47235B Tube, Brake Master Cyrinder Reservoir, NO.2
47287 Label, Brake Fluid Information
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
